Rear Door Window Regulator: Testing and Inspection

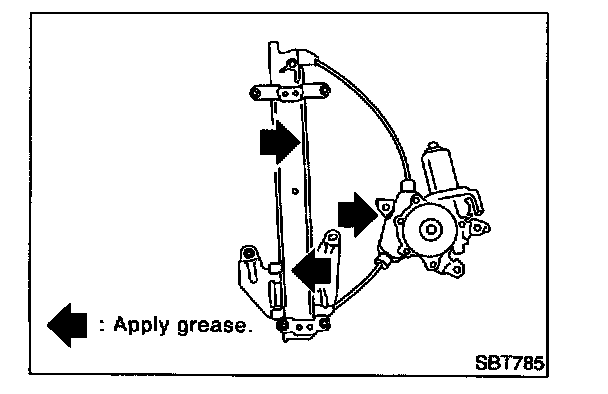

Check regulator assembly for the following parts. Replace faulty parts with new ones.
- Wire for wear
- Regulator for deformation
- Sliding parts for lubrication
