Home >> Nissan-Datsun >> 2001 >> Maxima GXE V6-3.0L (VQ30DE) >> Repair and Diagnosis >> Windows and Glass >> Windows >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Symptom Diagnostic Procedures

Symptom Diagnostic Procedures

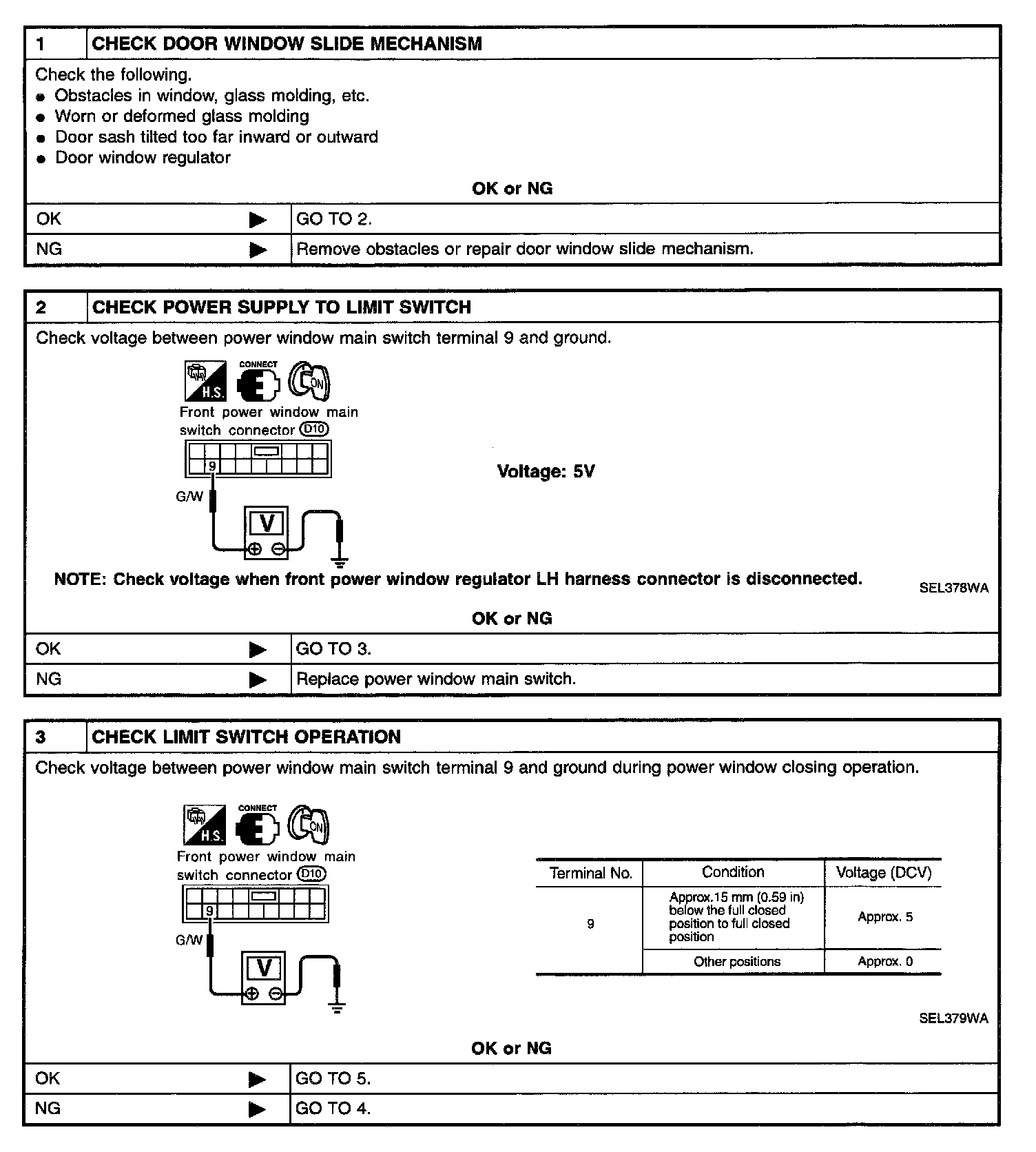

Encoder And Limit Switch Check (Steps 1 - 3):

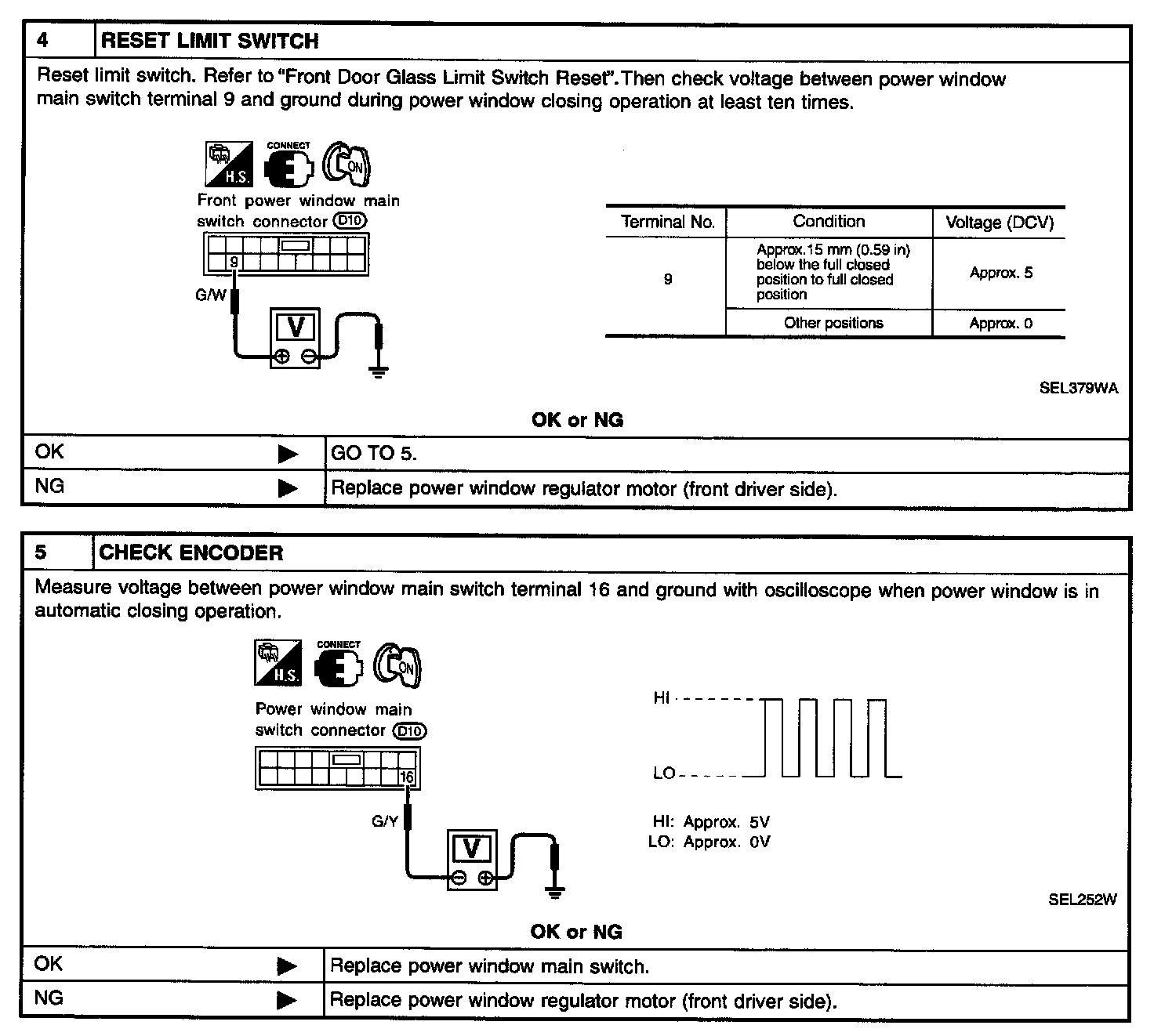

Encoder And Limit Switch Check (Steps 4 - 5):
