FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Nissan-Datsun
>>
2001
>>
Maxima GXE V6-3.0L (VQ30DE)
>>
Repair and Diagnosis
>>
Windows and Glass
>>
Windows
>>
Diagrams
>>
Electrical Diagrams
>>
EL-WINDOW
EL-WINDOW

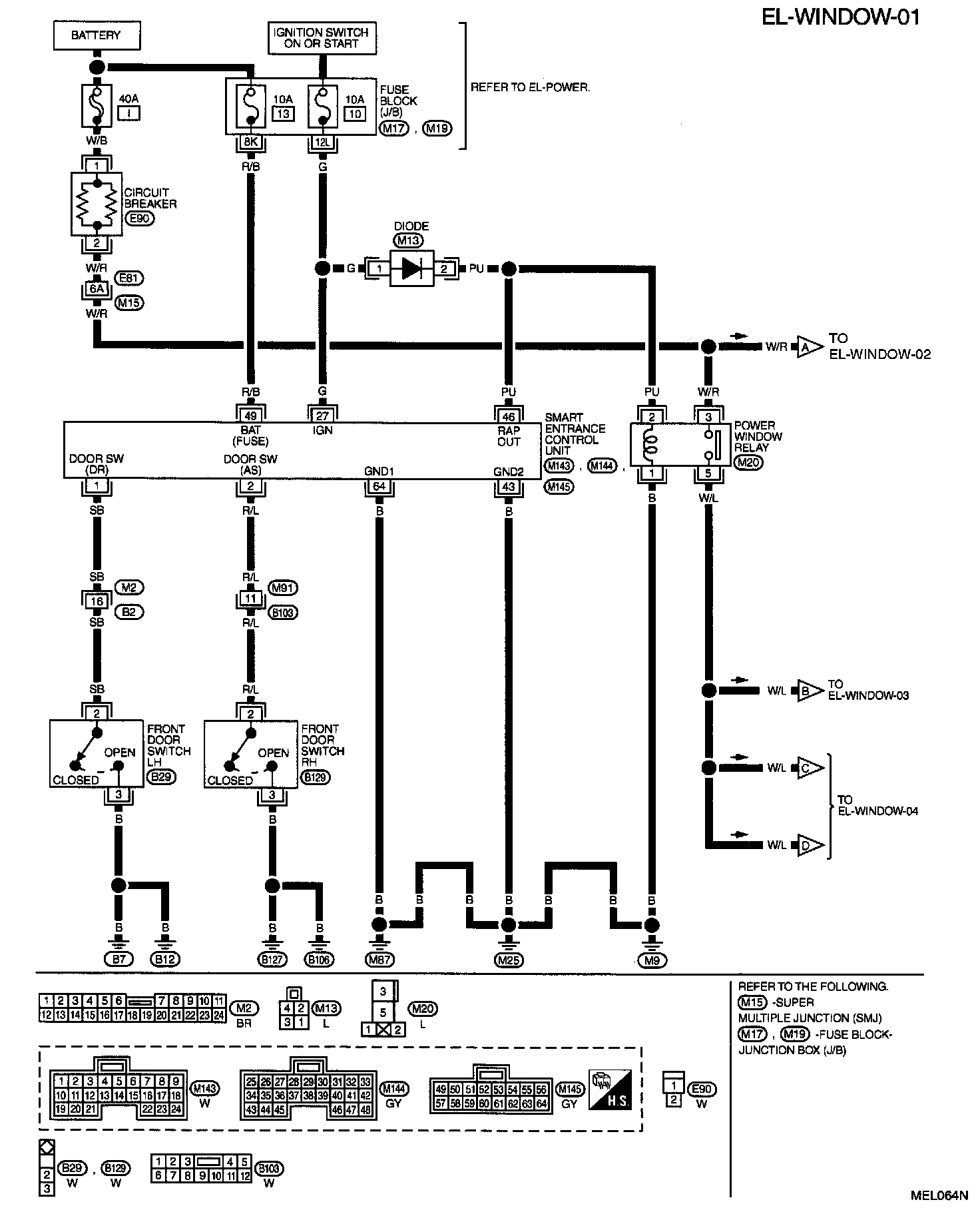

EL-WINDOW-01:

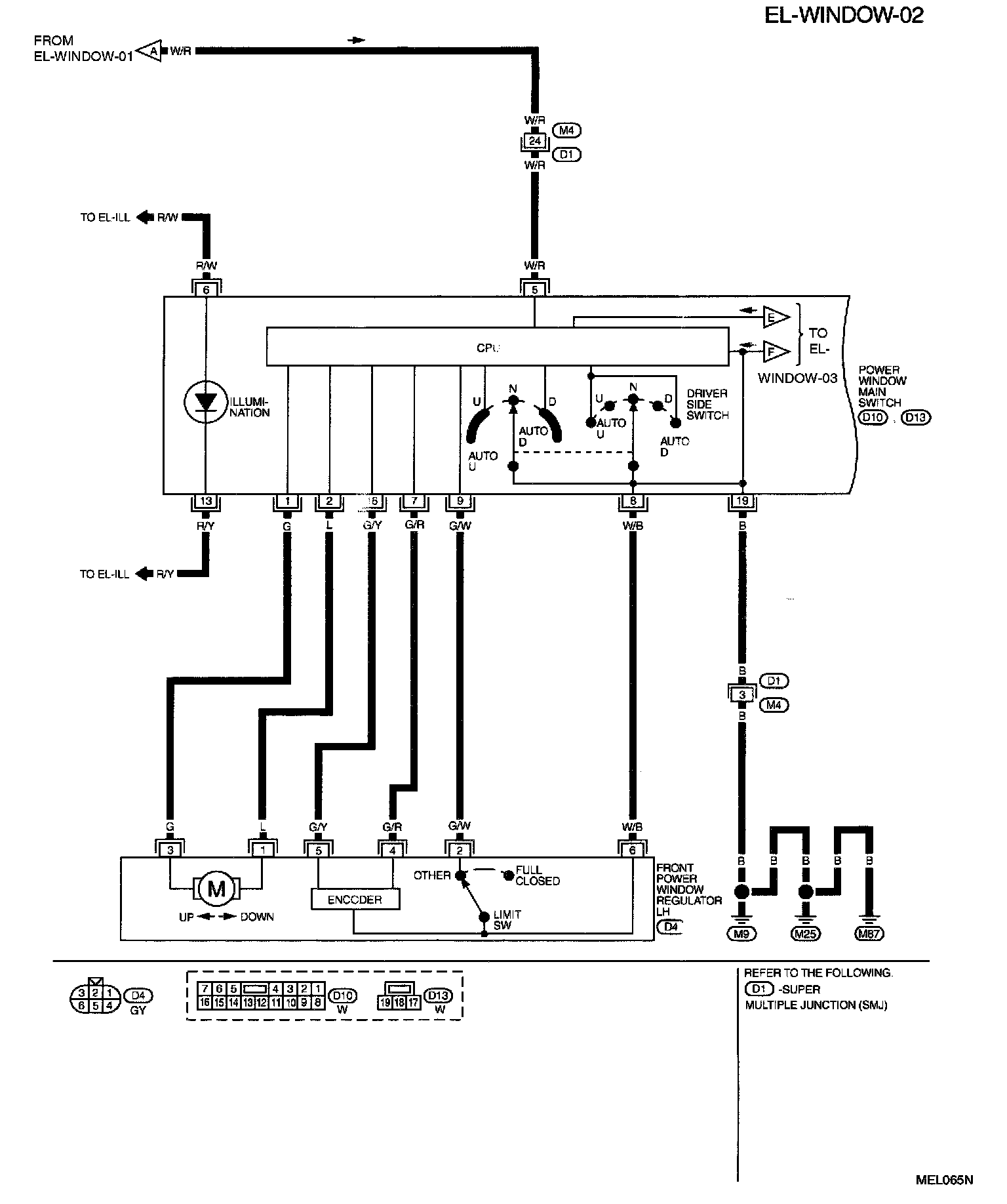

EL-WINDOW-02:

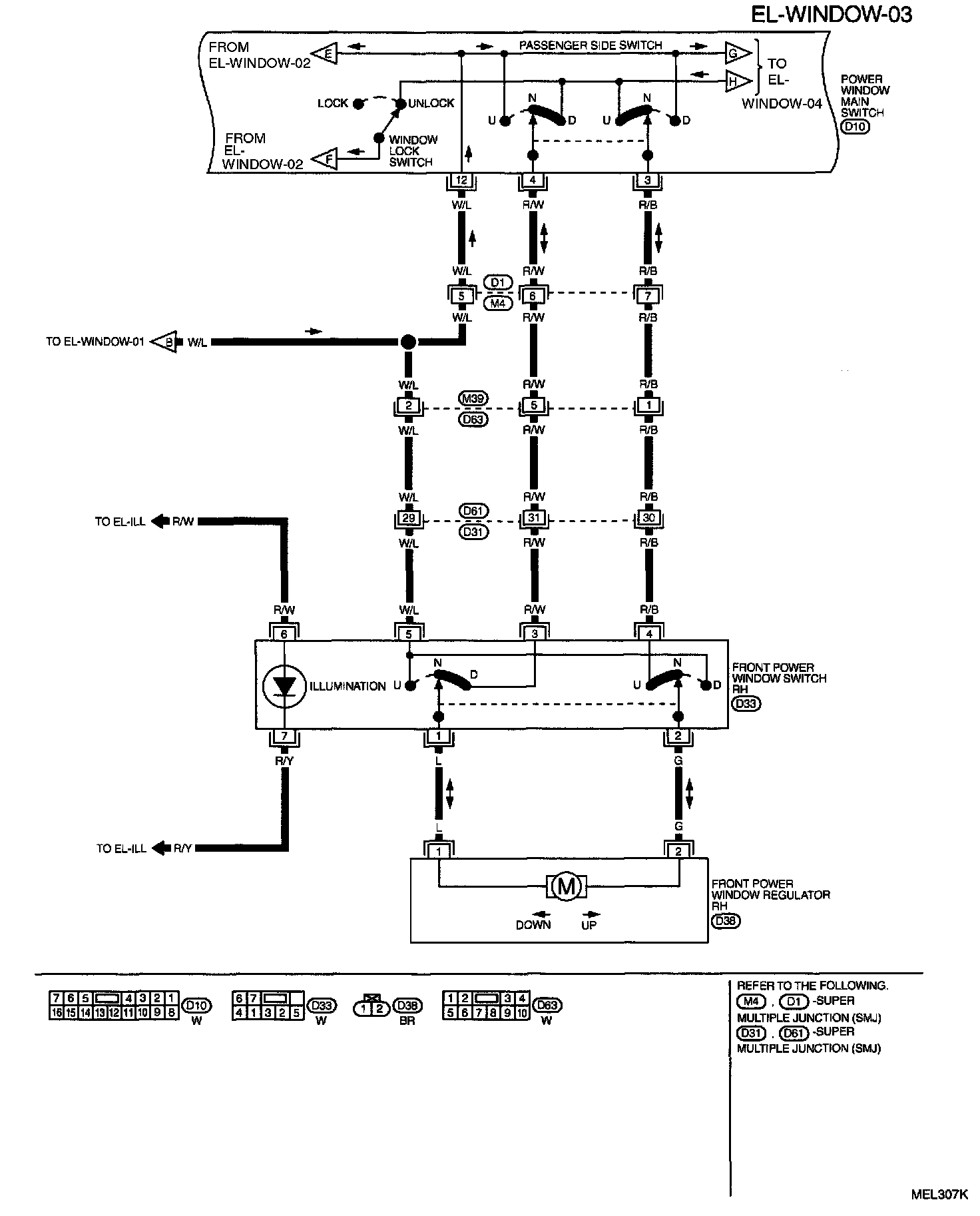

EL-WINDOW-03:

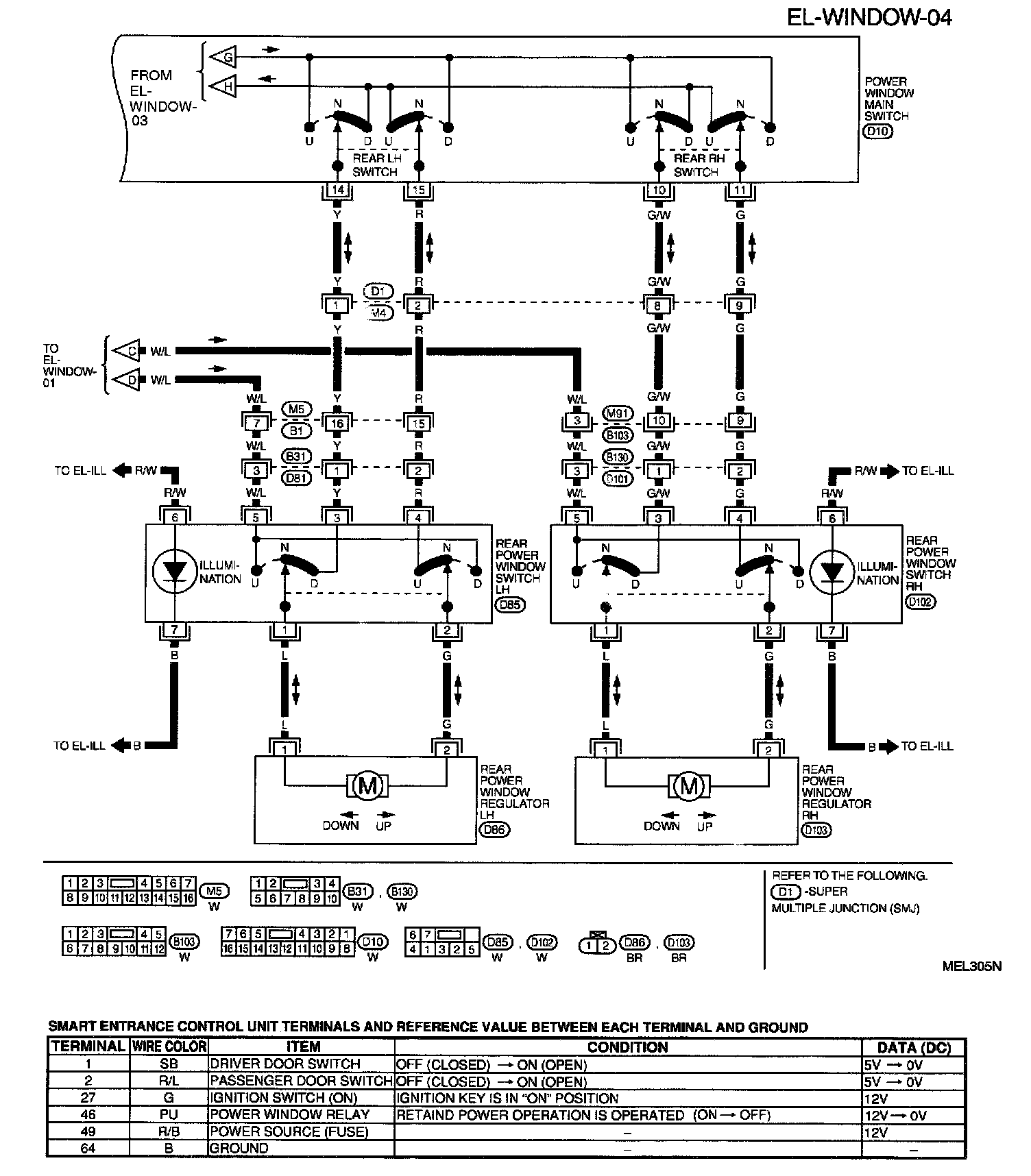

EL-WINDOW-04:
