Electrical Components Inspection

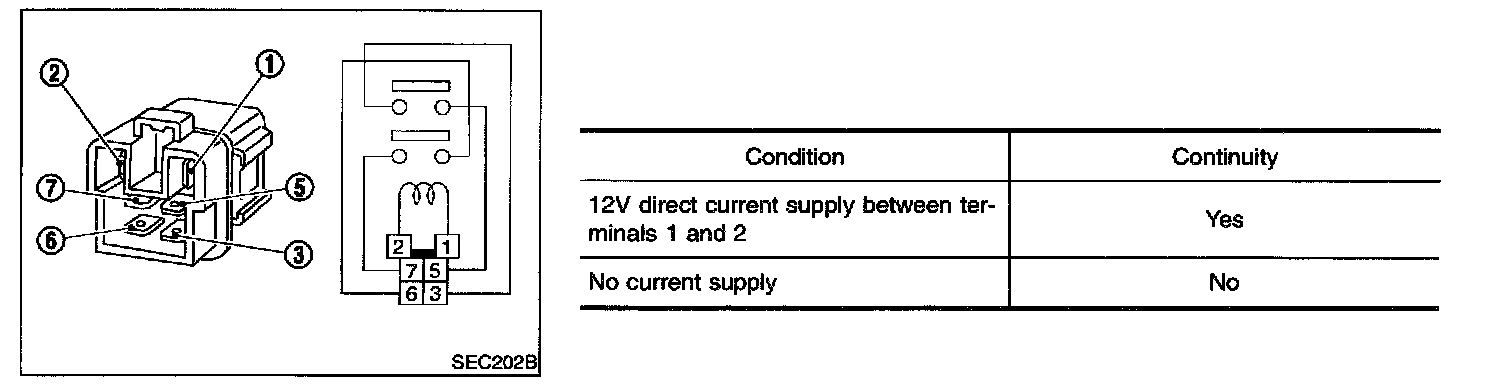

REAR WINDOW DEFOGGER RELAY
Check continuity between terminals 3 and 5, 6 and 7.

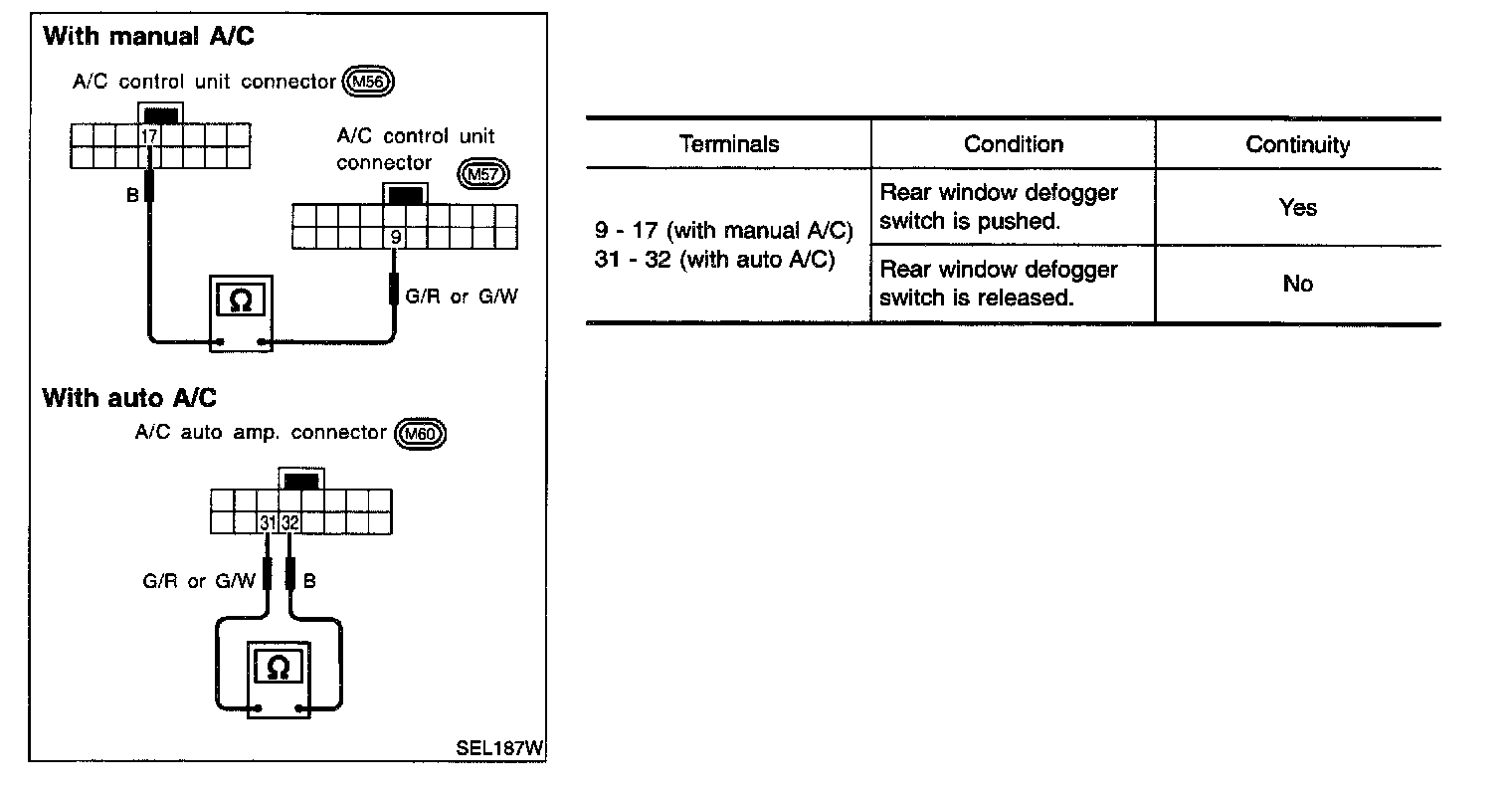

REAR WINDOW DEFOGGER SWITCH
Check continuity between terminals when rear window defogger switch is pushed and released.
