Home >> Nissan-Datsun >> 2001 >> Maxima GXE V6-3.0L (VQ30DE) >> Repair and Diagnosis >> Windows and Glass >> Heated Glass Element >> Locations

Heated Glass Element: Locations

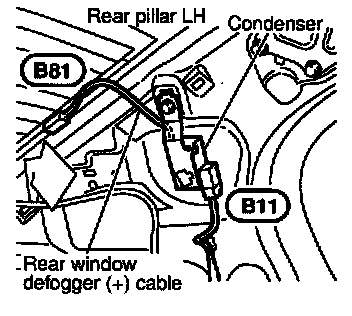

Condenser, Rear Window Defogger (+) Cable:

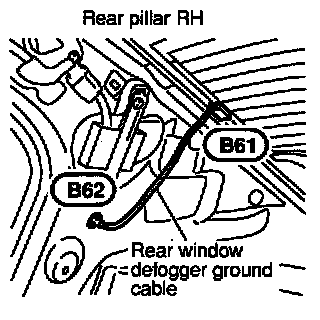

Rear Window Defogger Ground Cable:
