Case Components

REMOVAL AND INSTALLATION

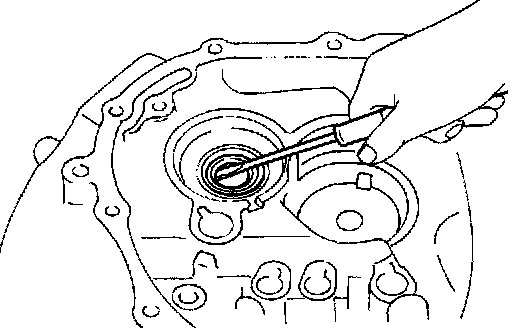

Input Shaft Oil Seal

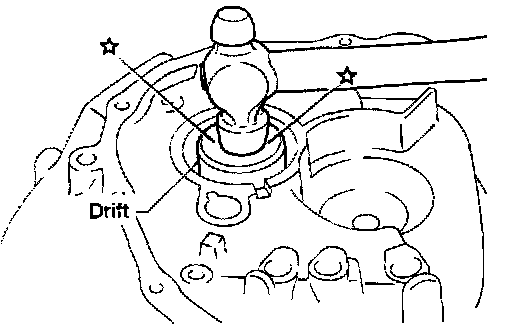

^ Apply multi-purpose grease to seal lip of oil seal before installing.

Mainshaft Front Bearing Outer Race

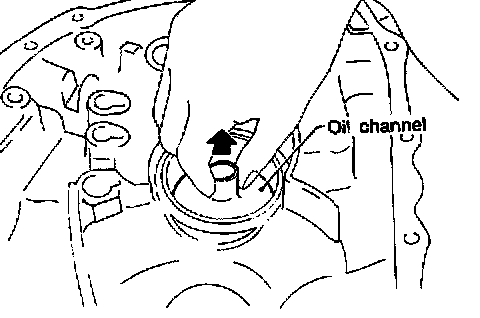

^ Extract the oil channel and remove the mainshaft front bearing outer race.
Mainshaft Rear Bearing Outer Race
Refer to "Mainshaft Bearing Preload", under Service and Repair; Transmission Overhaul; Adjustment.
Differential Side Bearing Outer Race
Refer to "Input Shaft End Play and Differential Side Bearing Preload", under Service and Repair; Transmission Overhaul; Adjustment.
