Front

FRONT WHEEL BEARING

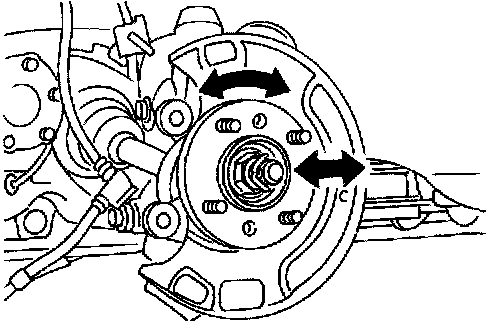

^ Check that wheel bearings operate smoothly.
^ Check axial end play.
Axial end play: 0.05 mm (0.0020 inch)
If out of specification or wheel bearing does not turn smoothly, replace wheel bearing assembly.
Refer to Wheel Hub; Service and Repair.
