Shift Interlock: Testing and Inspection

Diagnostic Procedure

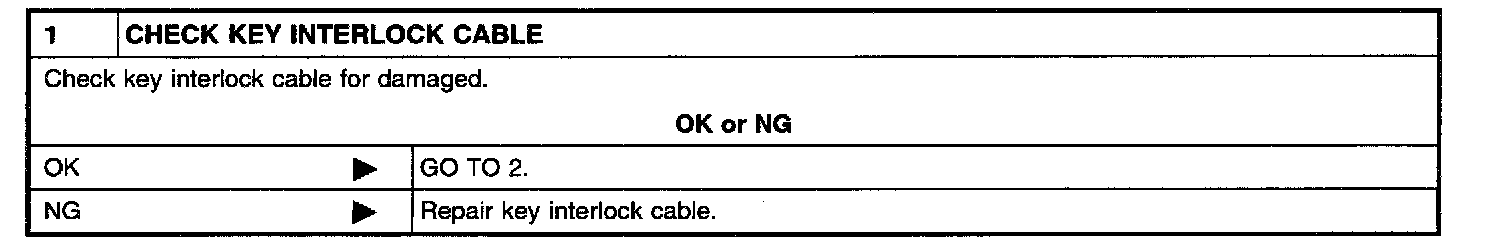

Chart 1

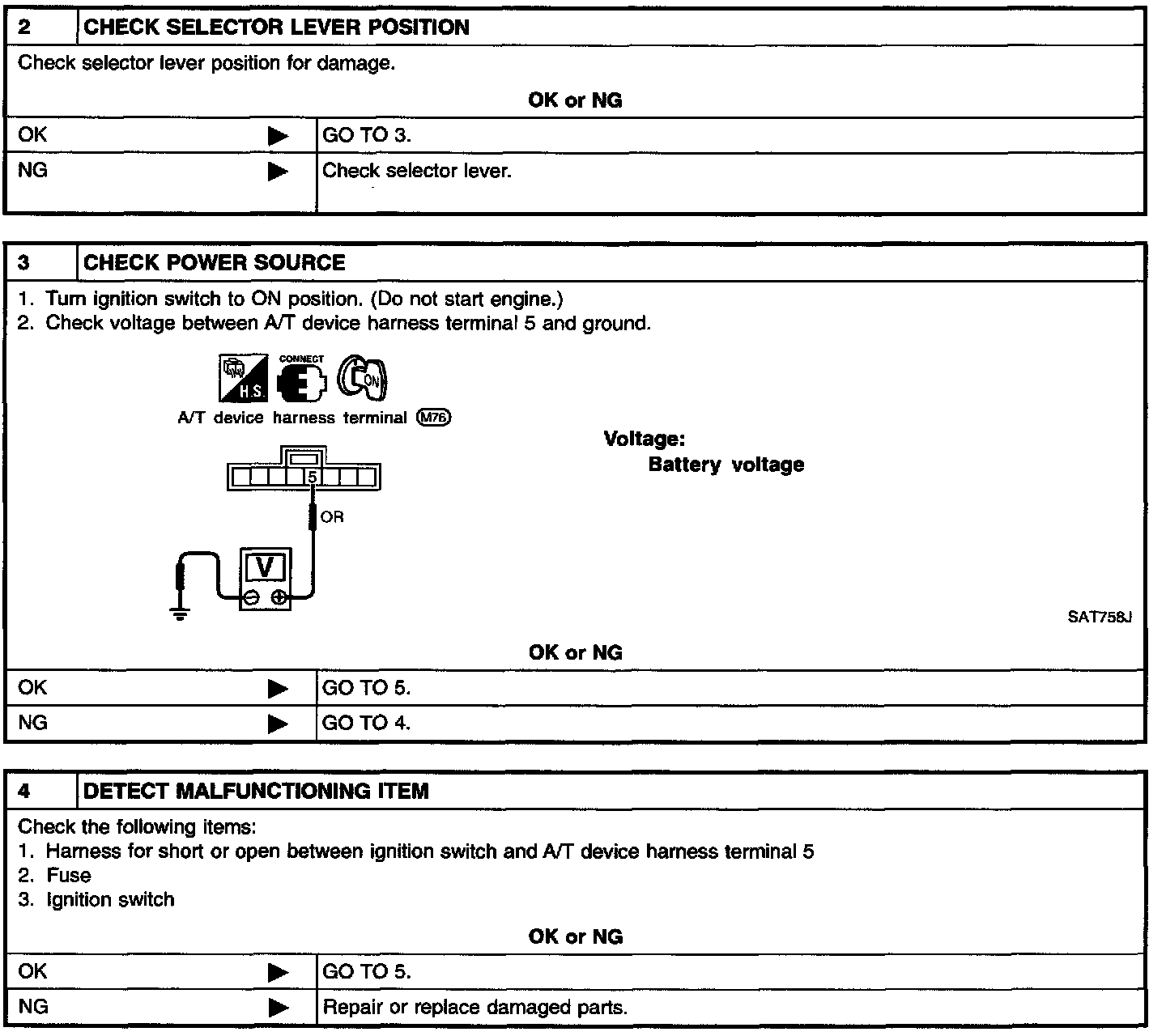

Chart 2 - 4

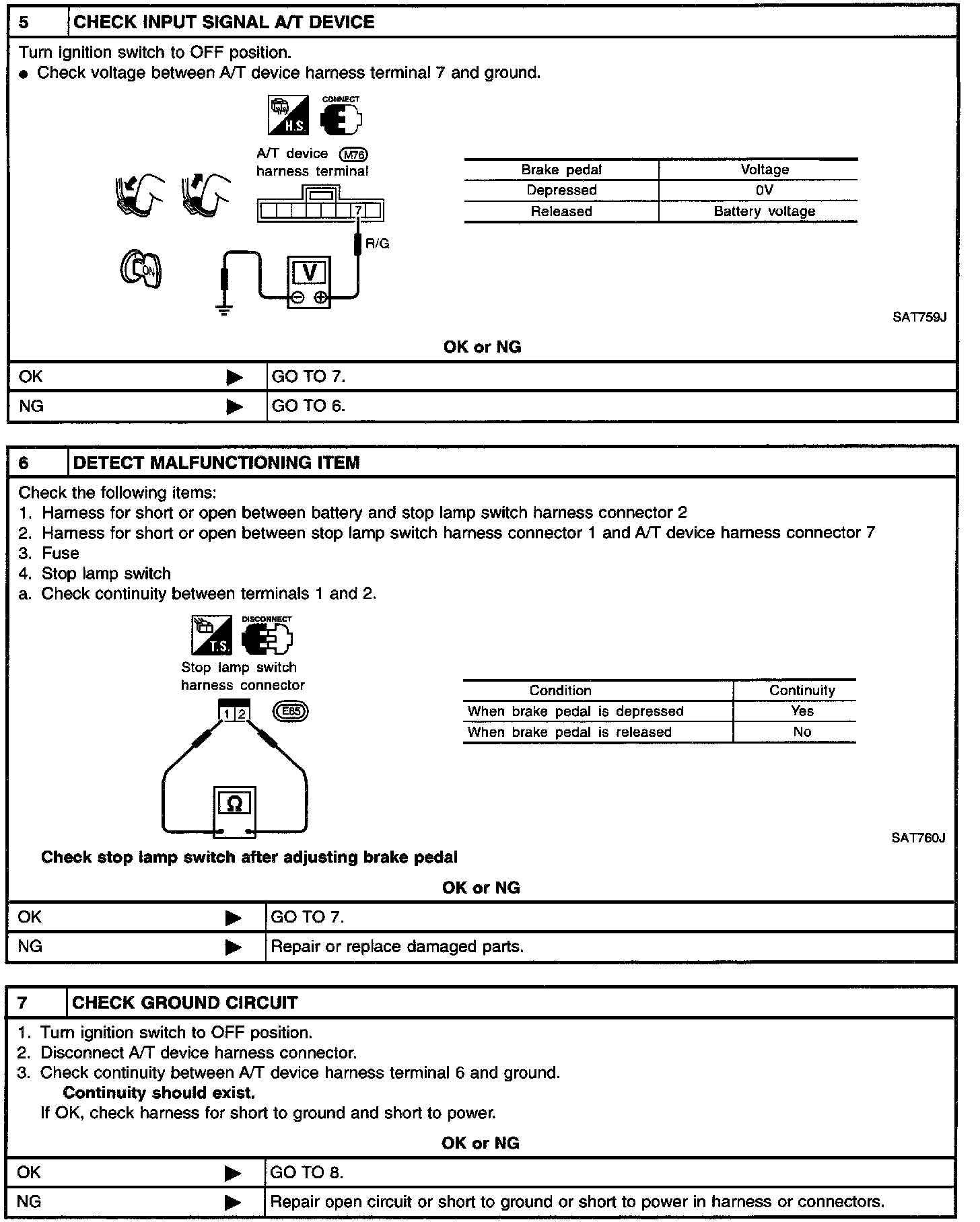

Chart 5 - 7

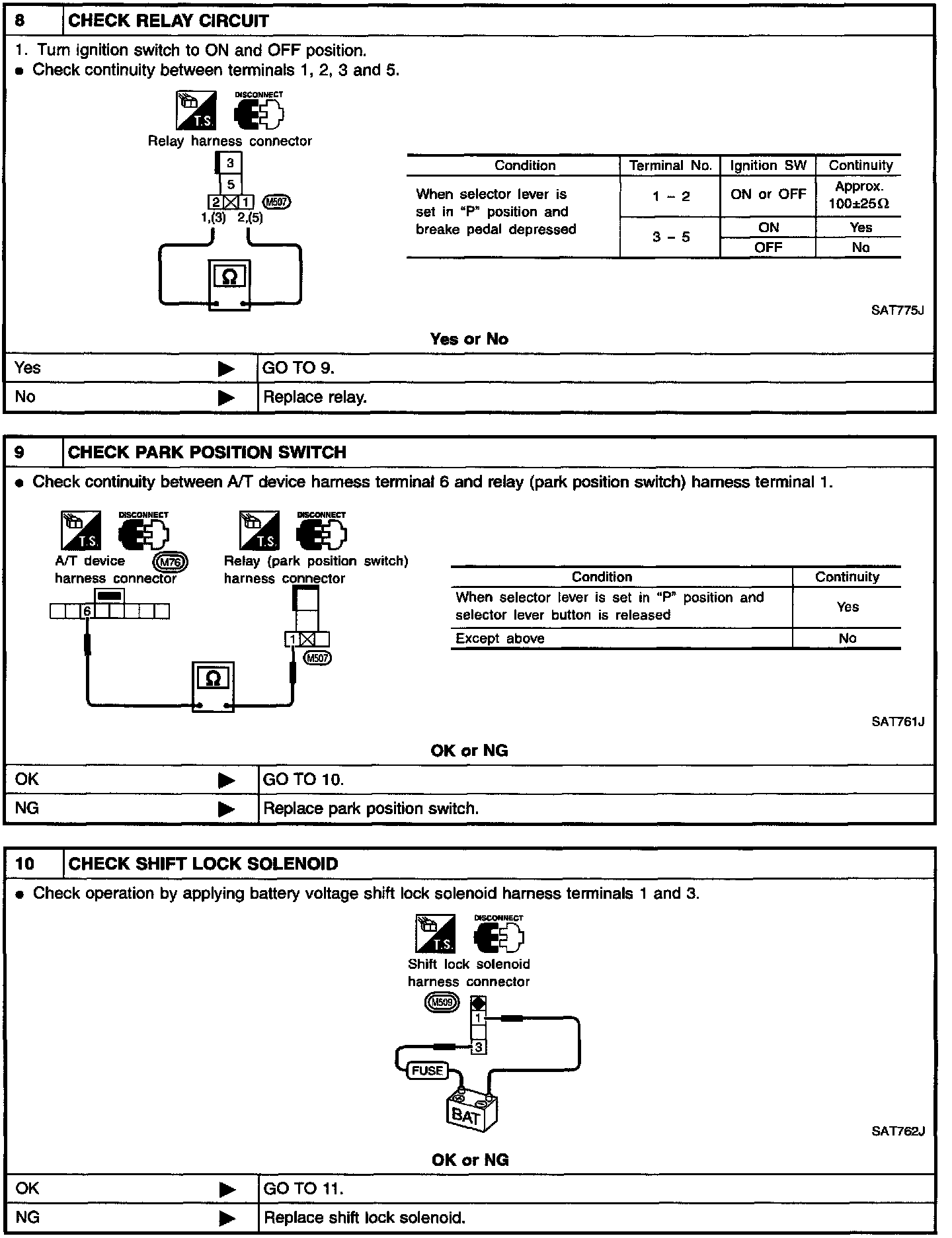

Chart 8 - 10

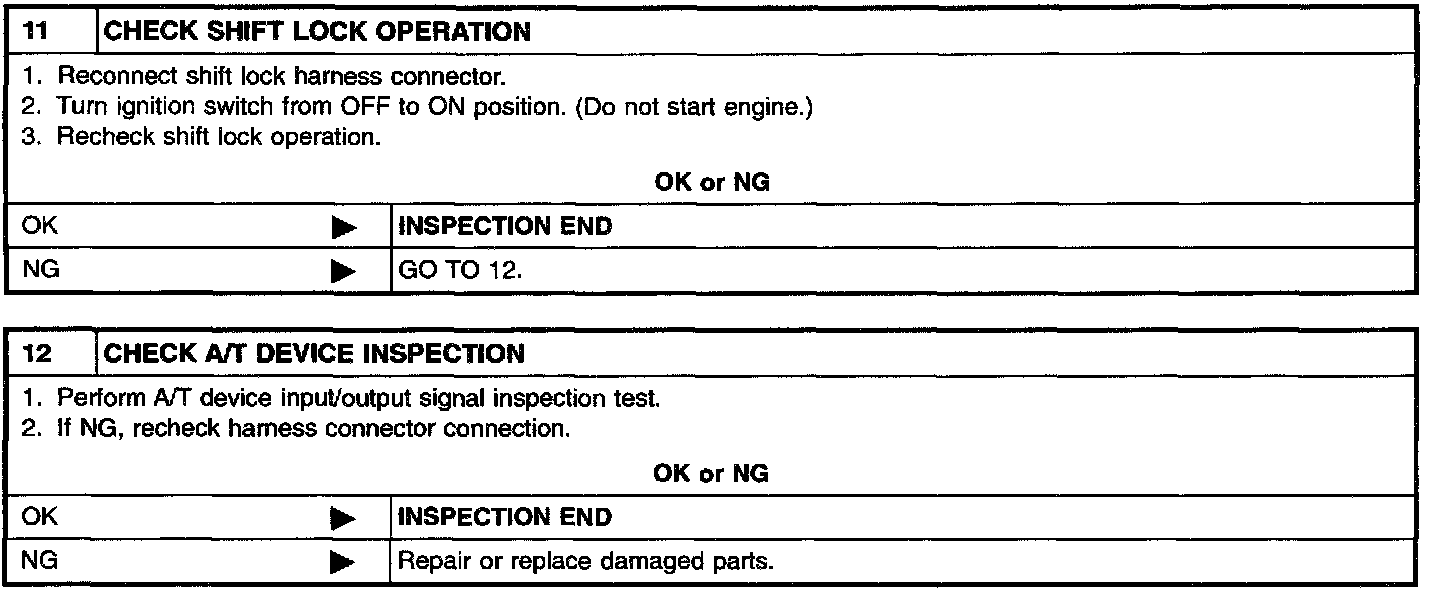

Chart 11 and 12

SYMPTOM 1:
^ Selector lever cannot be moved from P position with key in ON position and brake pedal applied.
^ Selector lever can be moved from P position with key in ON position and brake pedal released.
^ Selector lever can be moved from P position when key is removed from key cylinder.

SYMPTOM 2:
Ignition key cannot be removed when selector lever is set to P position. It can be removed when selector lever is set to any position except P.
