Control Valve Lower Body

Apply ATF to all components before installation.


DISASSEMBLY

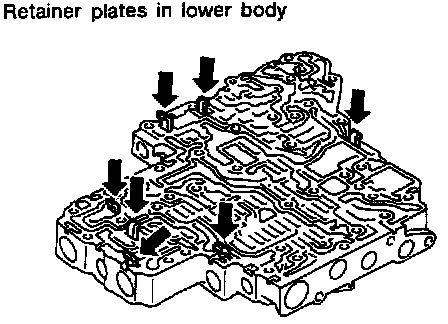

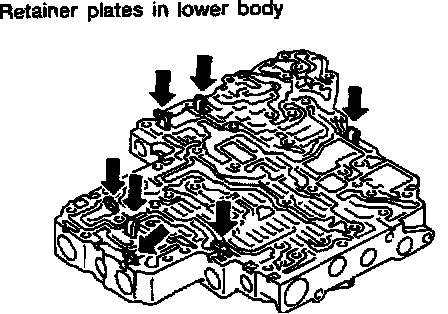

^ Remove valves at retainer plate.
For removal procedures, refer to "DISASSEMBLY", "Control Valve Upper Body".

INSPECTION
Valve Springs

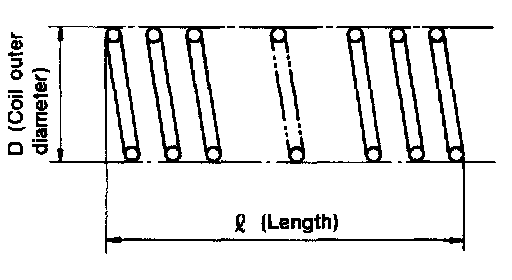

^ Check each valve spring for damage or deformation. Also measure free length and outer diameter.
Inspection standard: Refer to Specifications; Mechanical.
^ Replace valve springs if deformed or fatigued.

Control Valves
^ Check sliding surfaces of control valves, sleeves and plugs for damage.

ASSEMBLY





^ Install control valves.
For installation procedures, refer to "ASSEMBLY", "Control Valve Upper Body".

Retainer Plate (Lower body)

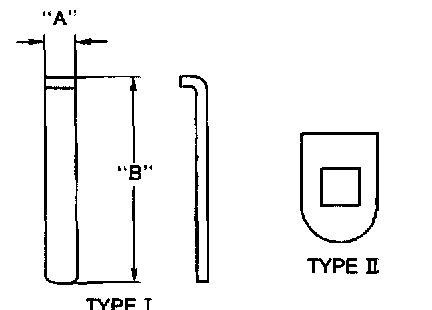

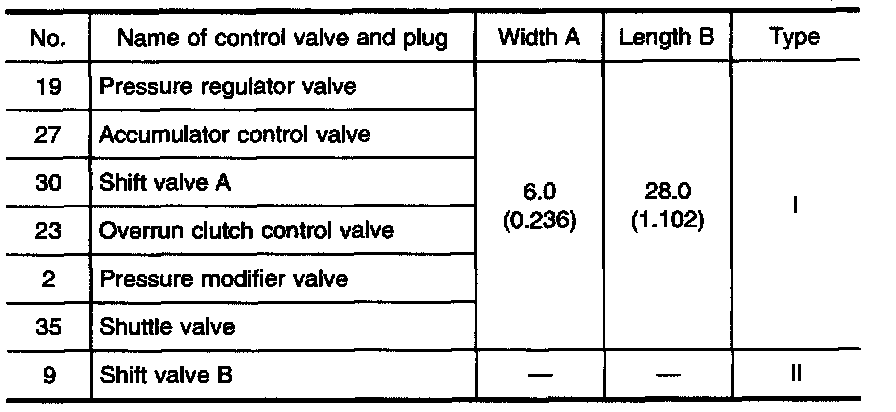

^ Install proper retainer plates.
