Lateral Stabilizer Rod: Service and Repair

DISASSEMBLY
- Remove torsion beam assembly. Refer to Suspension; Service and Repair.
Service and Repair

- Remove lateral link and control rod from torsion beam.

INSPECTION





- Check for cracks, distortion or other damage. Replace if necessary.

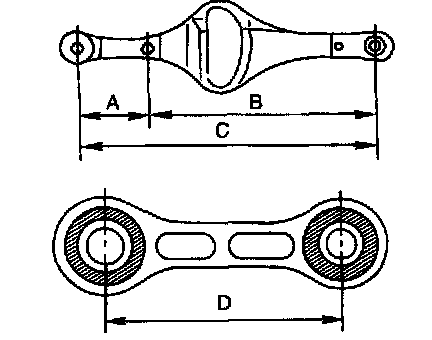

Standard length:
A 206.5 - 208.5 mm (8.13 - 8.21 inch)
B 393.5 - 395.5 mm (15.49 - 15.57 inch)
C 600 - 604 mm (23.62 - 23.78 inch)
D 106 - 108 mm (4.17 - 4.25 inch)
- Check all rubber parts for wear, cracks or deformation. Replace if necessary.


ASSEMBLY

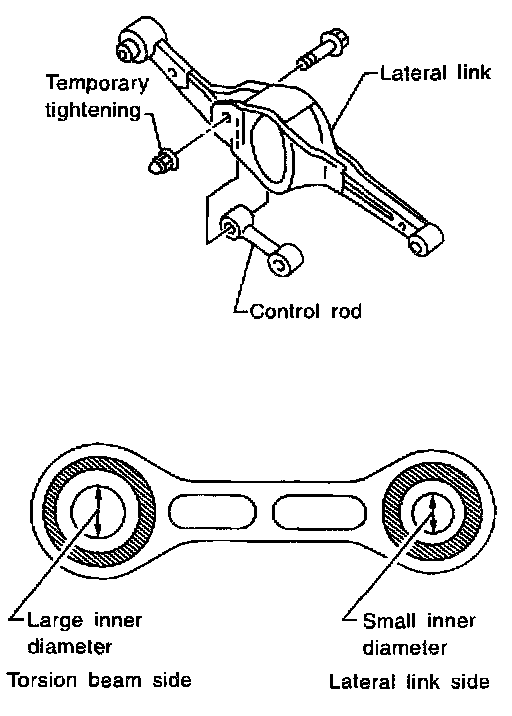

1. Temporarily assemble lateral link and control rod.
- When installing the control rod, connect the bush with the smaller inner diameter to the lateral link.

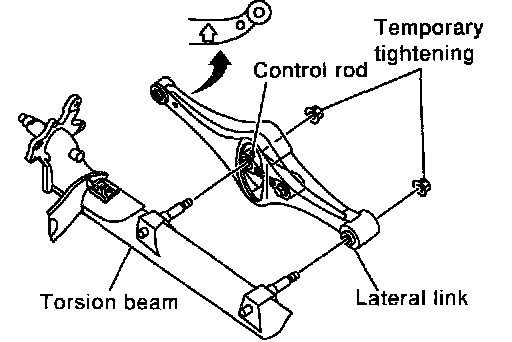

2. Temporarily install lateral link and control rod on torsion beam.
- When installing, place lateral link with the arrow topside.

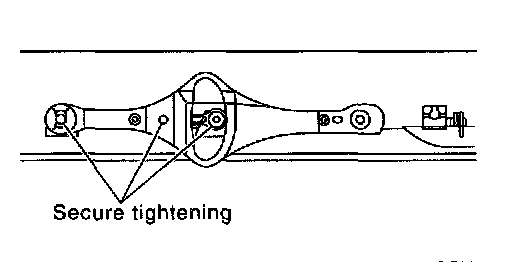

3. Place lateral link and control rod horizontally against torsion beam, and tighten to the specified torque.
4. Install torsion beam assembly. Refer to Suspension; Service and Repair.
