Home >> Nissan-Datsun >> 2001 >> Maxima GXE V6-3.0L (VQ30DE) >> Repair and Diagnosis >> Starting and Charging >> Starting System >> Testing and Inspection >> Non-Trouble Code Procedures >> Diagnostic Procedure 1

Diagnostic Procedure 1

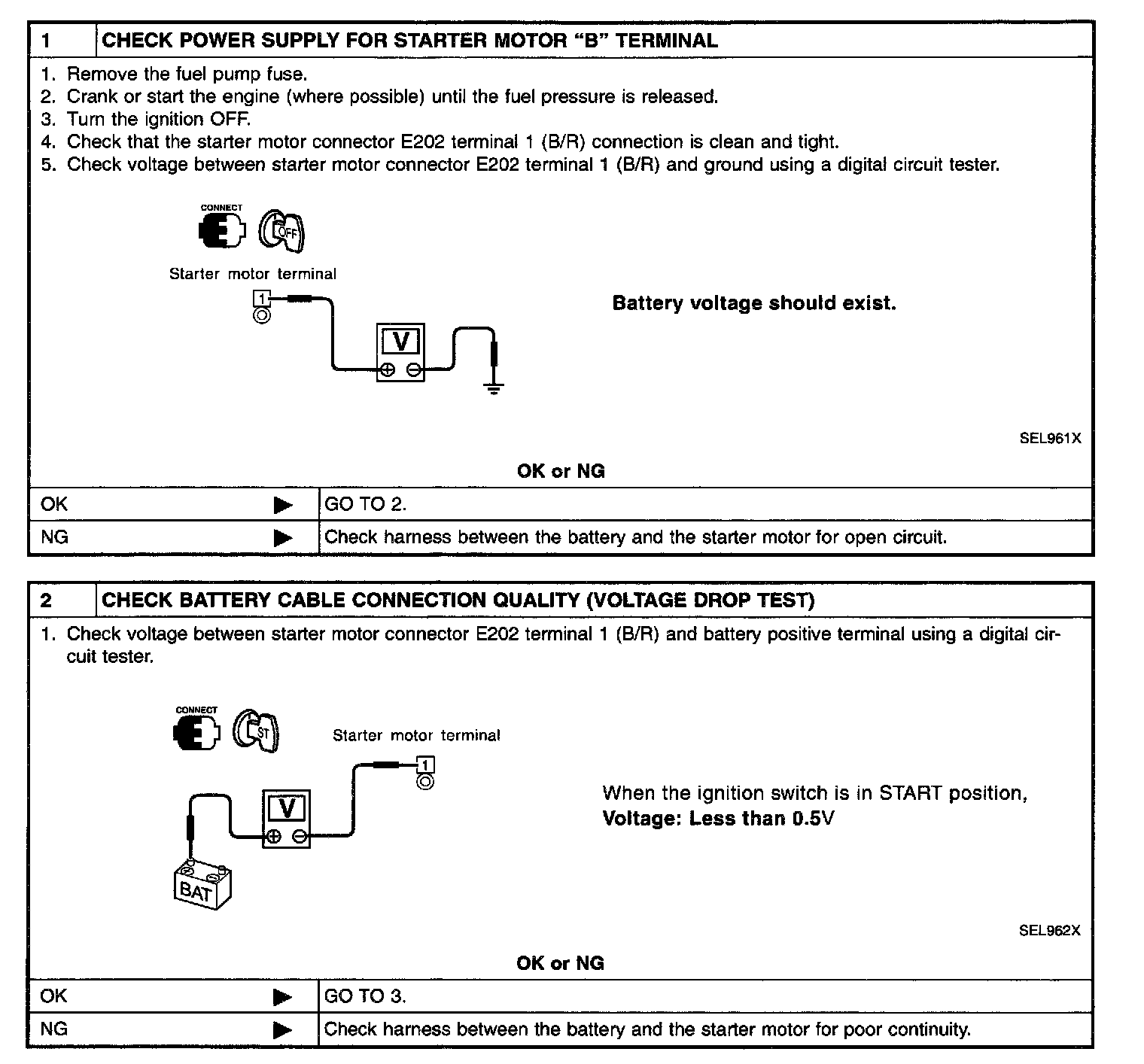

Check "B" Terminal Circuit Steps 1 - 2:

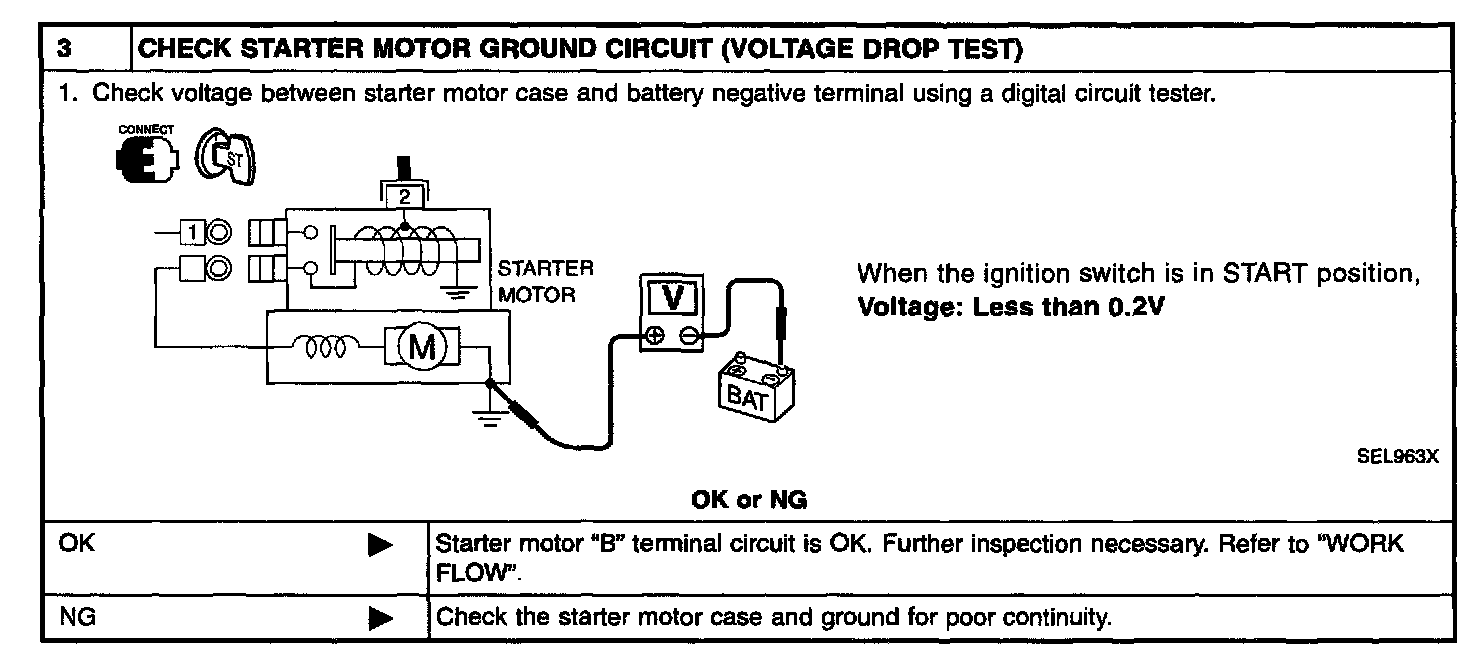

Check "B" Terminal Circuit Step 3:
