Maxima GXE V6-3.0L (VQ30DE)
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Starting System
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

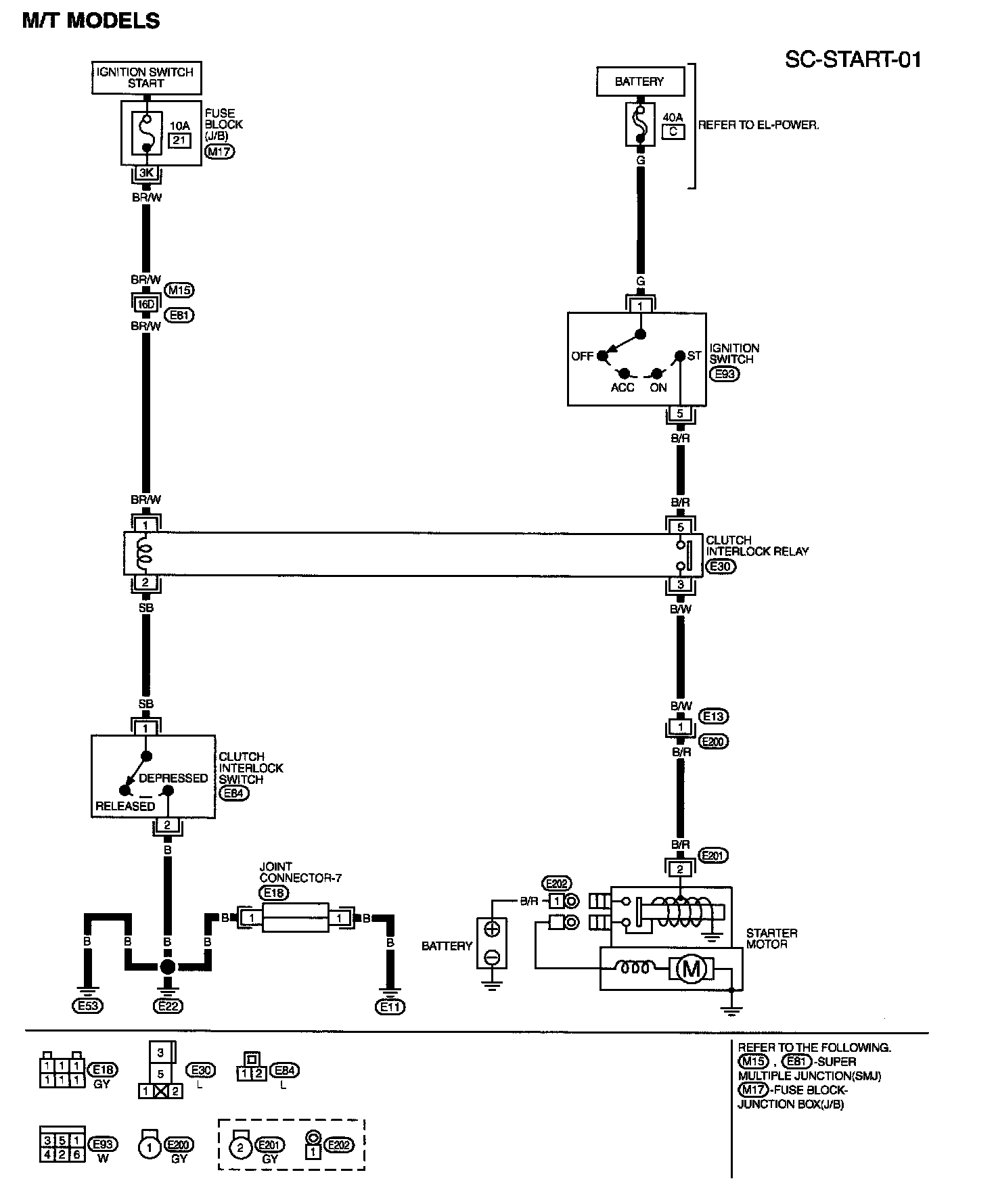

SC-START-01:

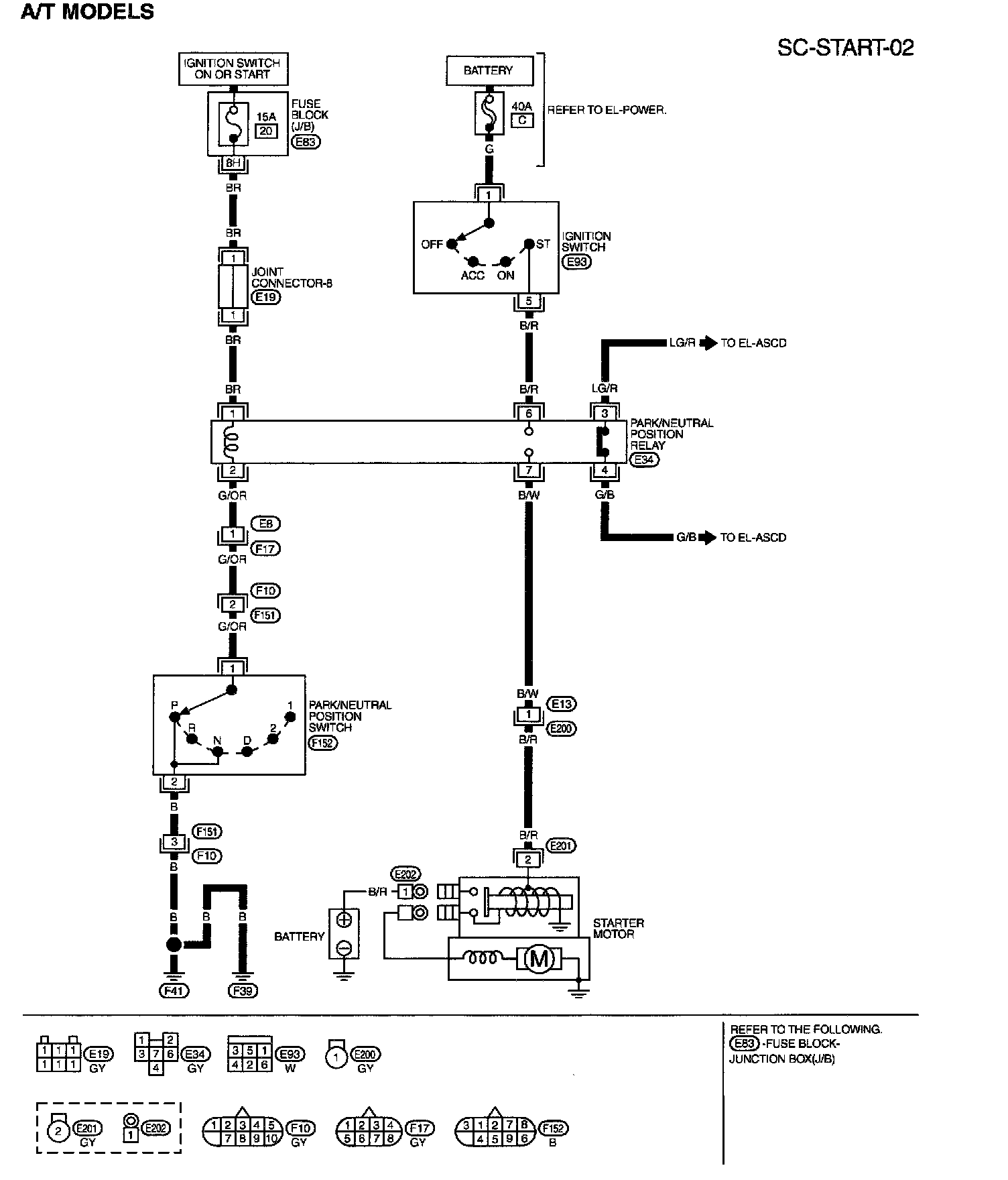

SC-START-02:
