Harness Locations

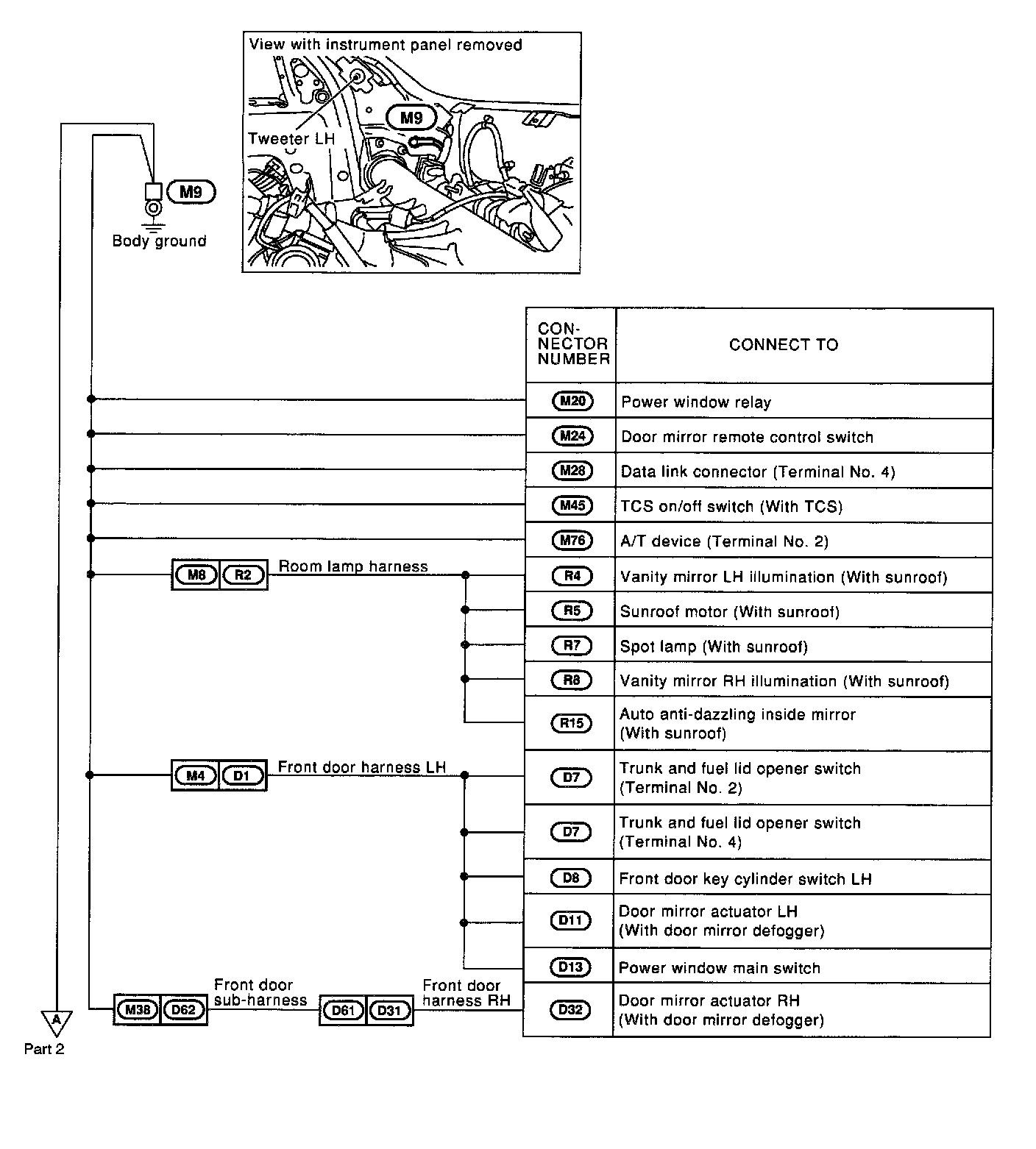

Grounds - Main Harness Part 1:

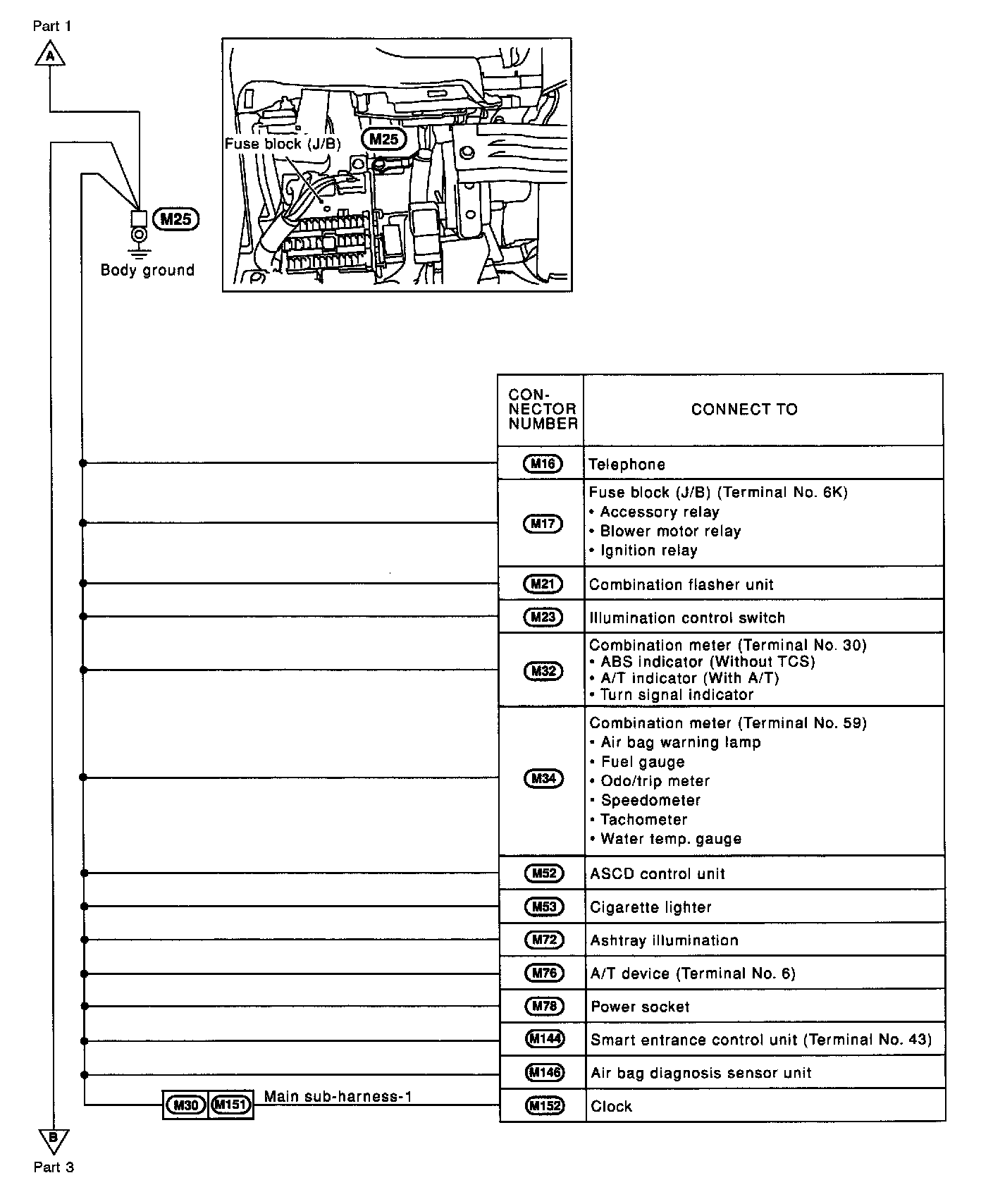

Grounds - Main Harness Part 2:

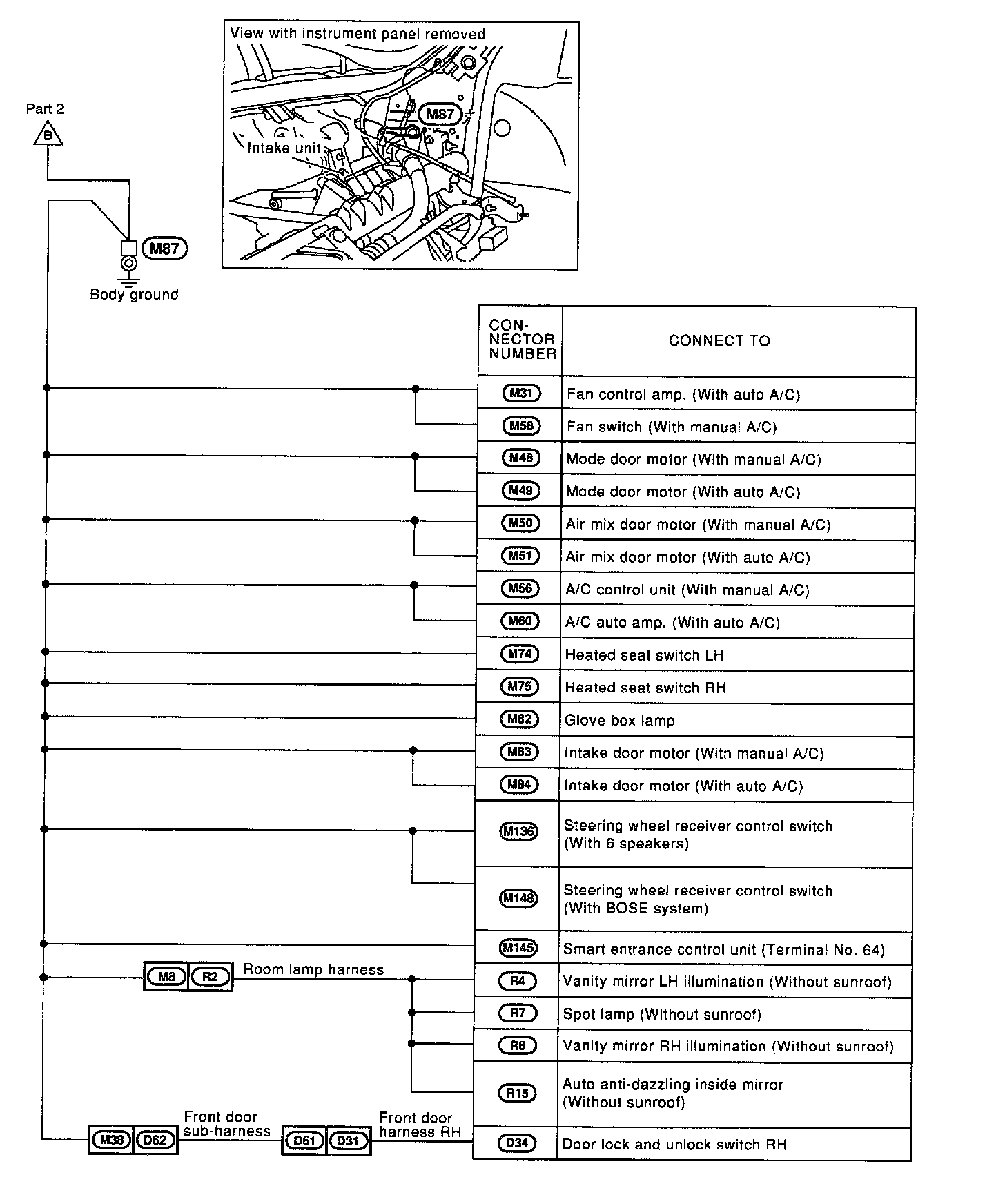

Grounds - Main Harness Part 3:

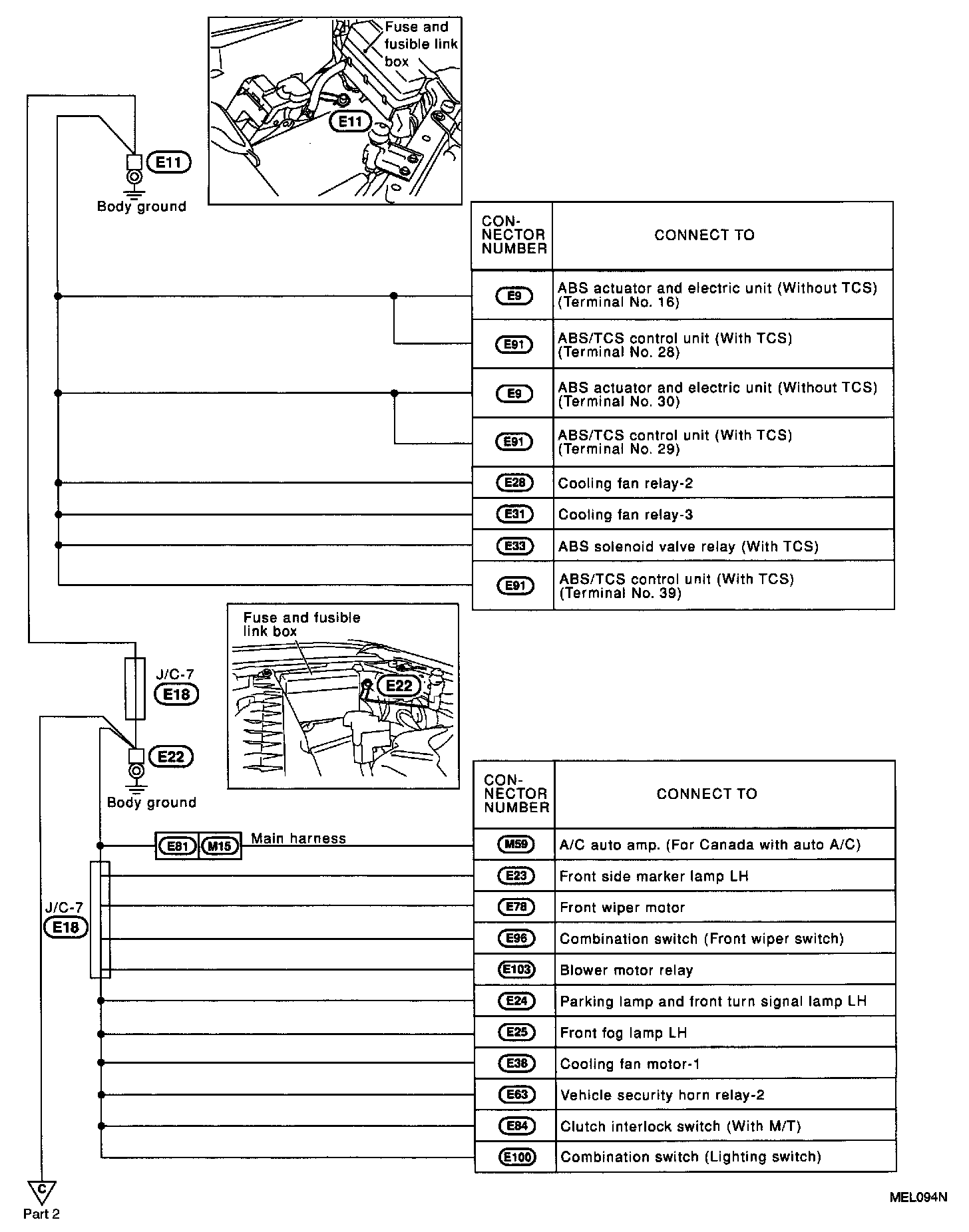

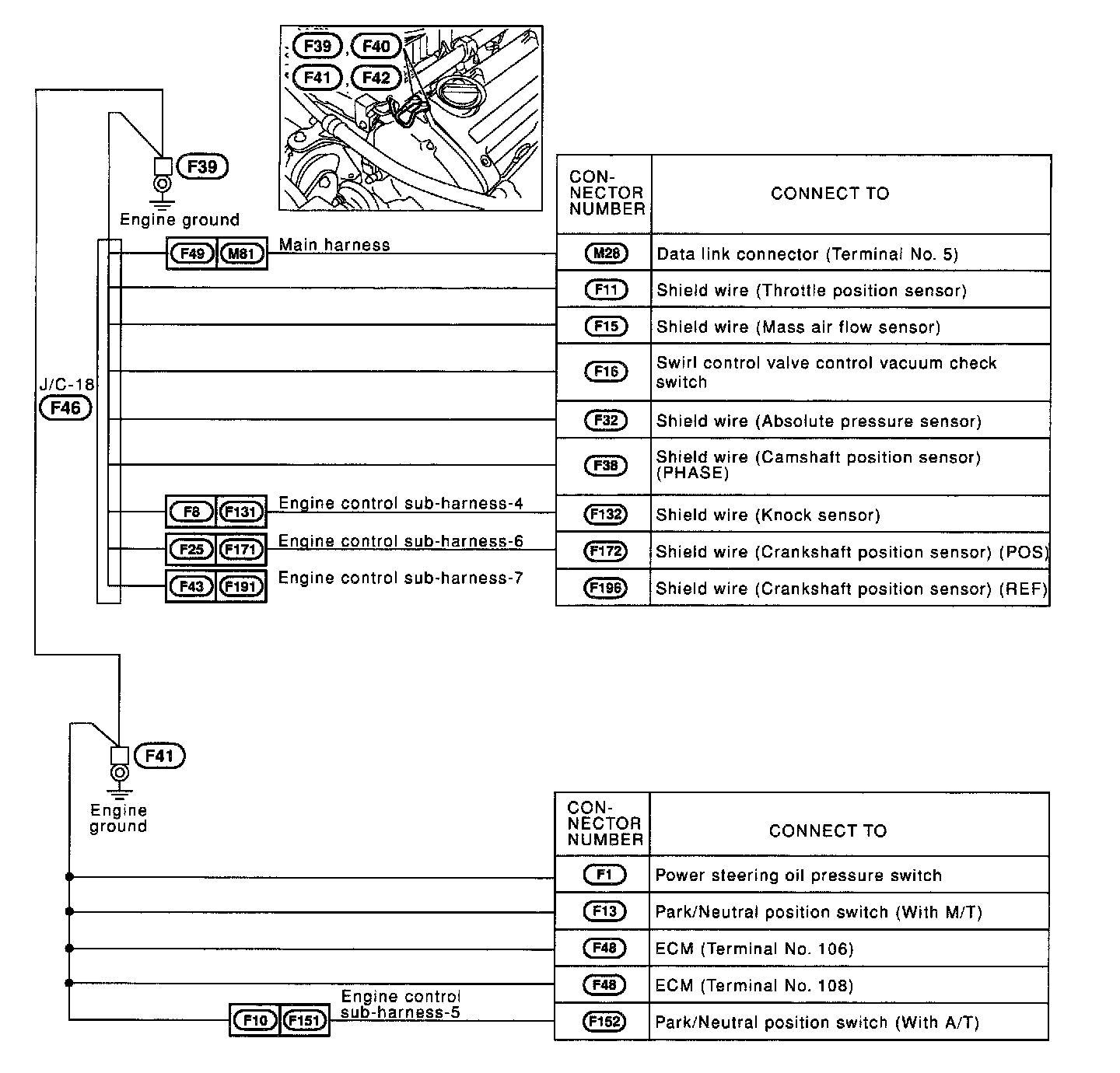

Grounds - Engine Room Harness Part 1:

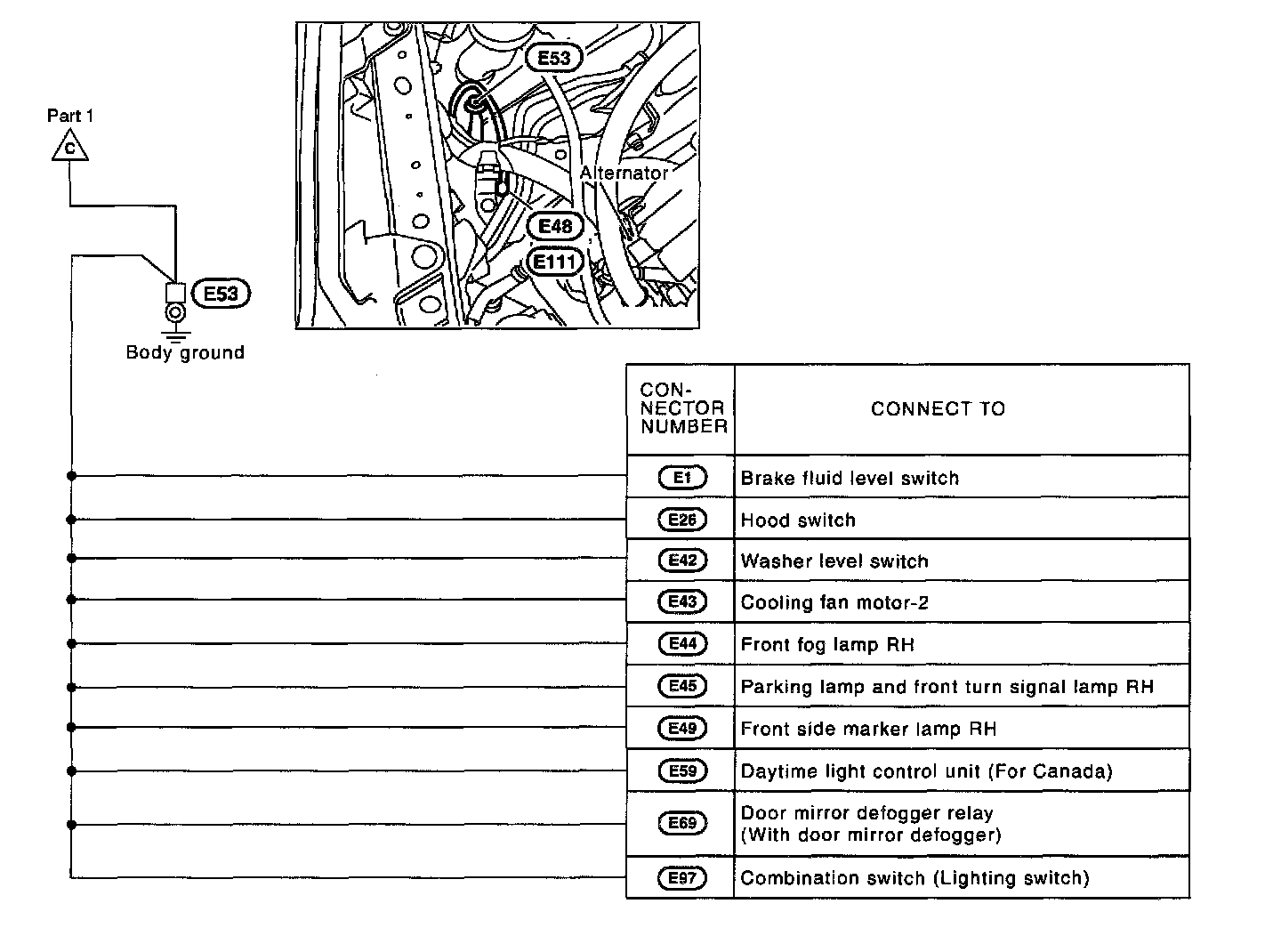

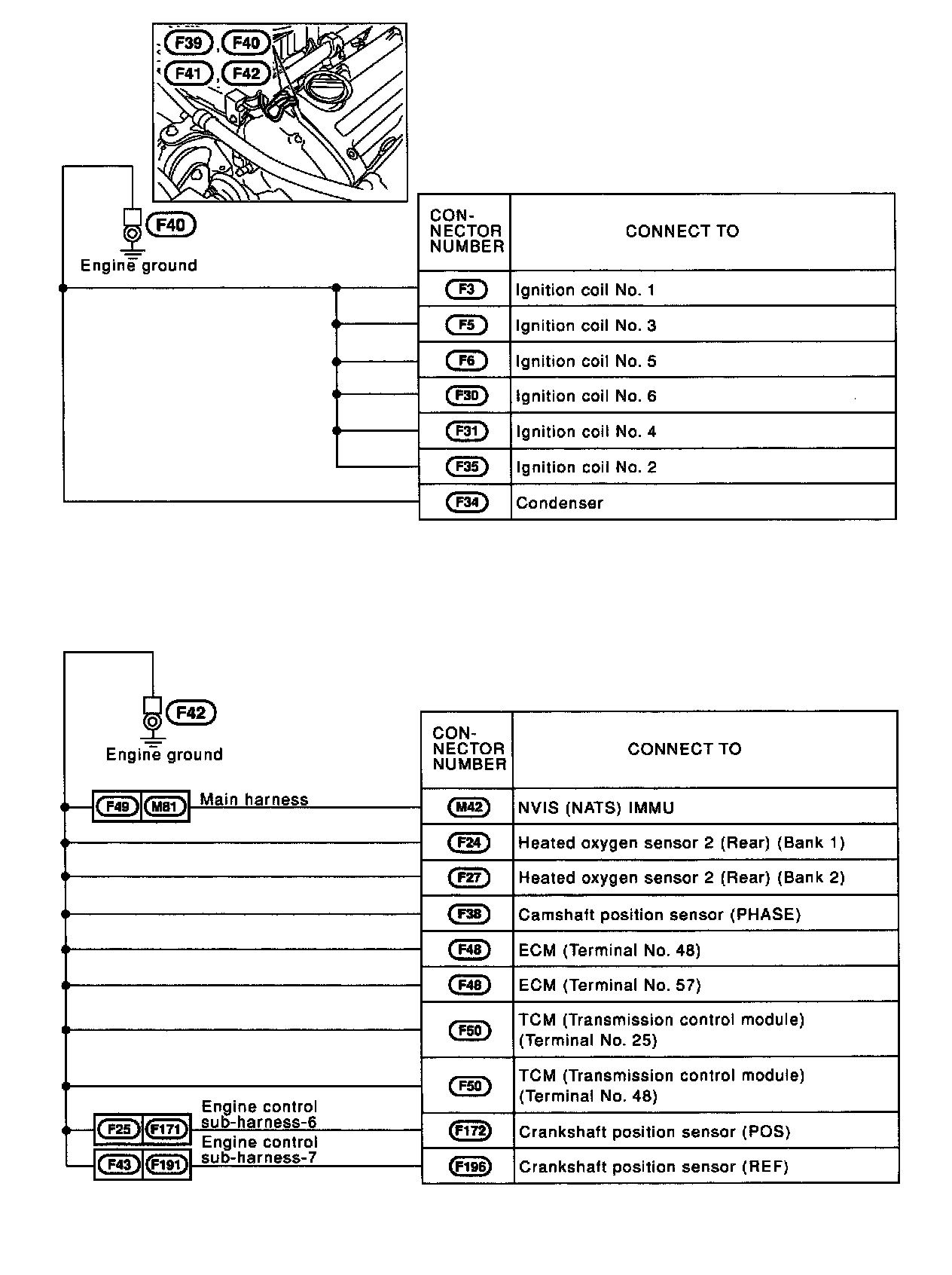

Grounds - Engine Room Harness Part 2:

Grounds - Engine Room Harness Part 3:

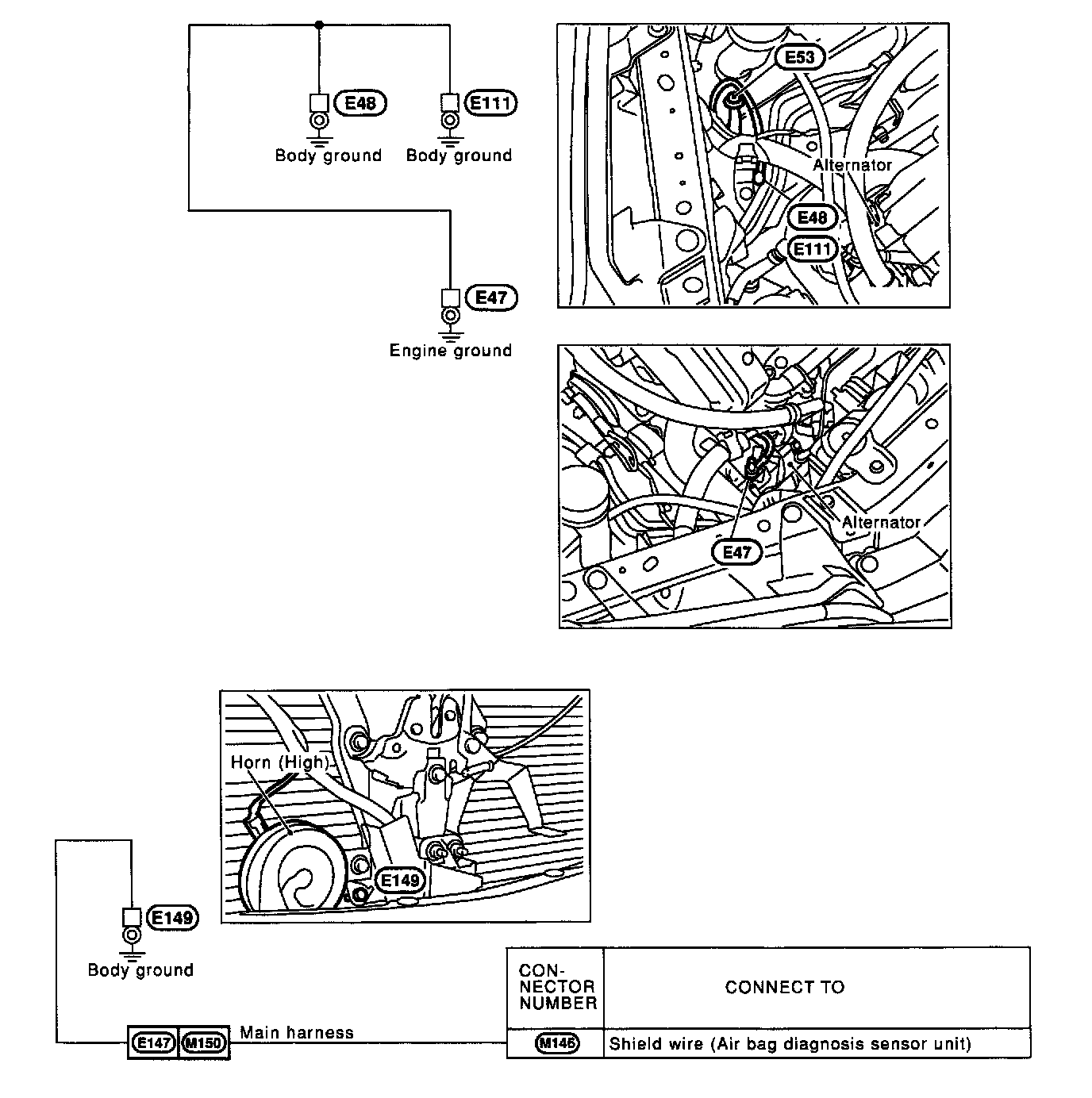

Grounds - Engine Control Harness Part 1:

Grounds - Engine Control Harness Part 2:

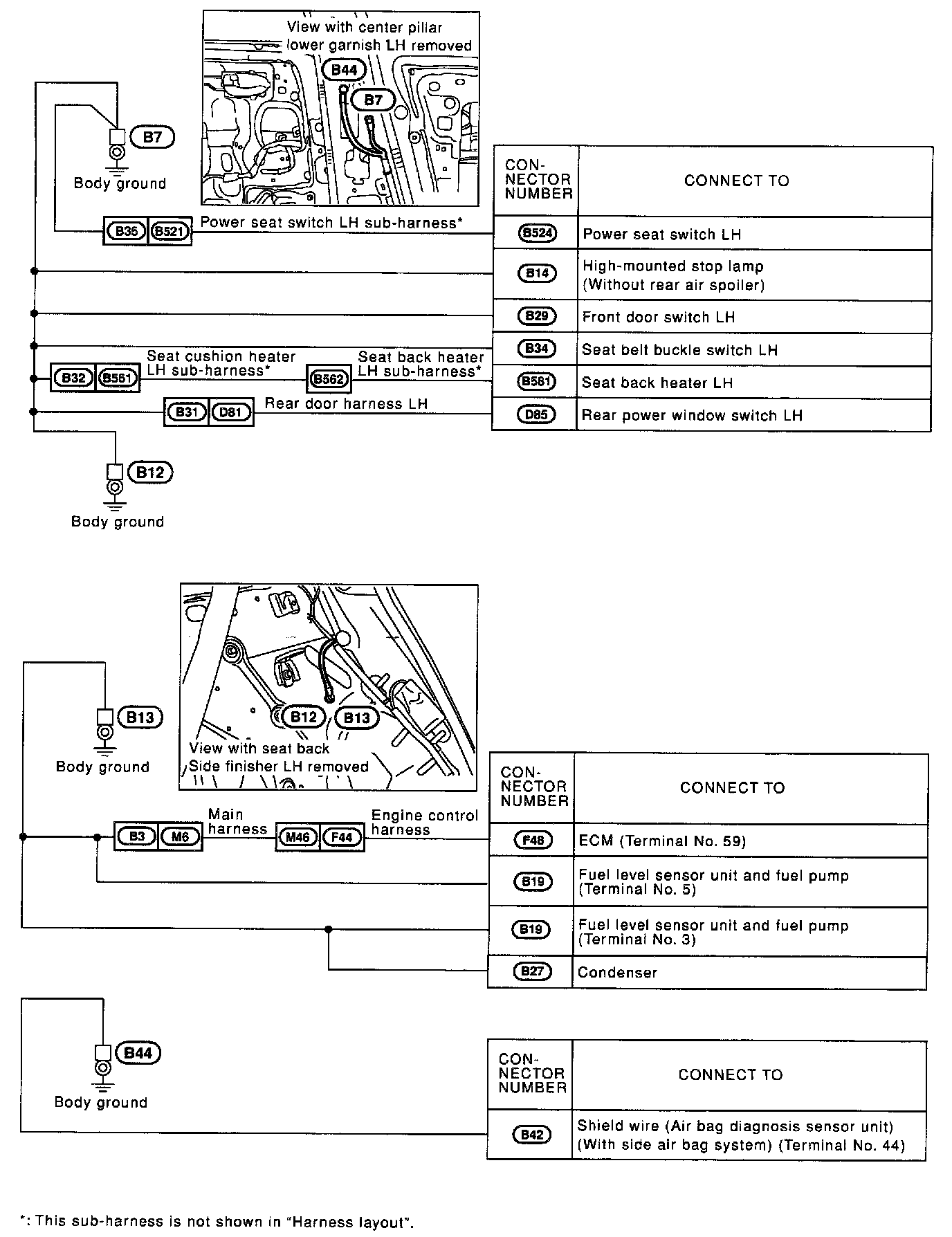

Grounds - Body Harness Part 1:

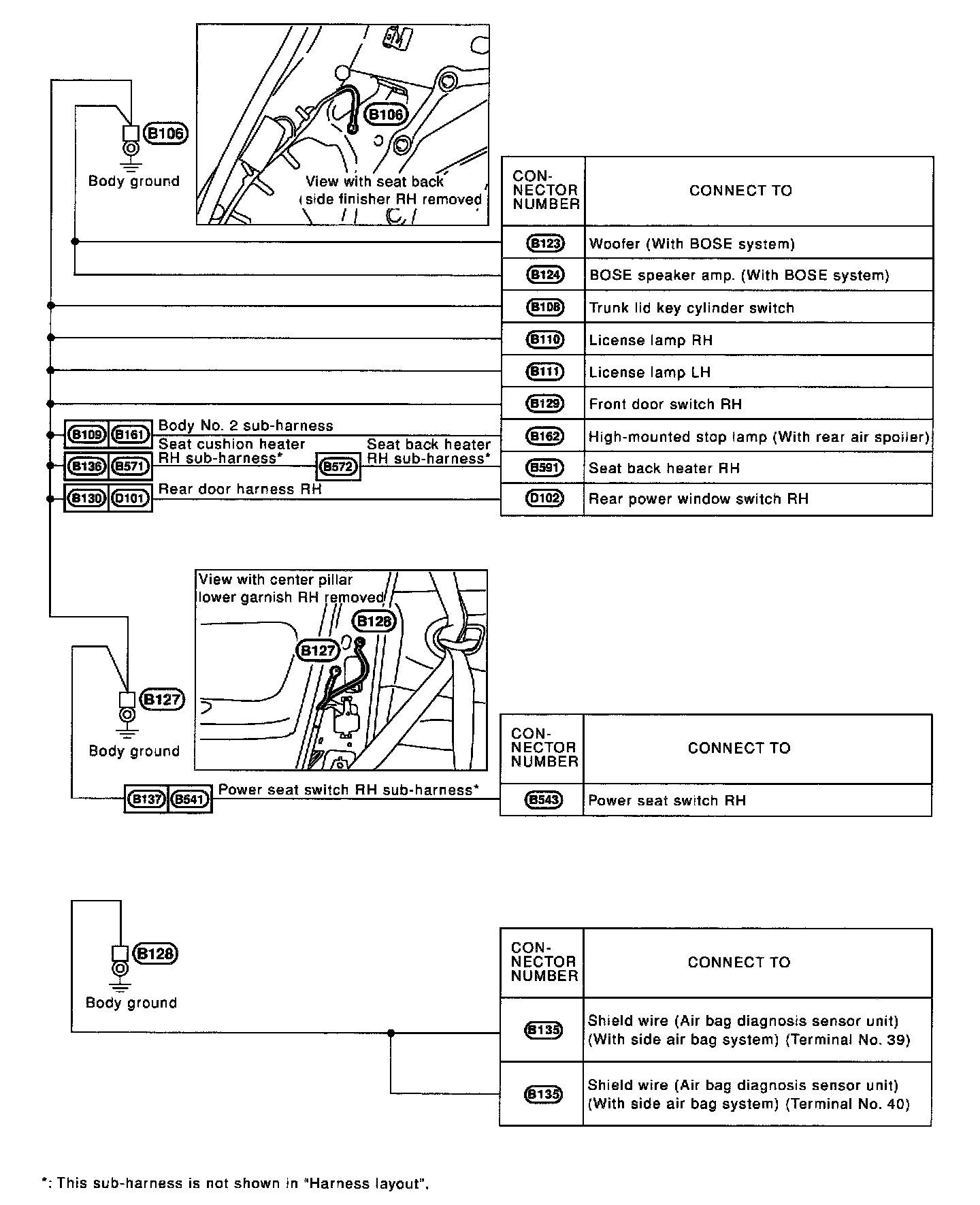

Grounds - Body Harness Part 2:

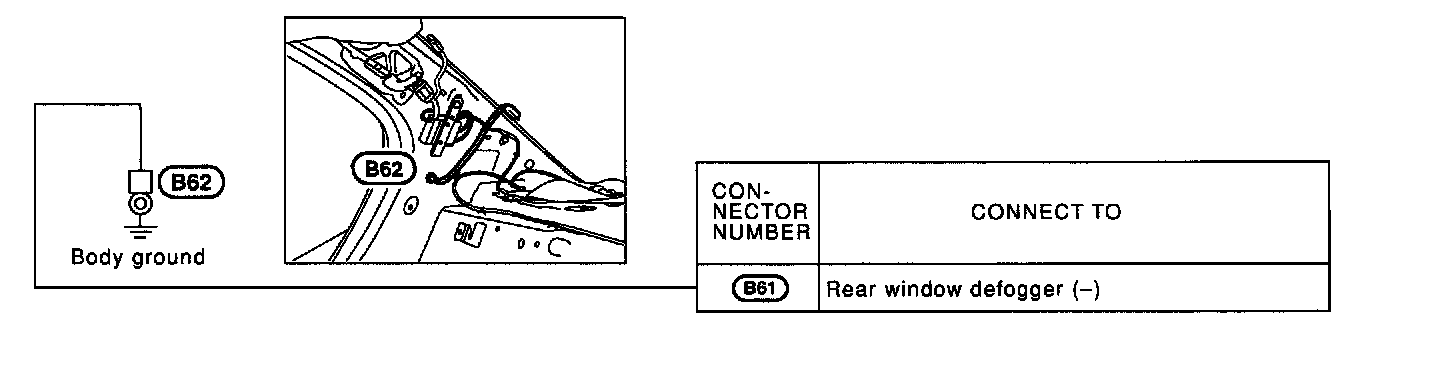

Grounds - Body No.2 Harness:

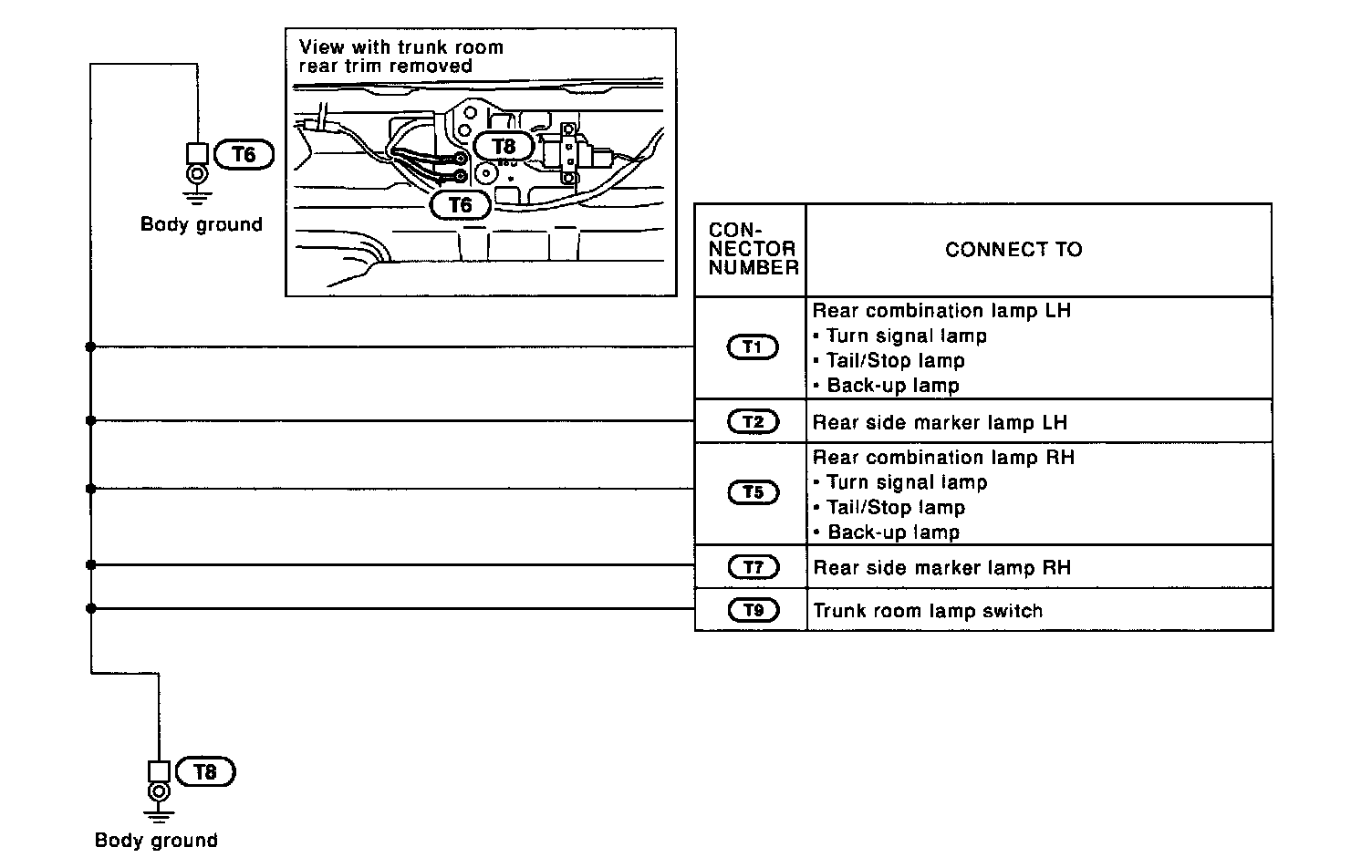

Grounds - Tail Harness:
