Home >> Nissan-Datsun >> 2001 >> Maxima GXE V6-3.0L (VQ30DE) >> Repair and Diagnosis >> Starting and Charging >> Charging System >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Diagnostic Procedures >> Diagnostic Procedure 2

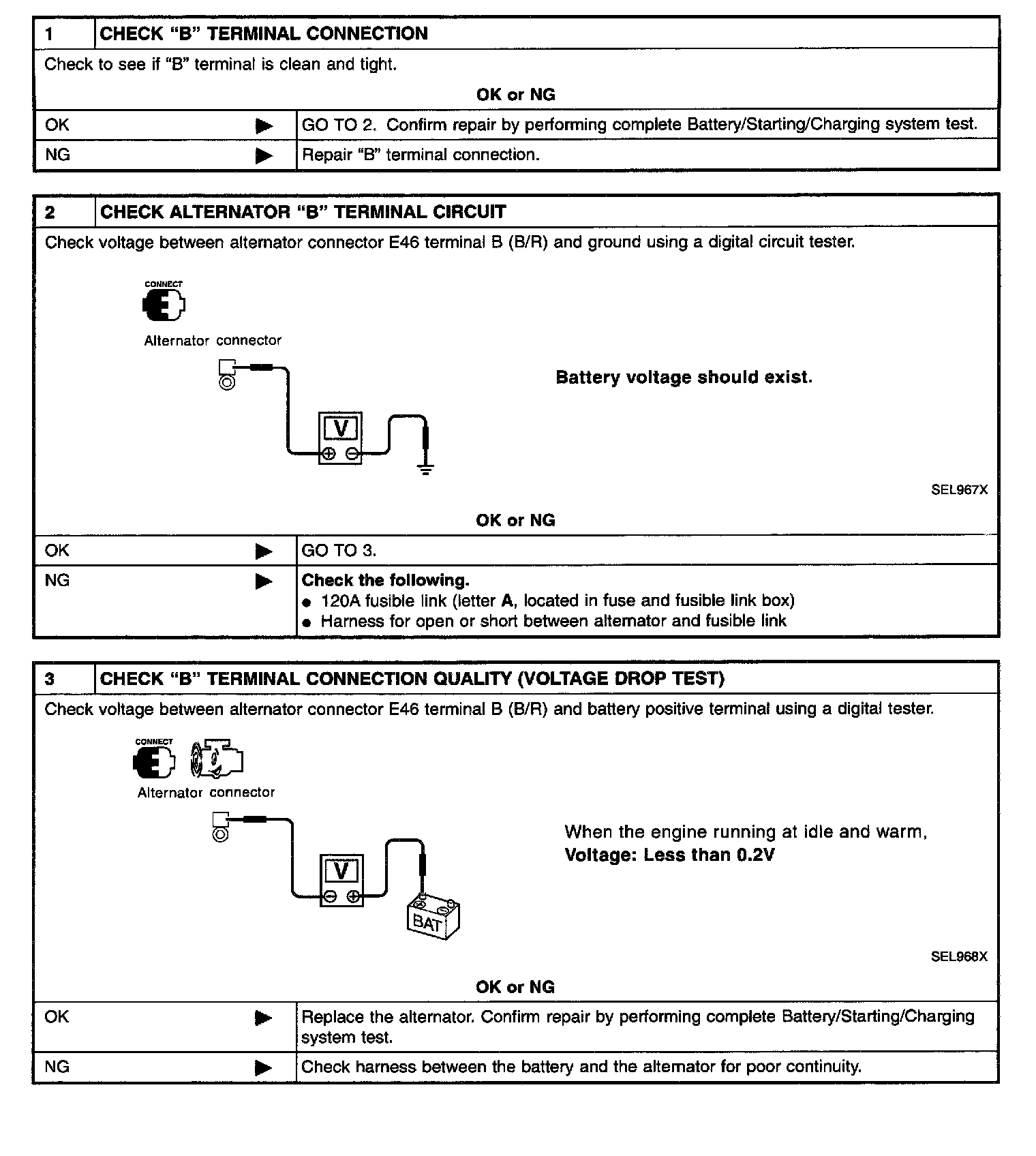

Diagnostic Procedure 2

Check "B" Terminal Circuit Steps 1 - 3:
