Maxima GXE V6-3.0L (VQ30DE)
>>
Repair and Diagnosis
>>
Specifications
>>
Electrical Specifications
>>
Automatic Transmission/Transaxle
Automatic Transmission/Transaxle

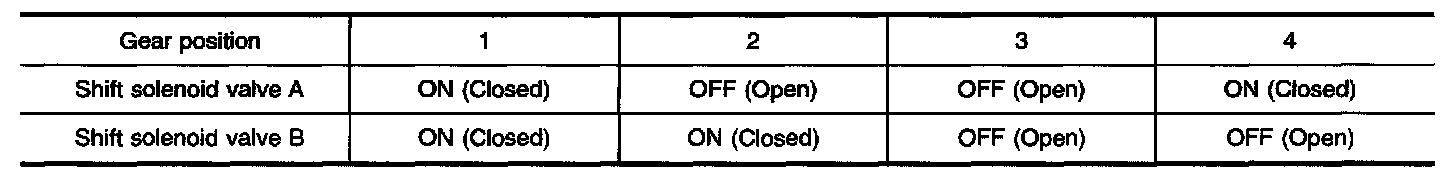

Shift Solenoid Valves

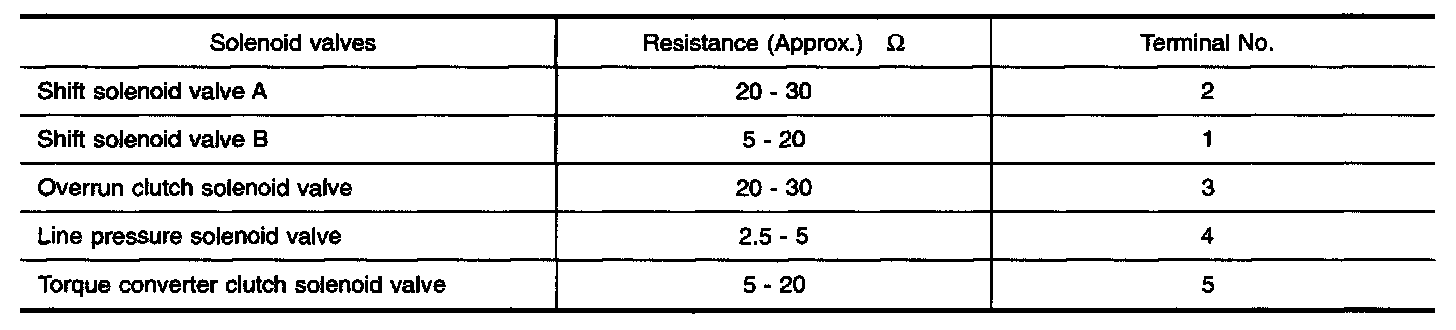

Solenoid Valves

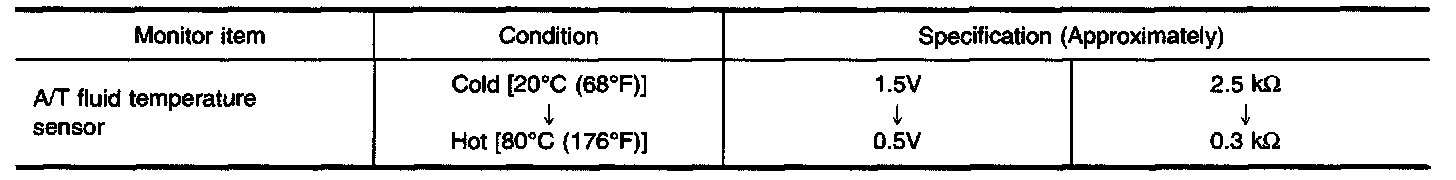

A/T Fluid Temperature Sensor

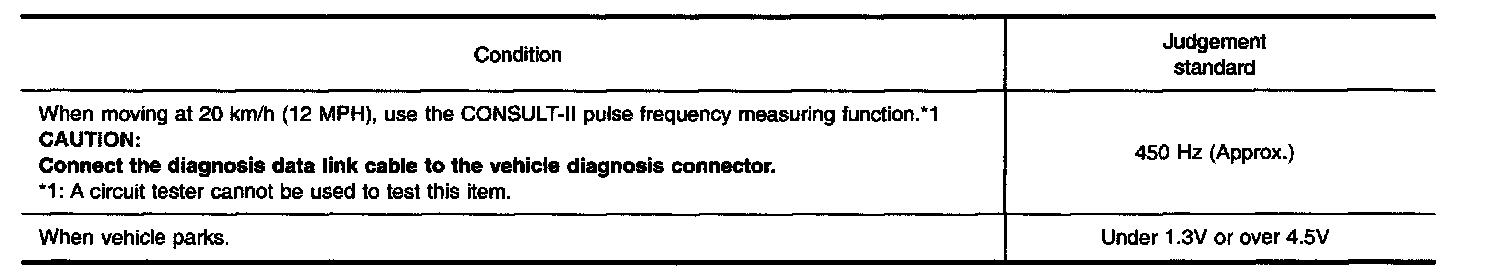

Revolution Sensor
Dropping Resistor
