Cabin Temperature Sensor / Switch: Testing and Inspection

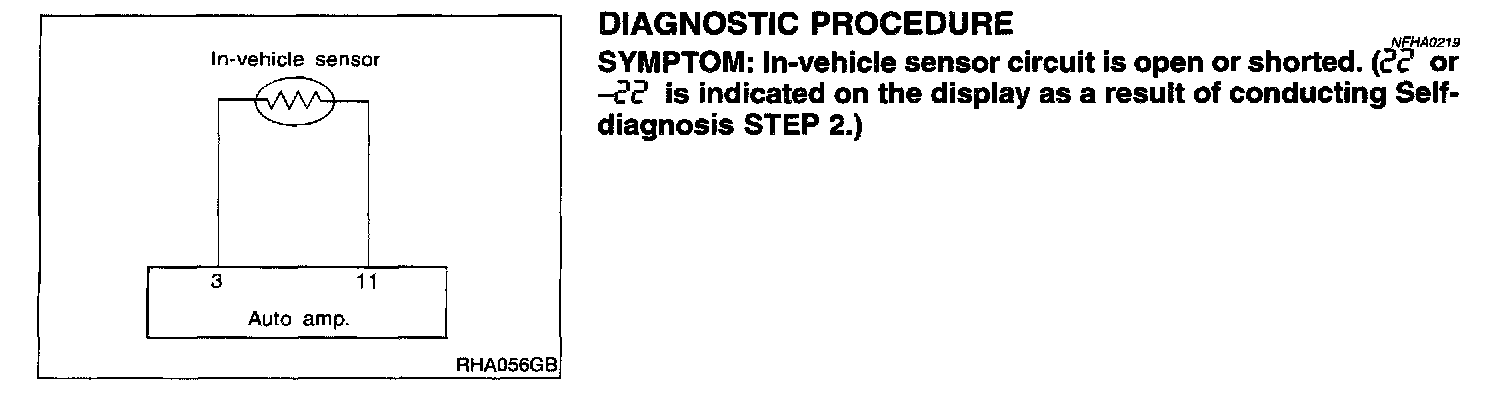

Diagnostic Procedure:

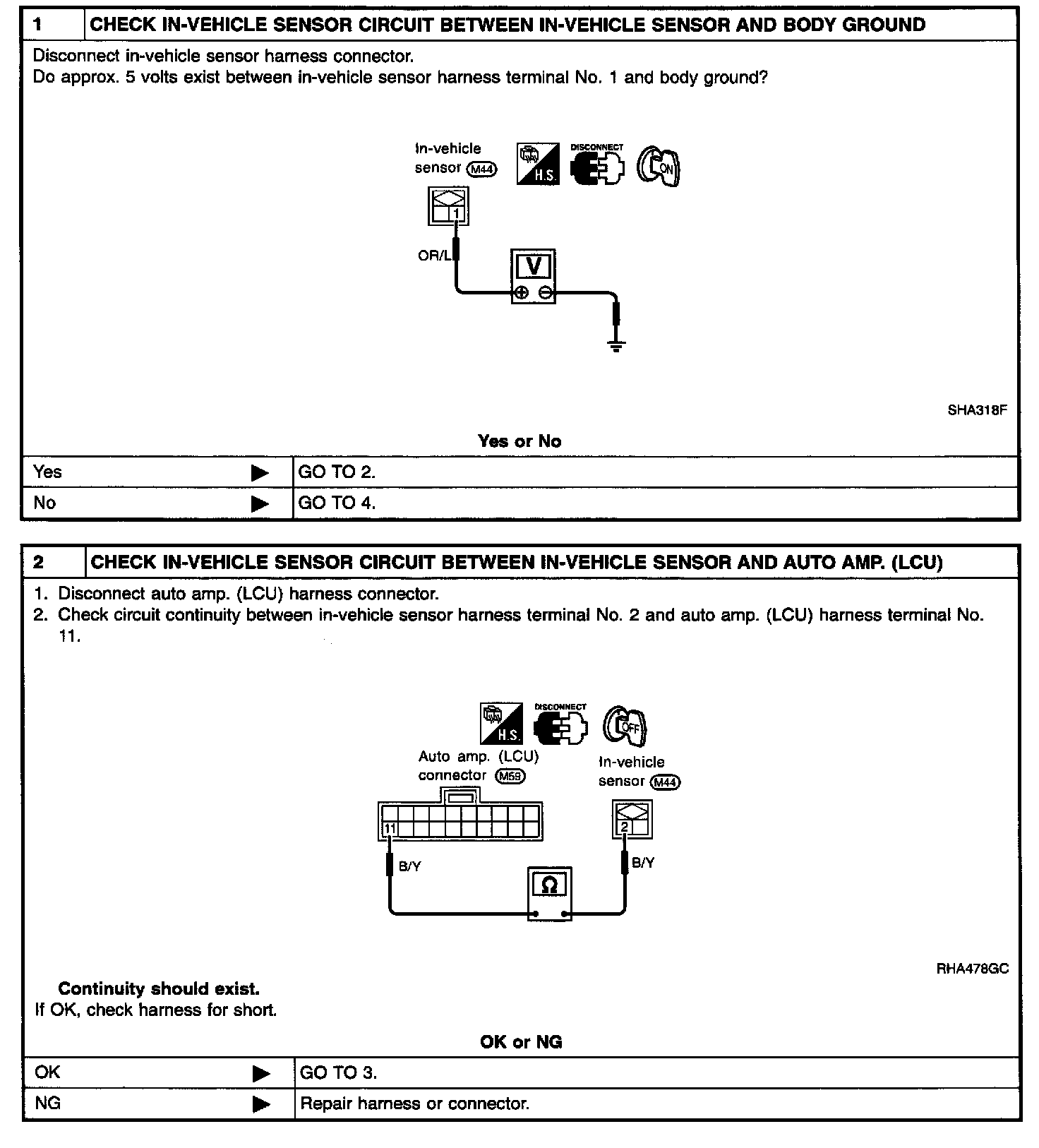

Steps 1 - 2:

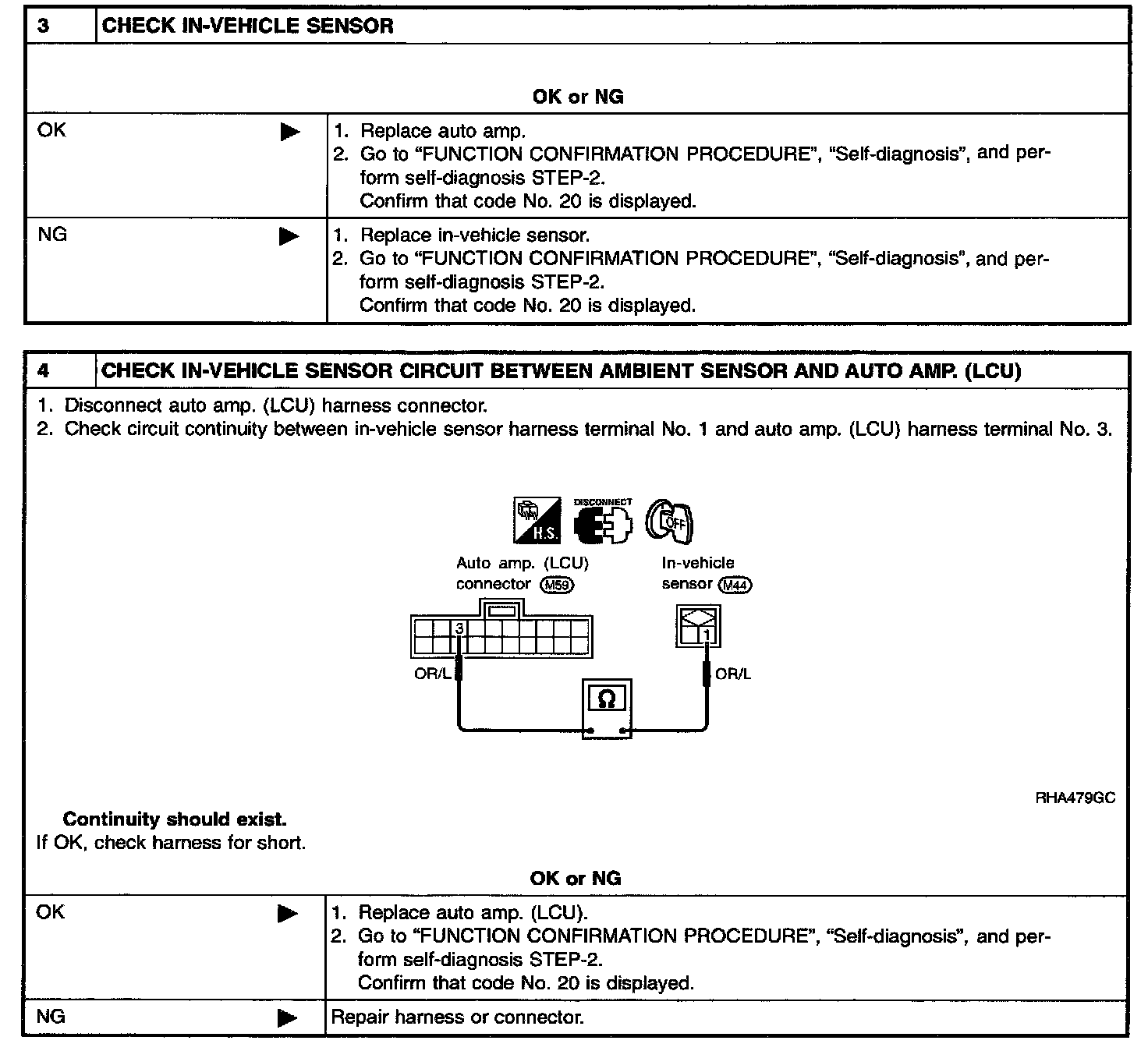

Steps 3 - 4:

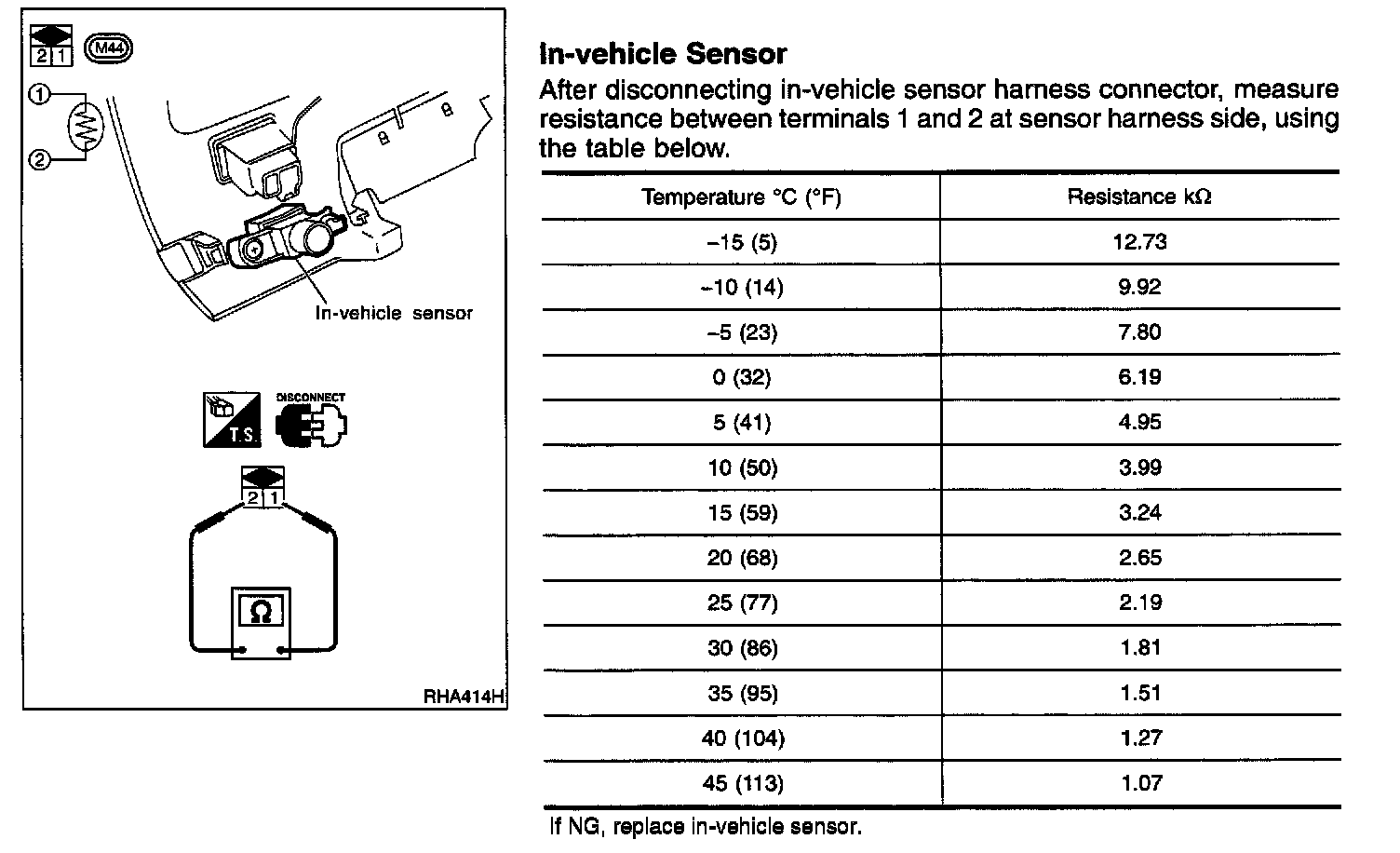

Component Inspection:
