Ambient Temperature Sensor / Switch HVAC: Testing and Inspection

Step 1:

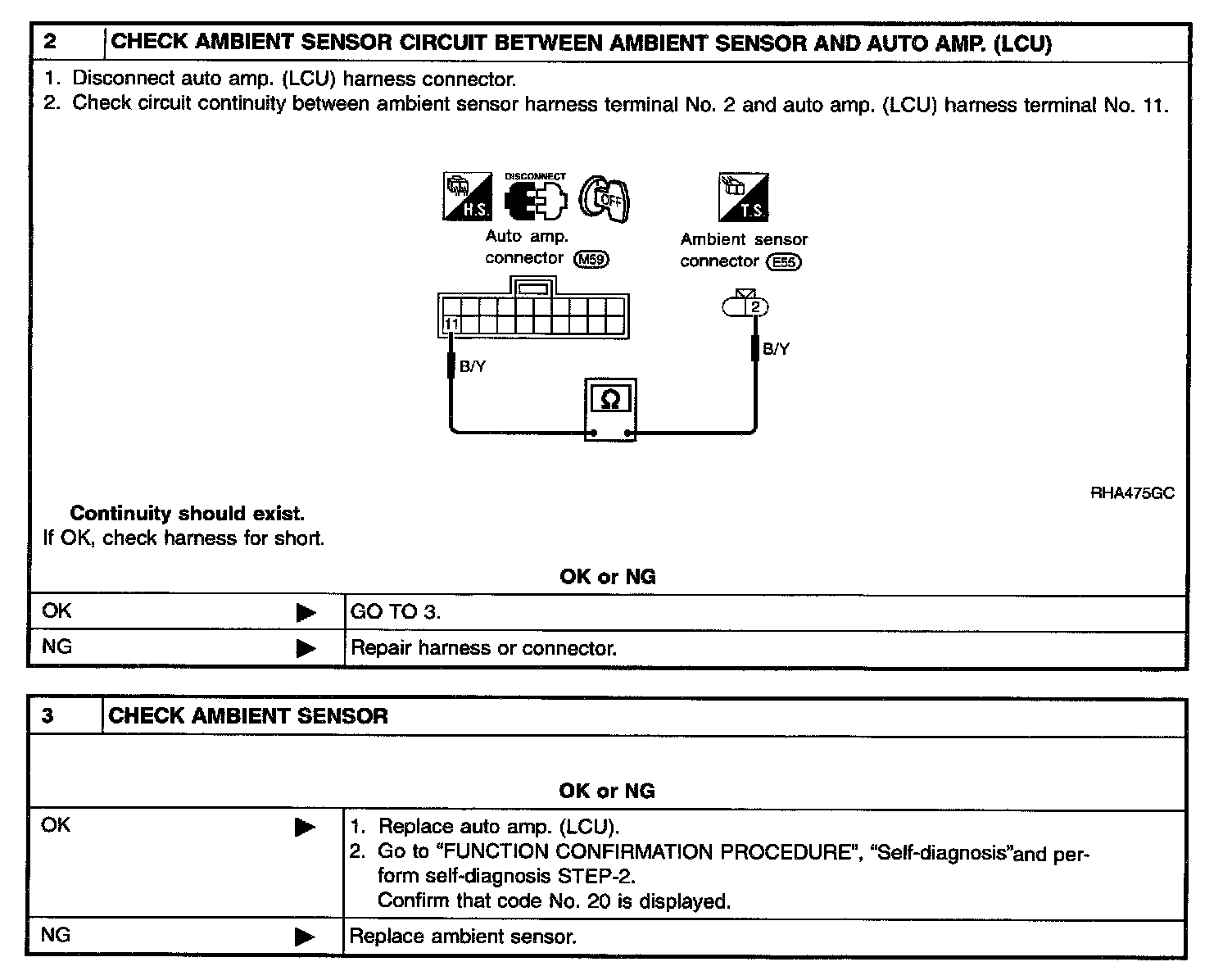

Steps 2 - 3:

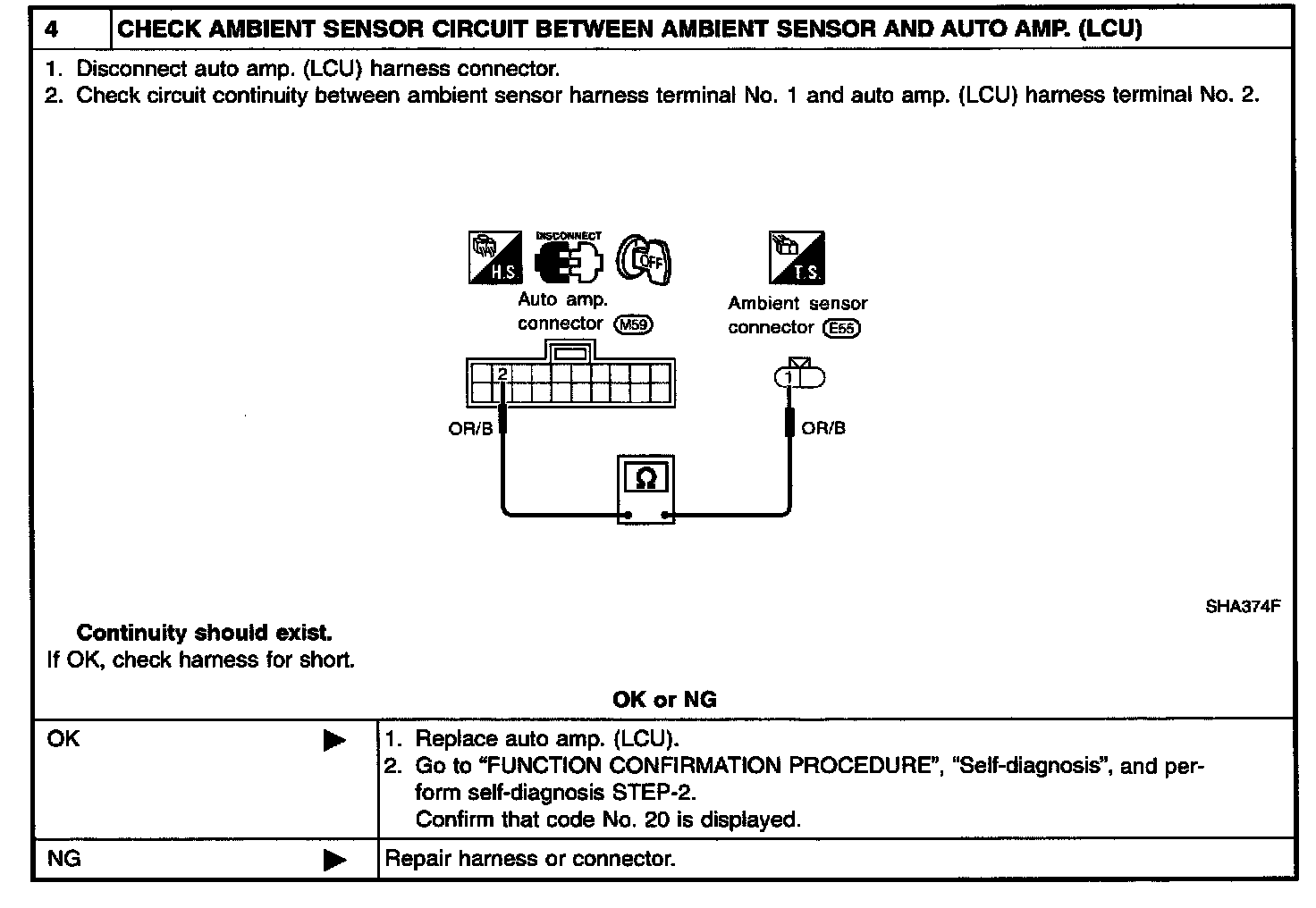

Step 4:

DIAGNOSTIC PROCEDURE

SYMPTOM: Ambient sensor circuit is open or shorted. (21 or -21 is indicated on the display as a result of conducting Self-diagnosis STEP 2.)

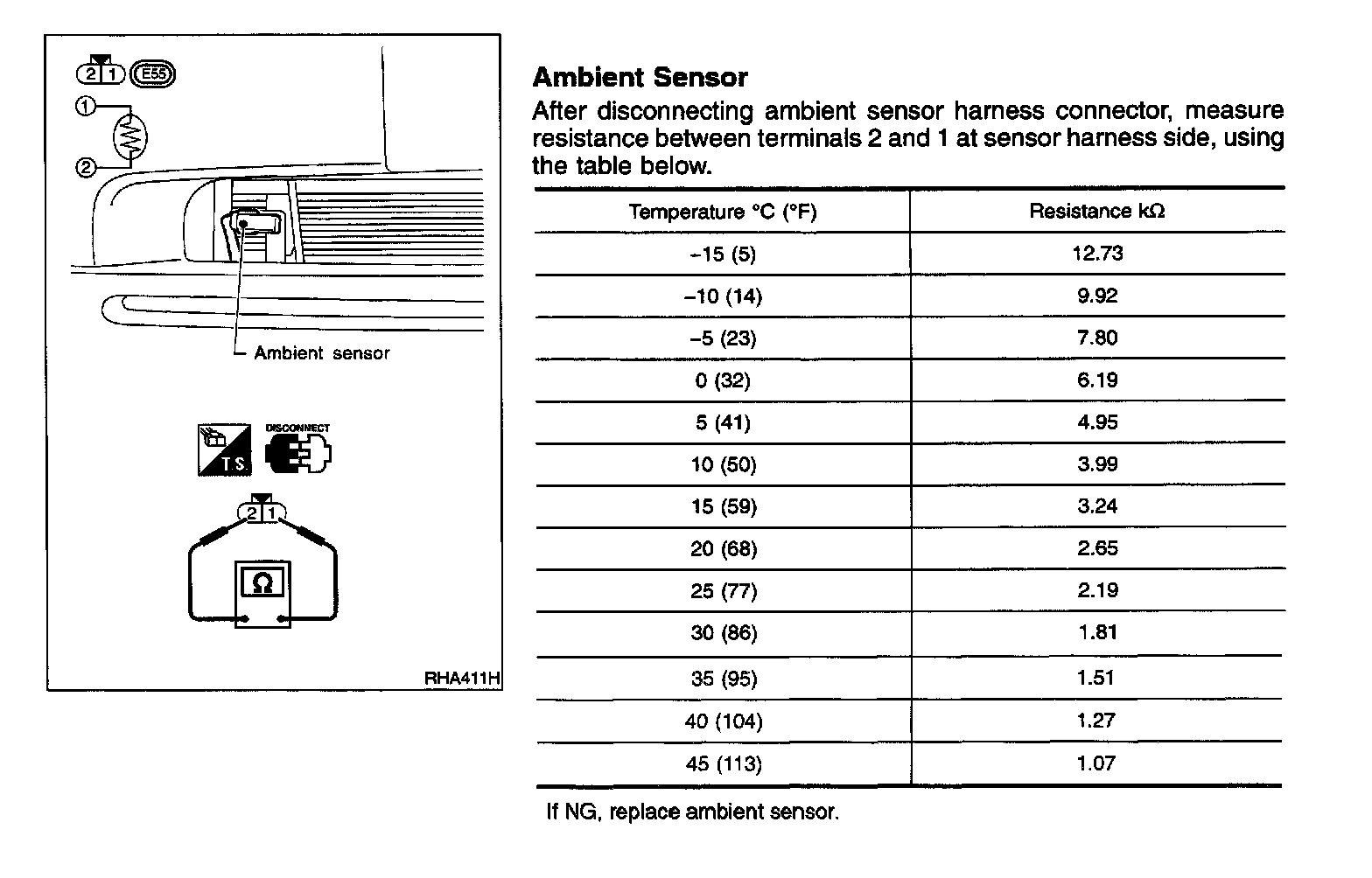

Component Inspection:

COMPONENT INSPECTION
