Front Seat Belt

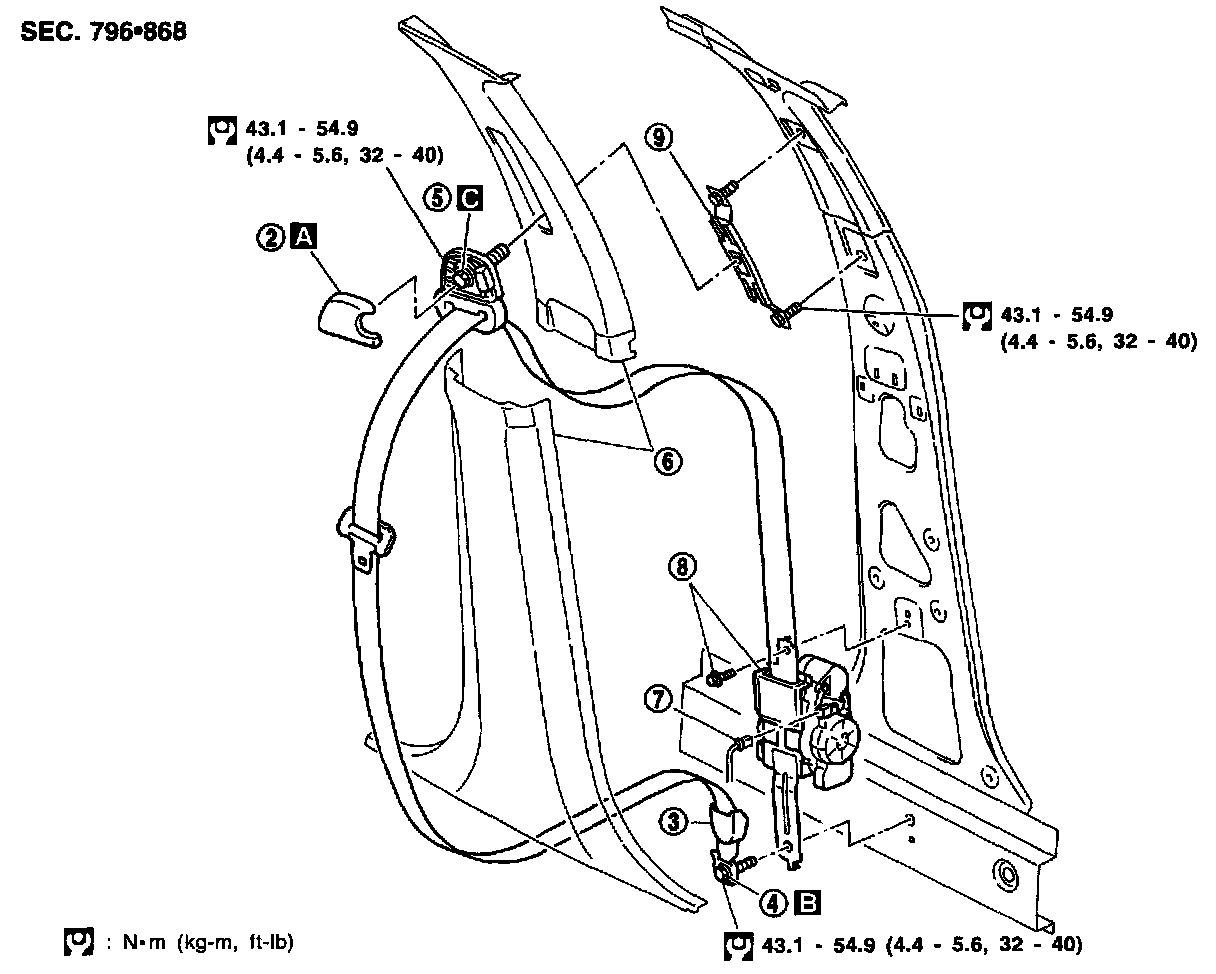

Component Locations Overview:

Component Views:

REMOVAL AND INSTALLATION
1. Slide the seat all the way forward and tilt the seatback toward the front.

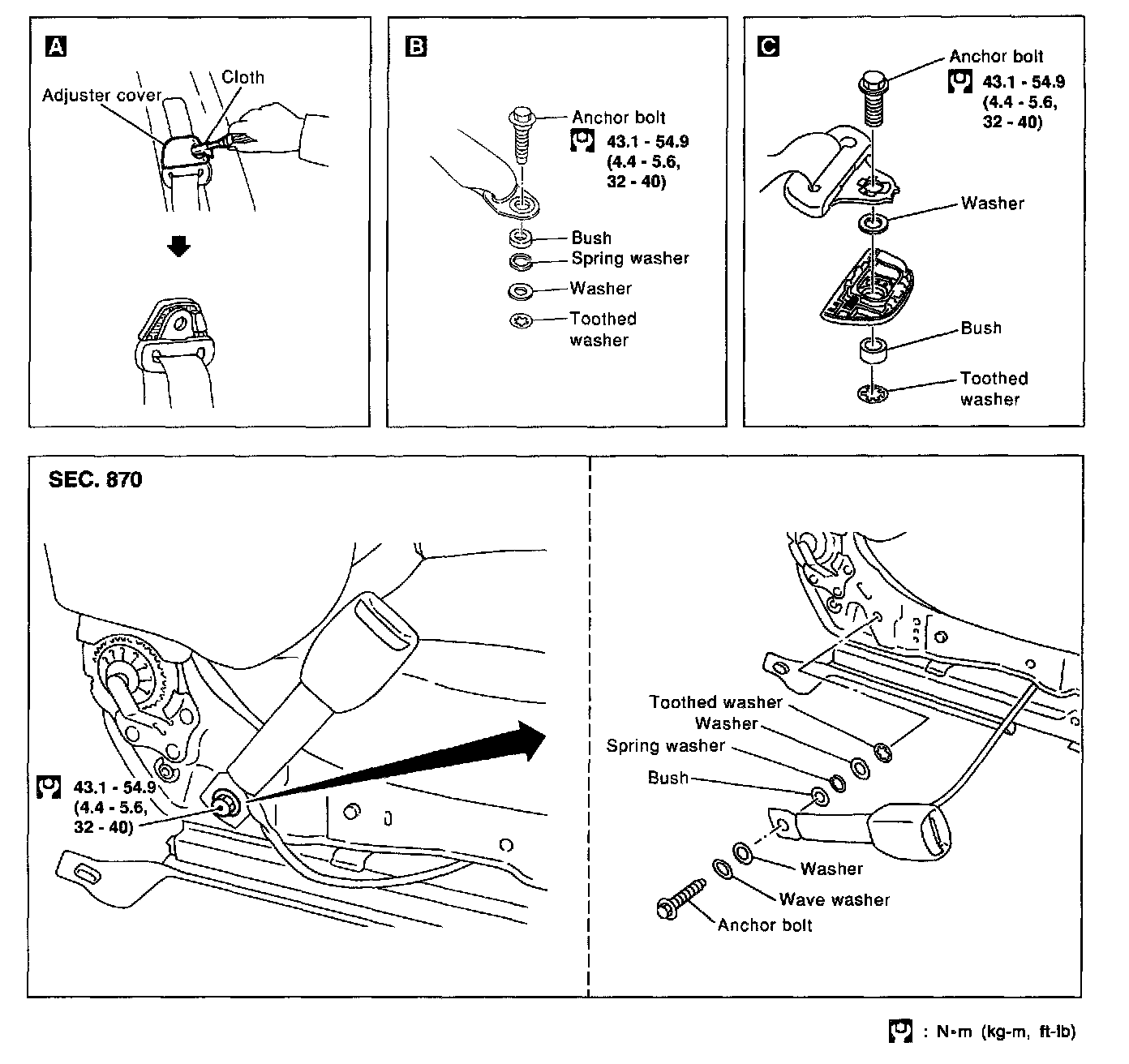

2. Remove adjuster cover. [A]
3. Slide floor anchor cover.
4. Remove floor anchor bolt. [B]
5. Remove shoulder anchor bolt. [A]
6. Remove front and rear kicking plate, then remove center pillar upper and lower garnish. Refer to "SIDE AND FLOOR TRIM" for details.
7. Disconnect seat belt pre-tensioner connector.
8. Remove the screw securing seat belt pre-tensioner retractor, then remove seat belt and seat belt pre-tensioner retractor.
9. Remove bolts securing seat belt adjuster, then remove seat belt adjuster.

To install, reverse the removal procedure sequence.
