SRS Warning Lamp Operation Check

Diagnostic Procedure 1

SRS Operation Check

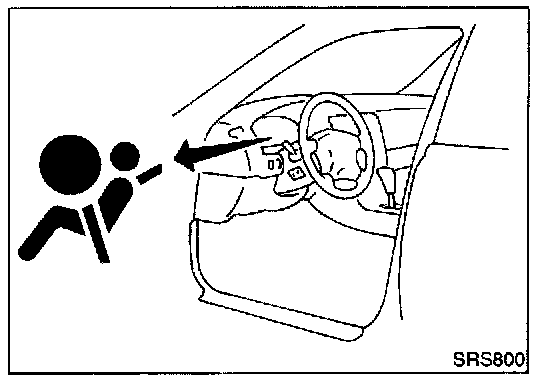

Checking Air Bag Operation by Using "AIR BAG" Warning Lamp - User Mode




1. After turning ignition switch from "OFF" to "ON", "AIR BAG" warning lamp operates.

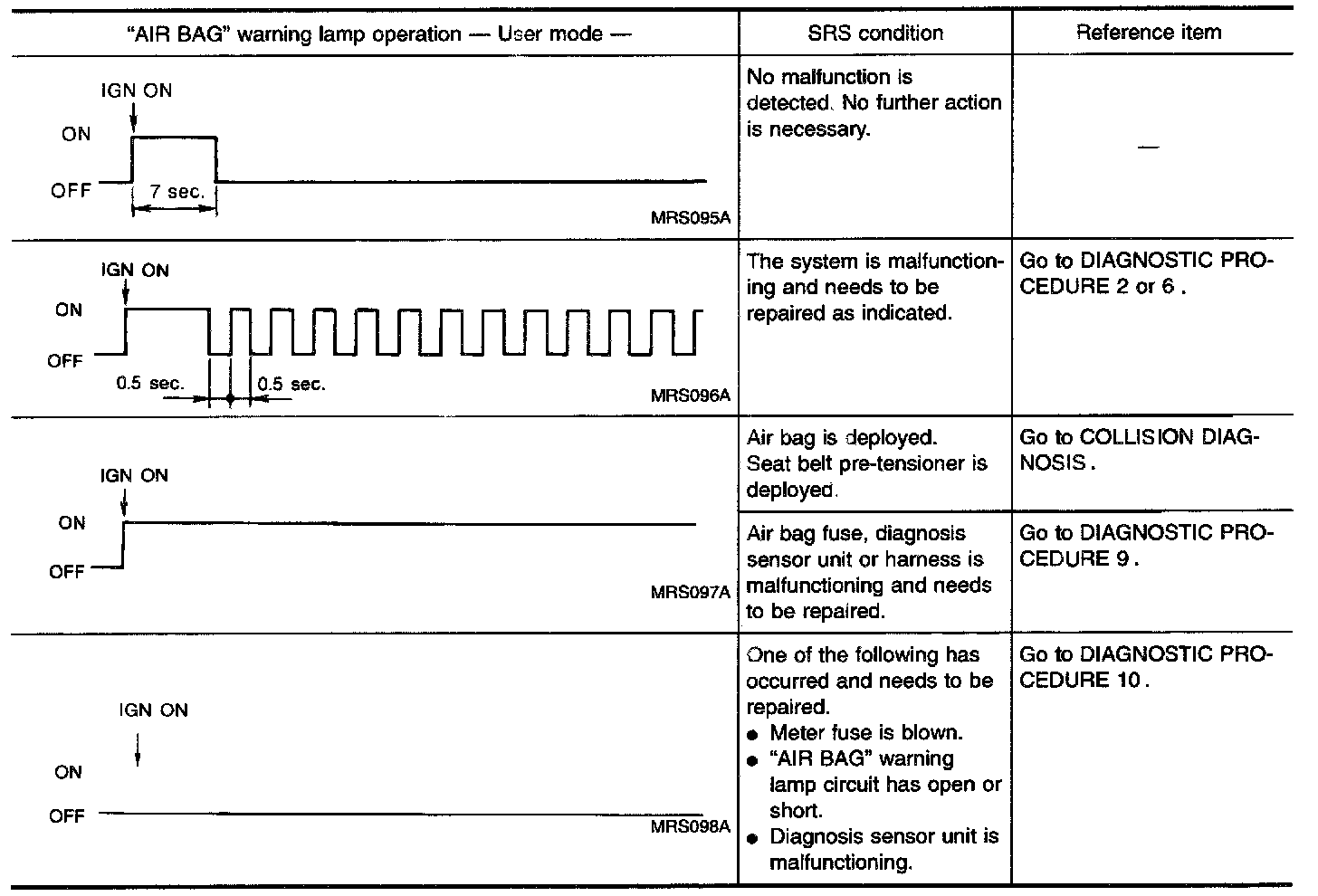

2. Compare "AIR BAG" warning lamp operation to the chart shown.

NOTE: If "AIR BAG" warning lamp operates differently from the operations shown, refer to "AIR BAG" warning lamp operation - Diagnosis mode -, DIAGNOSTIC PROCEDURE 6.
