ENG. Speed Does Not Return to Idle (Light Braking D4->D3)

Engine Speed Does Not Return To Idle (Light Braking D4 -> D3)

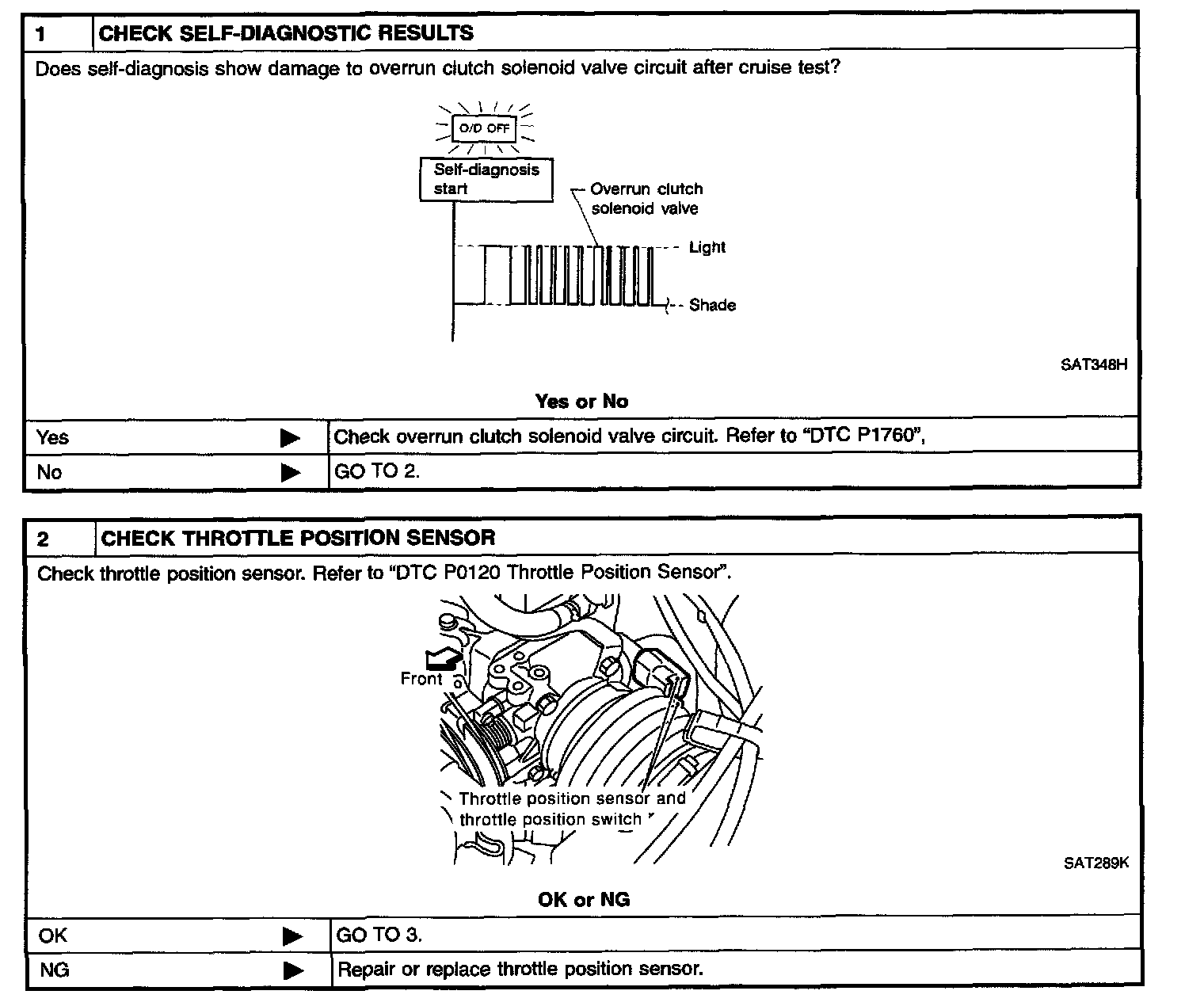

Chart 1 - 2

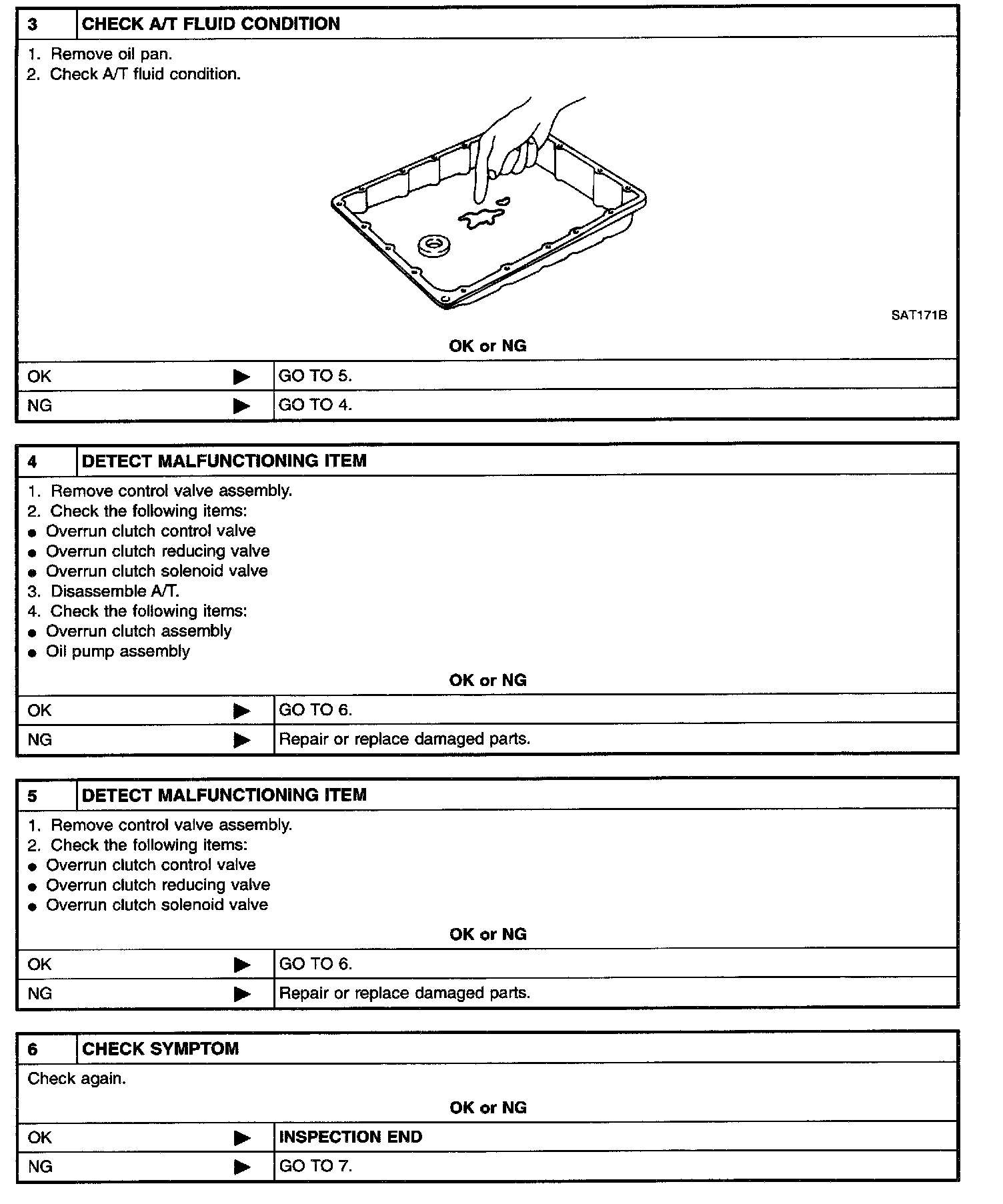

Chart 3 - 6

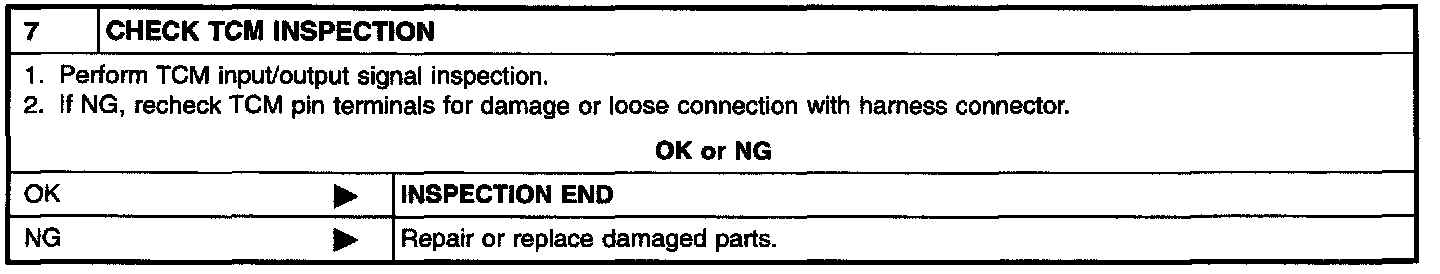

Chart 7

SYMPTOM:
^ Engine speed does not smoothly return to idle when A/T shifts from D4 to D3.
^ Vehicle does not decelerate by engine brake when turning overdrive control switch OFF.
^ Vehicle does not decelerate by engine brake when shifting AN from D to 2 position.
