A/T Does Not Shift: When Selector Lever D->2 Position
A/T Does Not Shift: When Selector Lever D->2 Position
A/T Does Not Shift: D3 -> 2-2, When Selector Lever D -> 2 Position

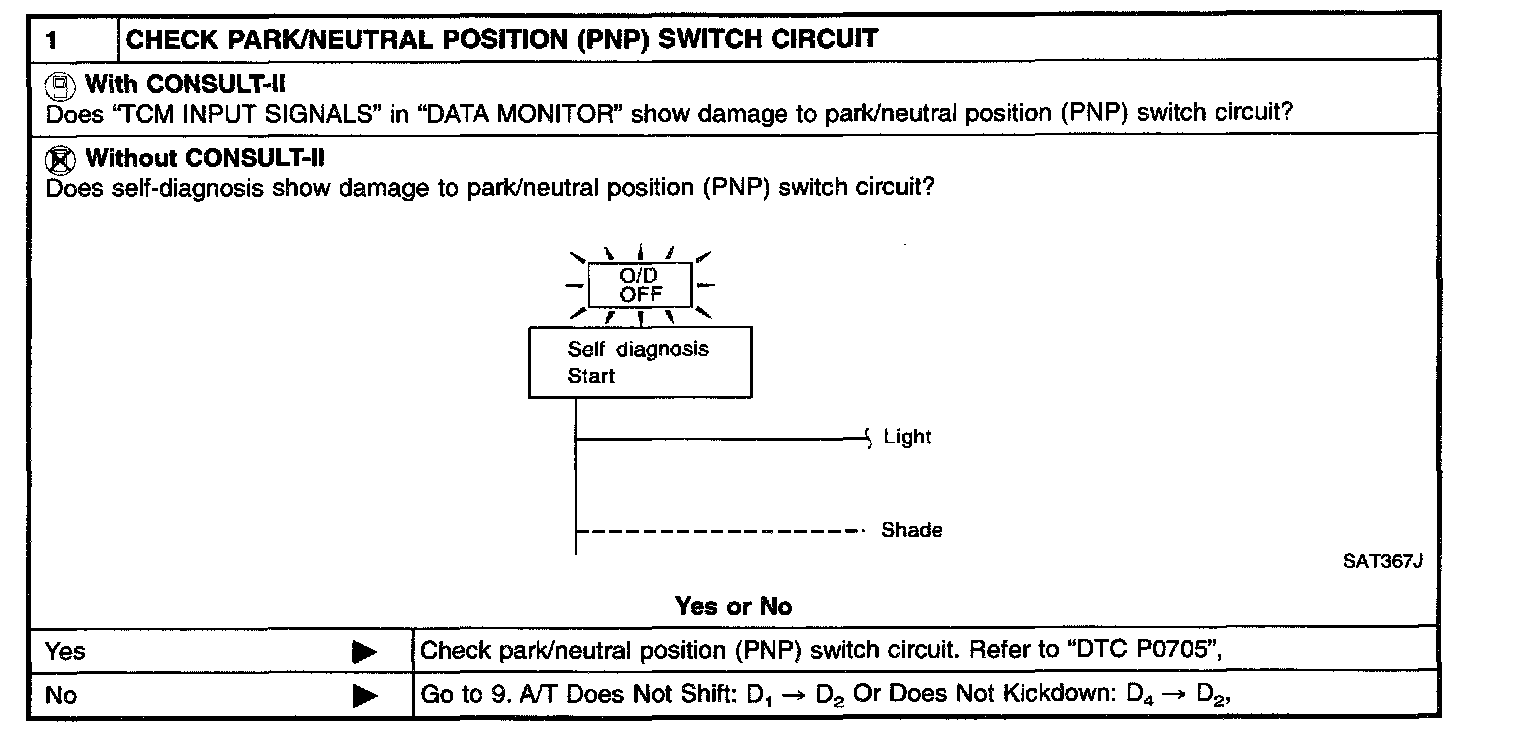

Chart 1
SYMPTOM: A/T does not shift from D3 to 2-2 when changing selector lever from D to 2 position.
