A/T Does Not Shift: D1->D2 or Does Not Kickdown: D4->D2

A/T Does Not Shift: D1 -> D2 0r Does Not Kickdown: D4 -> D2

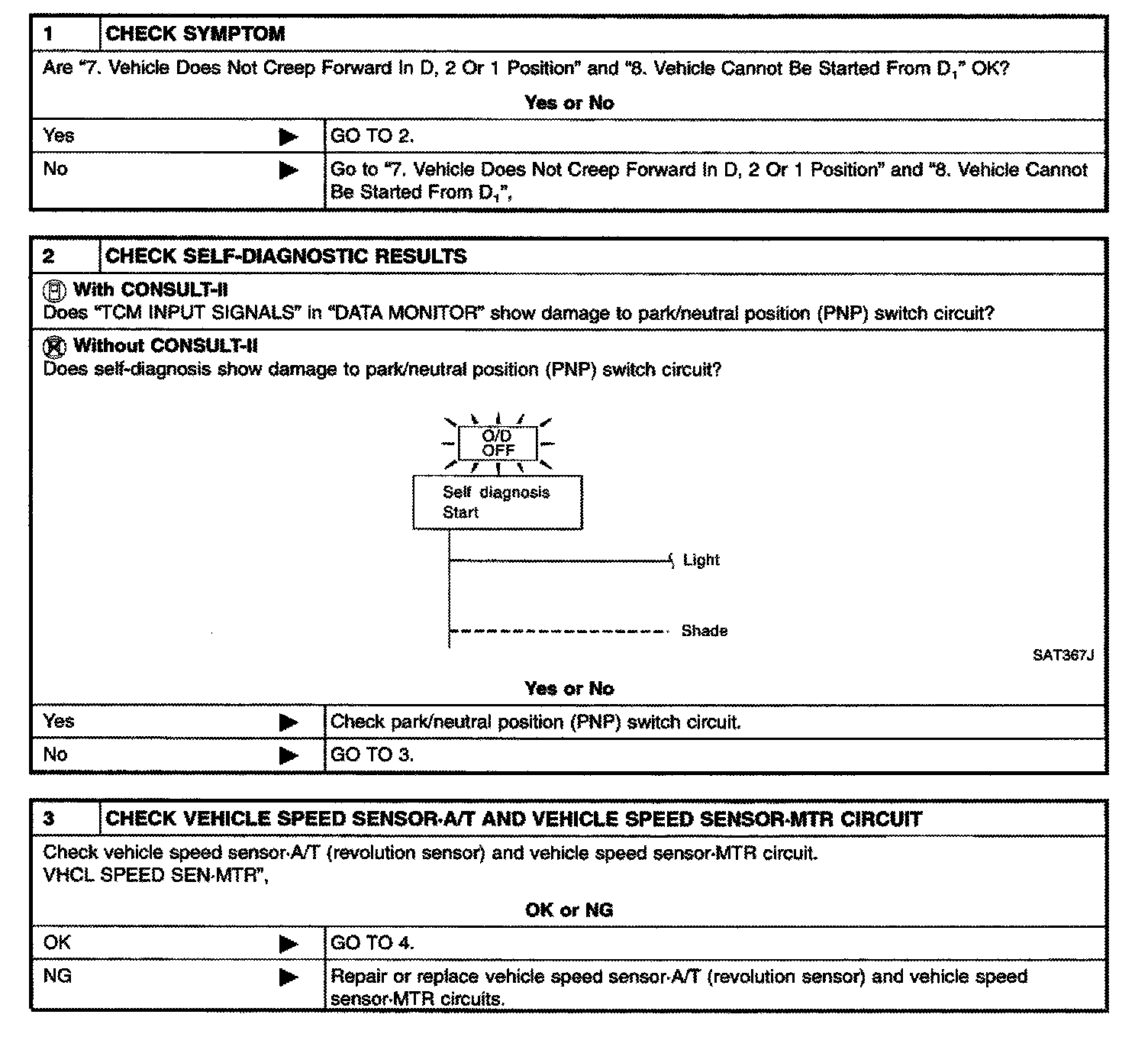

Chart 1 - 3

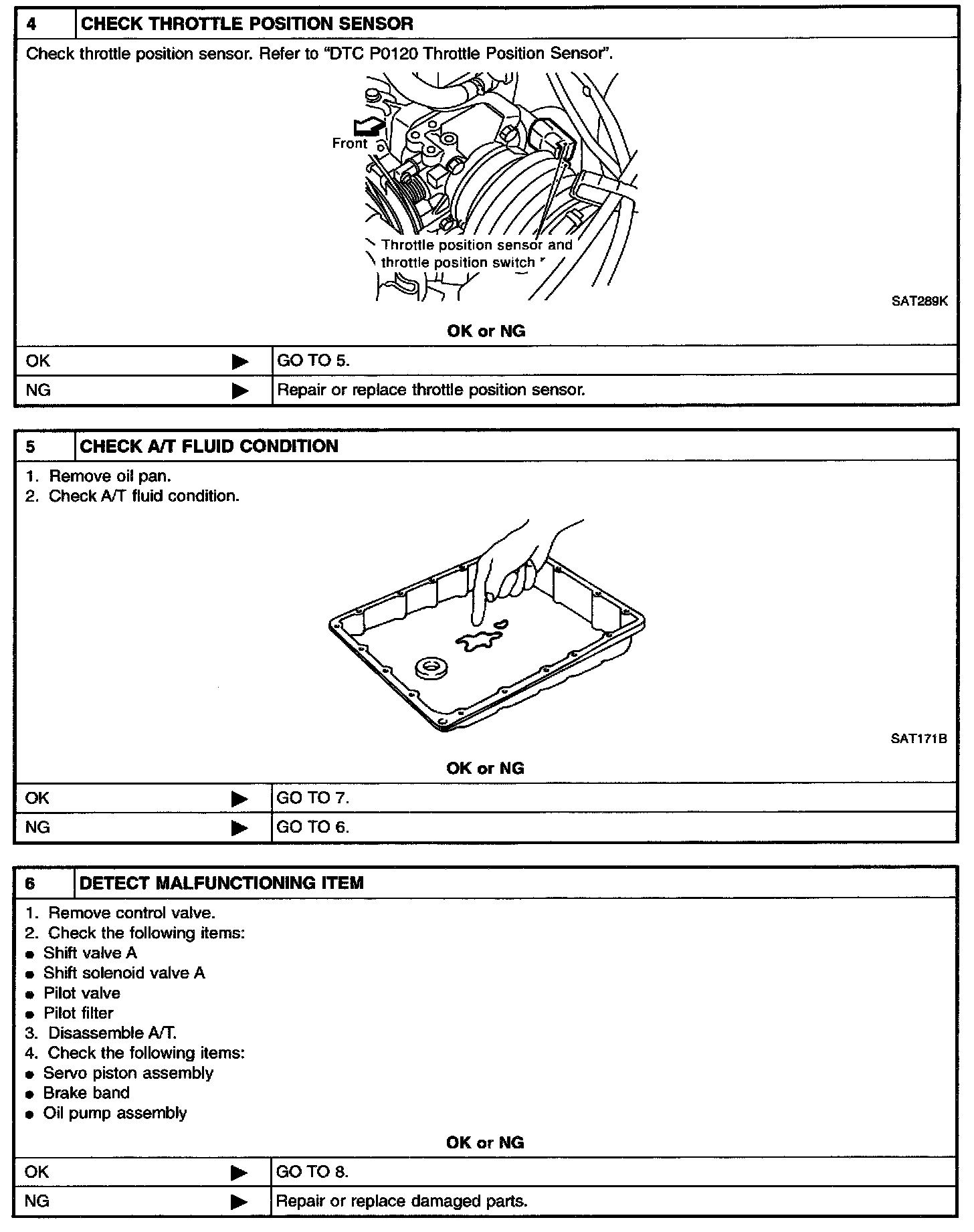

Chart 4 - 6

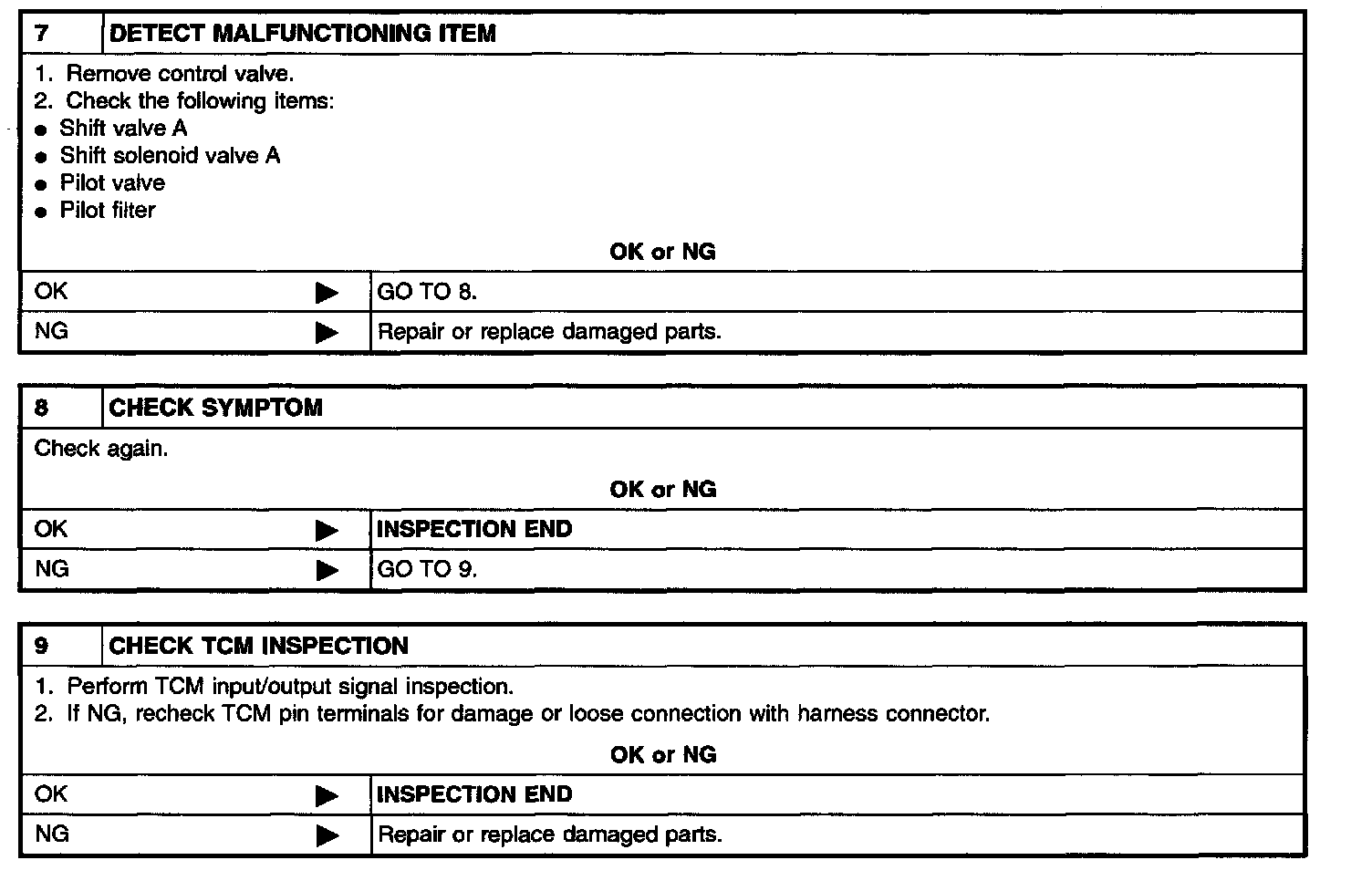

Chart 7 - 9

SYMPTOM: A/T does not shift from D1 to D2 at the specified speed.
A/T does not shift from D4 to D2 when depressing accelerator pedal fully at the specified speed.
