Without Consult-II
DESCRIPTION^ The purpose of the test is to determine overall performance of A/T and analyze causes of problems.

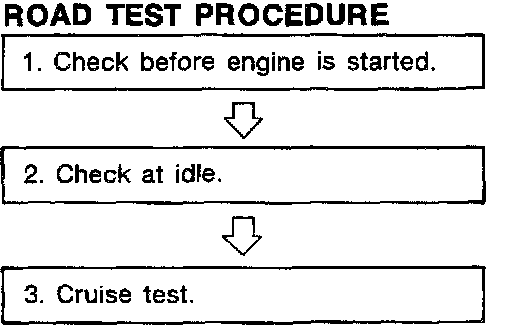

^ The road test consists of the following three parts:
1. Check before engine is started
2. Check at idle
3. Cruise test
^ Before road test, familiarize yourself with all test procedures and items to check.
^ Conduct tests on all items until specified symptom is found. Troubleshoot items which check out No Good after road test.

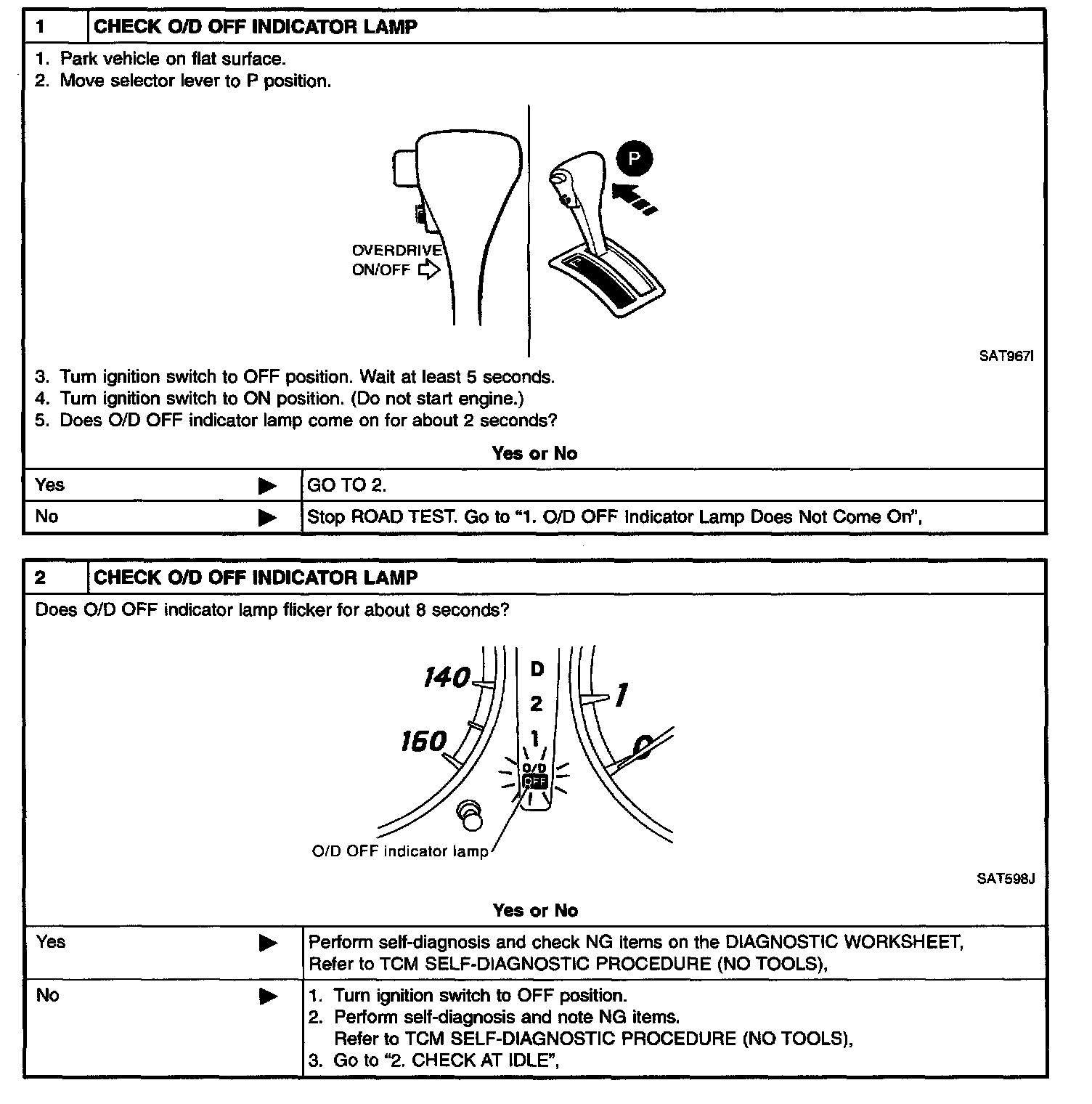

1. CHECK BEFORE ENGINE IS STARTED

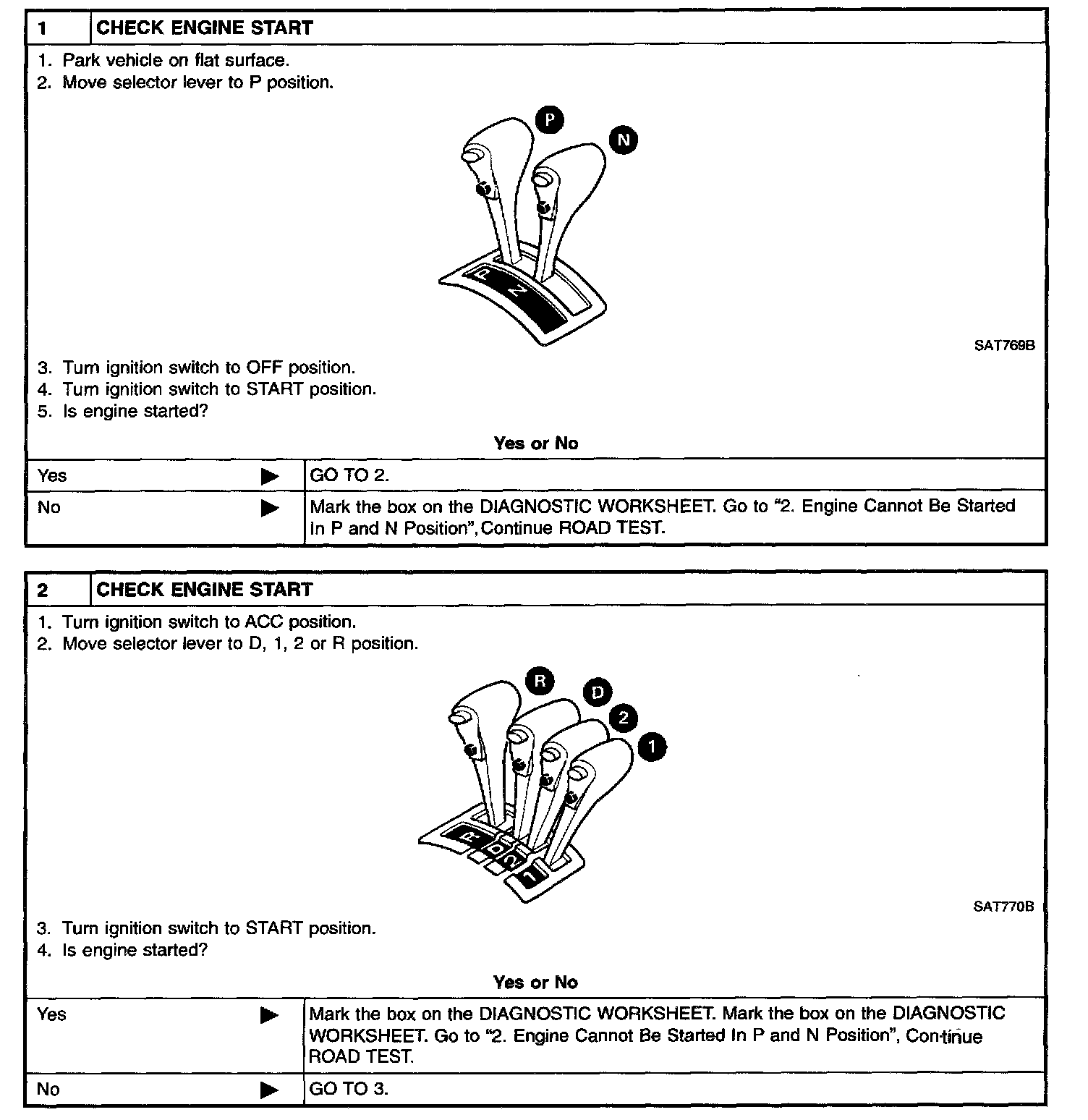

Chart 1 - 2

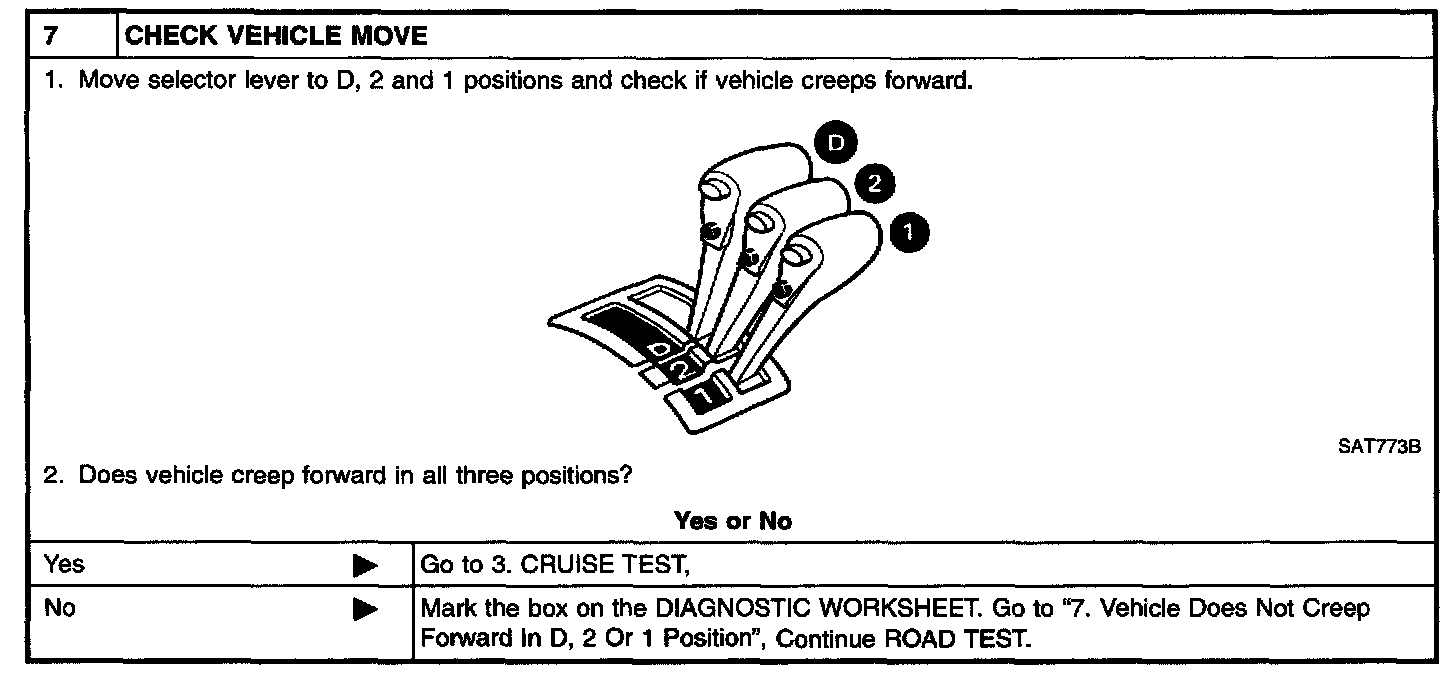

2. CHECK AT IDLE
Chart 1 - 2

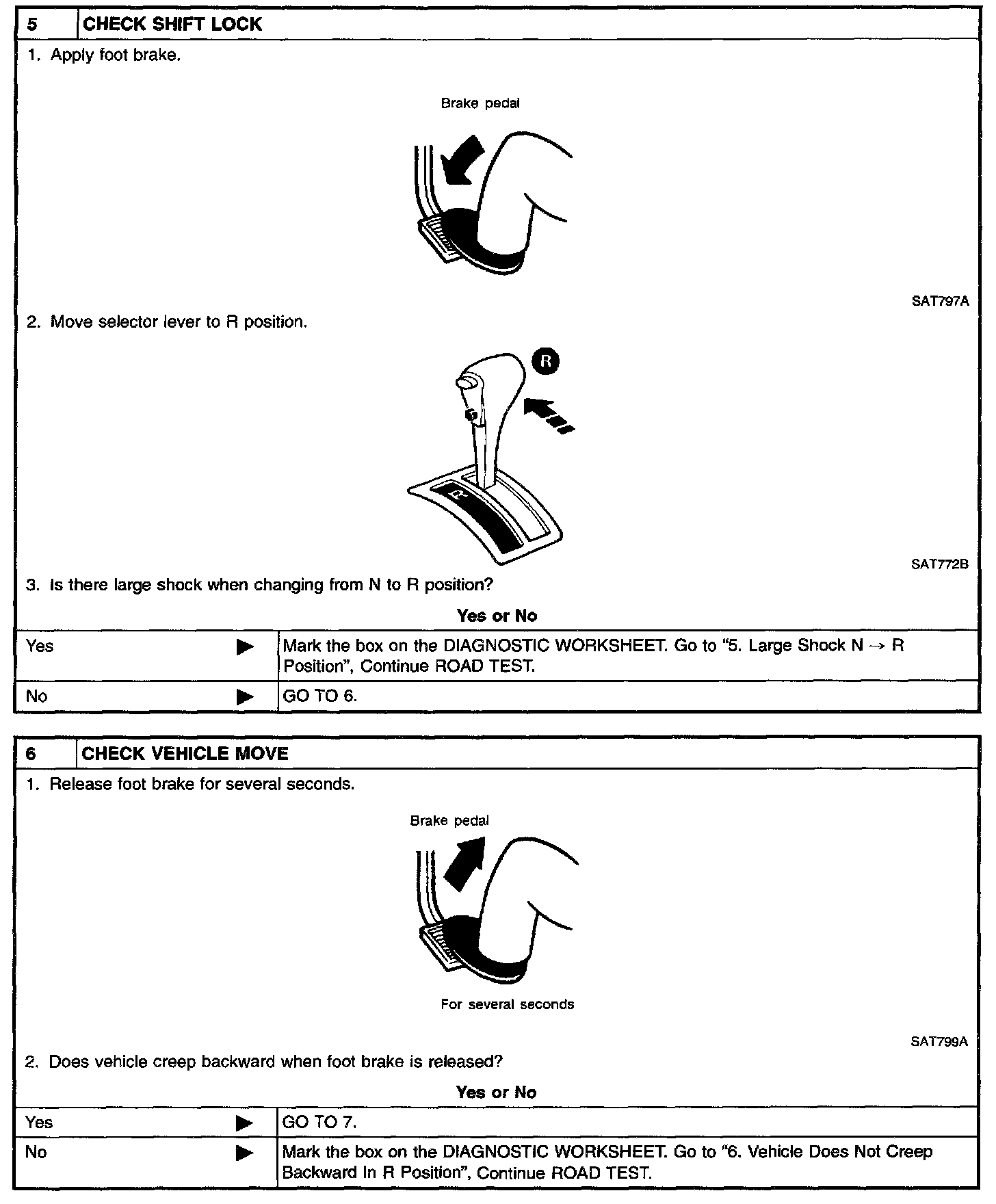

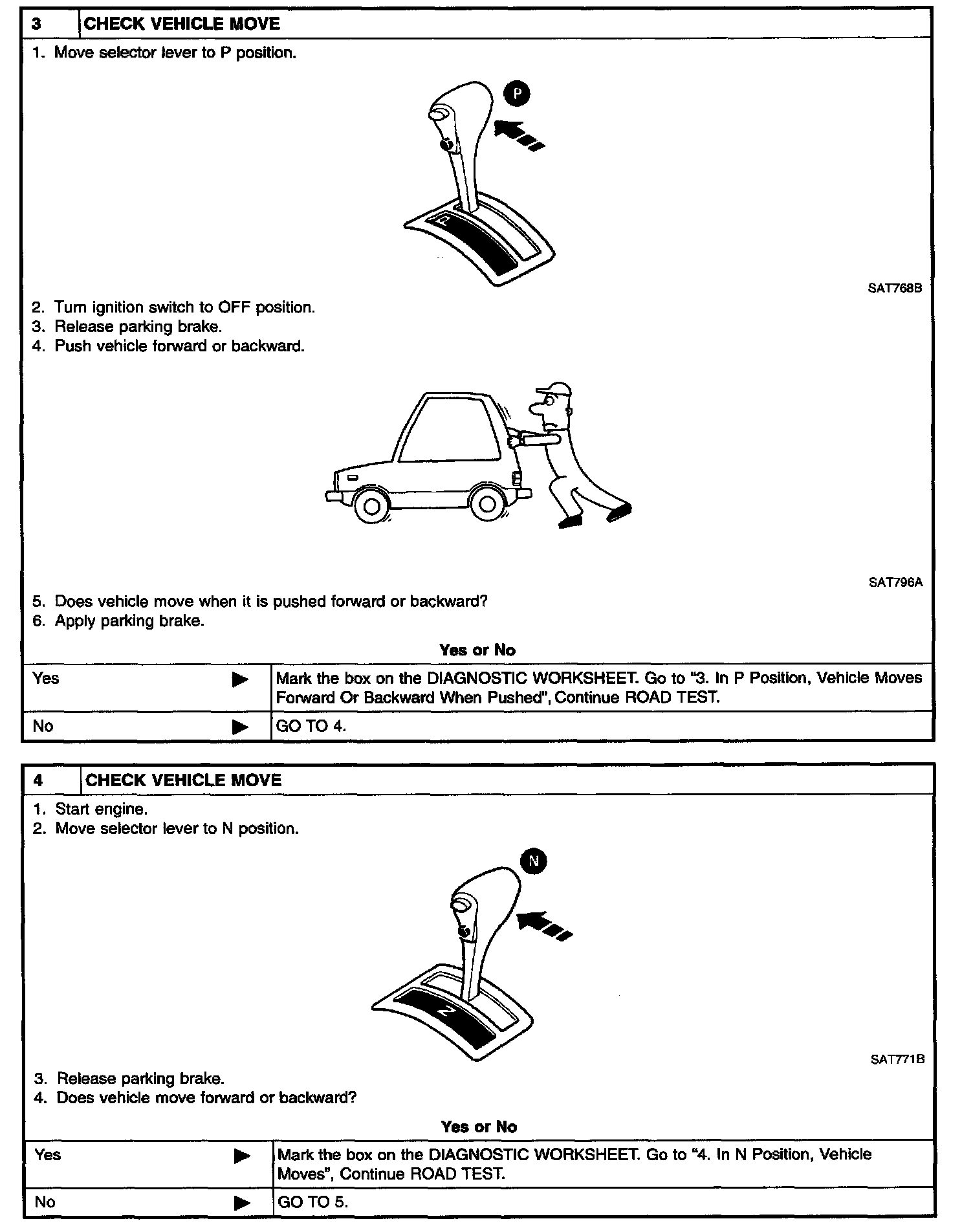

Chart 3 - 4
Chart 5 - 6
Chart 7
3. CRUISE TEST
^ Check all items listed in Parts 1 through 3.

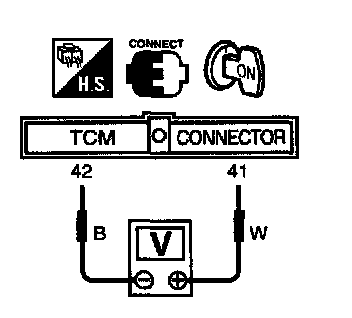

^ Throttle position sensor can be checked by voltage across terminals 41 and 42 of TCM.

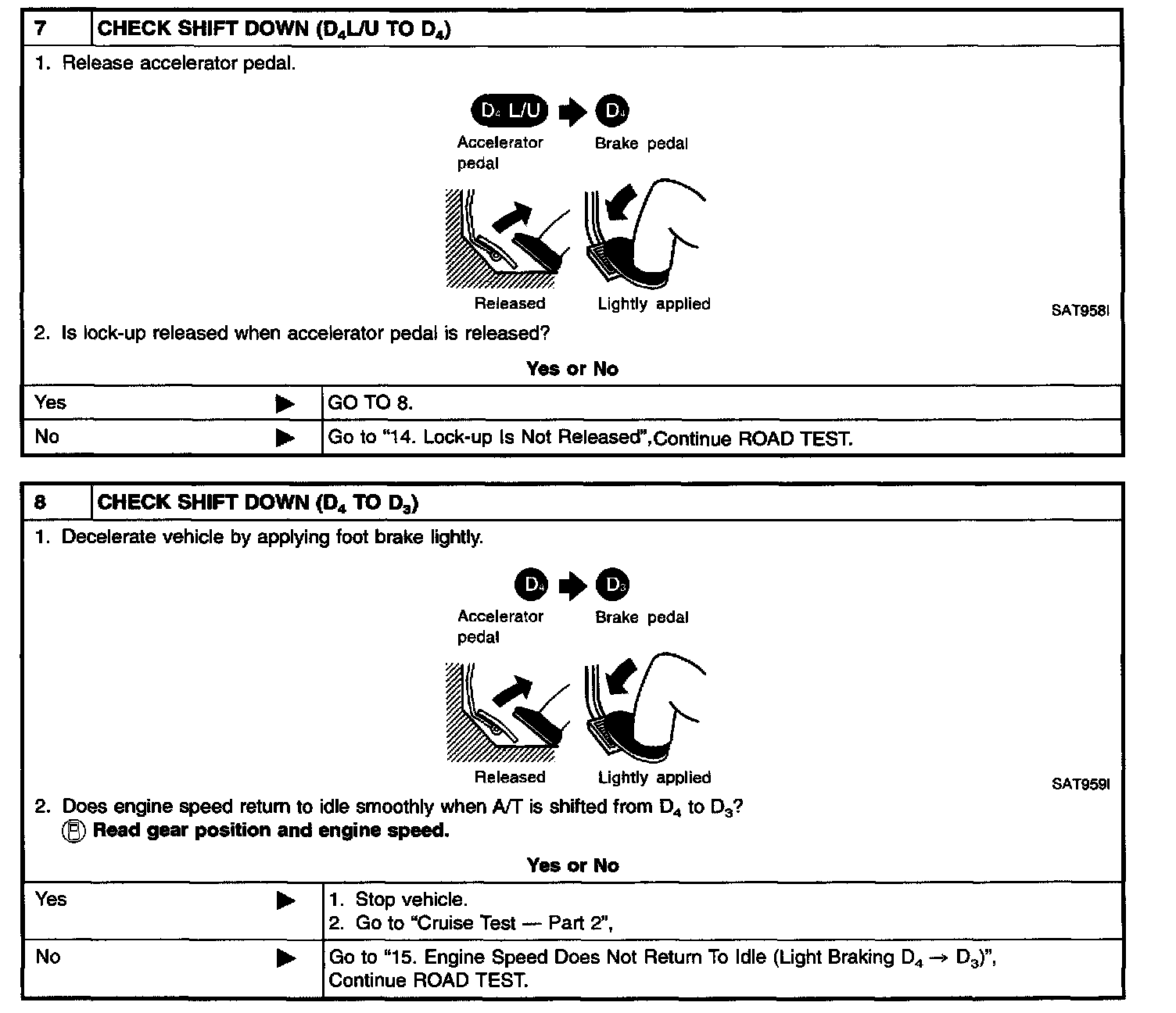

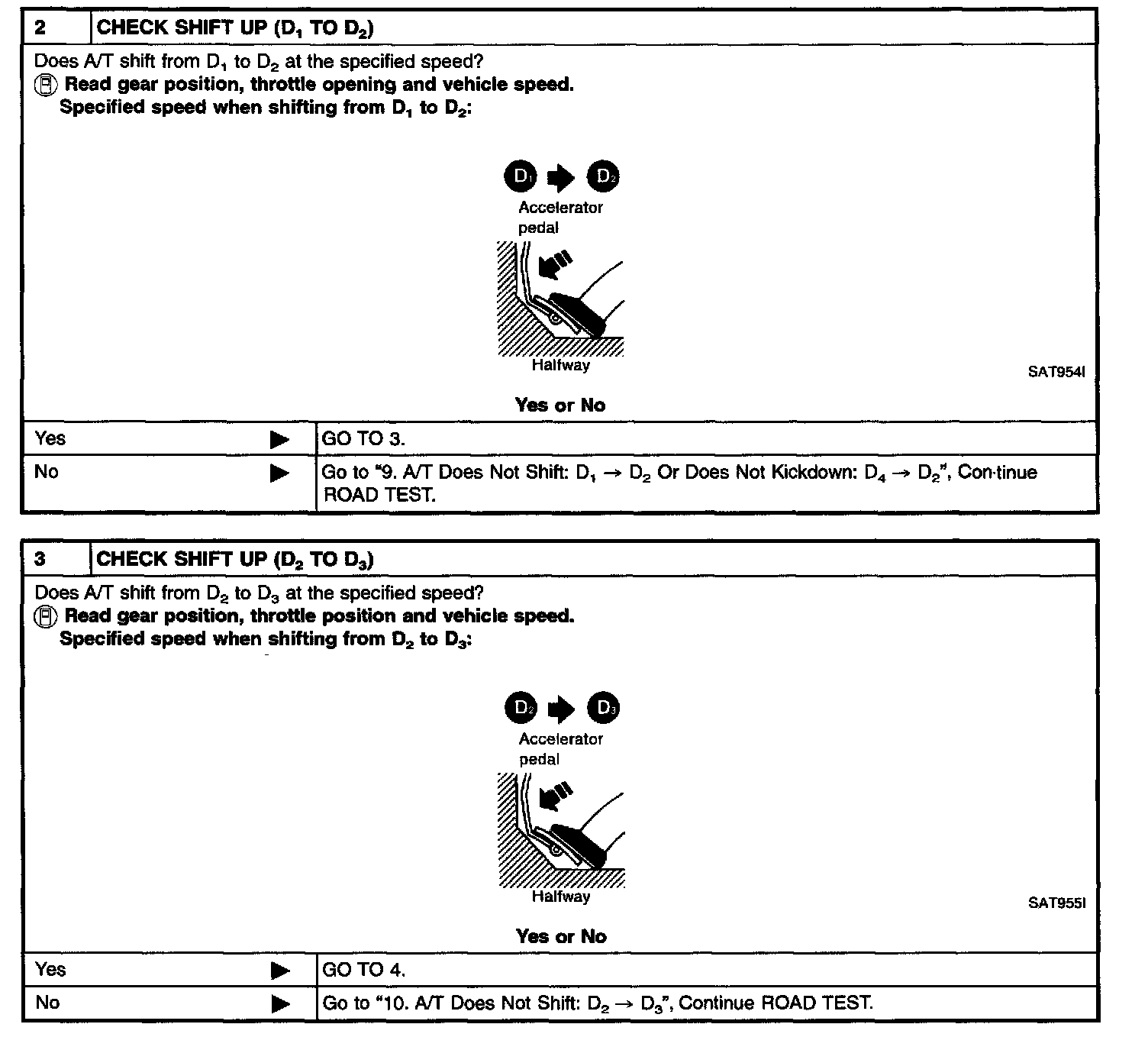

Cruise Test - Part 1

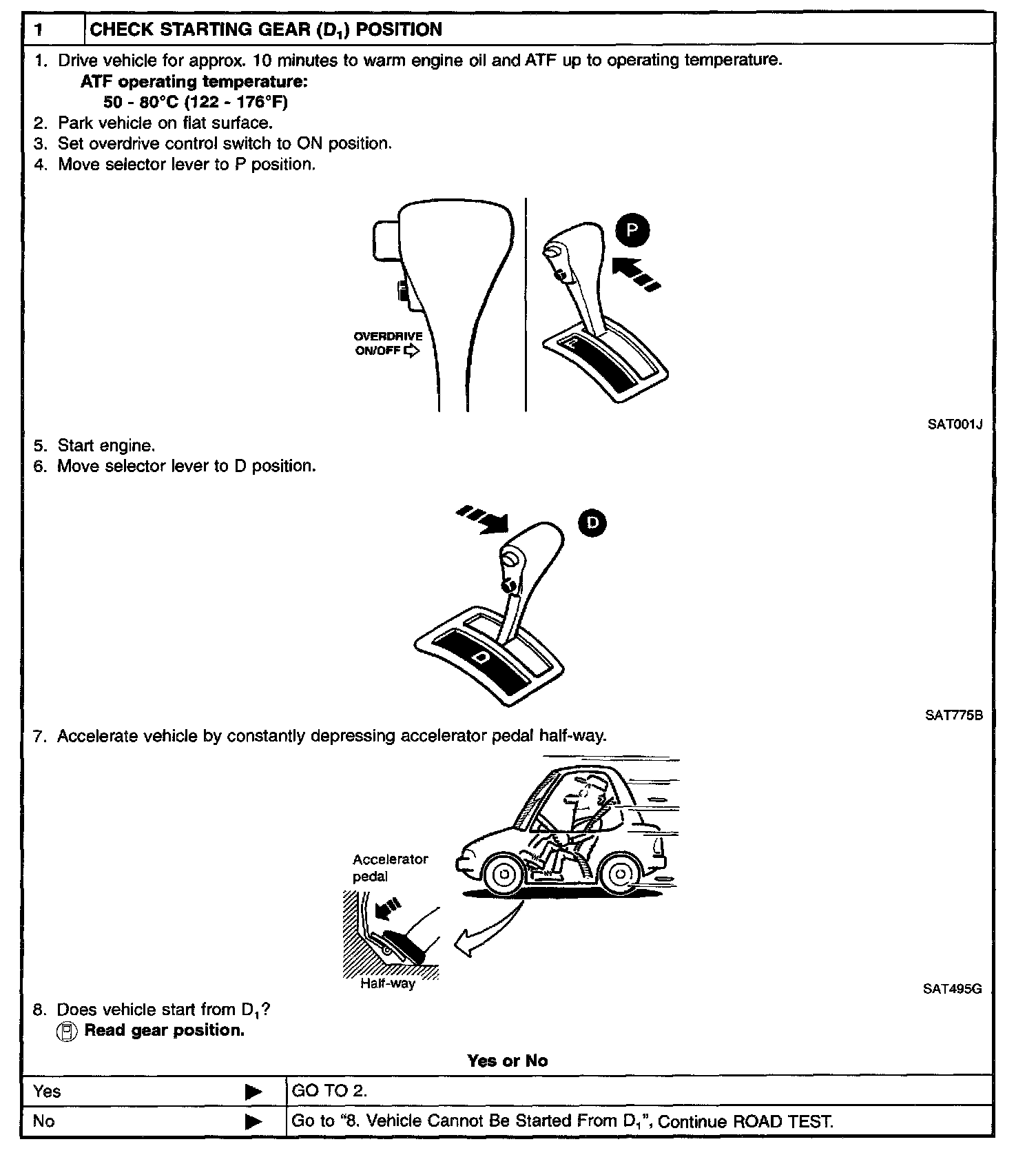

Chart 1
Chart 2 - 3

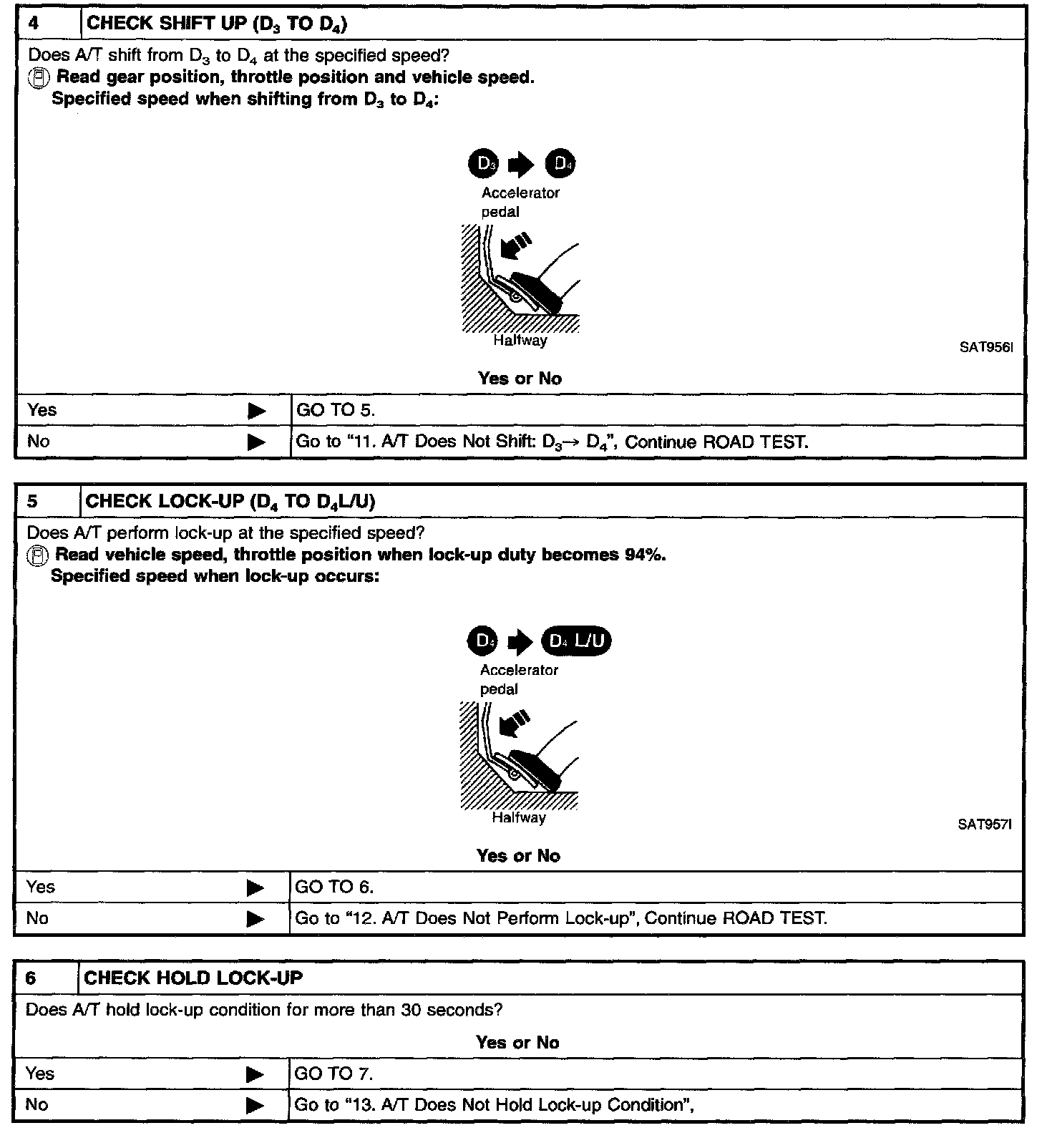

Chart 4 - 6
Chart 7 - 8
Cruise Test - Part 2

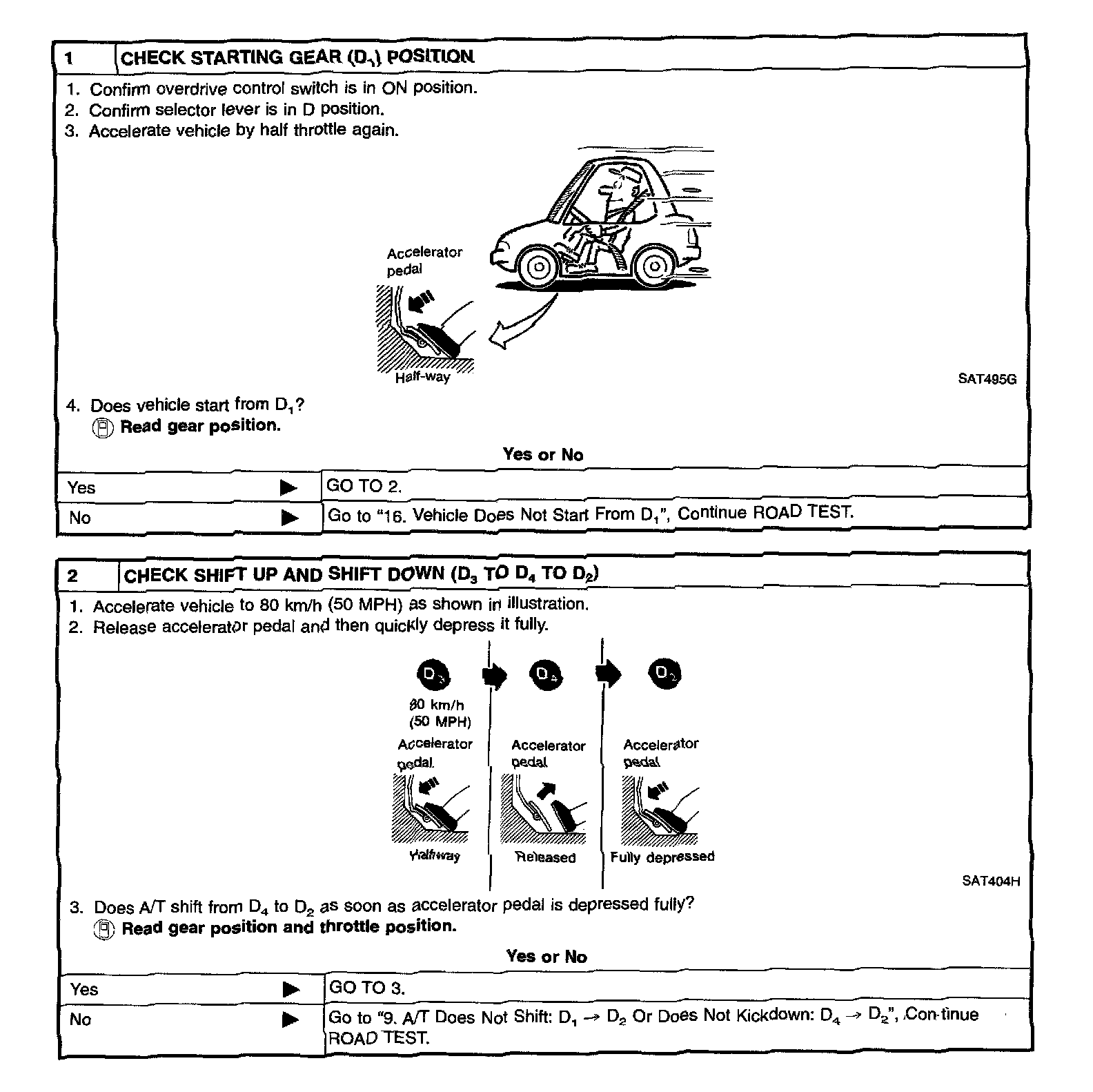

Chart 1 - 2
Chart 3 - 4

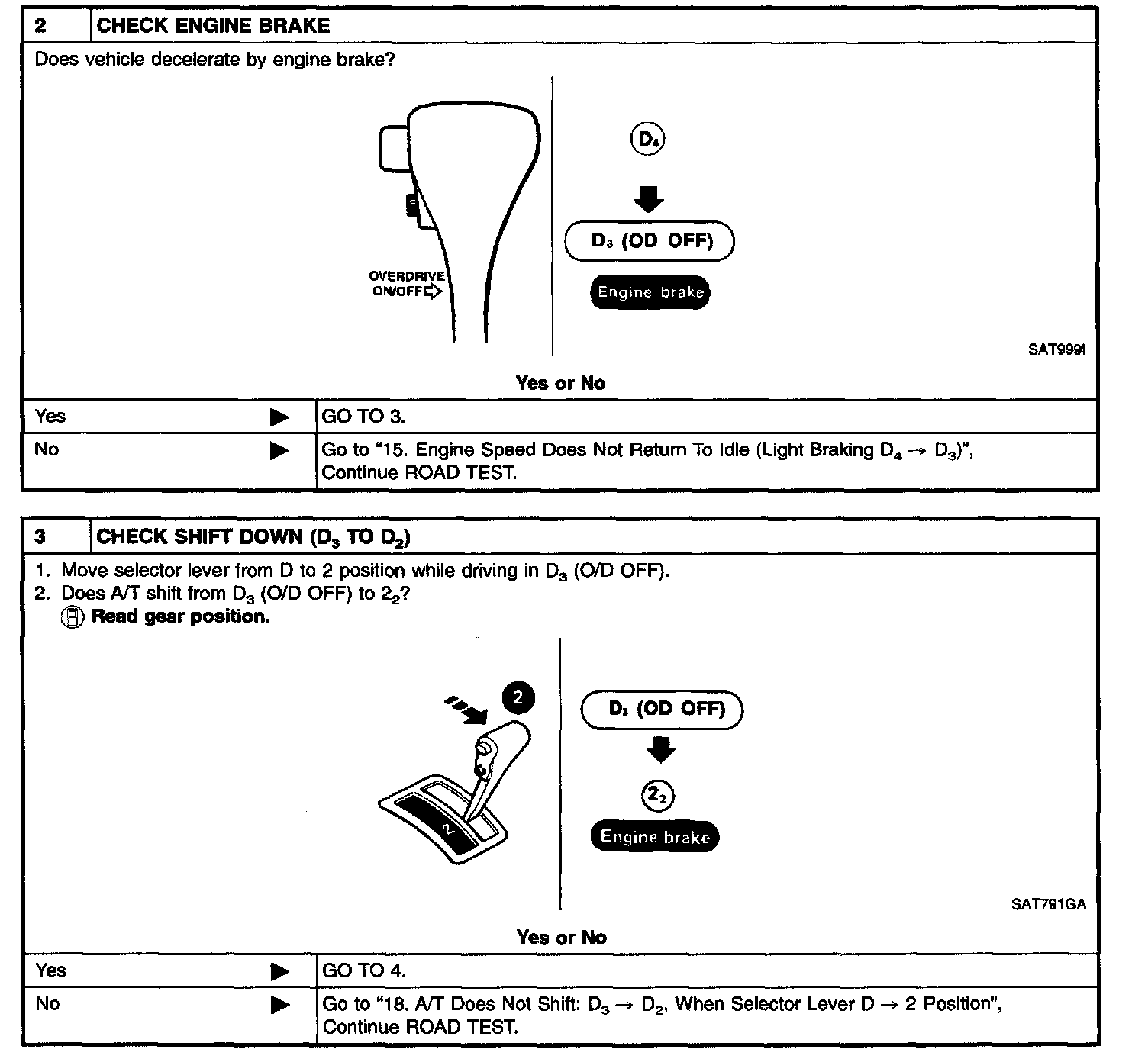

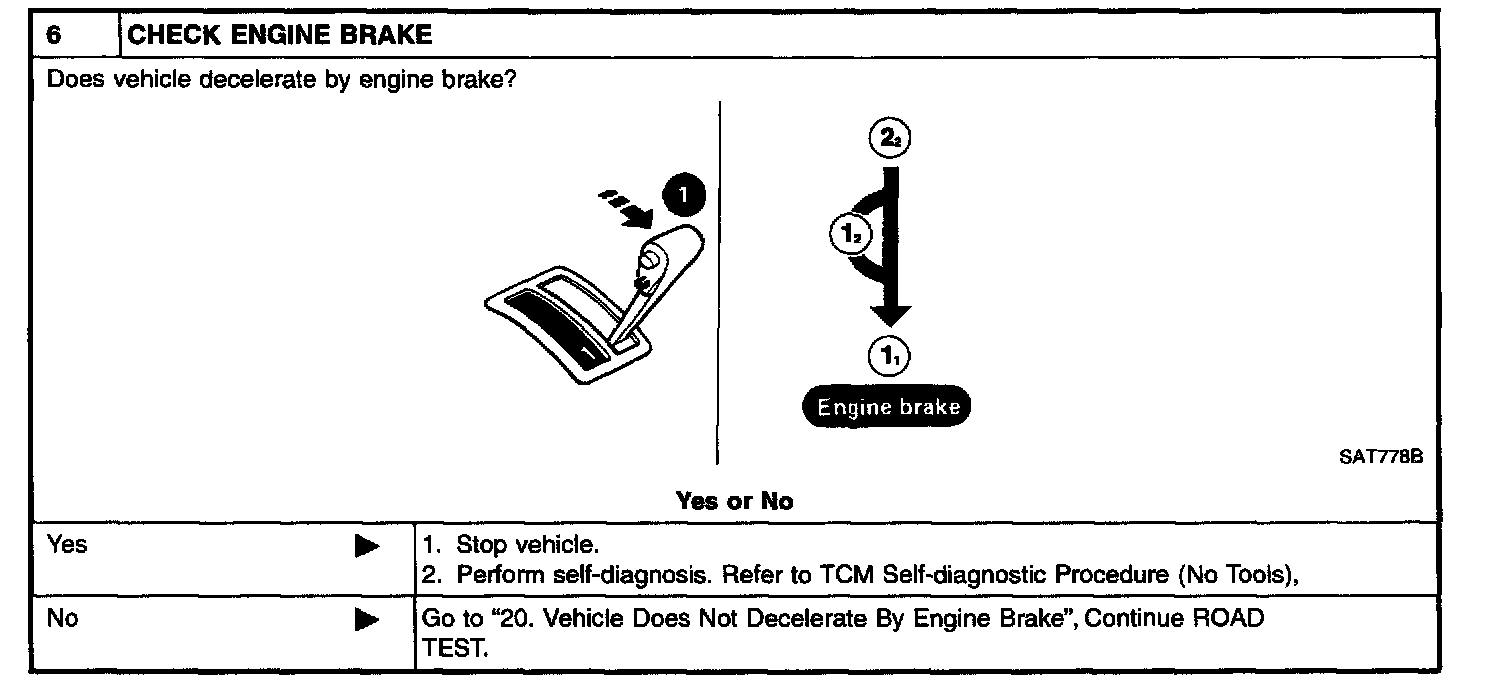

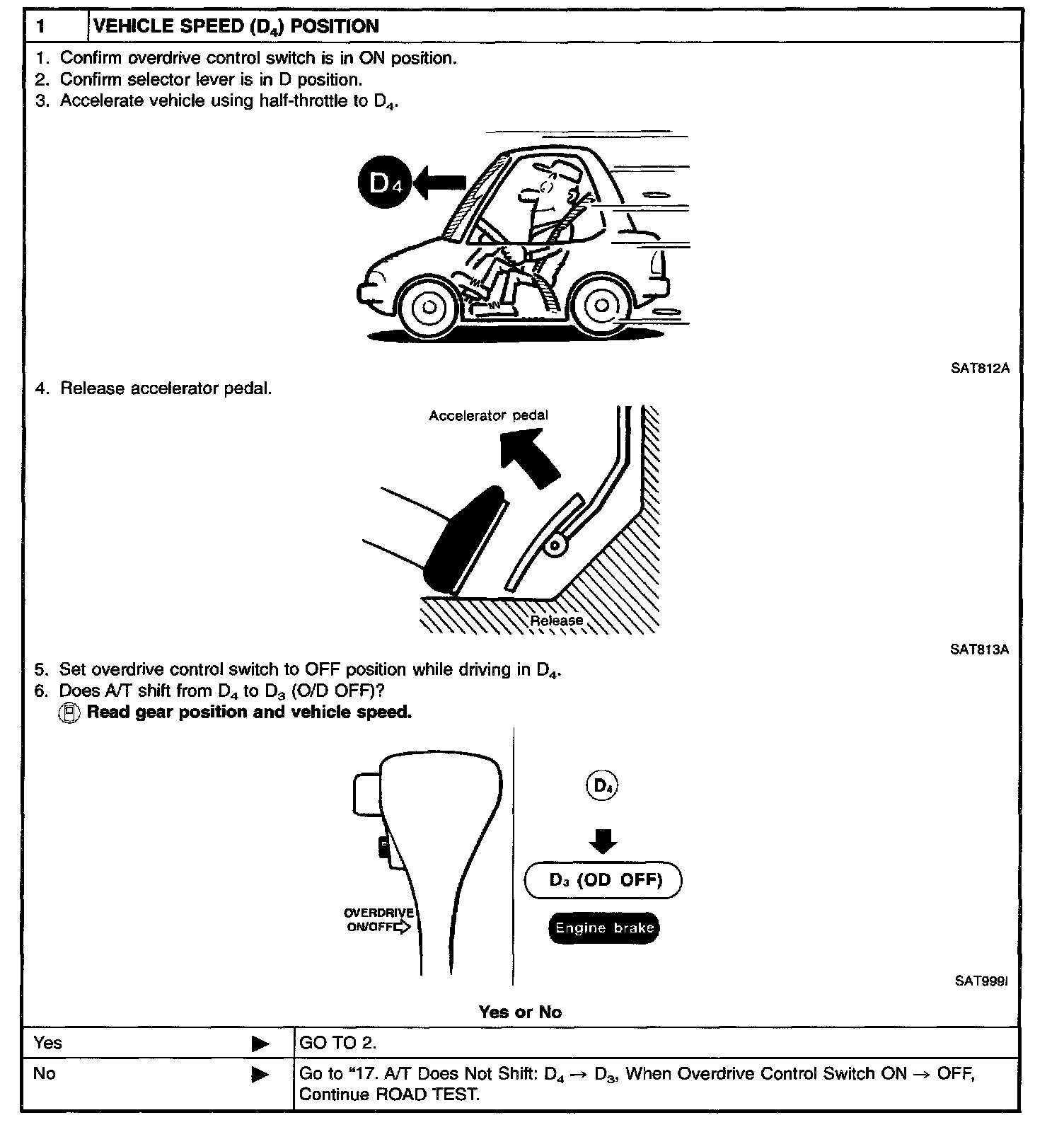

Cruise Test - Part 3
Chart 1

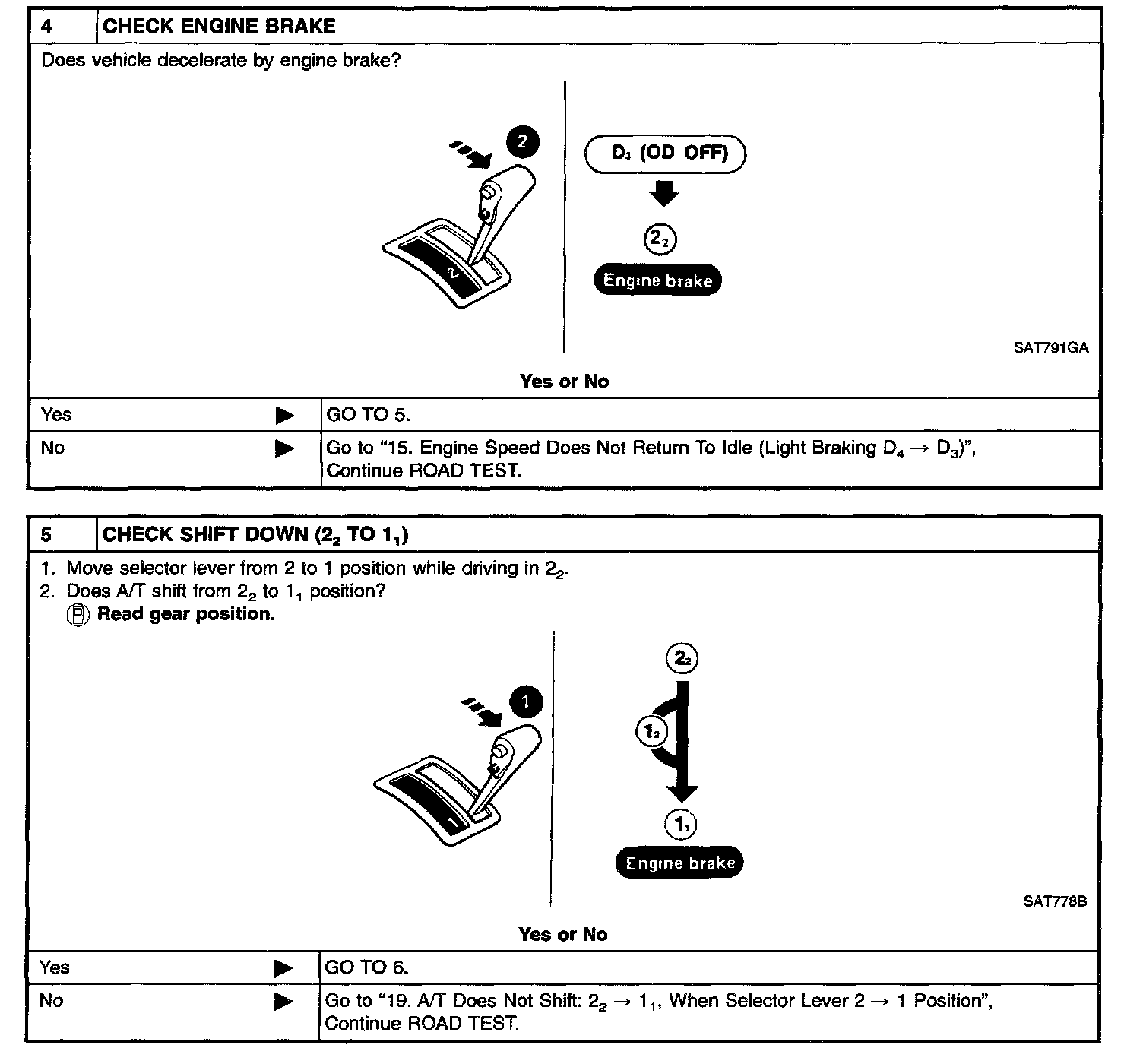

Chart 2 - 3
Chart 4 - 5
Chart 6
