Main Power Supply and Ground Circuit Testing

TROUBLE DIAGNOSIS FOR POWER SUPPLY

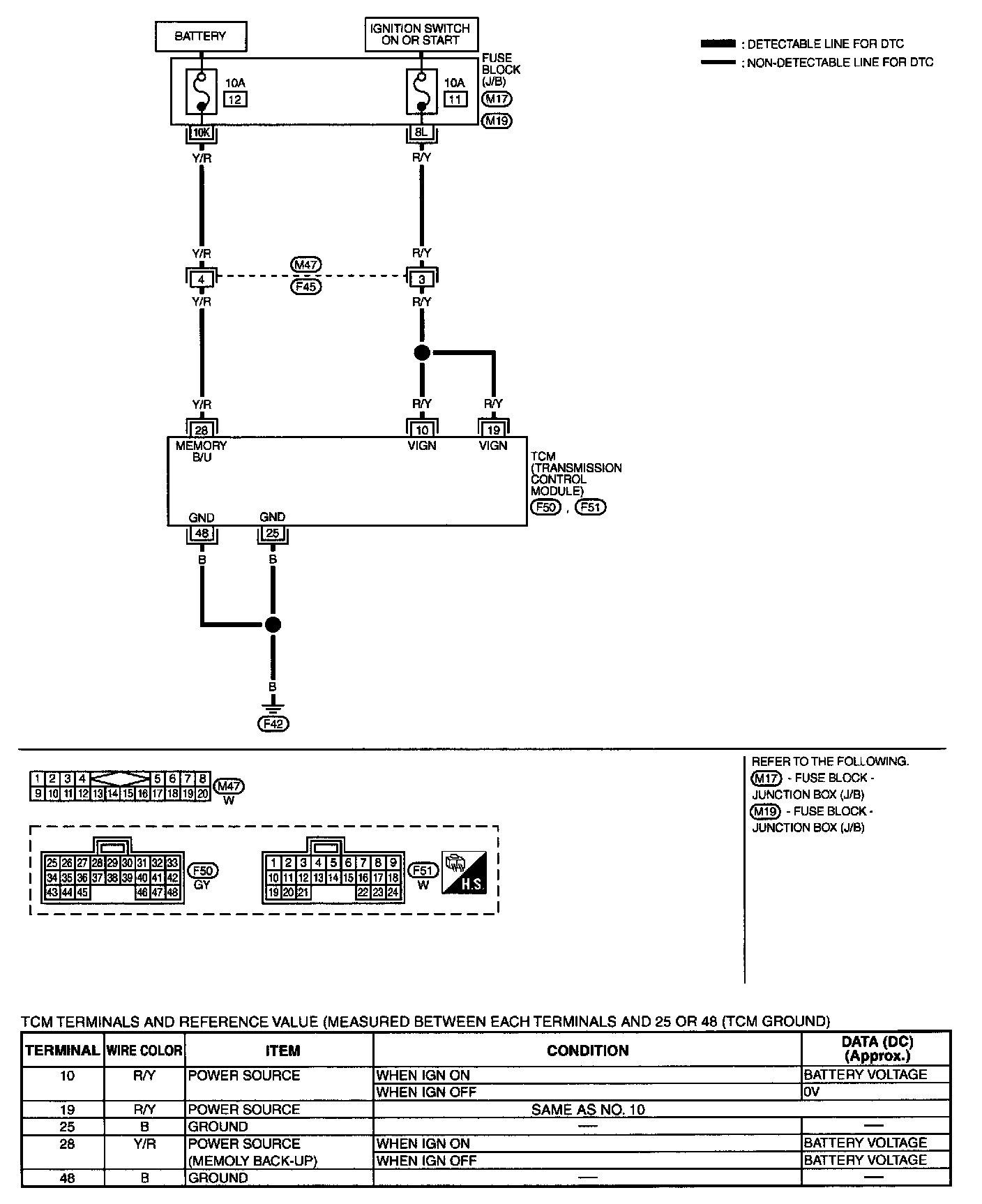

WIRING DIAGRAM - AT - MAIN

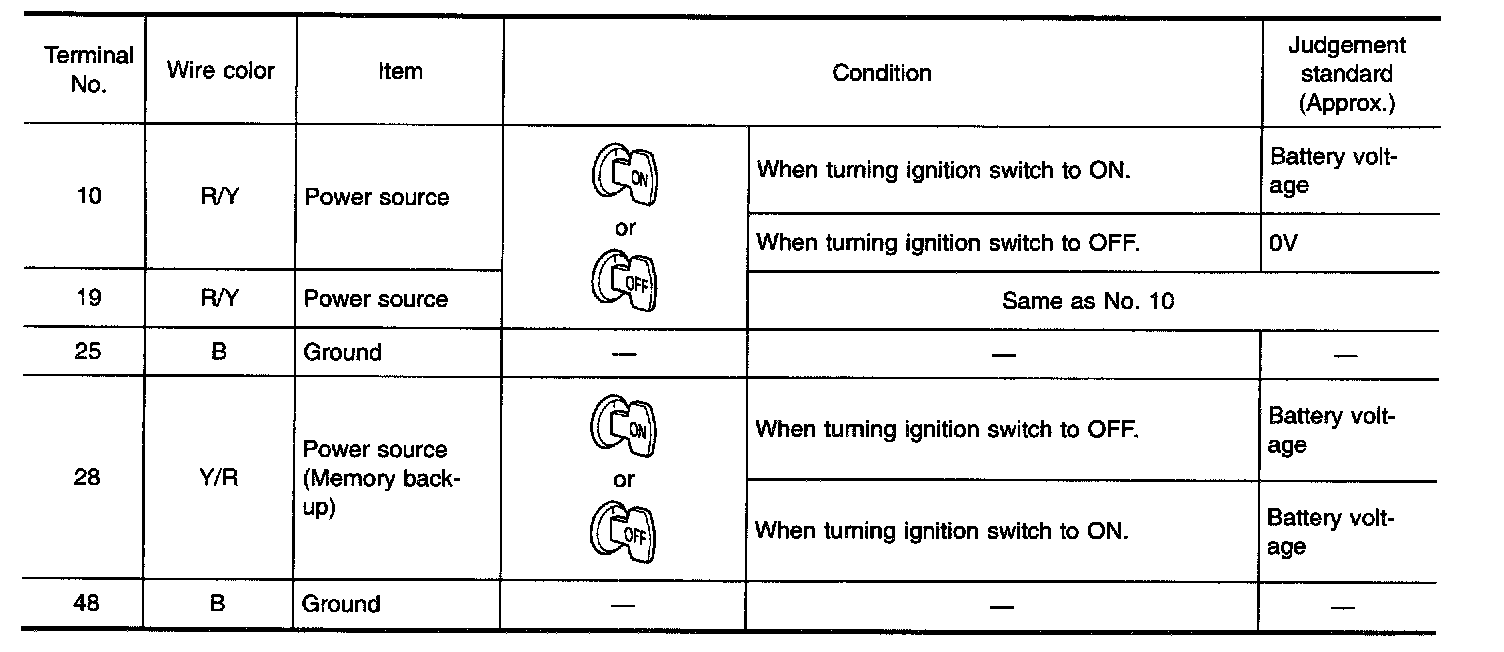

TCM TERMINALS AND REFERENCE VALUE

DIAGNOSTIC PROCEDURE

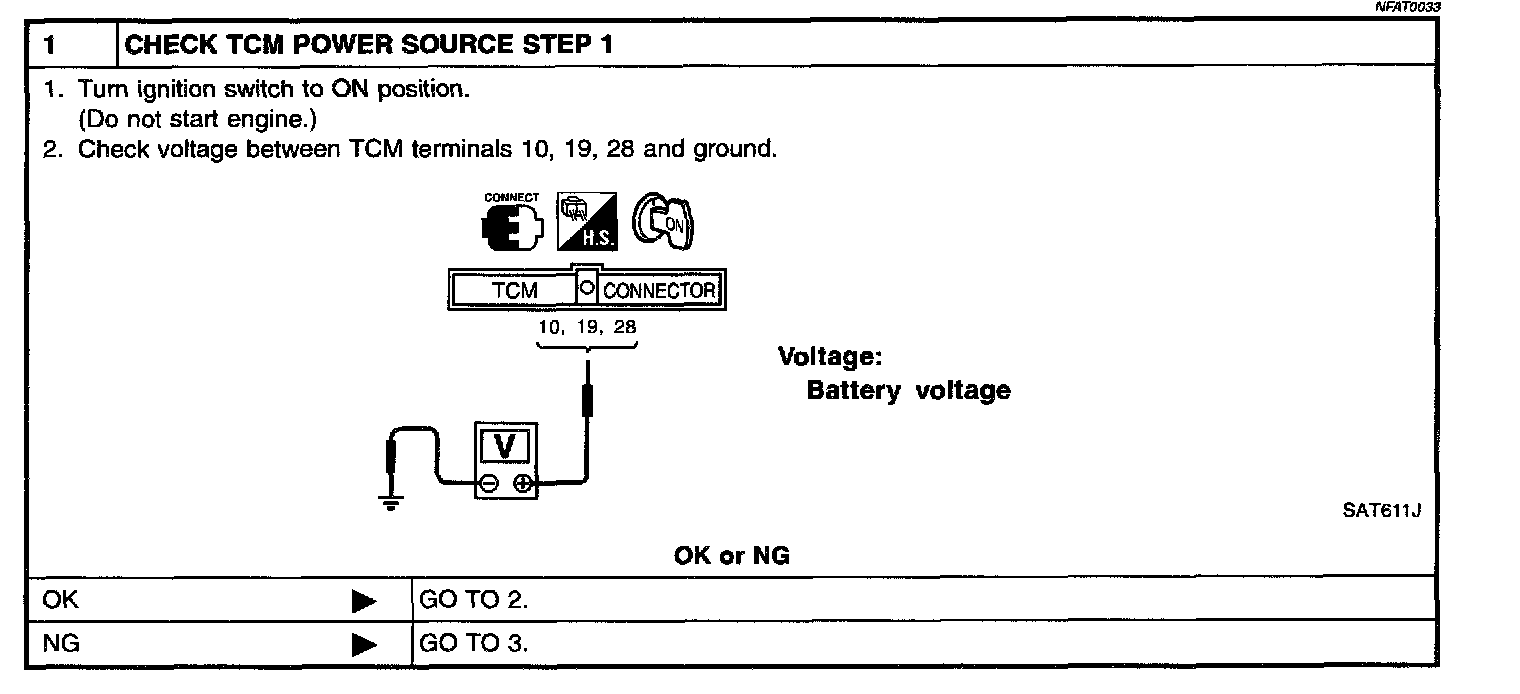

Chart 1

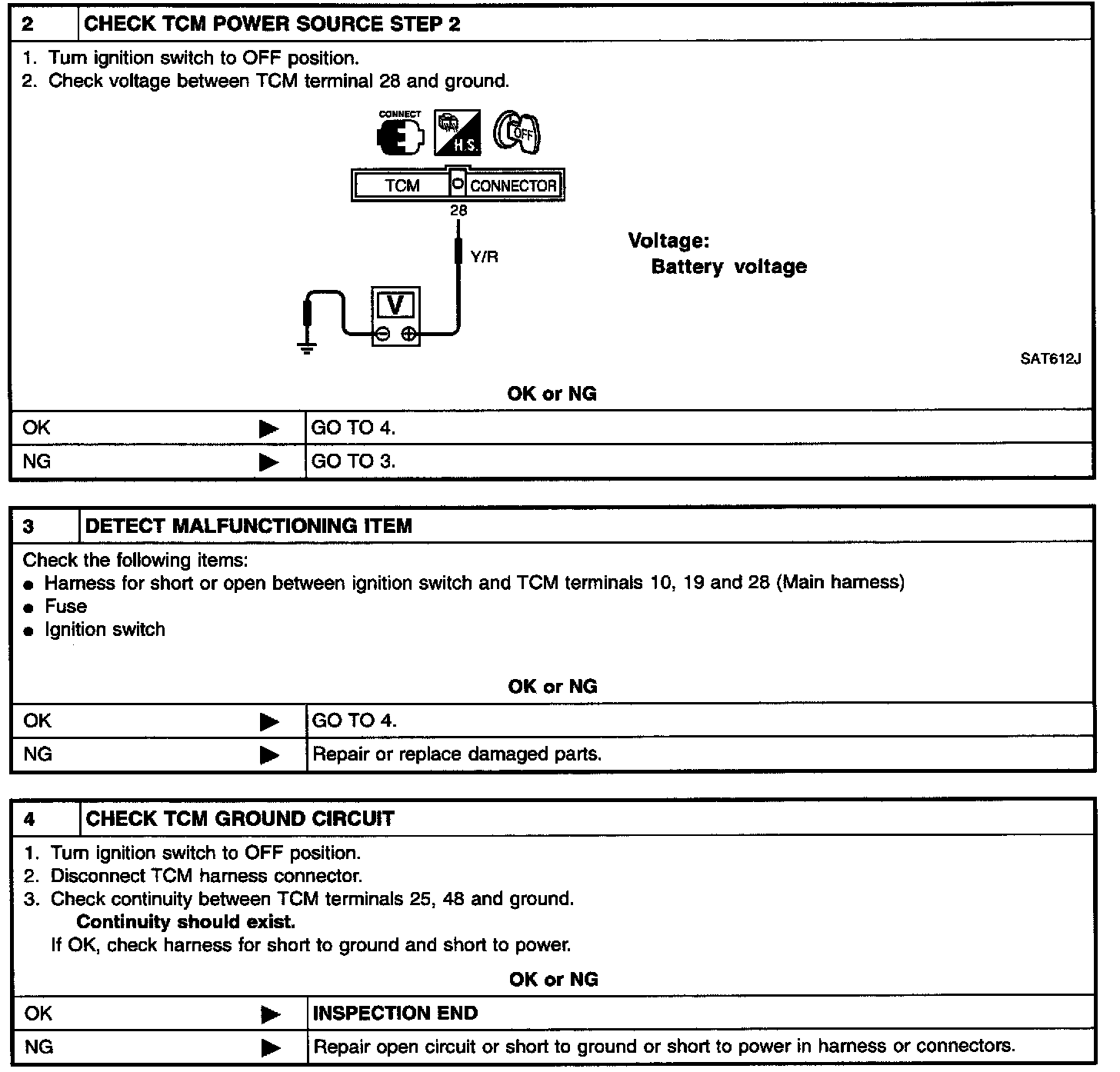

Chart 2 - 4
