Control Unit (RAM), Control Unit (ROM)

Description

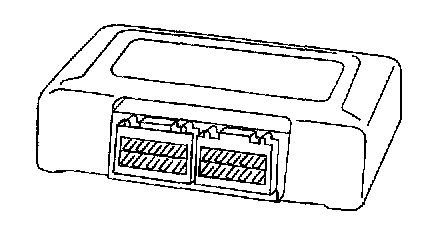

The TCM consists of a microcomputer and connectors for signal input and output and for power supply. The unit controls the A/T.

On Board Diagnosis Logic
Diagnostic trouble code CONTROL UNIT (RAM), CONTROL UNIT (ROM) with CONSULT-II is detected when TCM memory (RAM) or (ROM).

Possible Cause
Check TCM.

Diagnostic Trouble Code (DTC) Confirmation Procedure

NOTE: If "DTC Confirmation Procedure" has been previously conducted, always turn ignition switch OFF and wait at least 10 seconds before conducting the next test.

WITH CONSULT-II

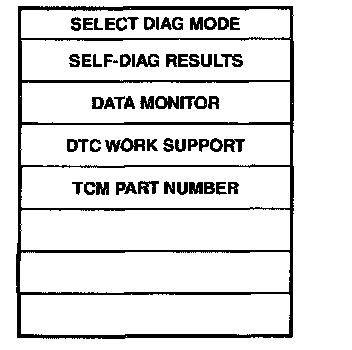

1) Turn ignition switch ON and select "DATA MONITOR" mode for A/T with CONSULT-II.
2) Start engine.
3) Run engine for at least 2 seconds at idle speed.

Diagnostic Procedure

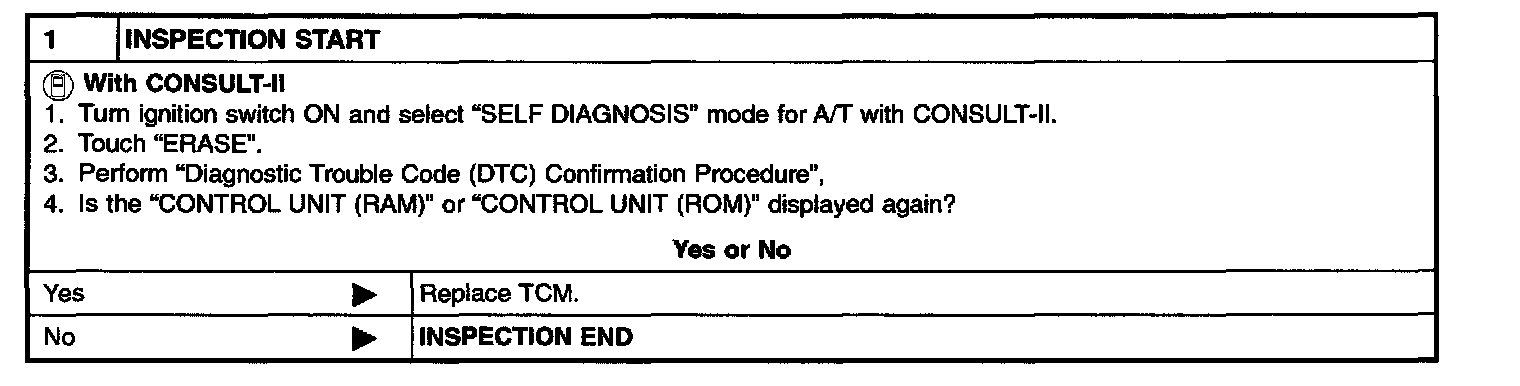

Chart 1
