Connector Views

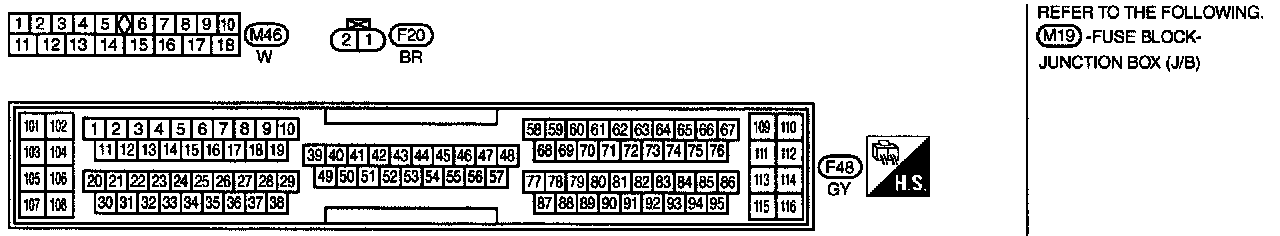

EC-SWL/V-01 - Connector View:

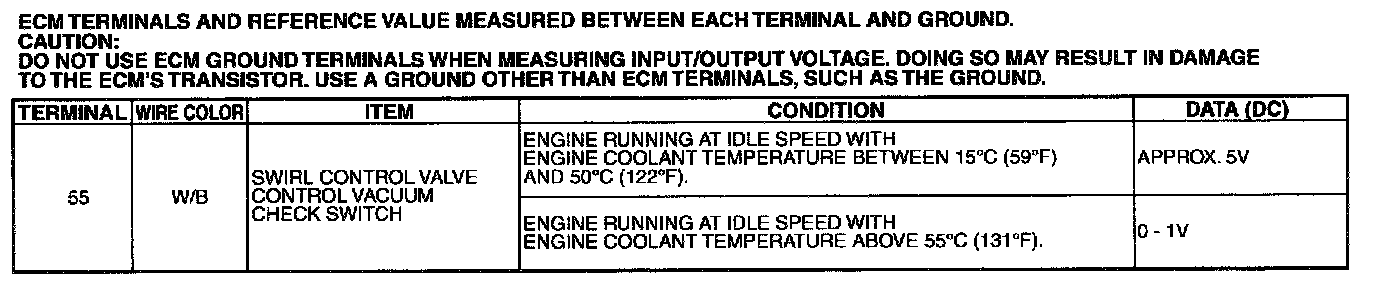

ECM Terminals And Reference Value:

Swirl Control Valve Control Solenoid Valve

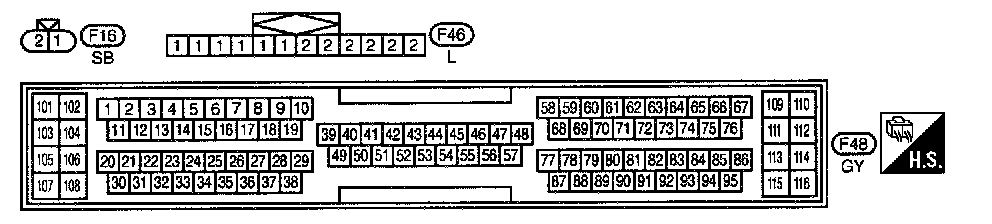

EC-S/VCSW-01 - Connector View:

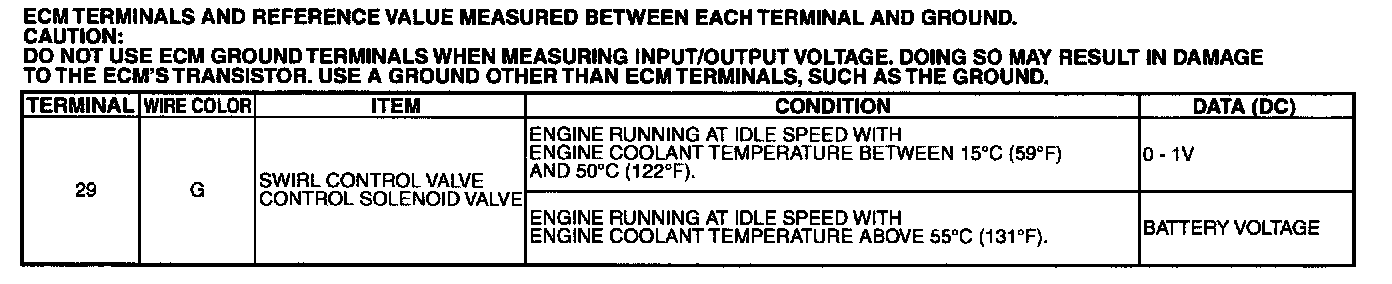

ECM Terminals And Reference Value:

Swirl Control Valve Control Vacuum Check Switch
