Home >> Nissan-Datsun >> 2001 >> Maxima GXE V6-3.0L (VQ30DE) >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Symptom Related Diagnostic Procedures

Symptom Related Diagnostic Procedures

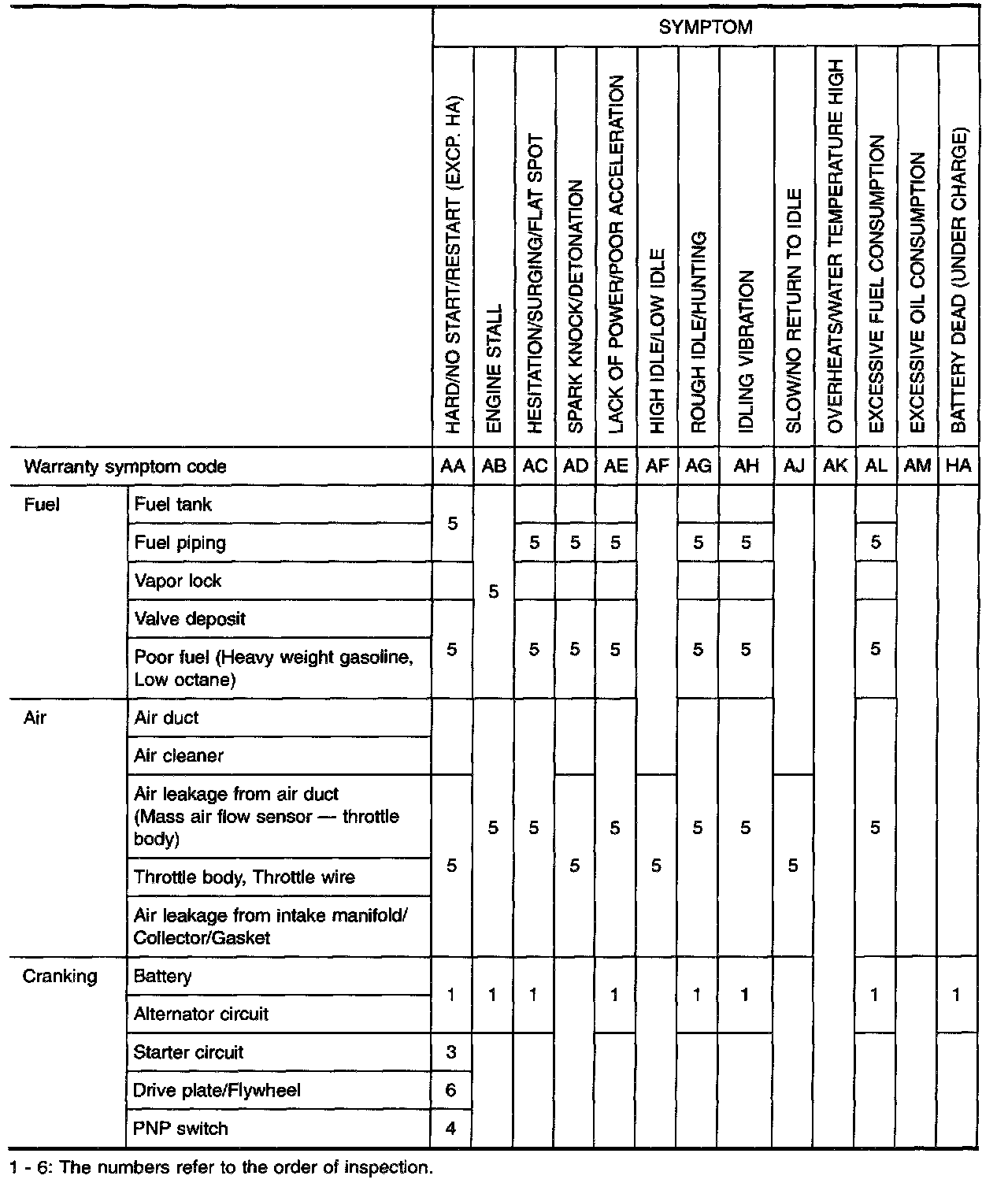

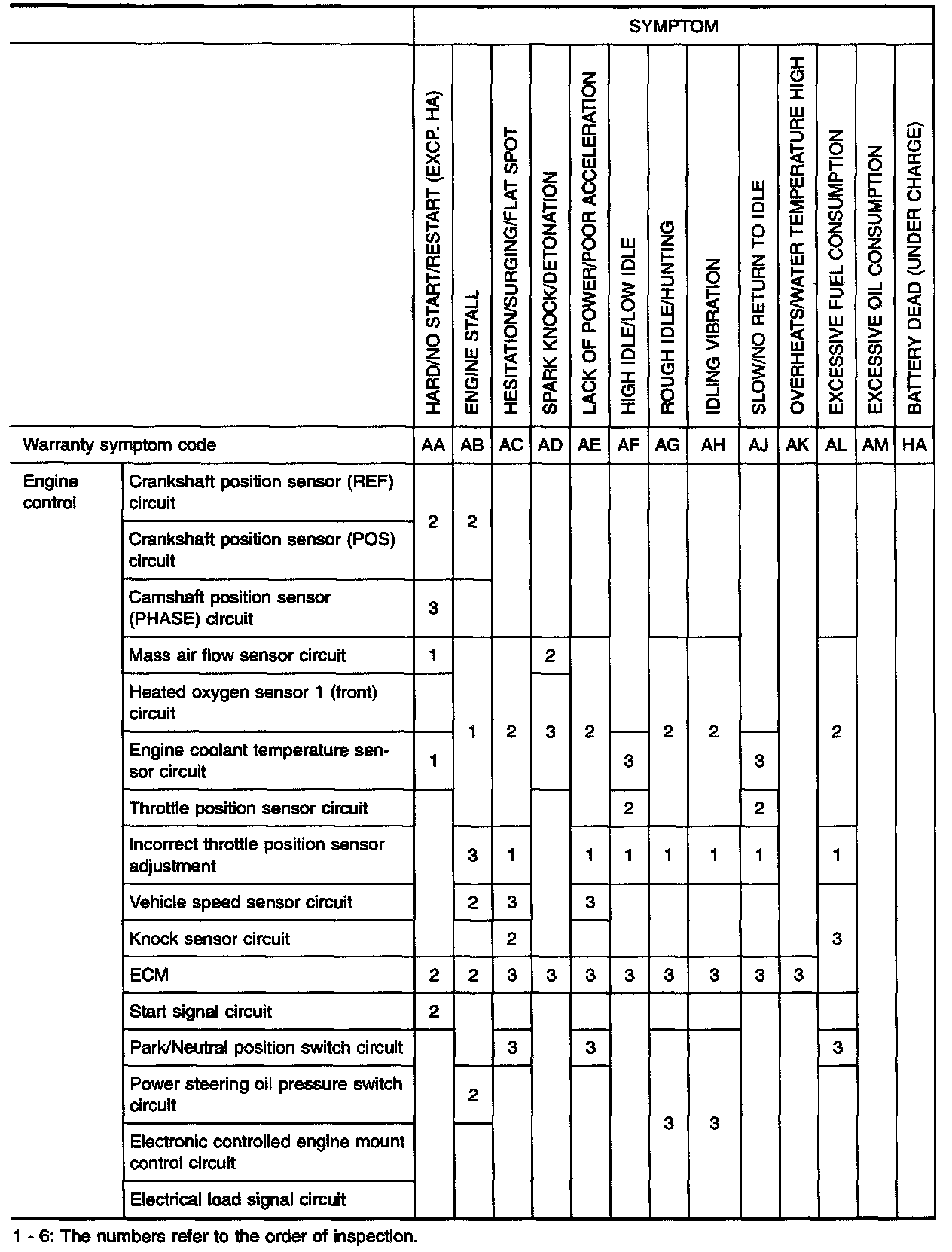

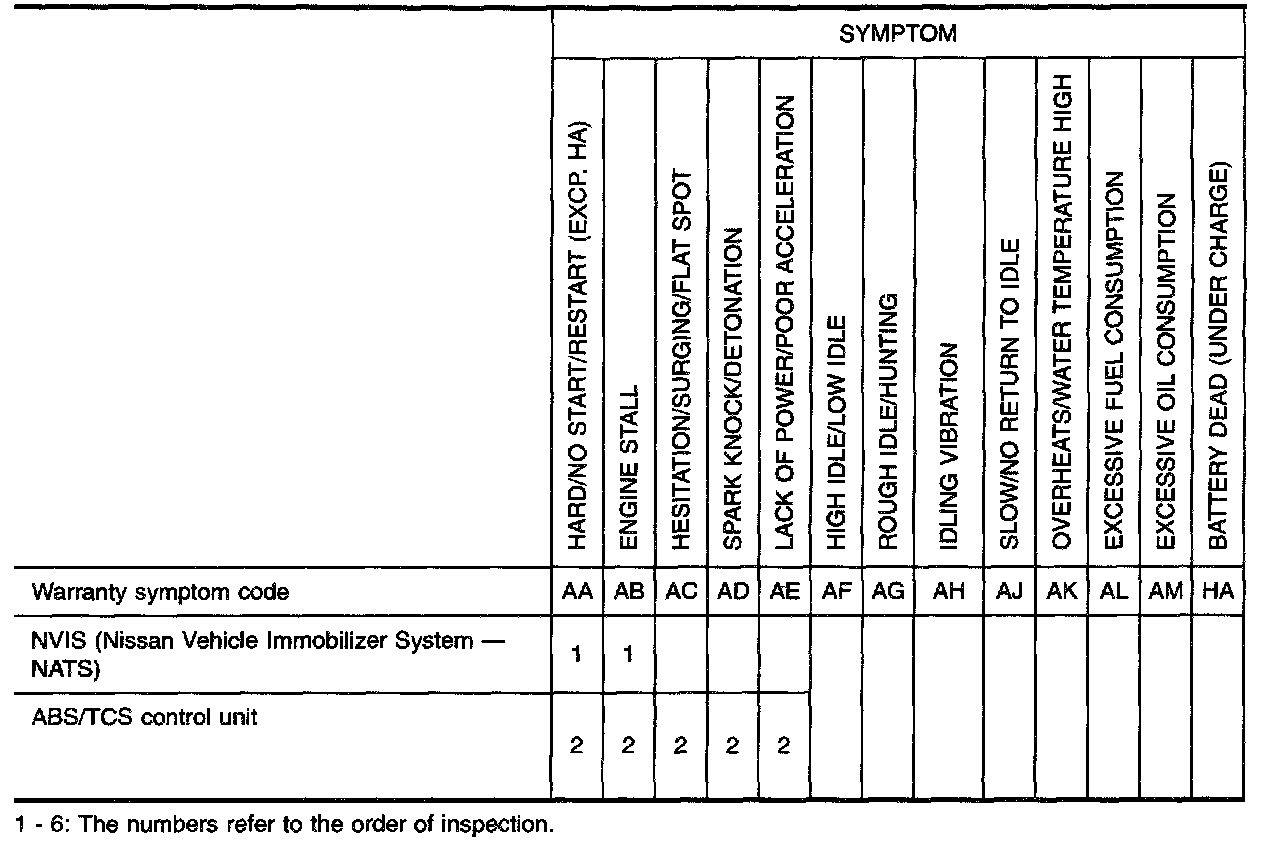

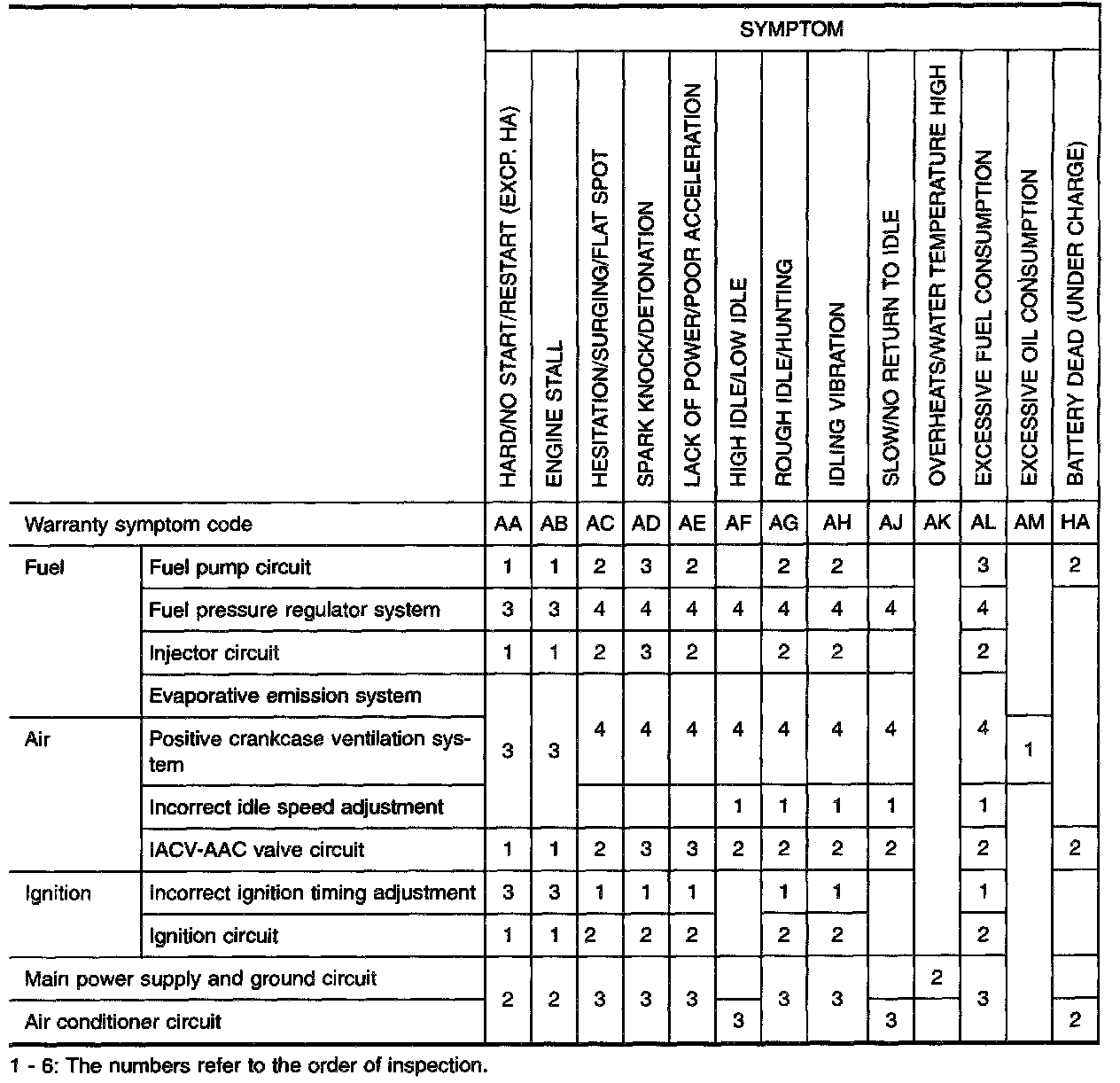

Basic Engine Control System Part 1:



Basic Engine Control System Part 2:

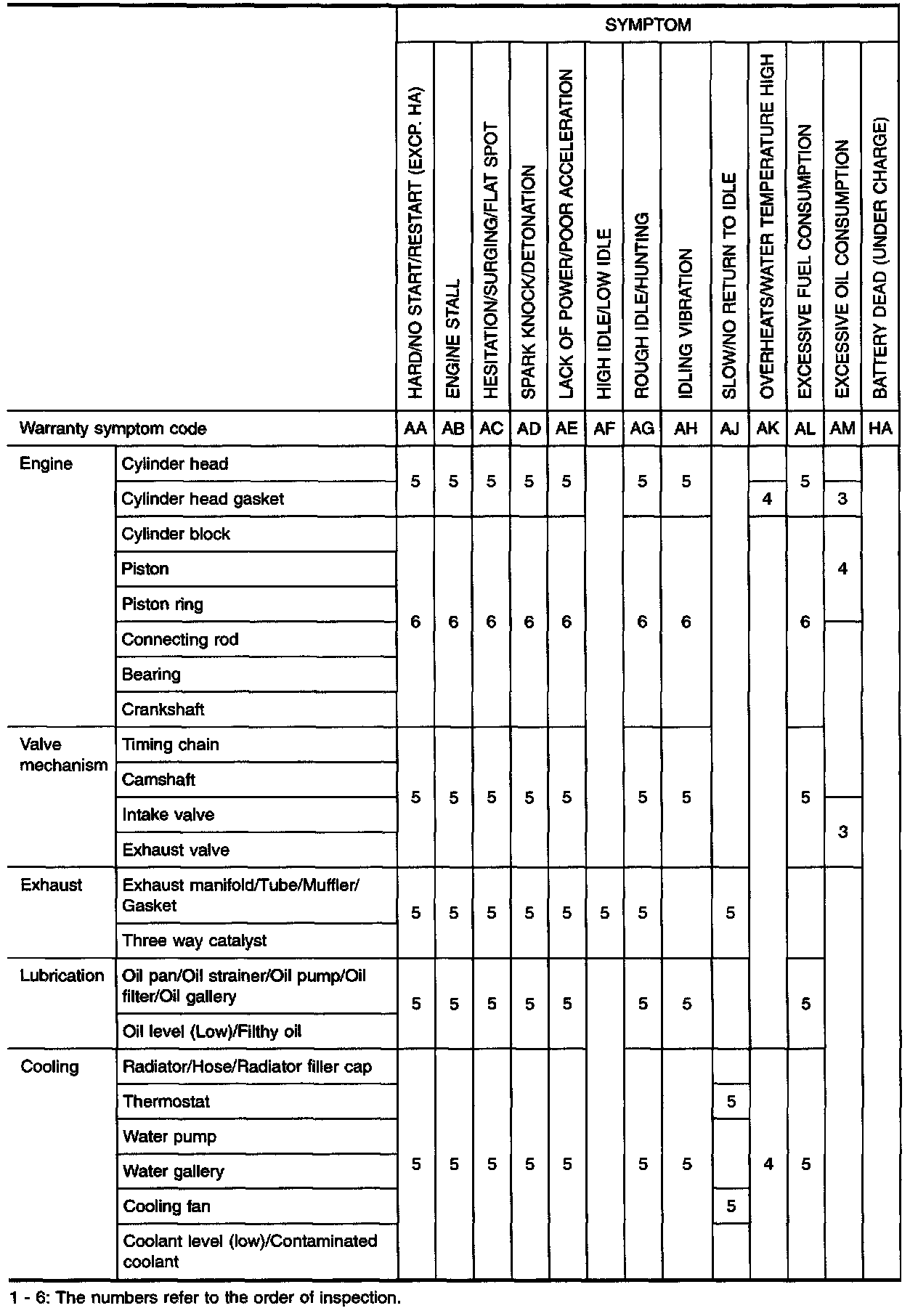

Engine Mechanical And Other Part 1:



Engine Mechanical And Other Part 2:



Engine Mechanical And Other Part 3:
