Electronic Controlled Engine Mount

SYSTEM DESCRIPTION

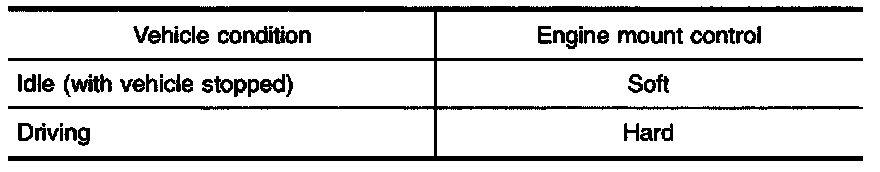

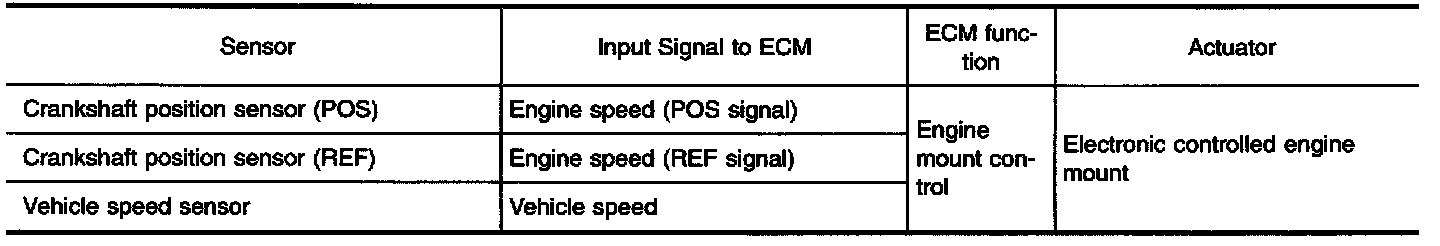

The ECM controls the engine mount operation corresponding to the engine speed and the vehicle speed. The control system has 2-step control [soft/hard].

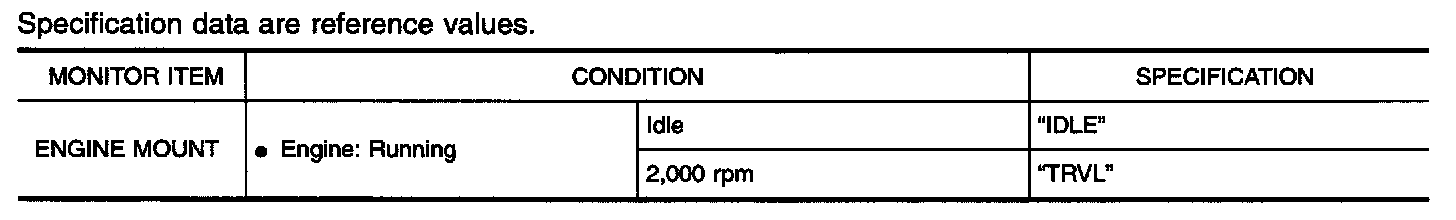

Consult-II Reference Value In Data Monitor Mode:

EC-EMNT-01:

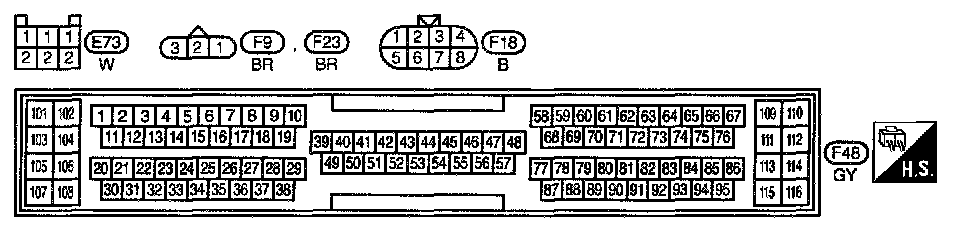

EC-EMNT-01 - Connector View:

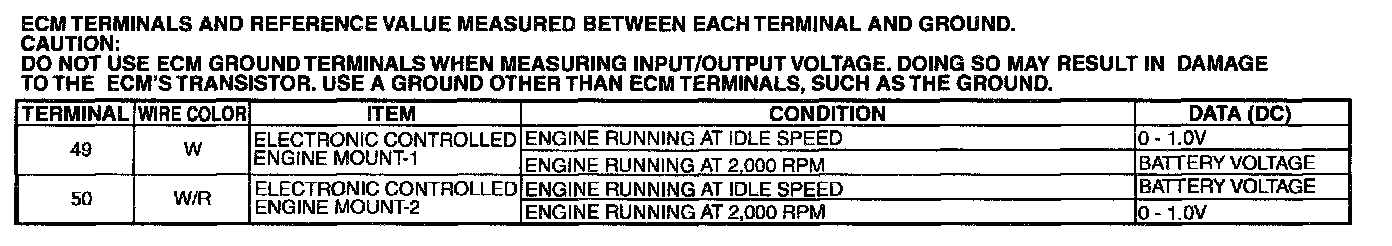

ECM Terminals And Reference Value:

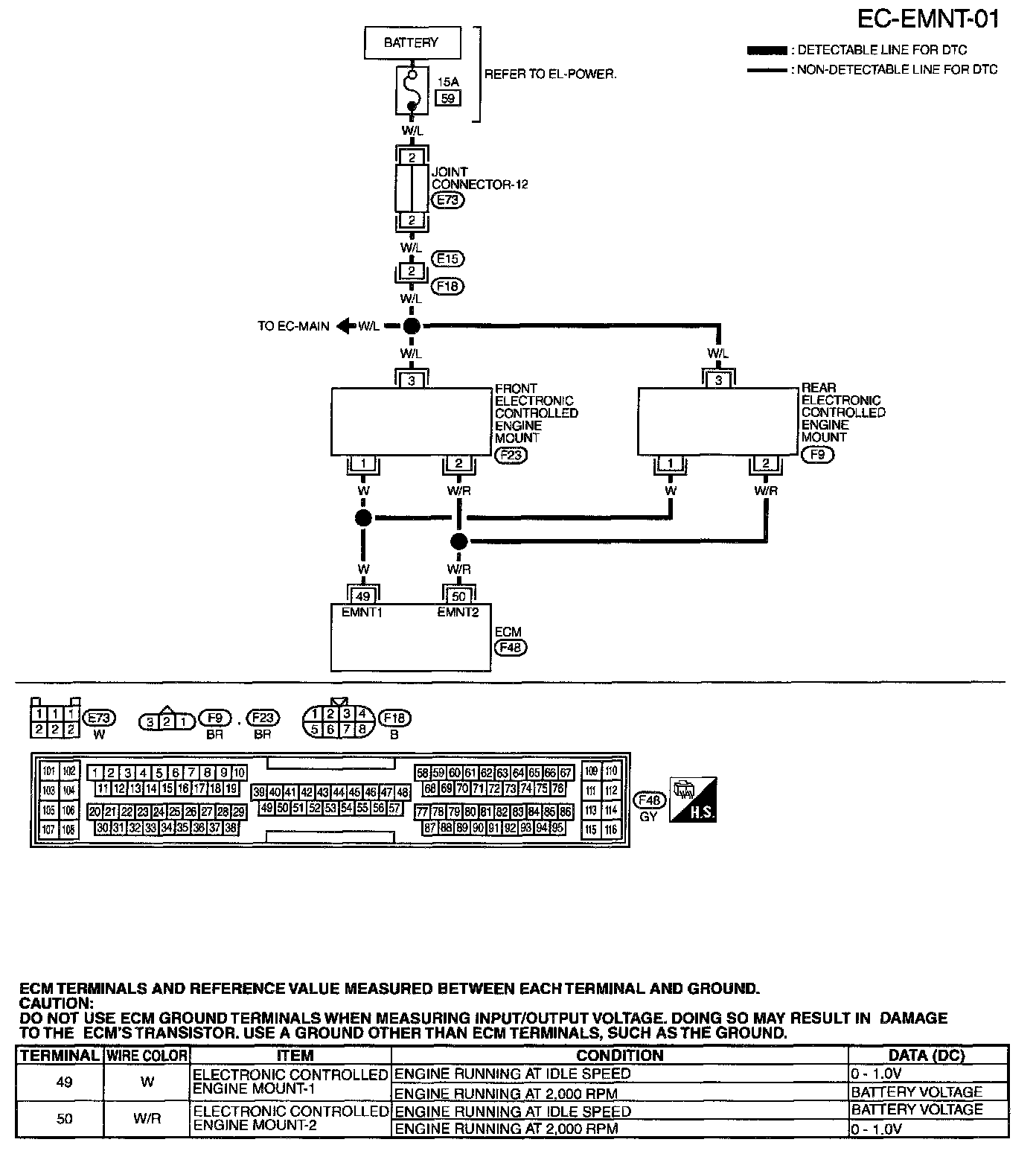

WIRING DIAGRAM

Step 1:

Steps 2 - 6:

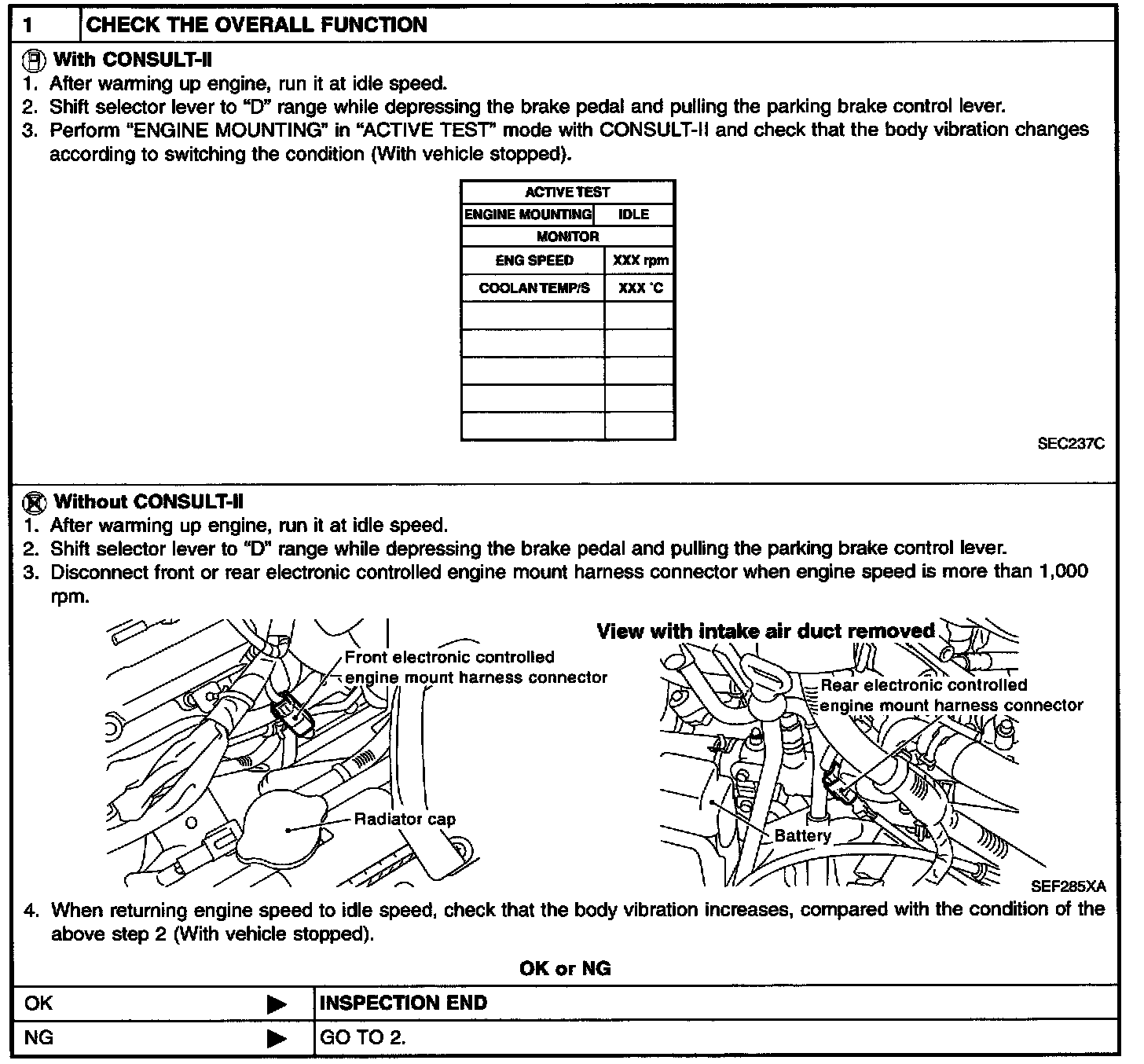

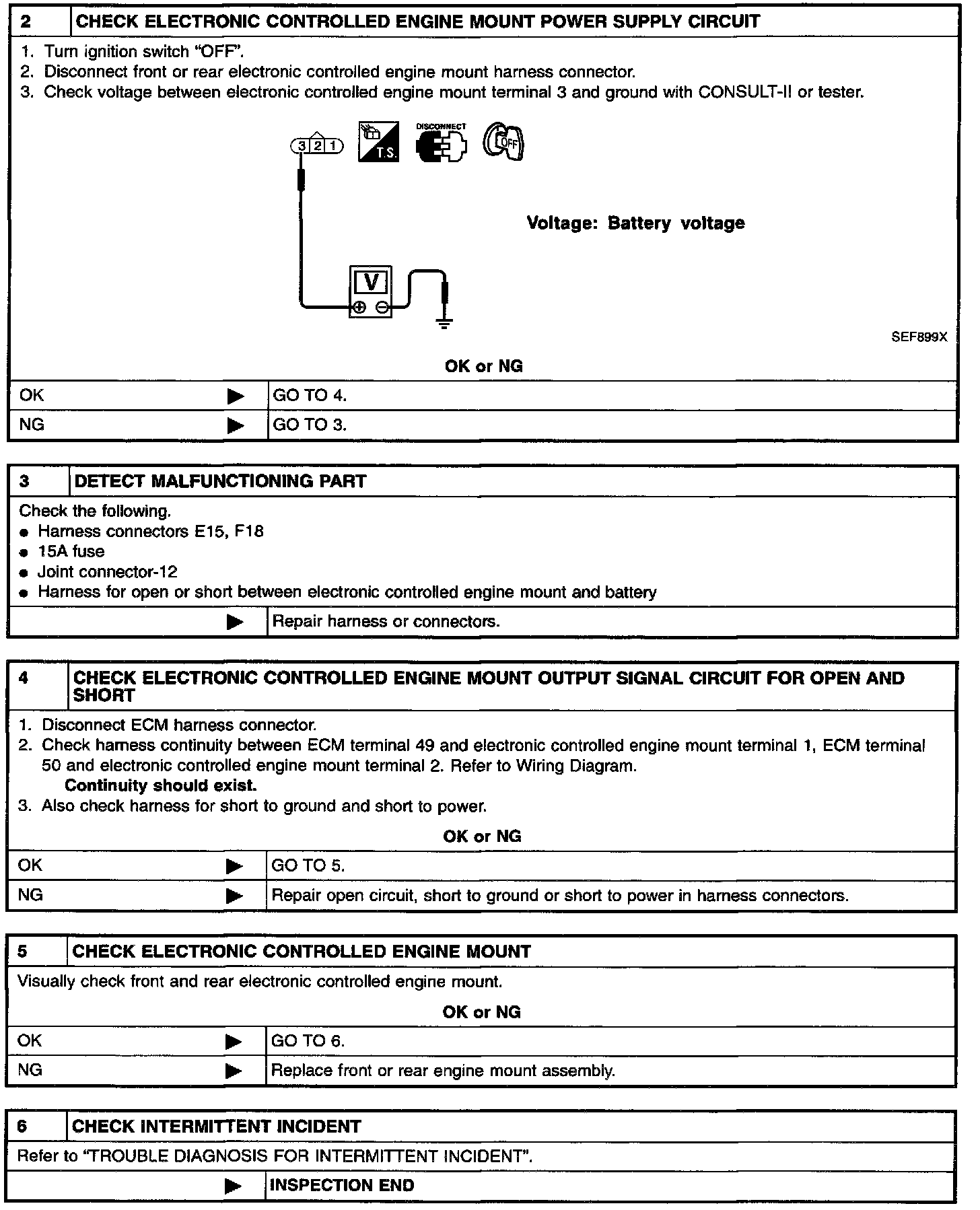

DIAGNOSTIC PROCEDURE
