CONSULT-II Application Items

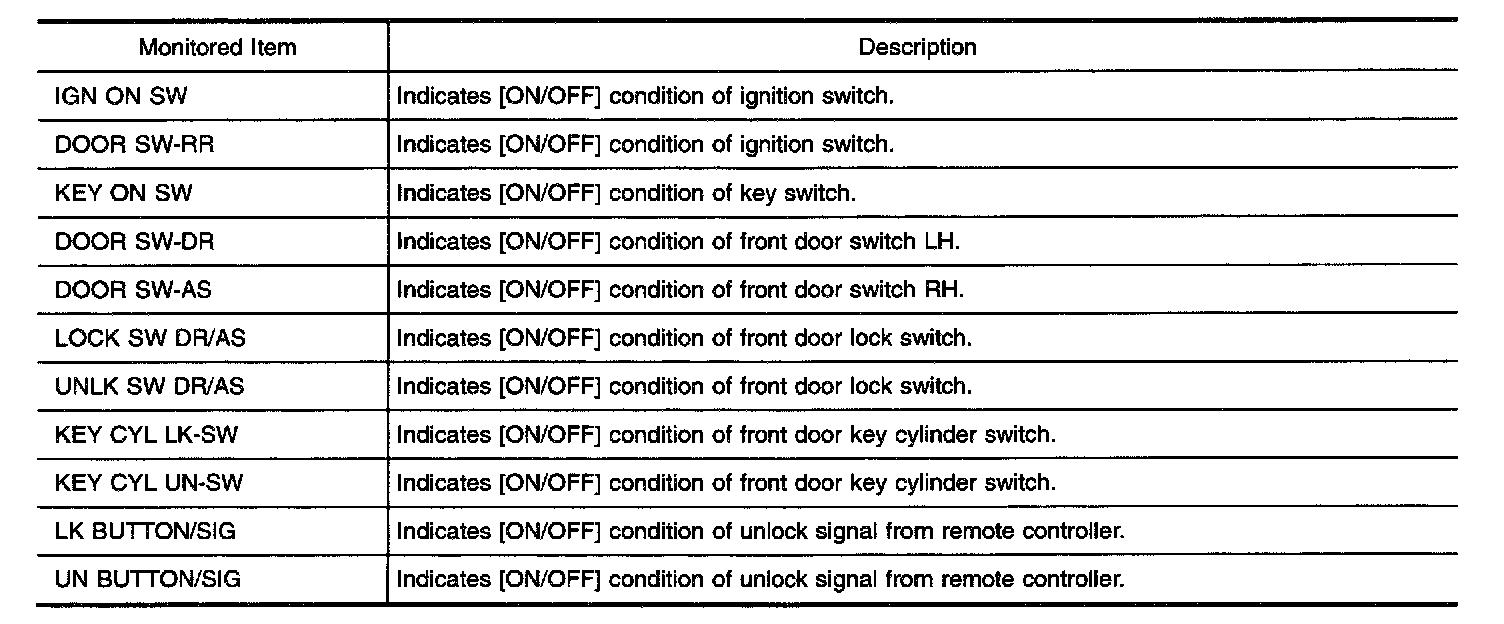

INT LAMP - Data Monitor:

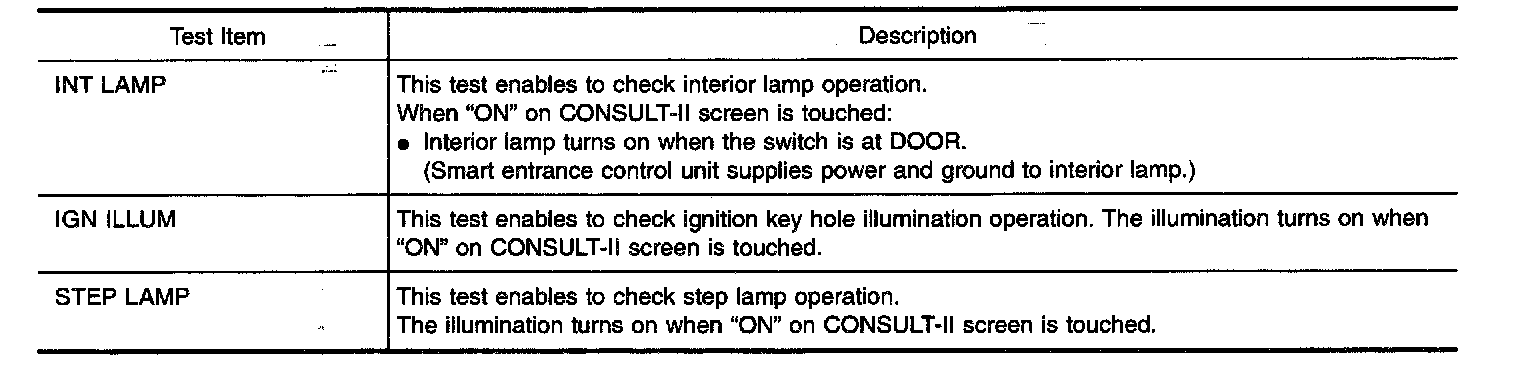

INT LAMP - Active Test:



BATTERY SAVER - Data Monitor:

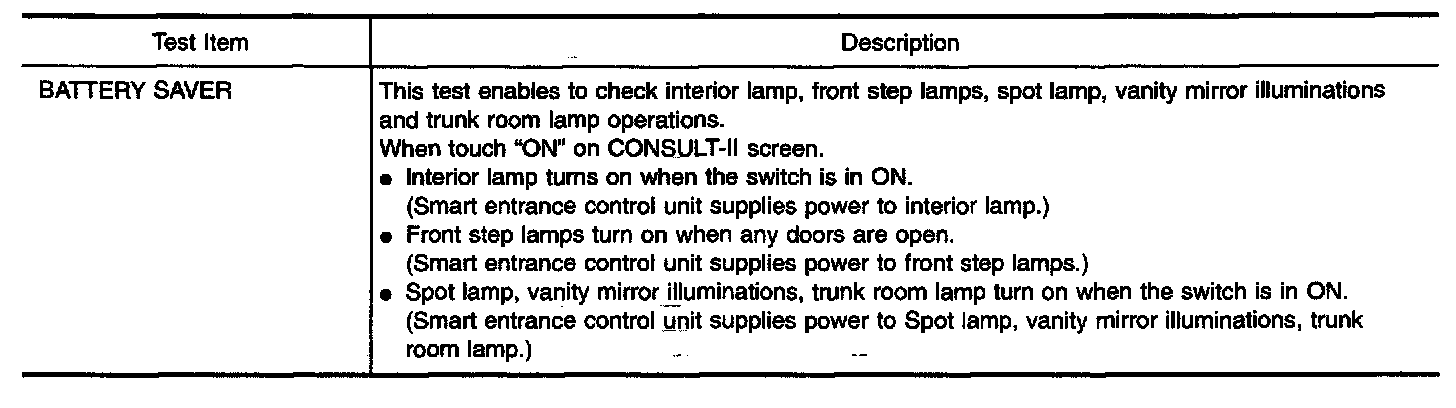

BATTERY SAVER - Active Test:
