Maxima GXE V6-3.0L (VQ30DE)
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Trunk Lamp
>>
Diagrams
>>
Electrical Diagrams
>>
EL-Int/L
EL-Int/L

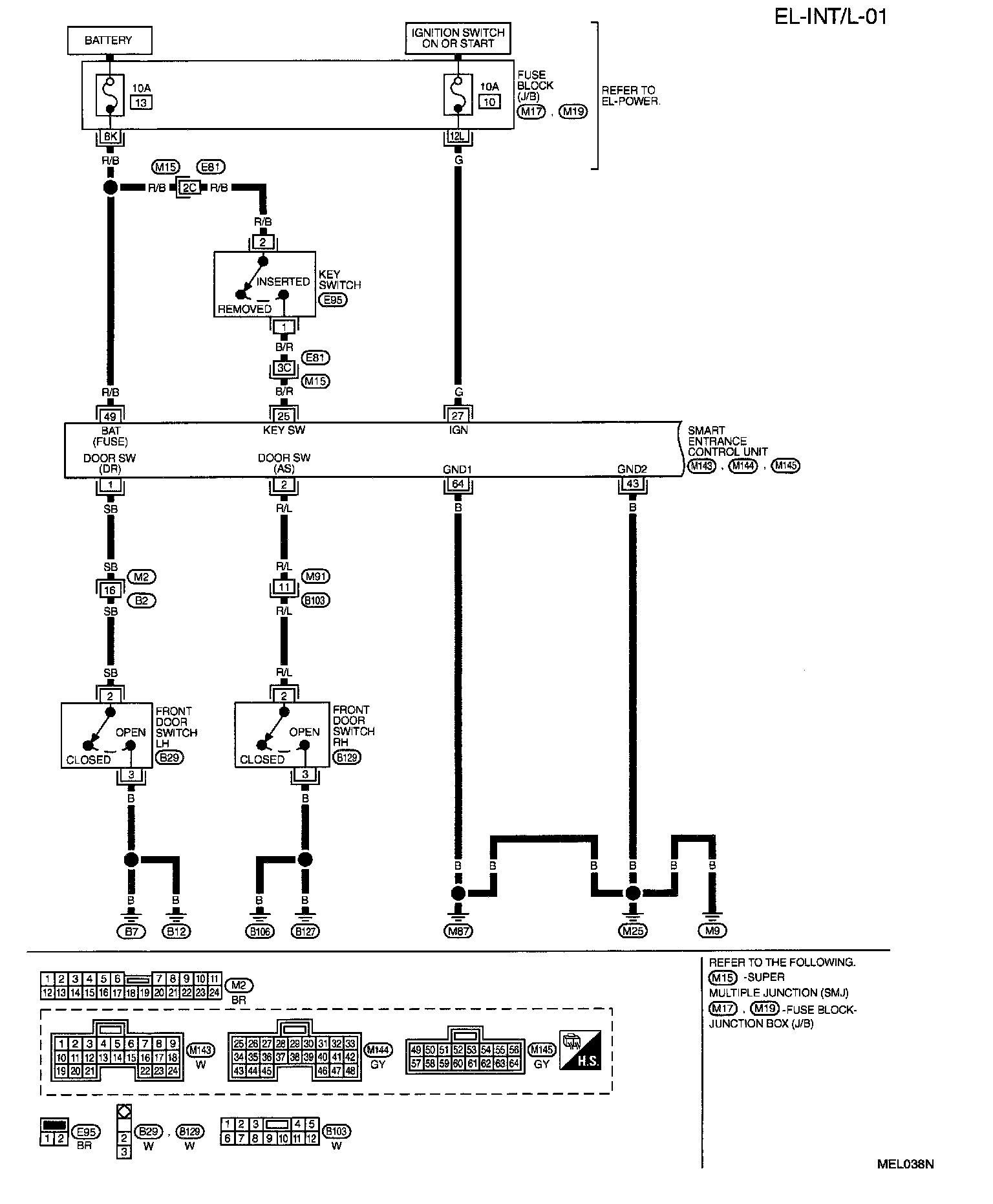

EL-INT/L-01:

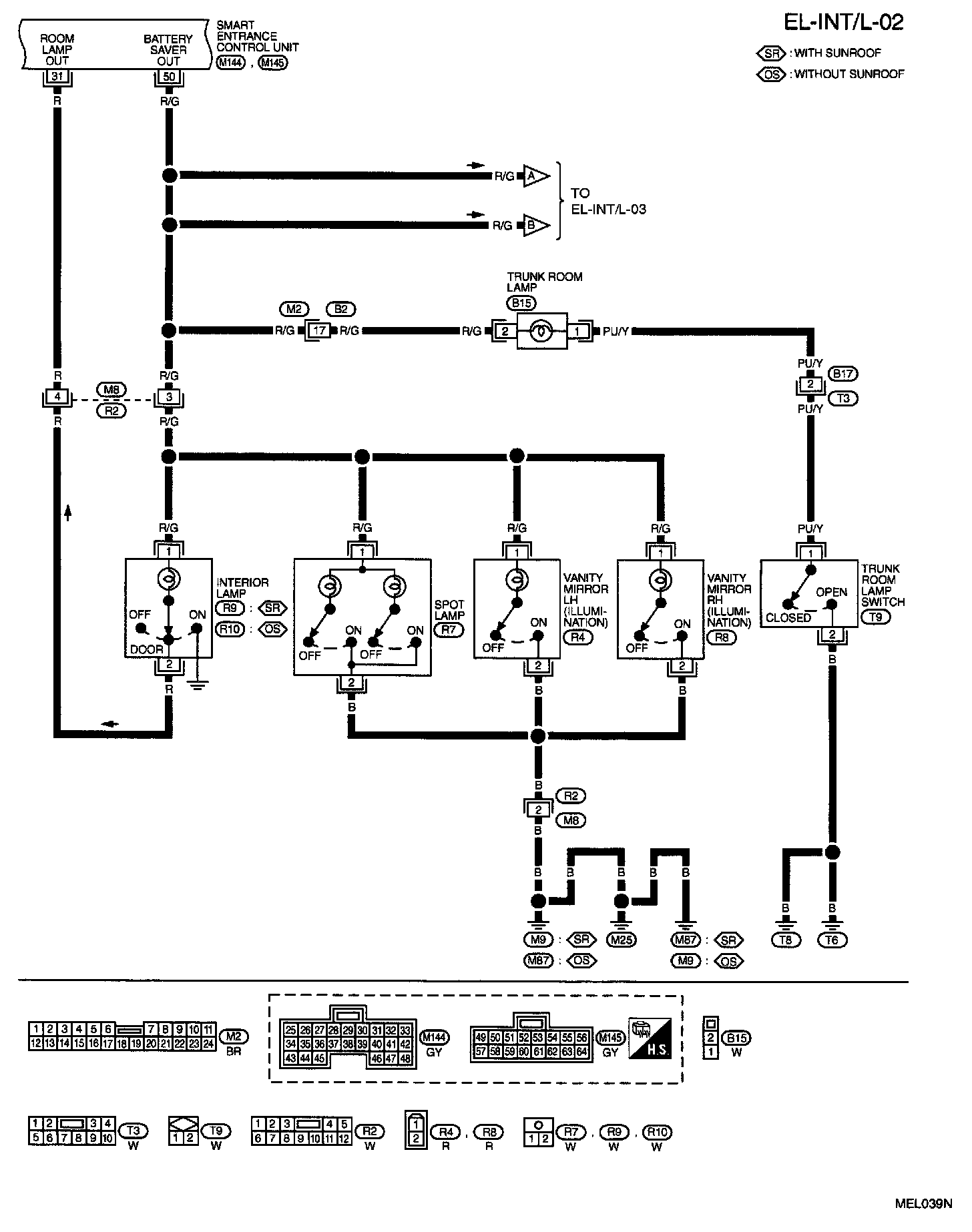

EL-INT/L-02:

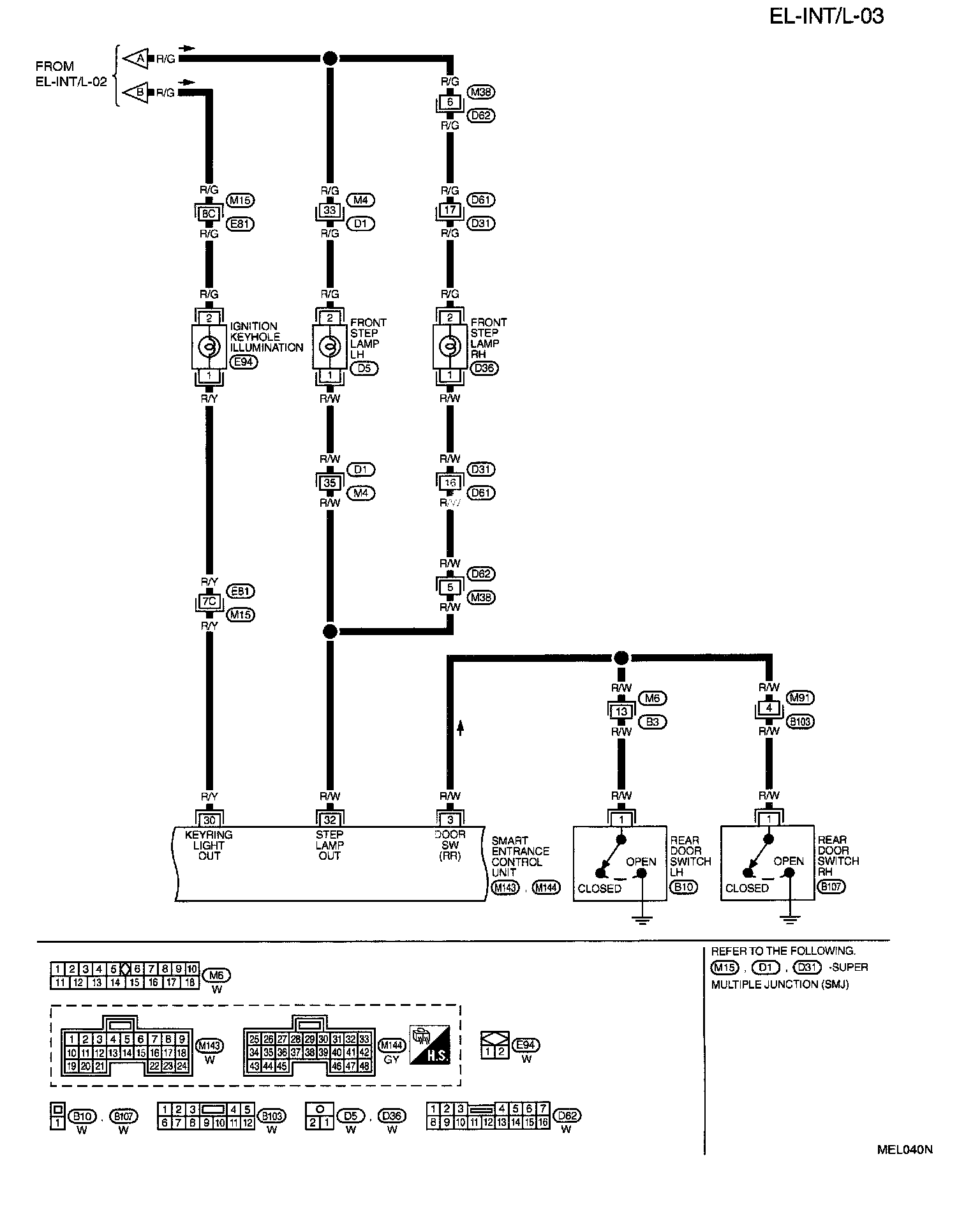

EL-INT/L-03:

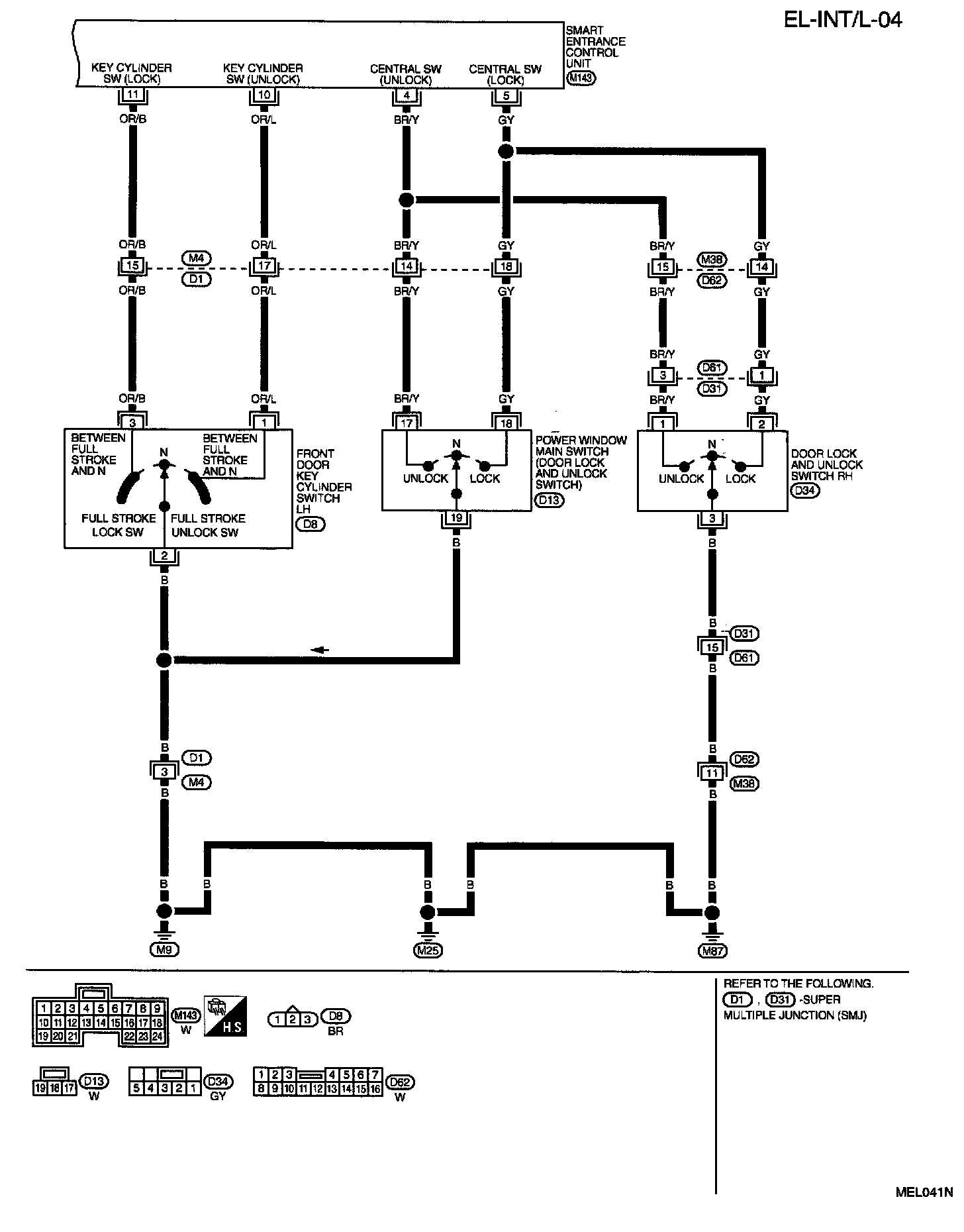

EL-INT/L-04:
