Lighting and Horns
>>
Daytime Running Lamp
>>
Testing and Inspection
>>
Daytime Light Control Unit Inspection Table
Daytime Light Control Unit Inspection Table

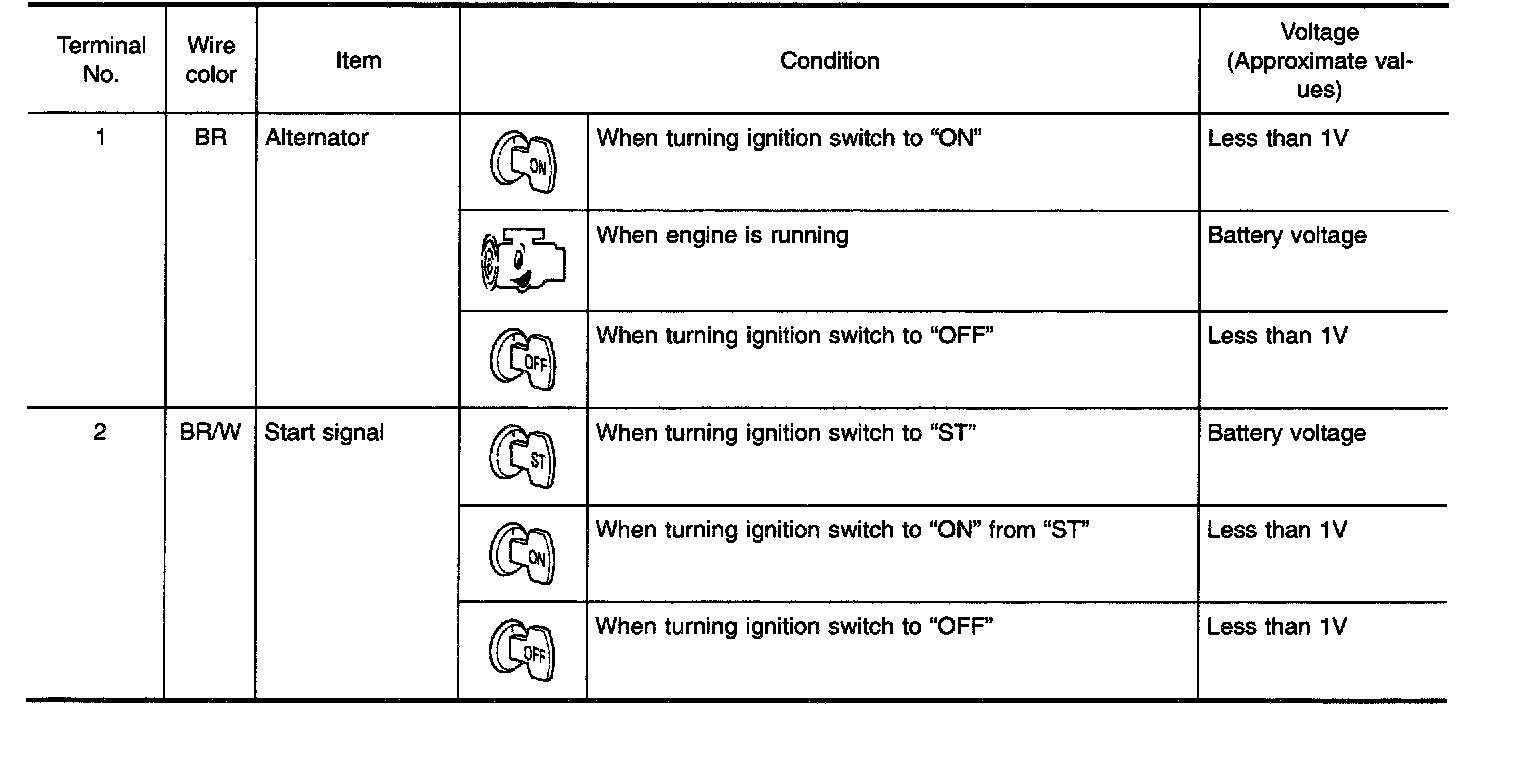

Daytime Light Control Unit Inspection Table (Terminal No. 1 - 2):

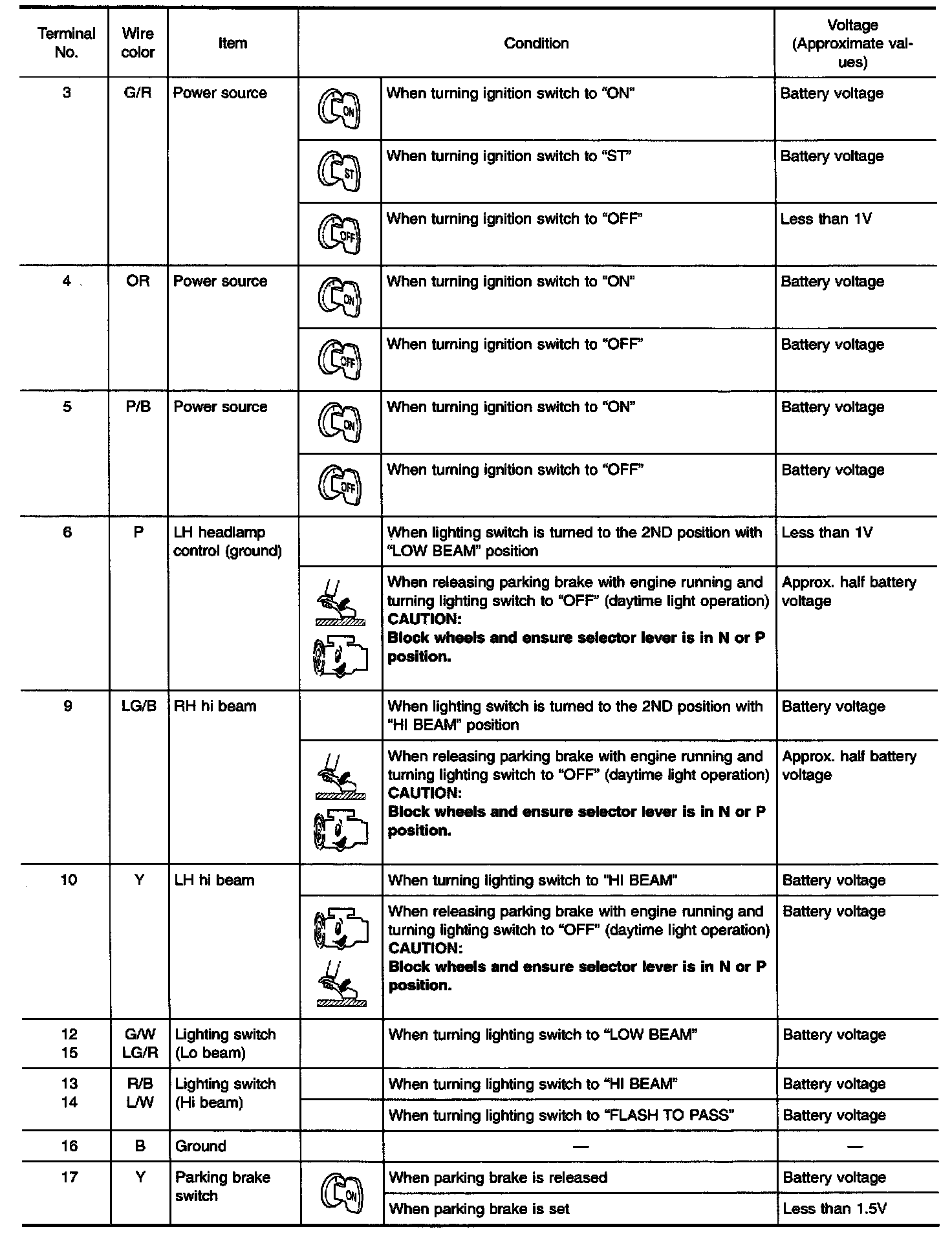

Daytime Light Control Unit Inspection Table (Terminal No. 3 - 17):
