Maxima GXE V6-3.0L (VQ30DE)
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Daytime Running Lamp
>>
Diagrams
>>
Electrical Diagrams
>>
EL-DTRL
EL-DTRL

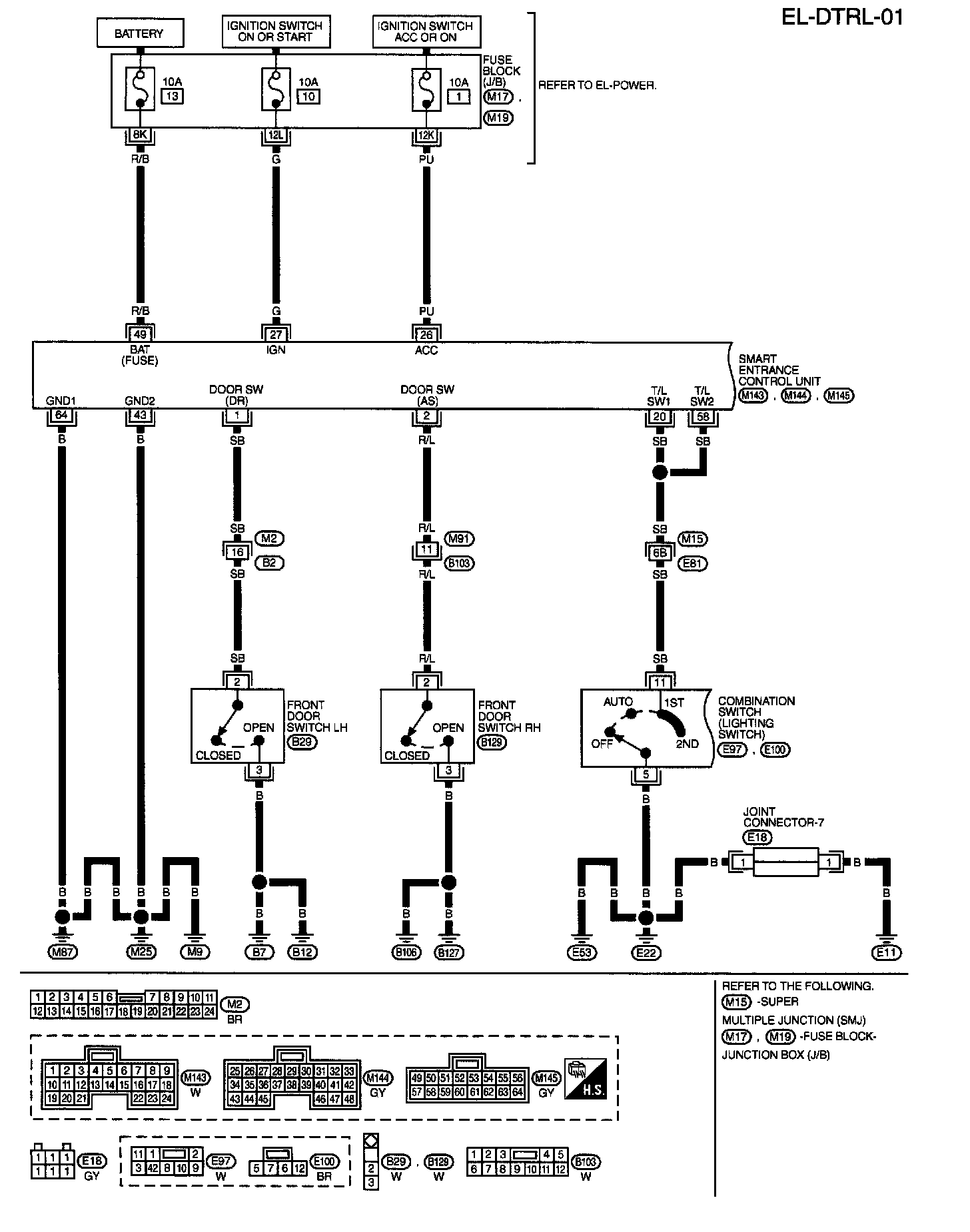

EL-DTRL-01 (CANADA):

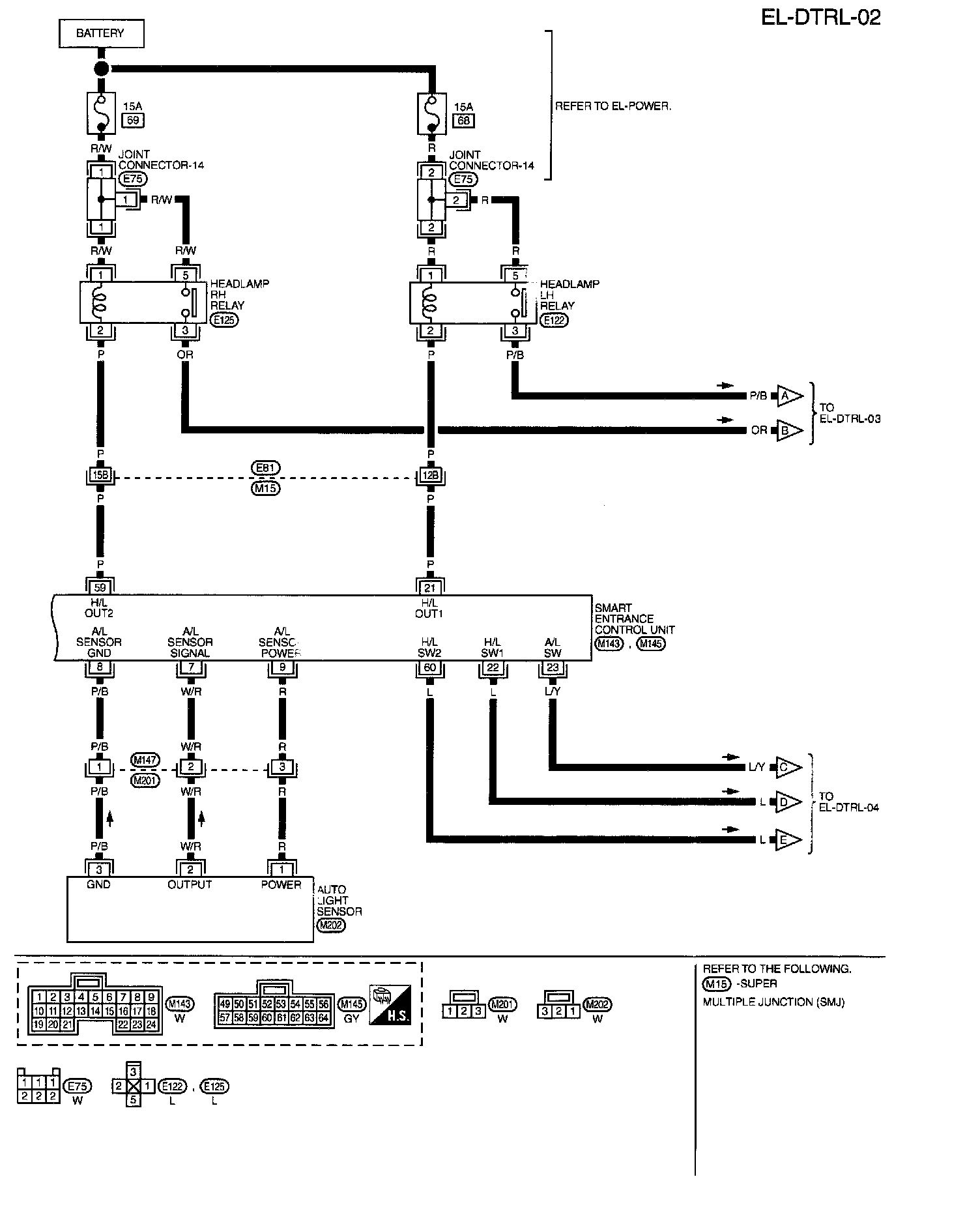

EL-DTRL-02 (CANADA):

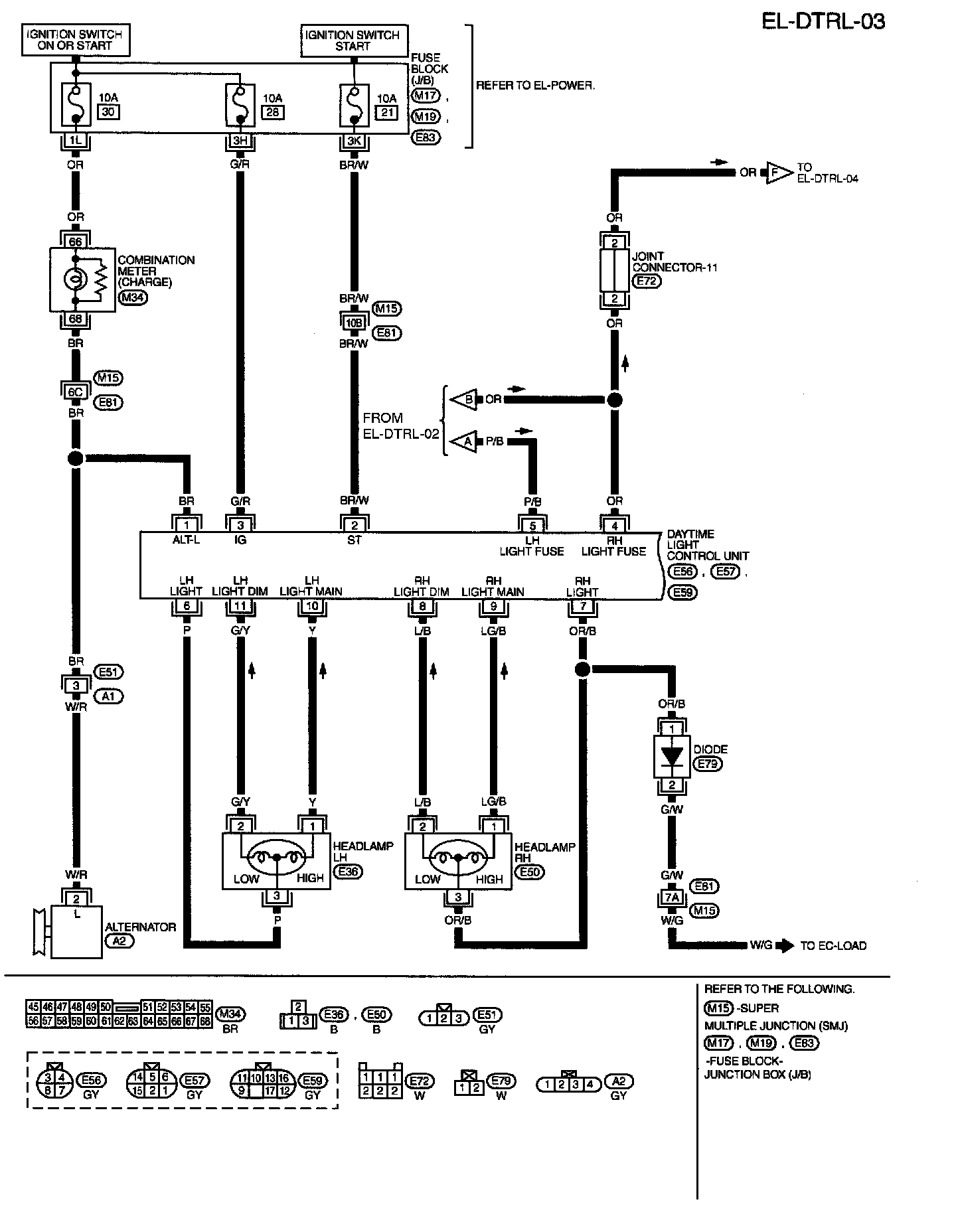

EL-DTRL-03 (CANADA):

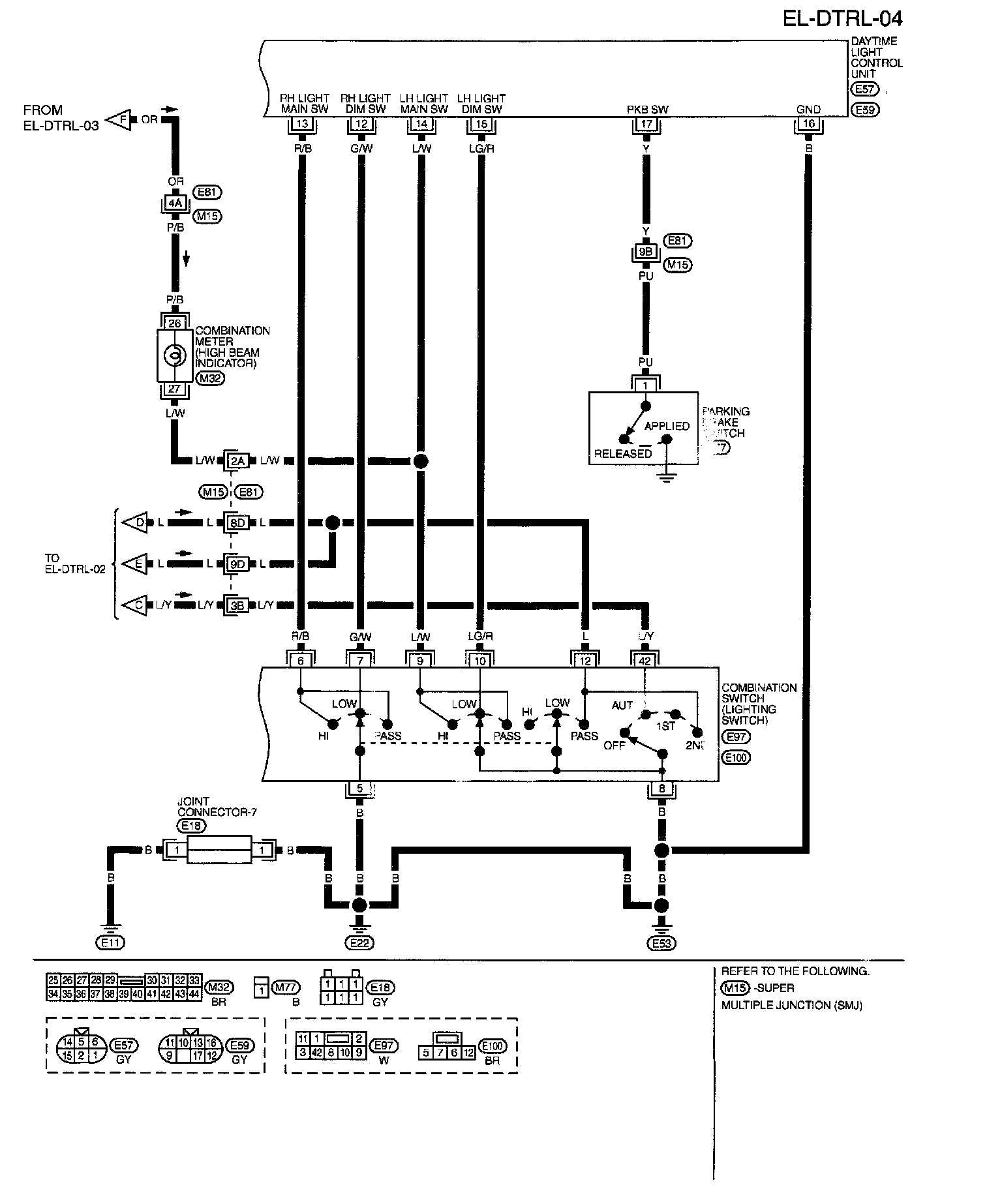

EL-DTRL-04 (CANADA):
