Diagnosis By Symptom

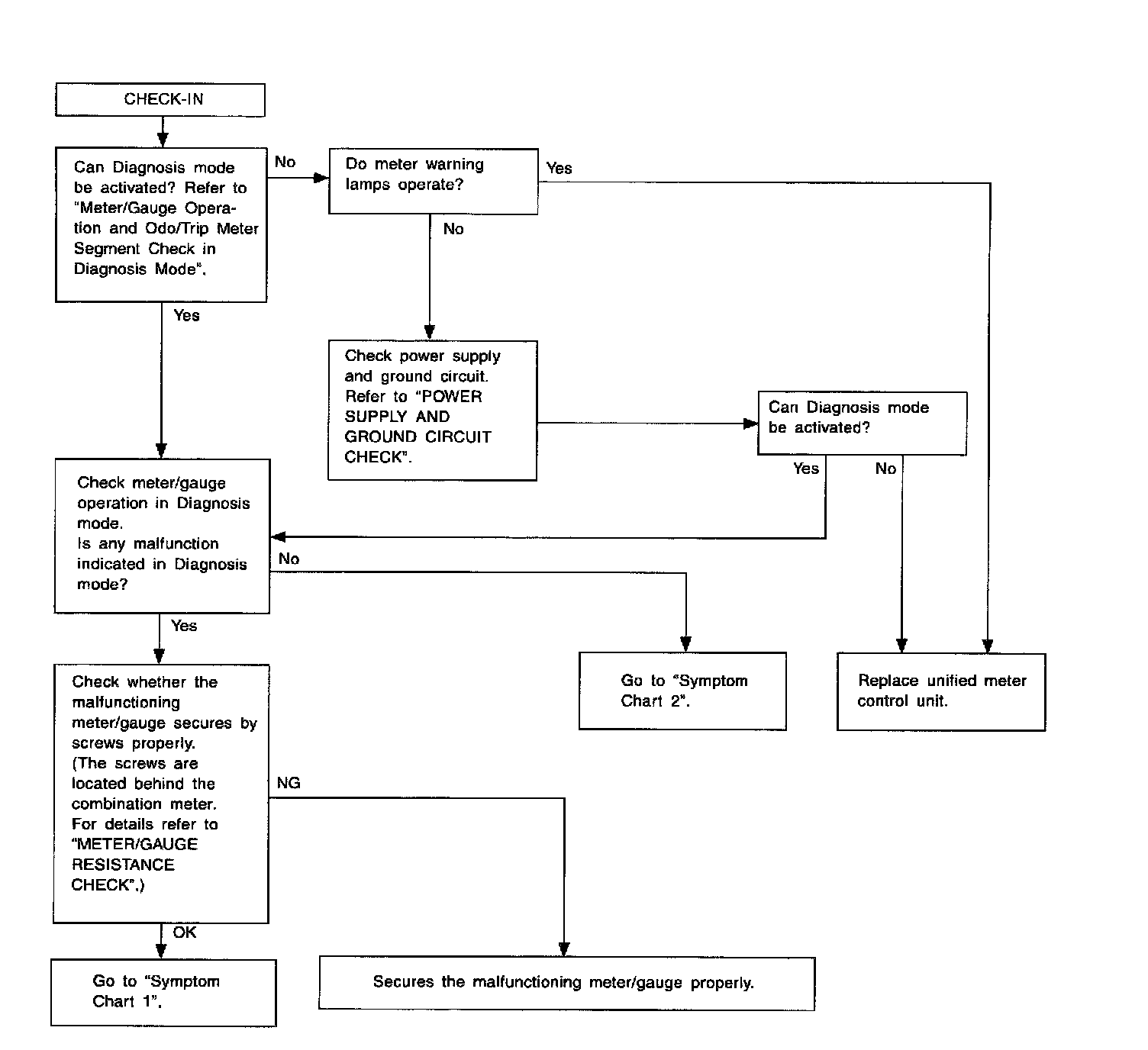

PRELIMINARY CHECK

SYMPTOM CHART

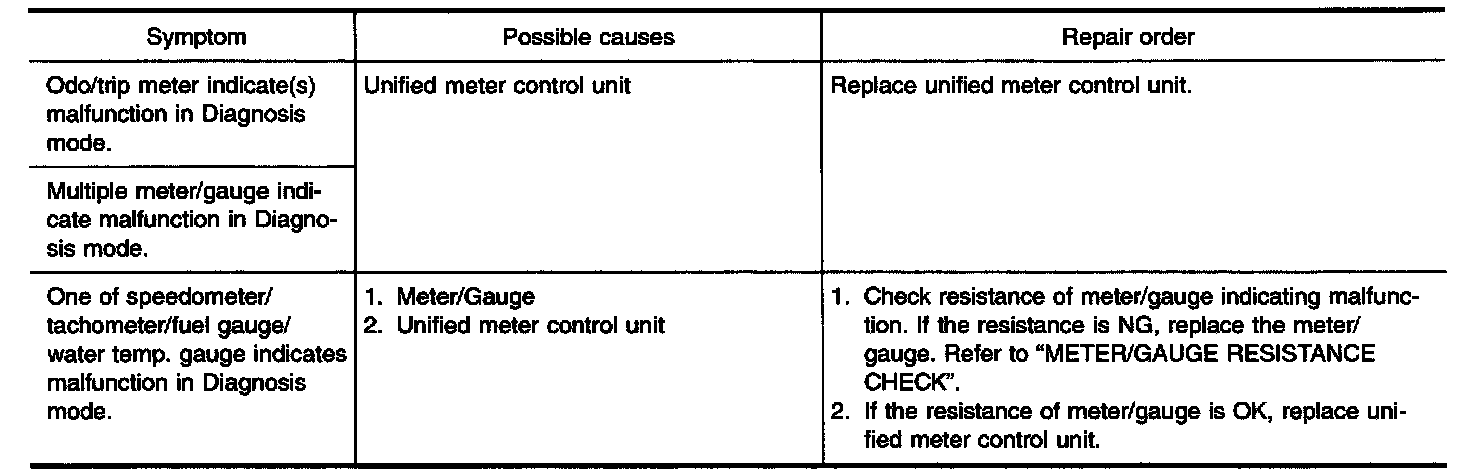

Symptom Chart 1 (Malfunction is Indicated in Diagnosis Mode)

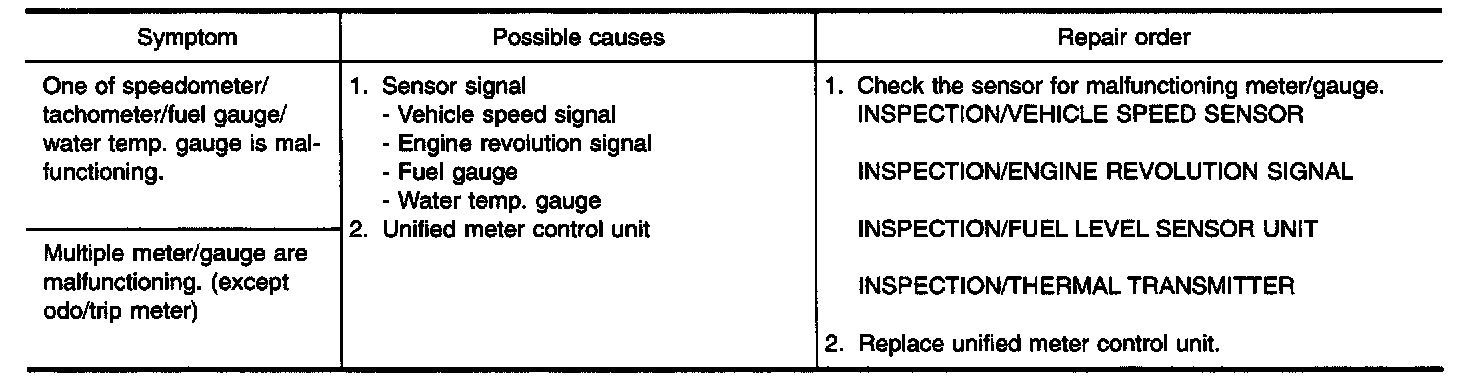

Symptom Chart 2 (No Malfunction is Indicated in Diagnosis Mode)
Before starting trouble diagnoses, perform PRELIMINARY CHECK.

POWER SUPPLY AND GROUND CIRCUIT CHECK

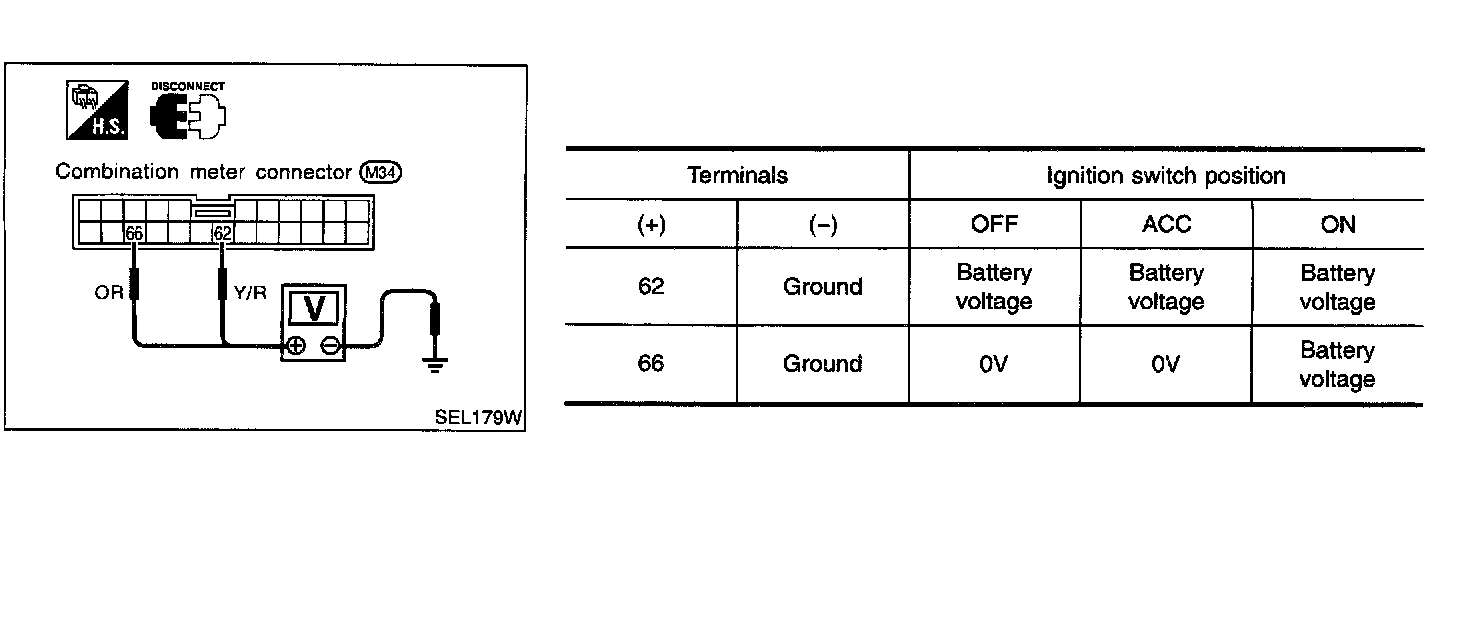

Power Supply Circuit Check
If NG, check the following.
- 10 A fuse [No.12, located in fuse block (J/B)]
- 10 A fuse [No.30, located in fuse block (J/B)]
- Harness for open or short between fuse and combination meter

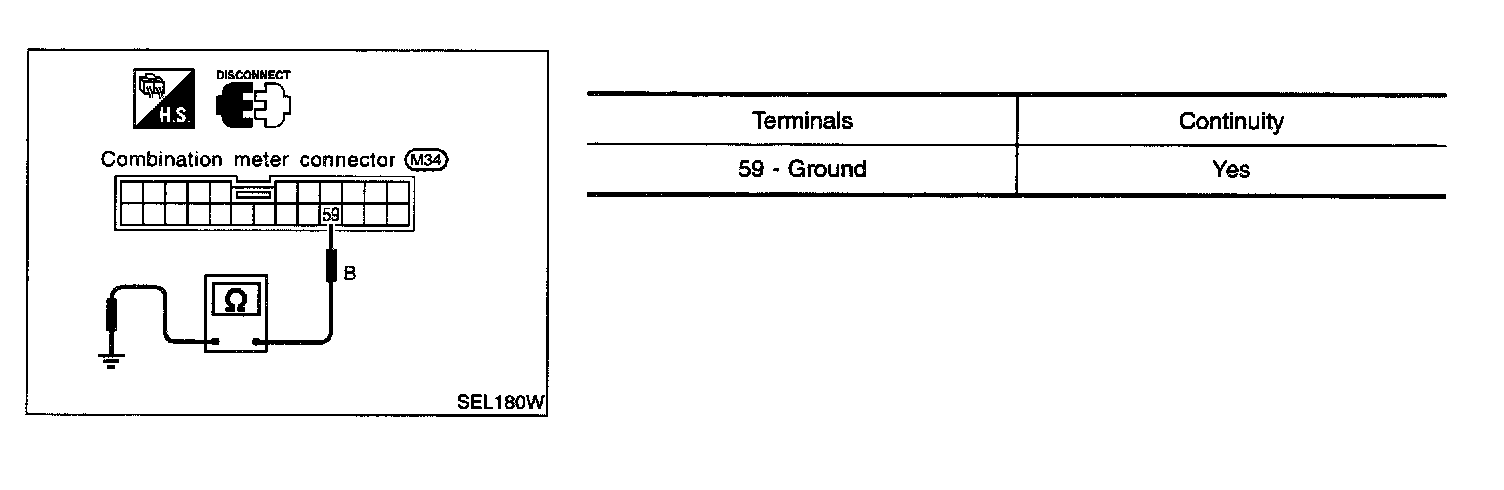

Ground Circuit Check

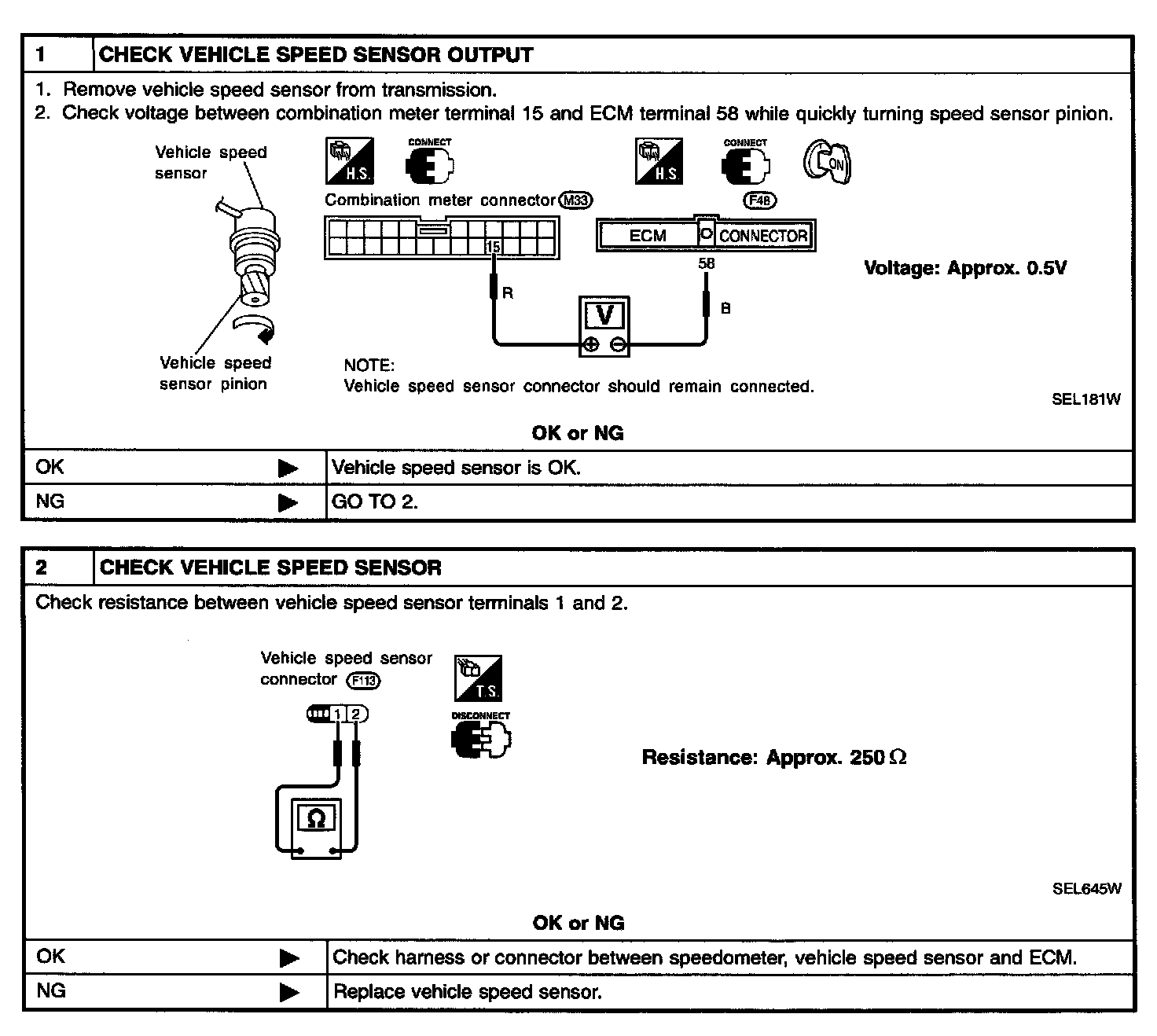

INSPECTION/VEHICLE SPEED SENSOR

Steps 1 - 2:

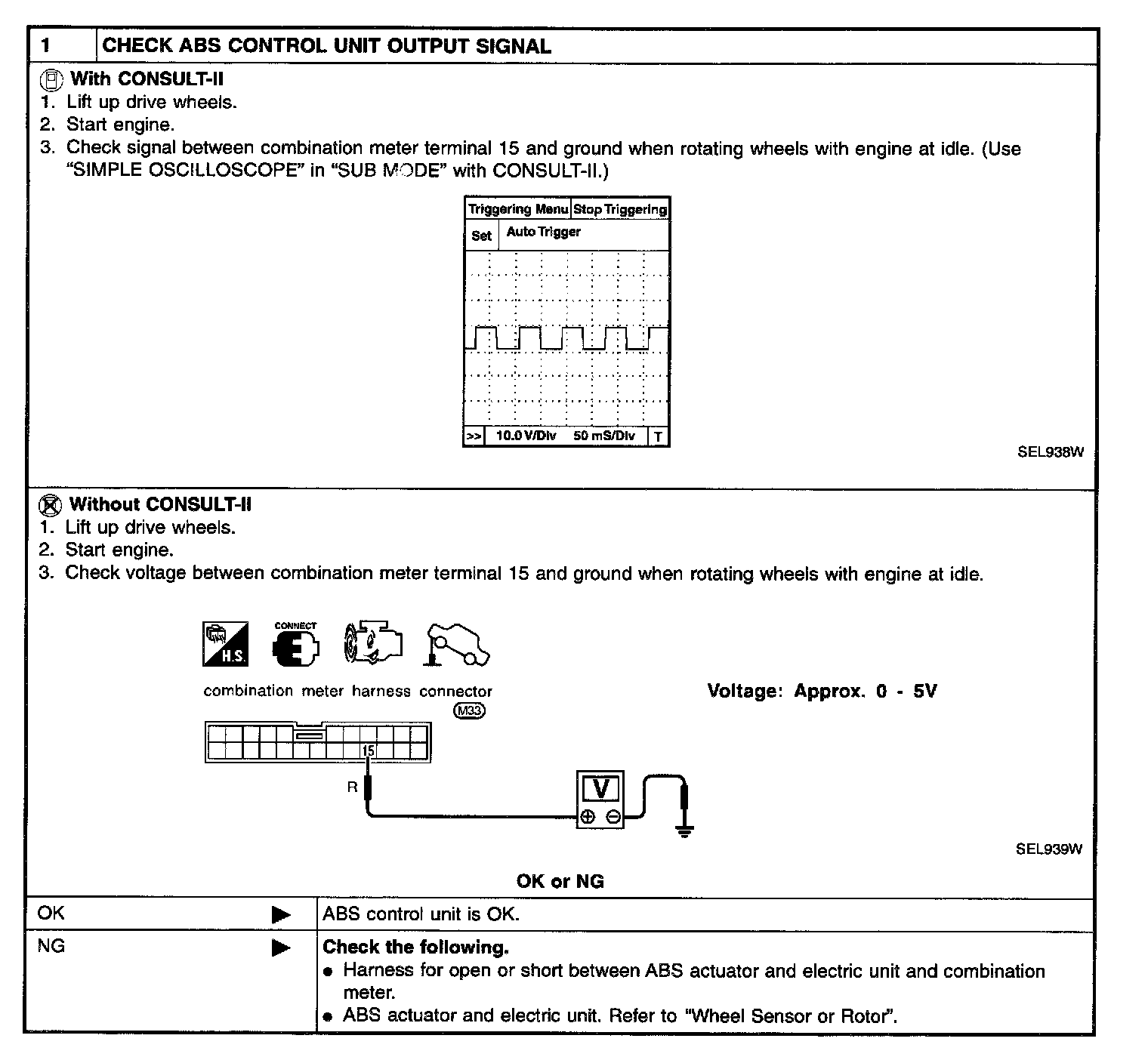

With TCS

Step 1:

Without TCS

Step 1:

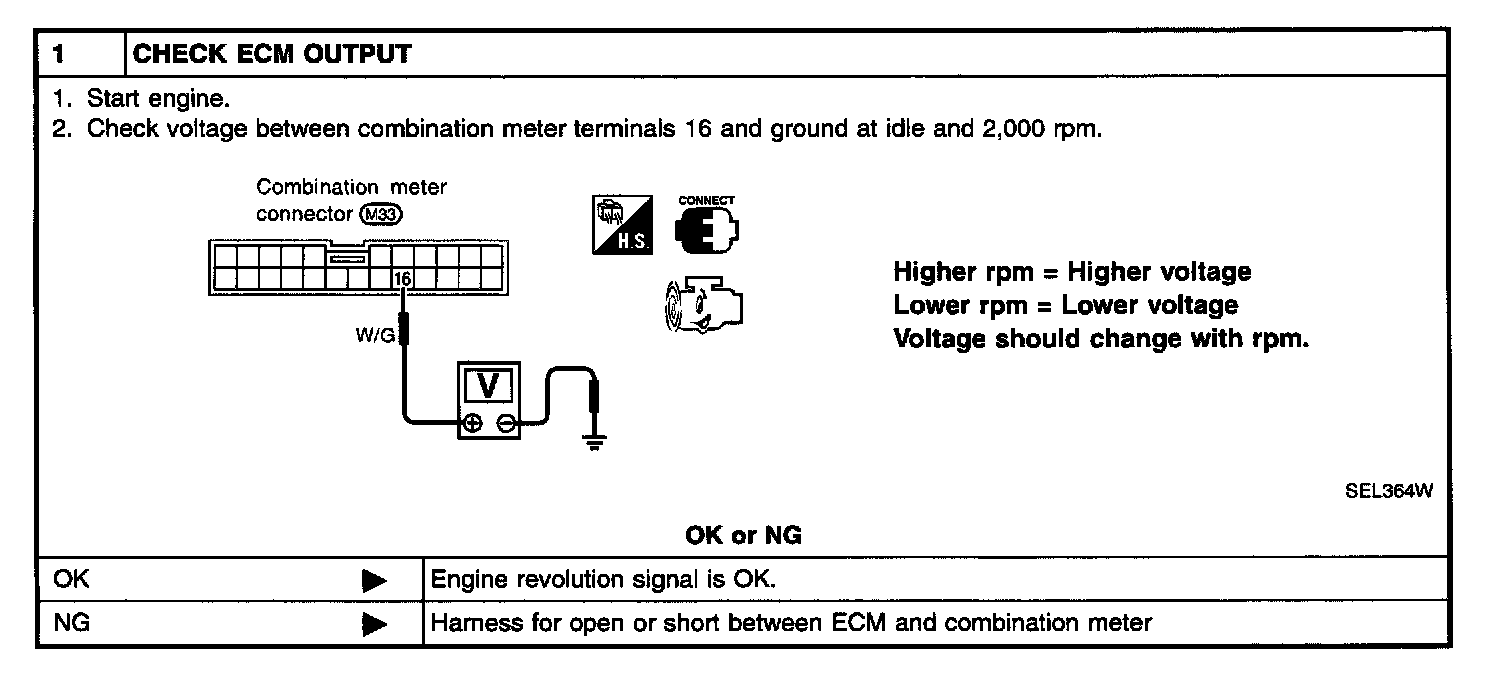

INSPECTION/ENGINE REVOLUTION SIGNAL

Steps 1 - 3:

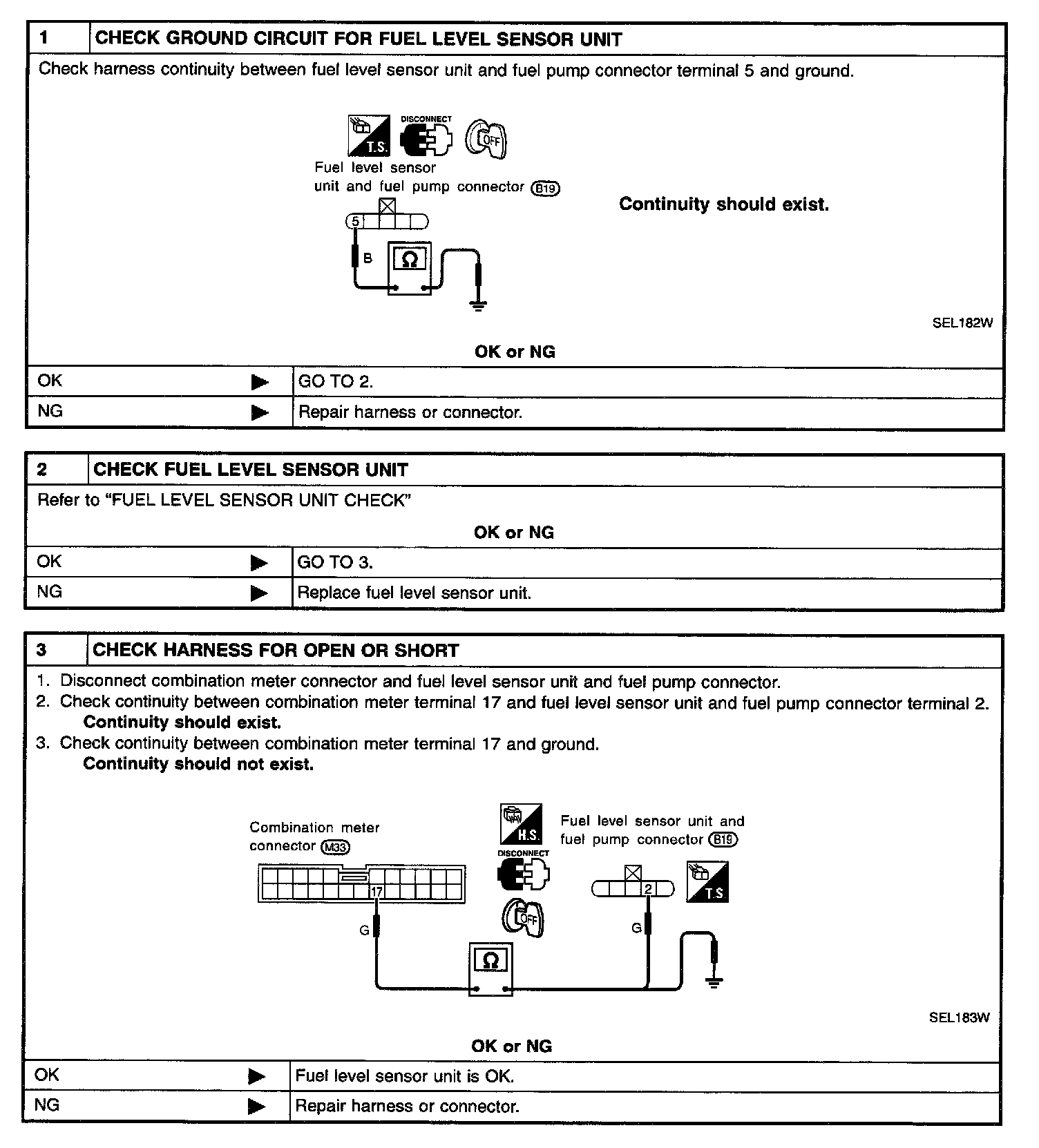

INSPECTION/FUEL LEVEL SENSOR UNIT

Steps 1 - 2:

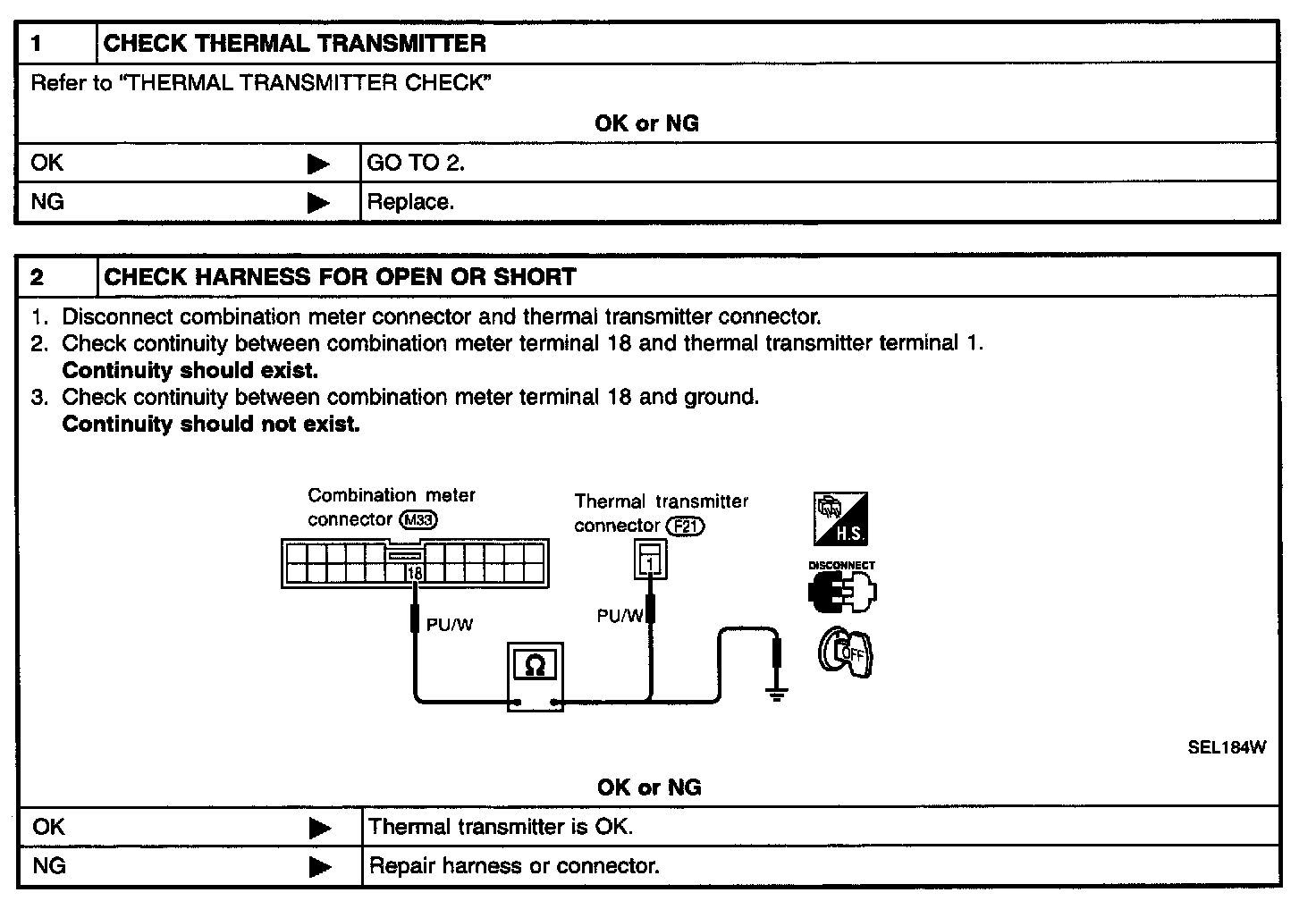

INSPECTION/THERMAL TRANSMITTER
