Test Conditions, Pressure and Discharge Temp
Test Conditions, Pressure and Discharge Temp

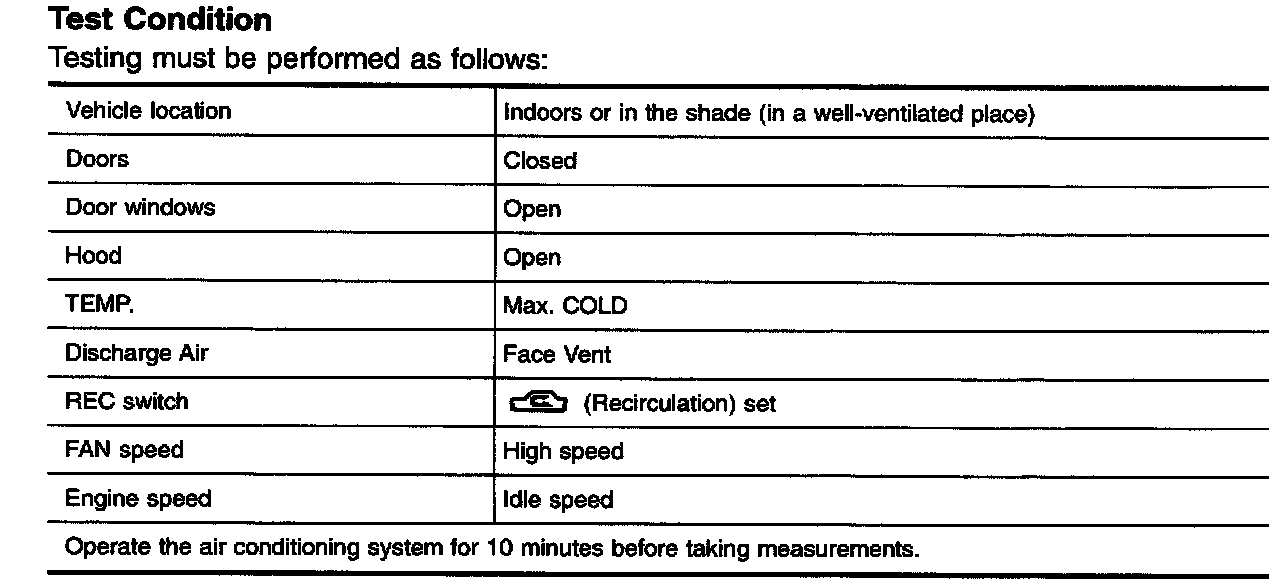

Test Condition:

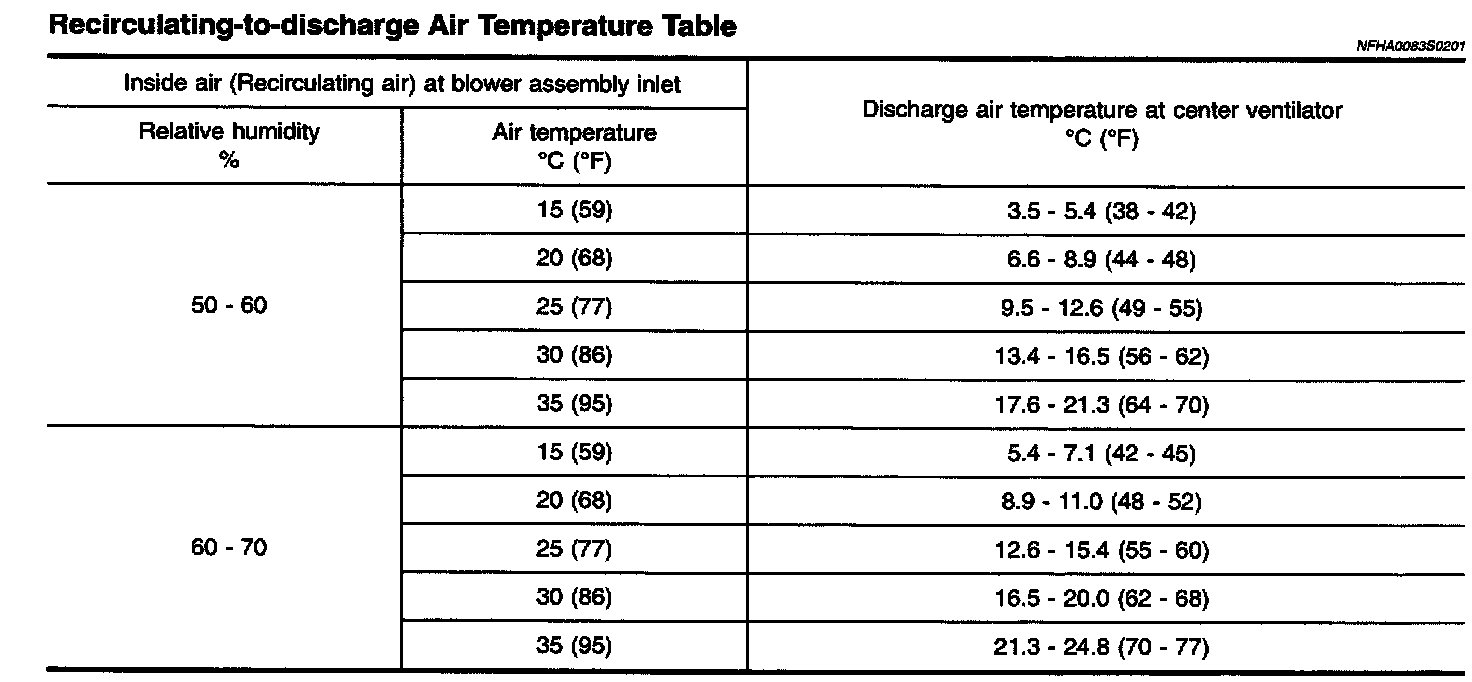

Recirculating-to-discharge Air Temperature Table:

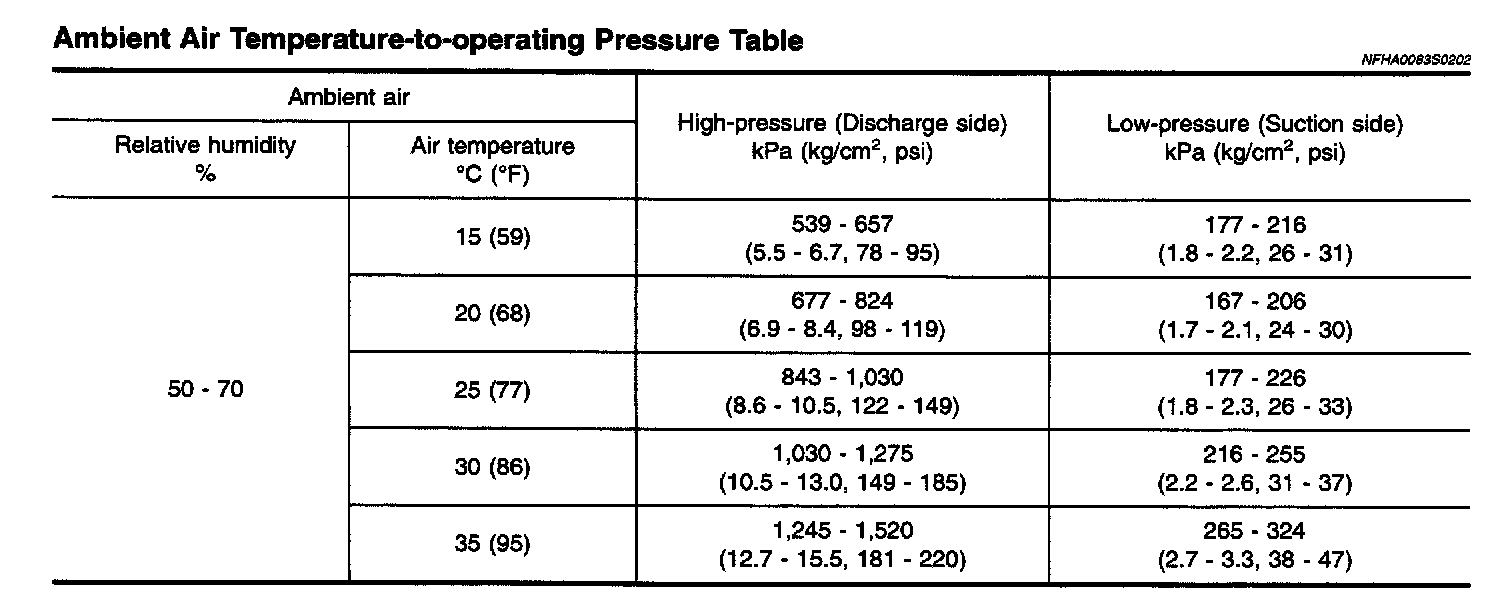

Ambient Air Temperature-to-operating Pressure Table:
