Home >> Nissan-Datsun >> 2001 >> Maxima GXE V6-3.0L (VQ30DE) >> Repair and Diagnosis >> Heating and Air Conditioning >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Manual Air Conditioning >> Insufficient Cooling >> Diagnostic Test Procedures

Diagnostic Test Procedures

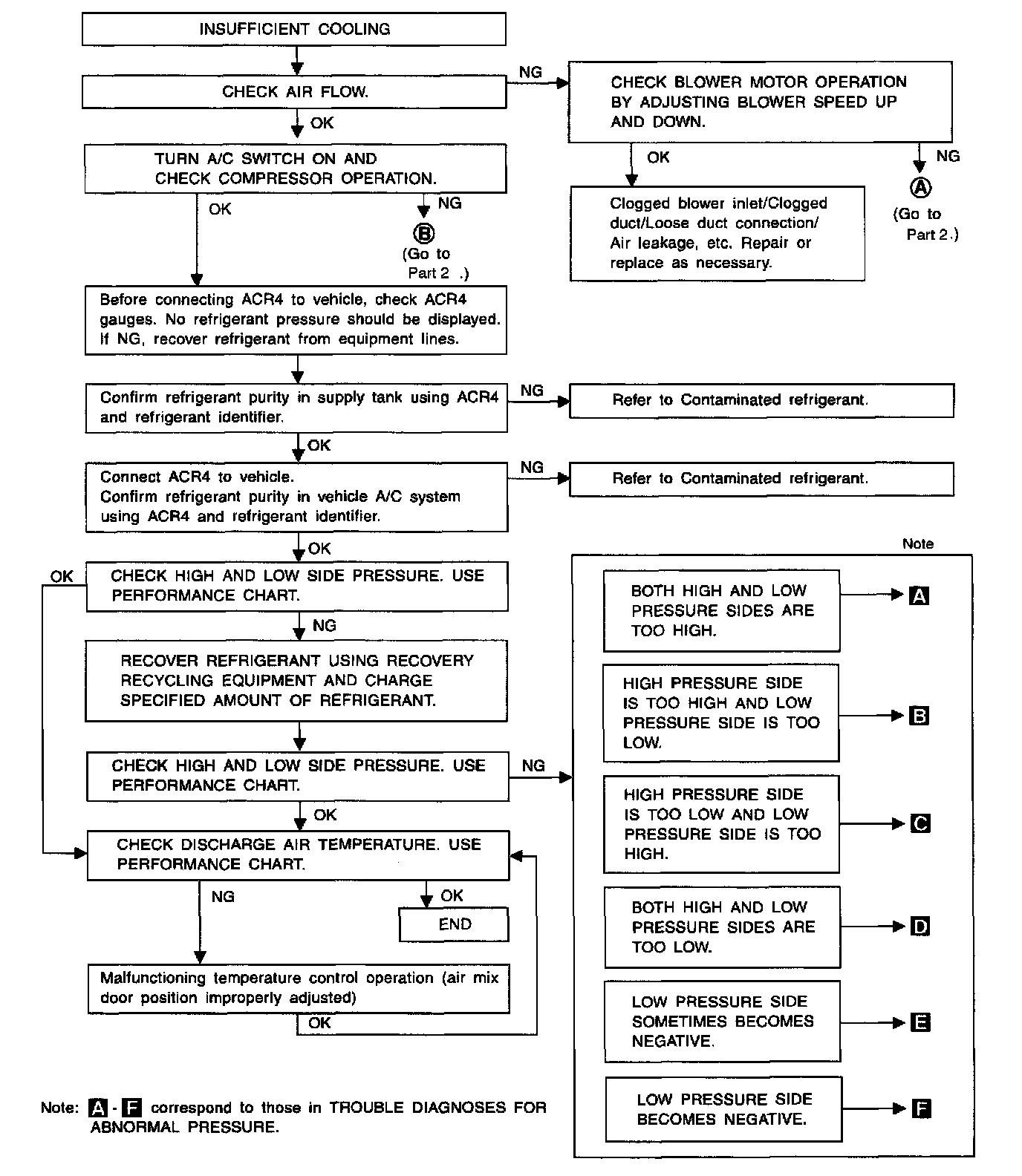

Performance Test Diagnoses Part 1:

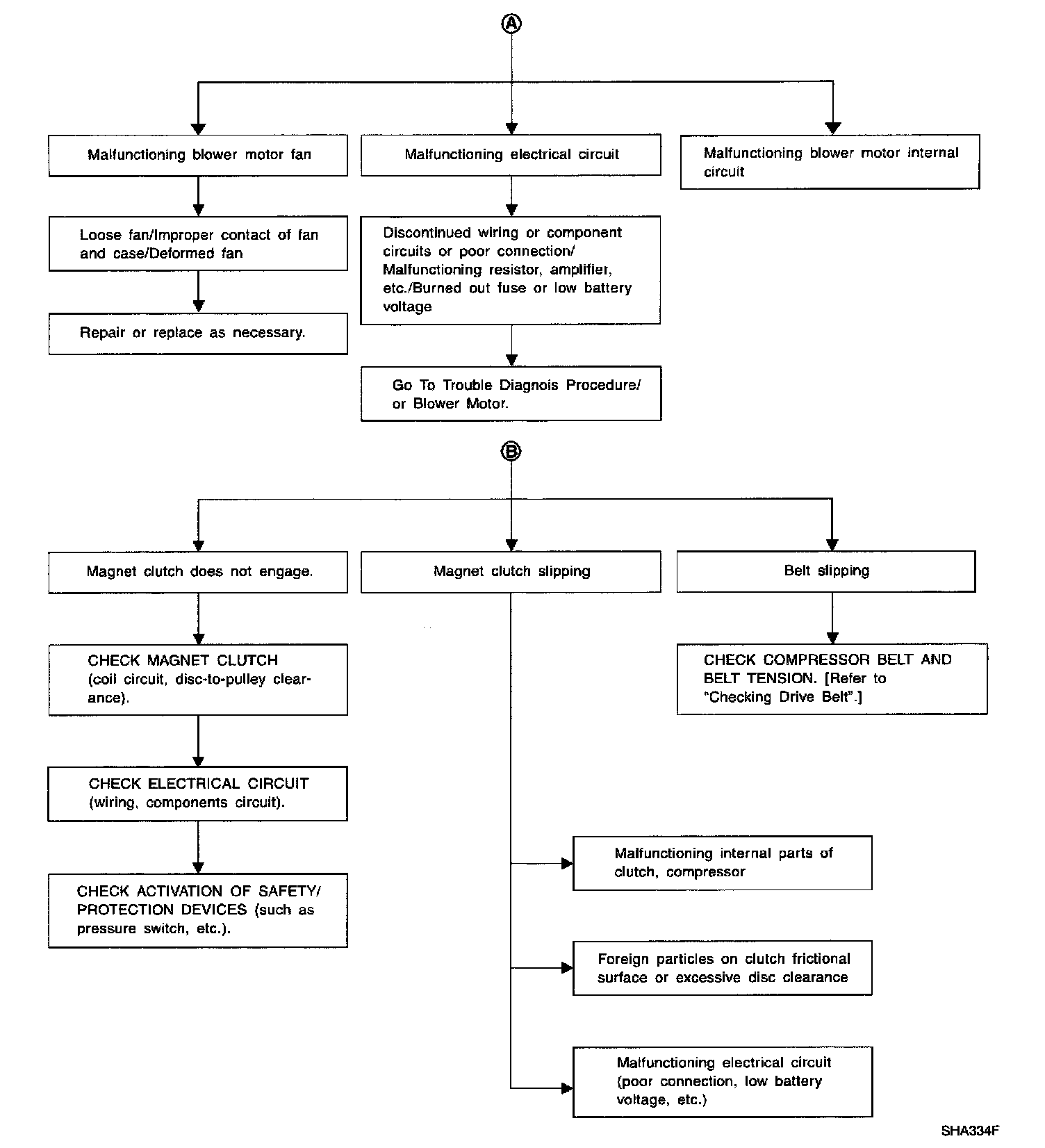

Performance Test Diagnoses Part 2:
