Main Power Supply and Ground Circuit Check

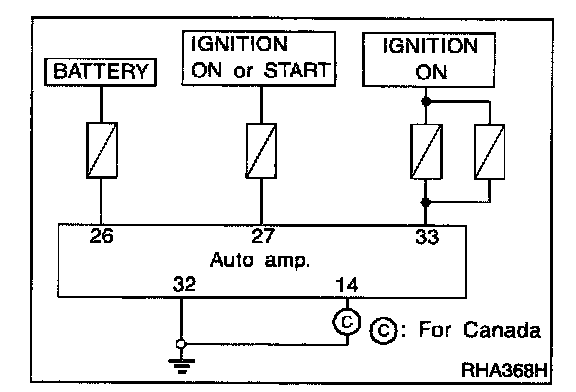

Power Supply Circuit Check
Check power supply circuit for air conditioner system.
Refer to "Wiring Diagram - POWER -".

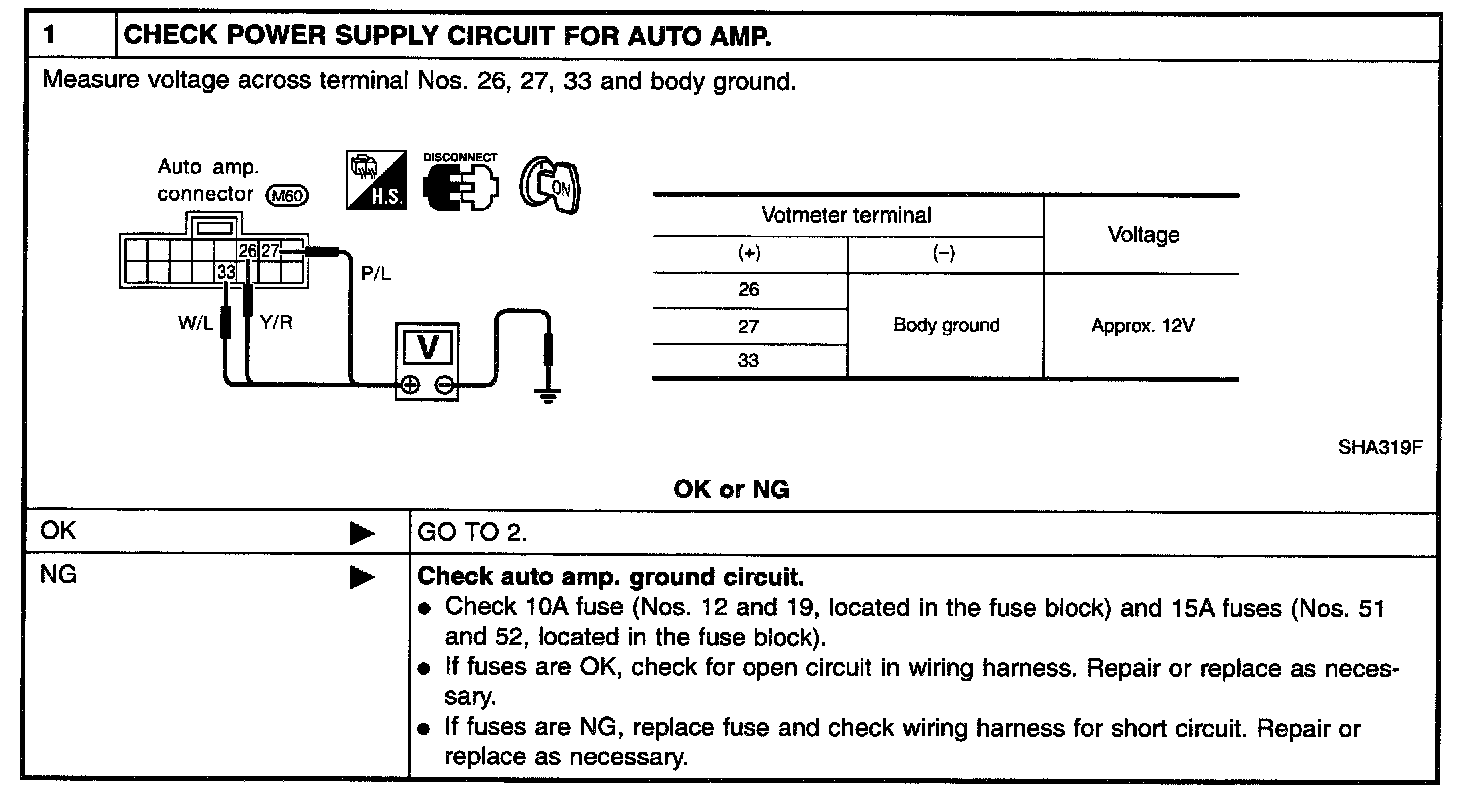

Step 1:

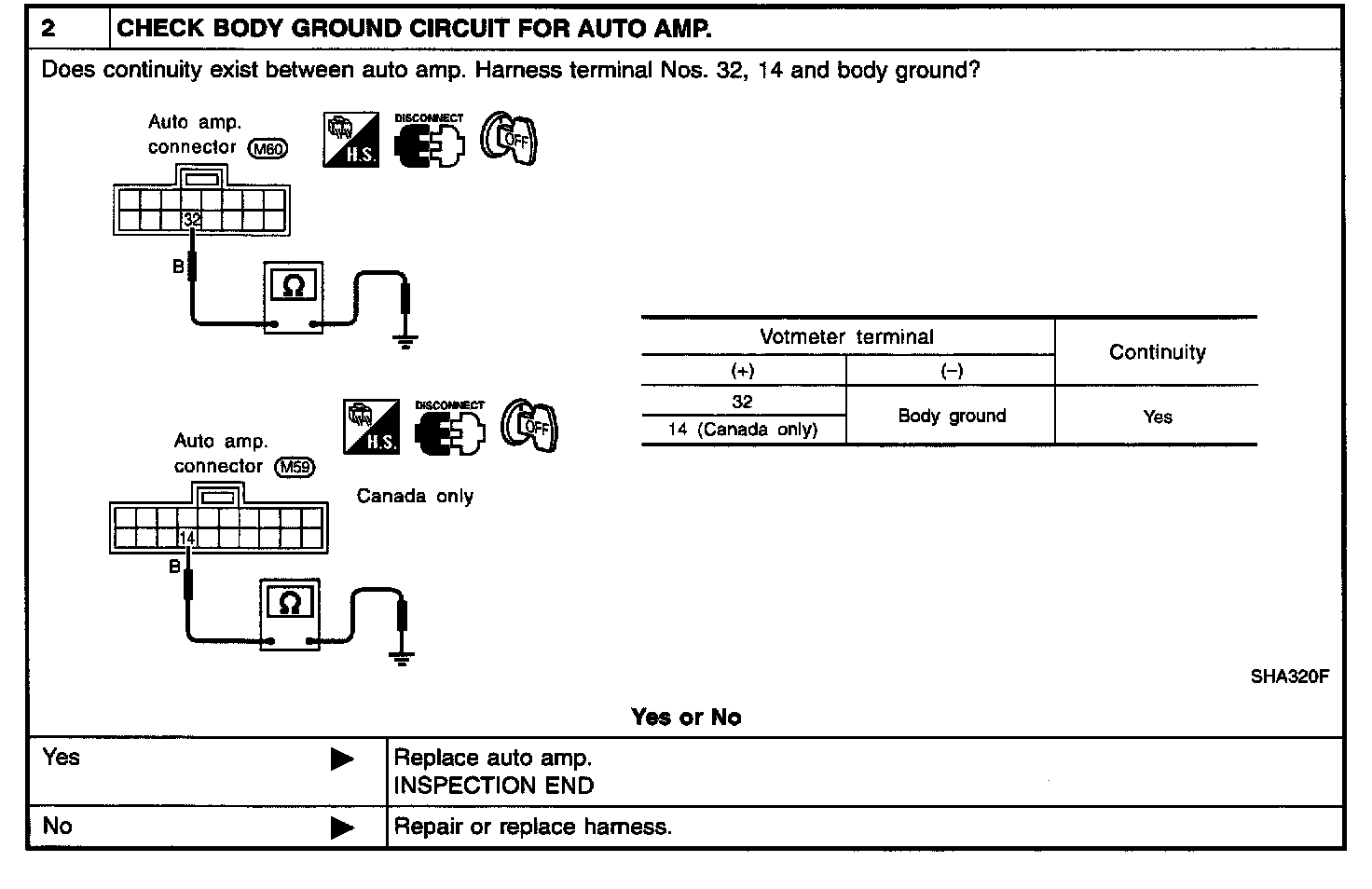

Step 2:

DIAGNOSTIC PROCEDURE

SYMPTOM: A/C system does not come on.
