Solar Sensor: Testing and Inspection

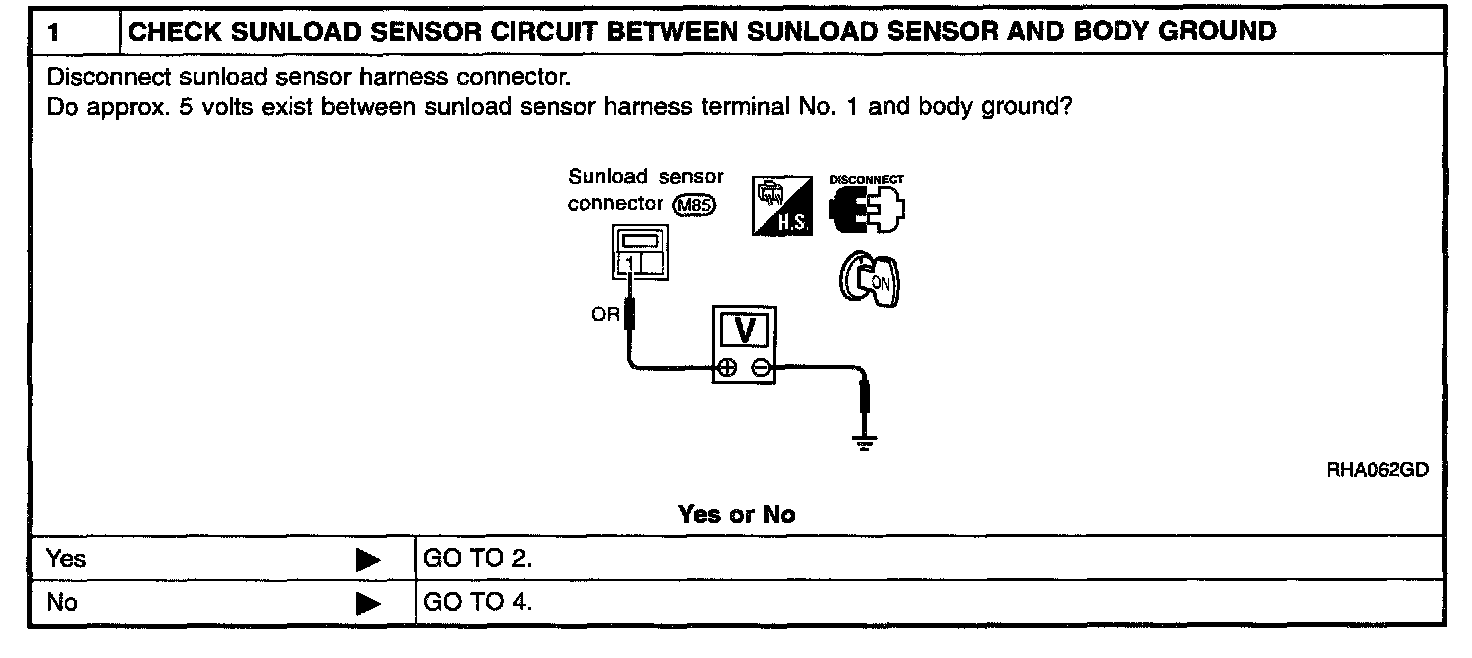

Step 1:

Steps 2 - 3:

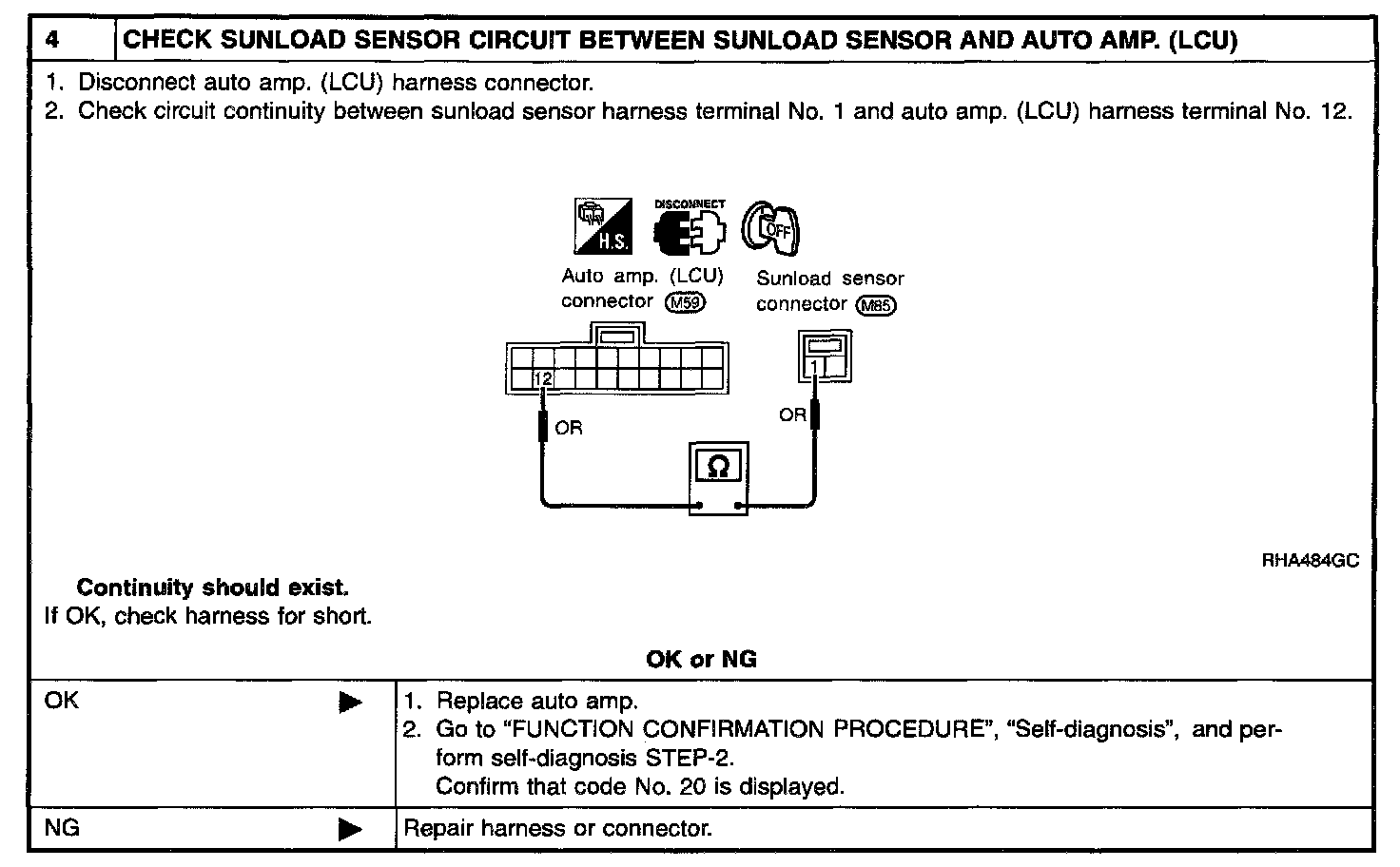

Step 4:

DIAGNOSTIC PROCEDURE

SYMPTOM: Sunload sensor circuit is open or shorted. (25 or -25 is indicated on the display as a result of conducting Self-diagnosis STEP 2.)

COMPONENT INSPECTION

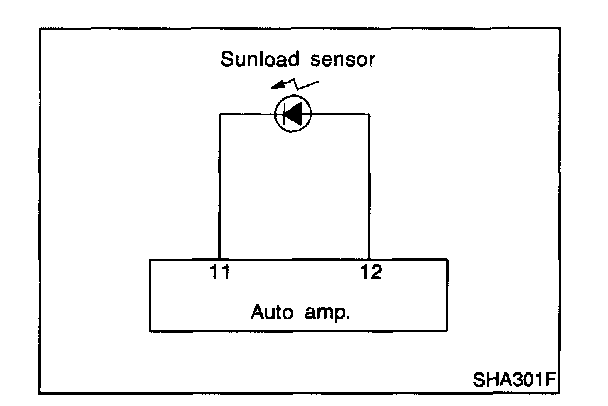

Sunload Sensor

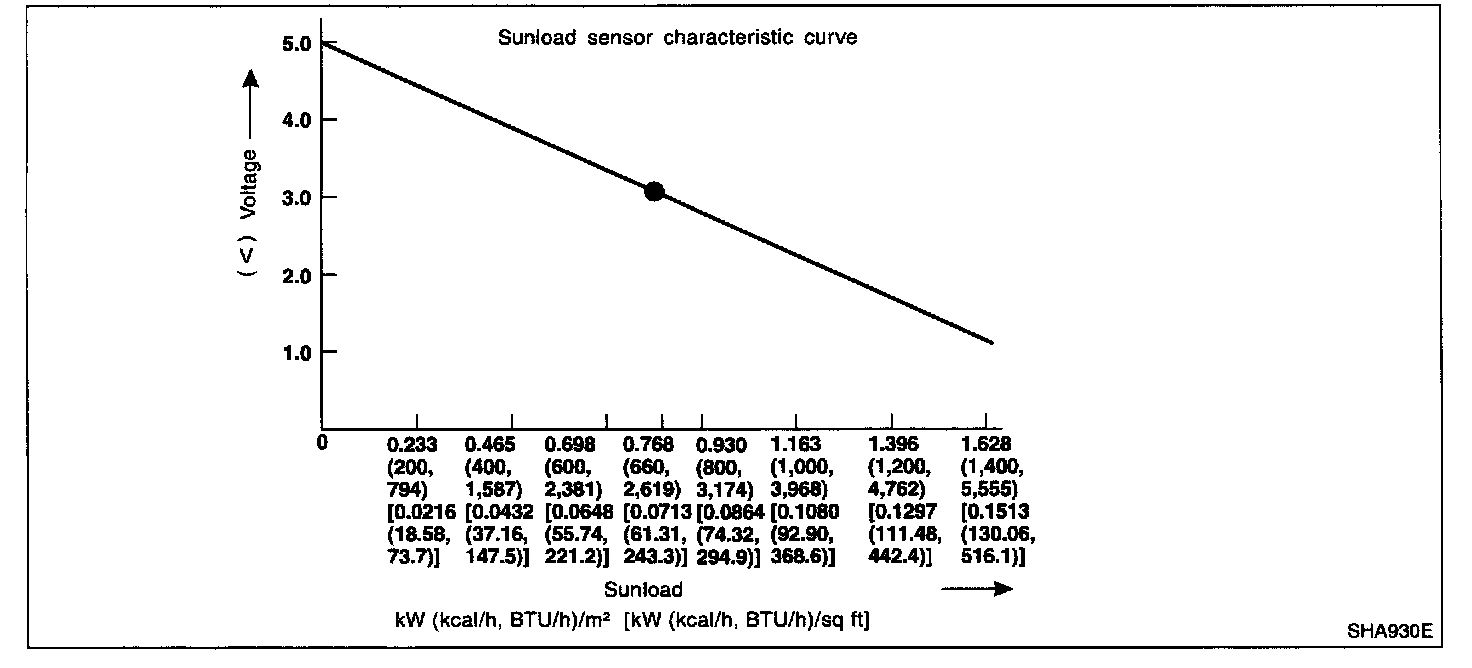

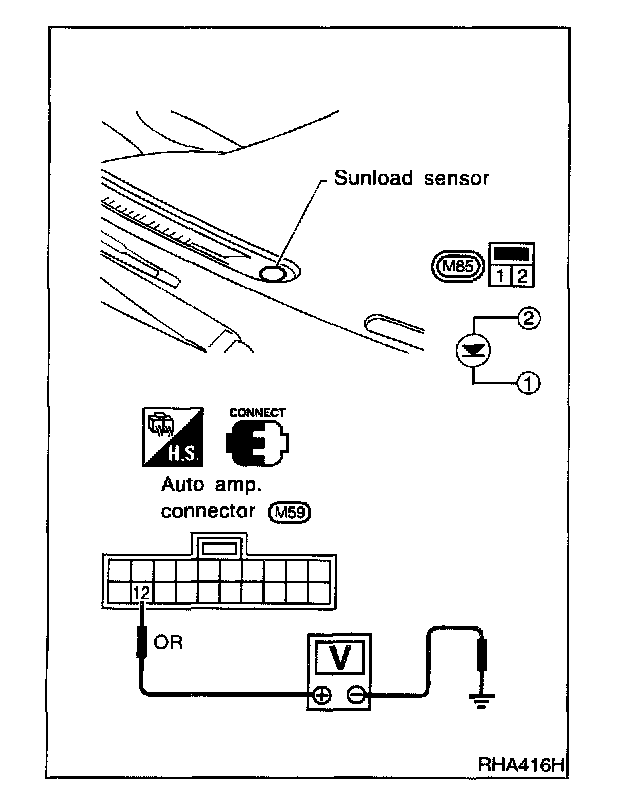

Measure voltage between auto amp. terminal 12 and body ground.

If NG, replace sunload sensor.
- When checking sunload sensor, select a place where sun shines directly on it.
