With Automatic Climate Control
MAGNET CLUTCHInspection Flow:

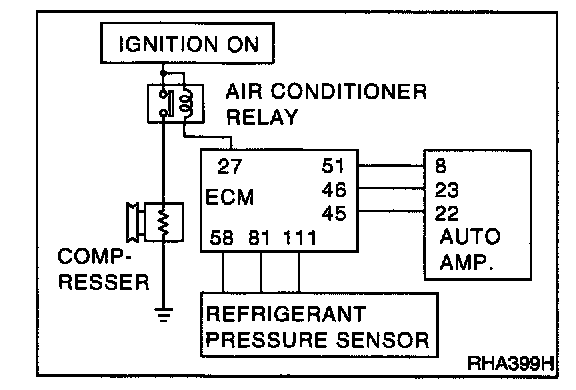

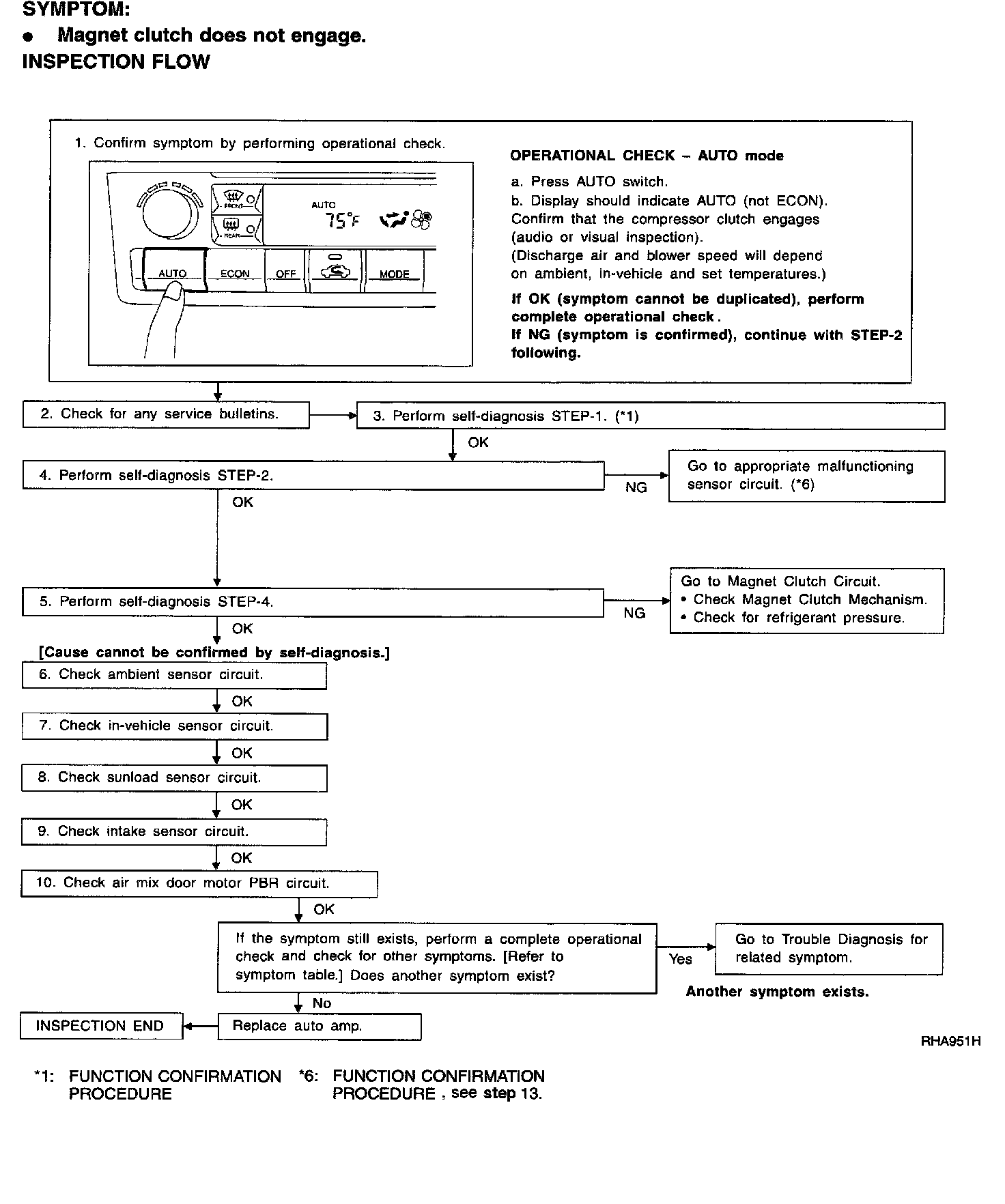

TROUBLE DIAGNOSIS PROCEDURE FOR MAGNET CLUTCH
SYMPTOM: Magnet clutch does not engage.
Step 1:
Steps 2 - 4:

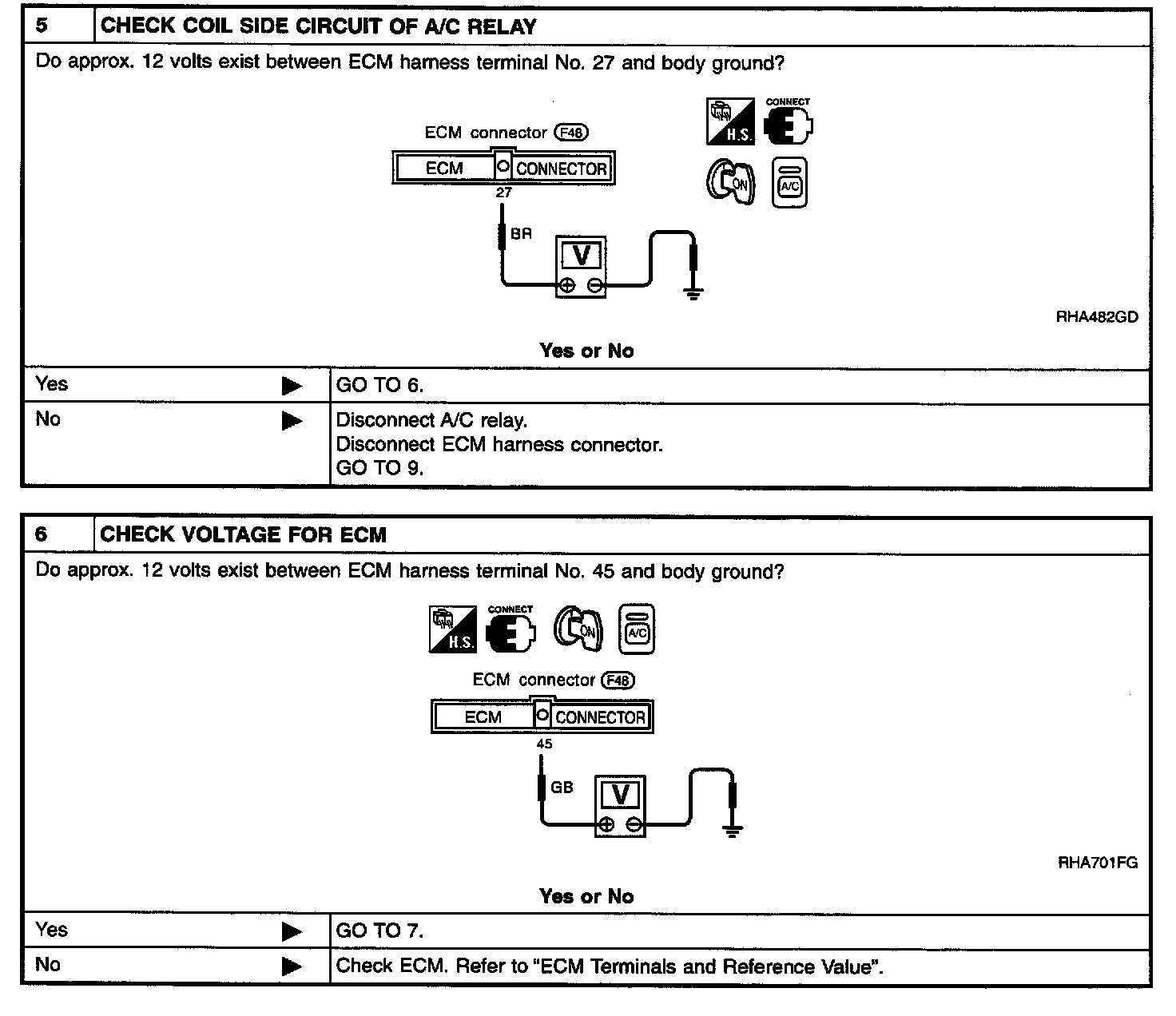

Steps 5 - 6:

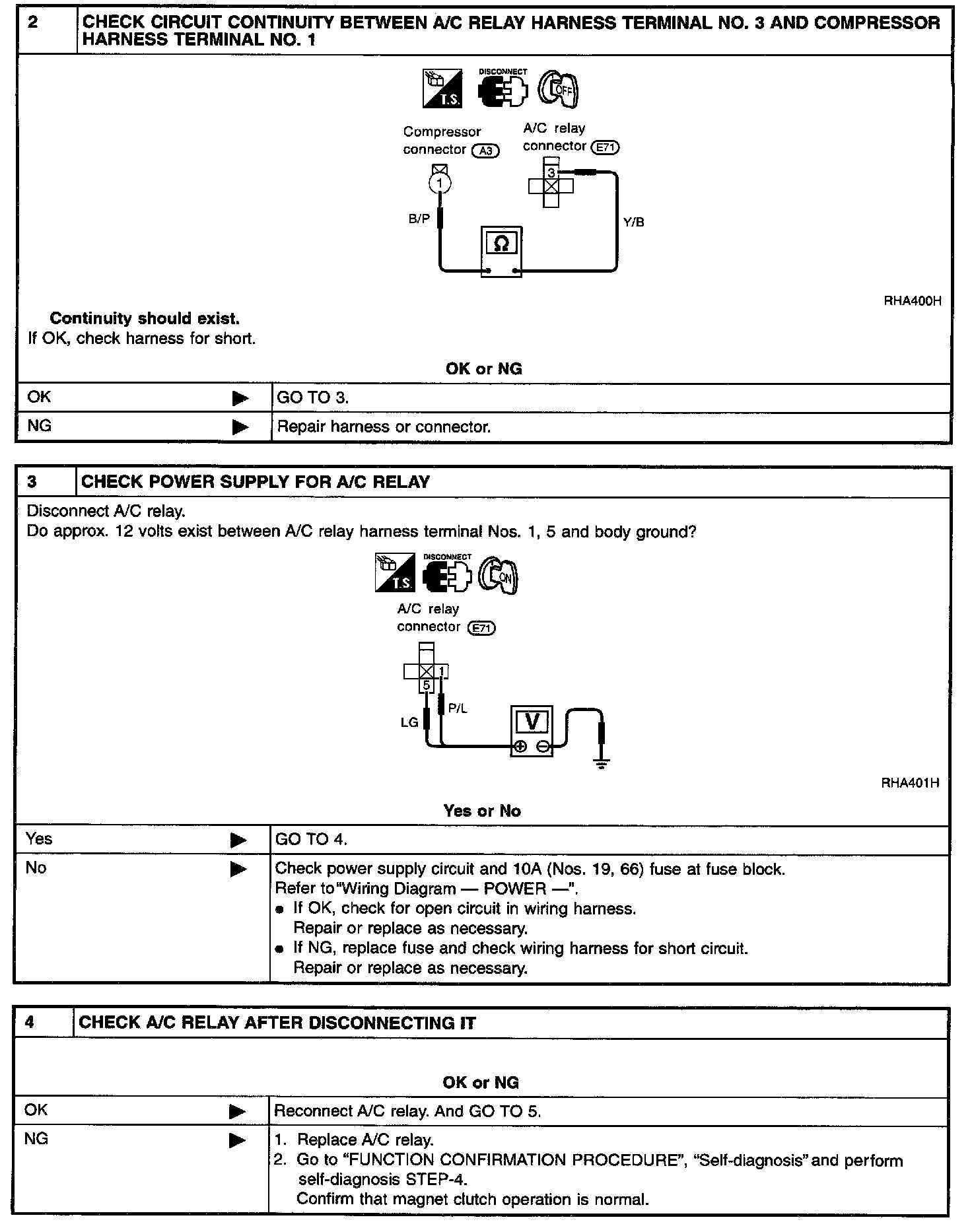

Steps 7 - 9:

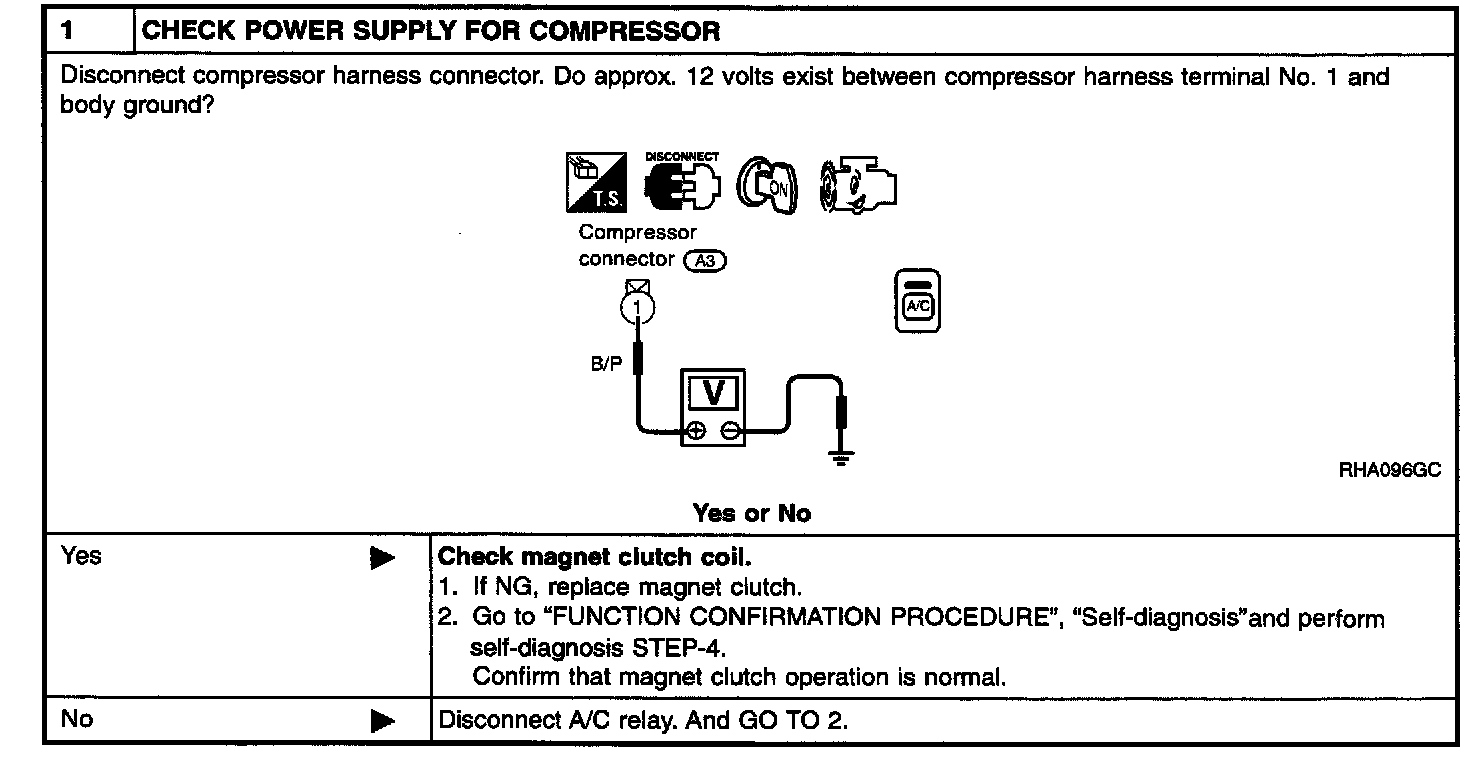

DIAGNOSTIC PROCEDURE
SYMPTOM: Magnet clutch does not engage when AUTO switch is ON.
COMPONENT INSPECTION

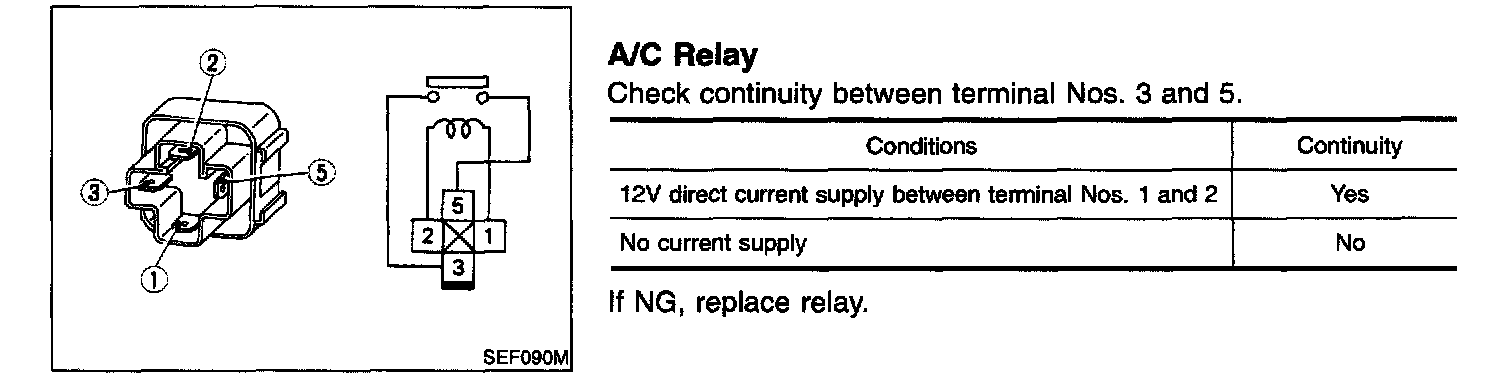

A/C Relay:

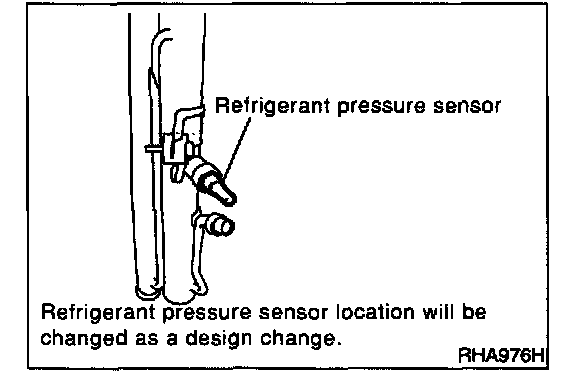

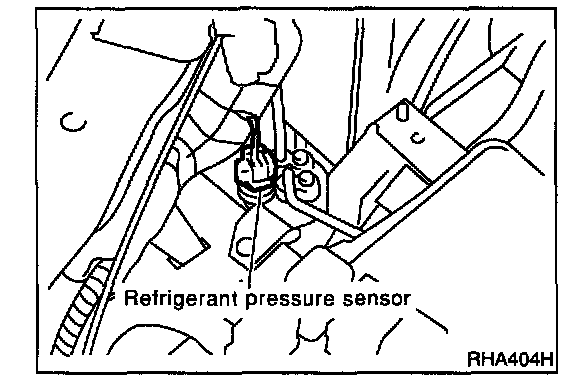

Refrigerant Pressure Sensor

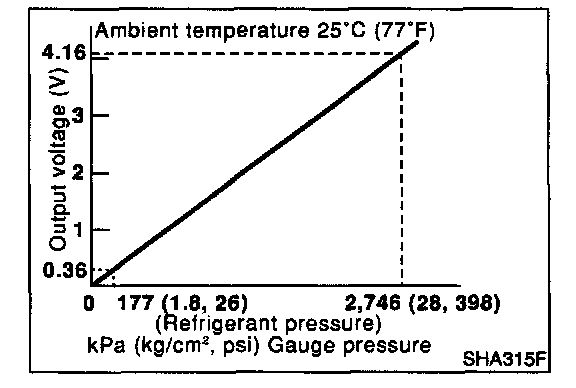

Make sure that higher A/C refrigerant pressure results in higher refrigerant-pressure sensor output voltage.
Refer to "Diagnostic Procedure".

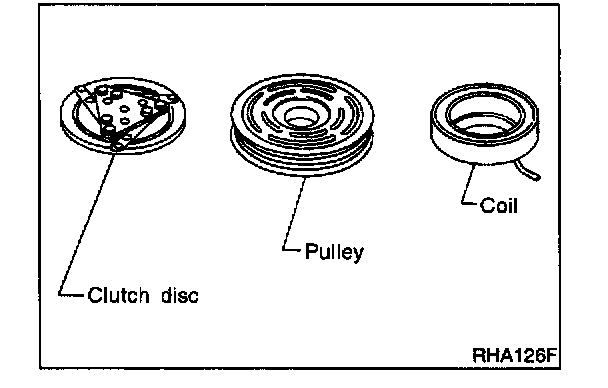

INSPECTION
Clutch Disc
If the contact surface shows signs of damage due to excessive heat, replace clutch disc and pulley.
Pulley
Check the appearance of the pulley assembly. If the contact surface of pulley shows signs of excessive grooving, replace clutch disc and pulley. The contact surfaces of the pulley assembly should be cleaned with a suitable solvent before reinstallation.
Coil
Check coil for loose connection or cracked insulation.
