With Manual Climate Control

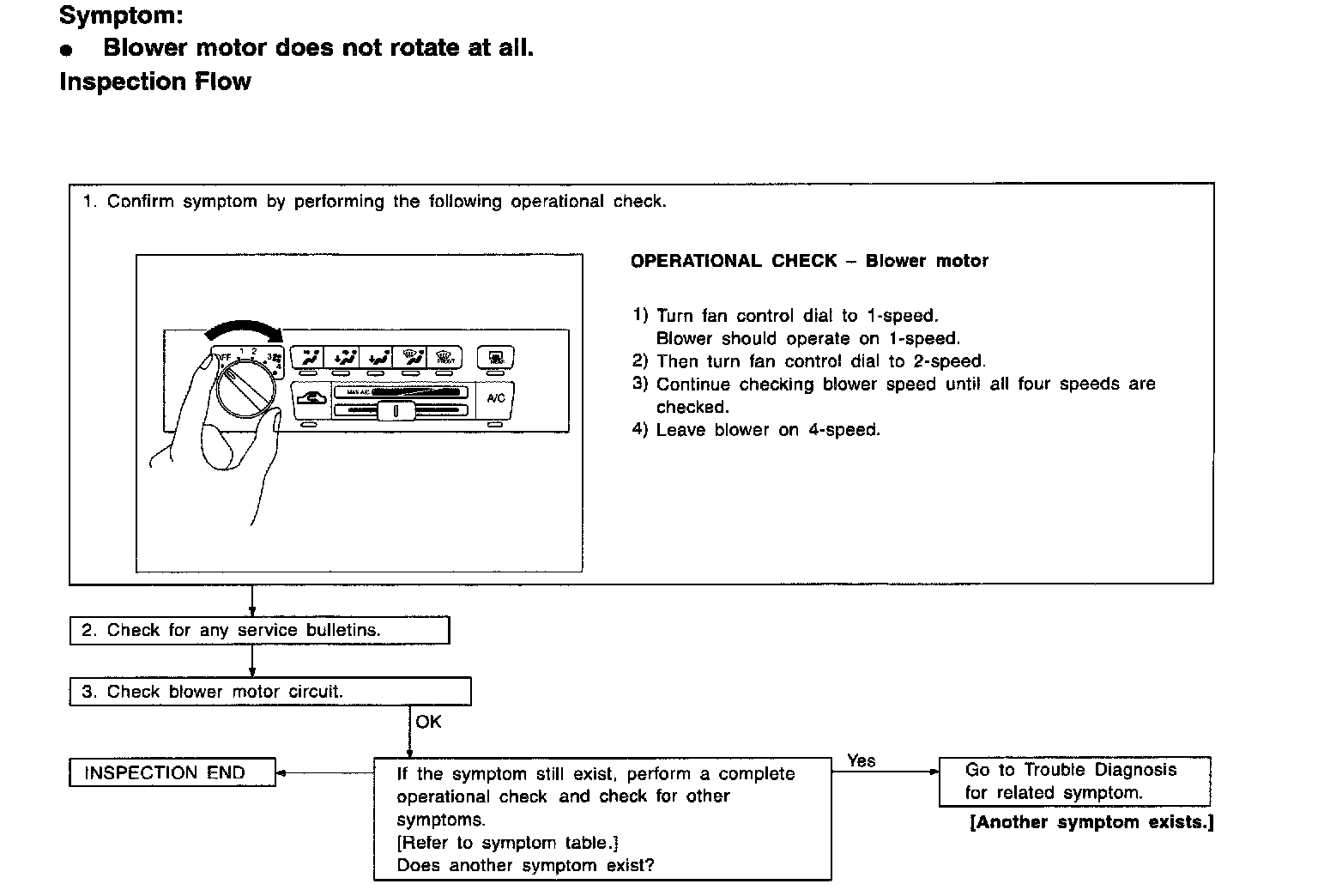

Inspection Flow:

TROUBLE DIAGNOSES PROCEDURE FOR BLOWER MOTOR

SYMPTOM: Blower motor does not rotate at all.

ELECTRICAL COMPONENTS INSPECTION

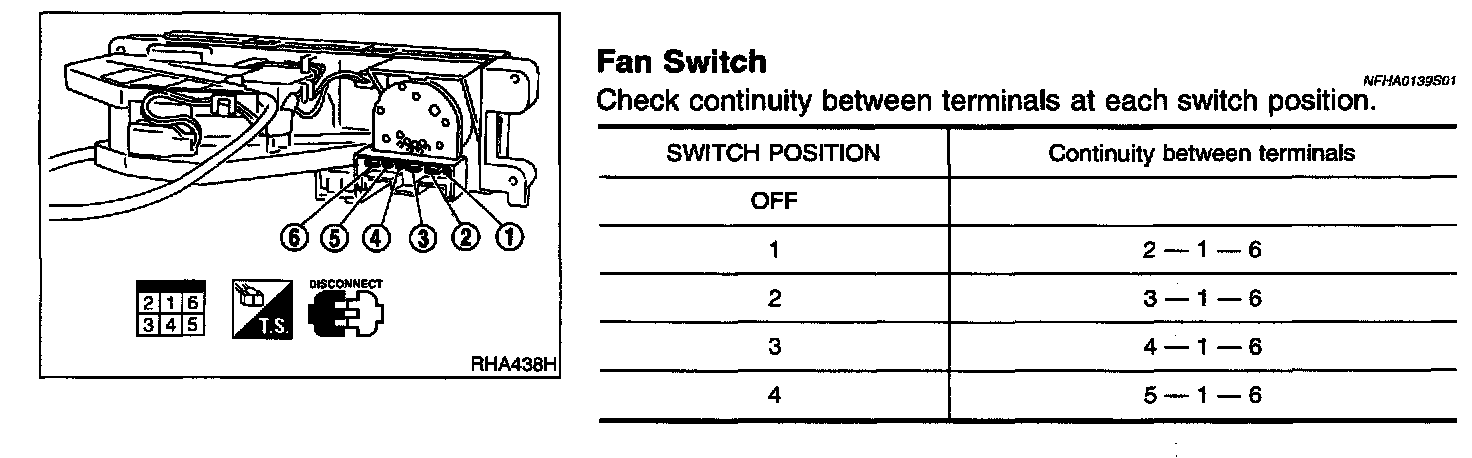

Fan Switch:

Blower Motor
Confirm smooth rotation of the blower motor.
- Ensure that there are no foreign particles inside the intake unit.

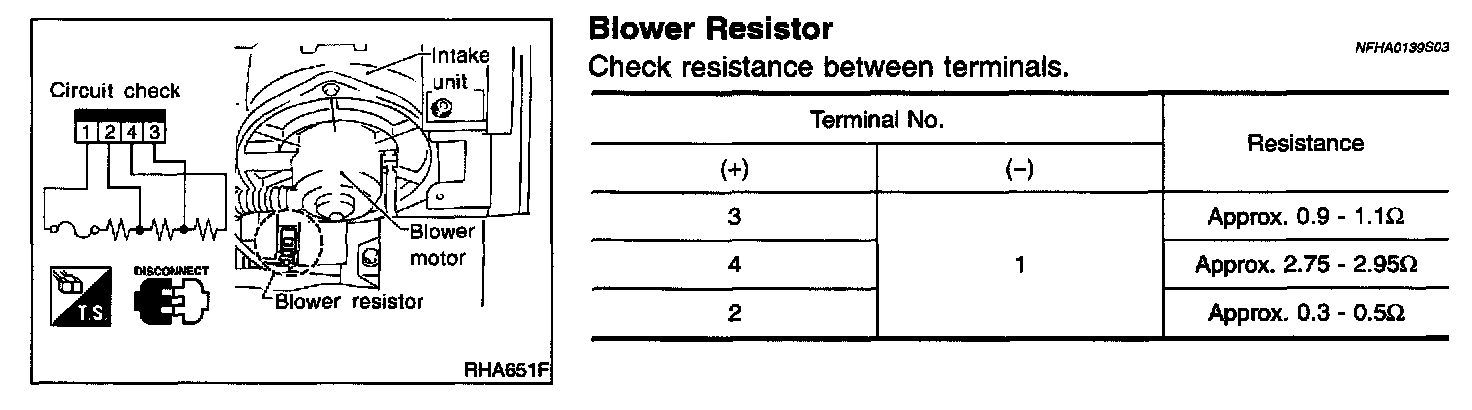

Blower Resistor:

Steps 1 - 2:

Steps 3 - 5:

Steps 6 - 9:

Steps 10 - 12:

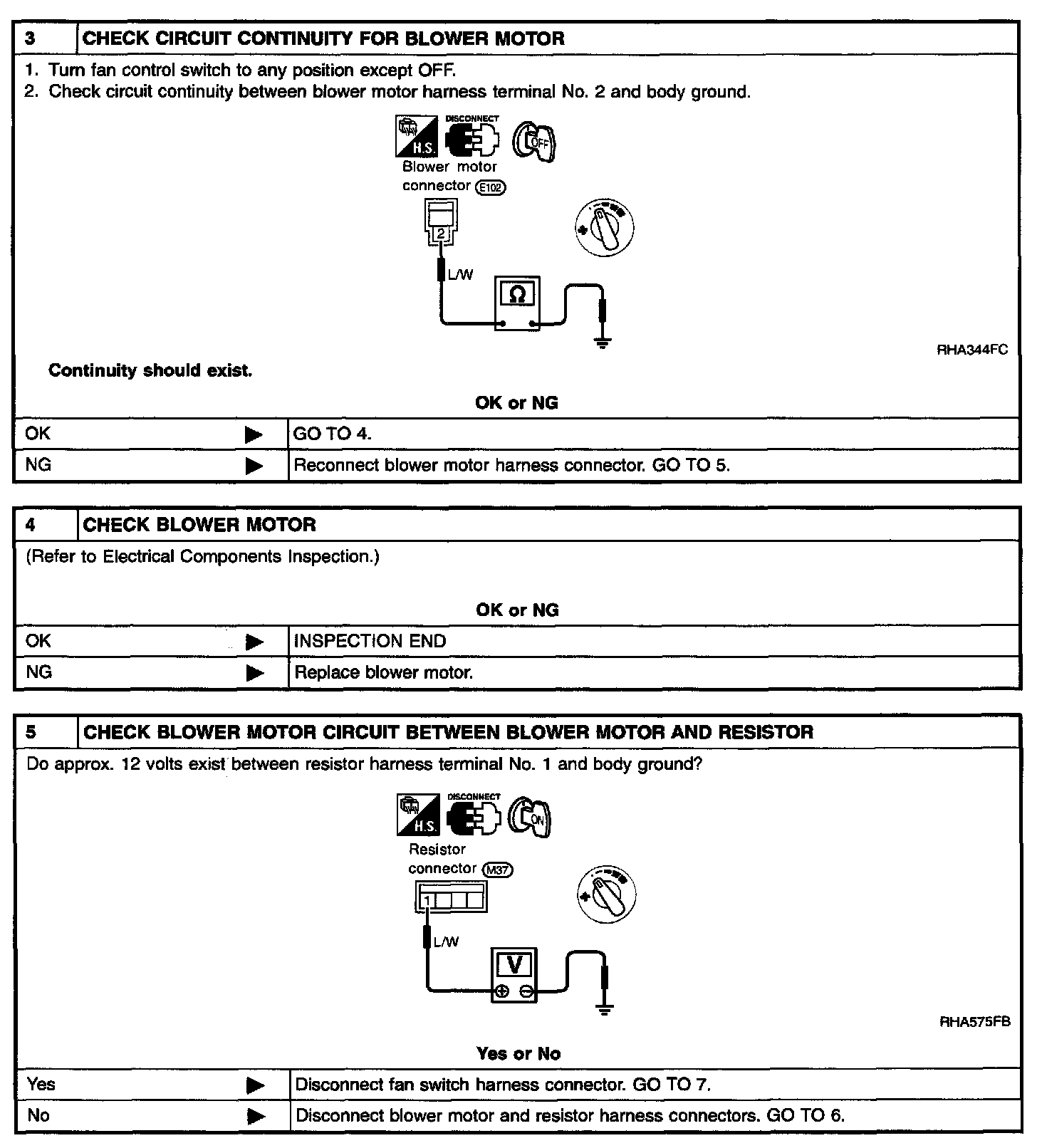

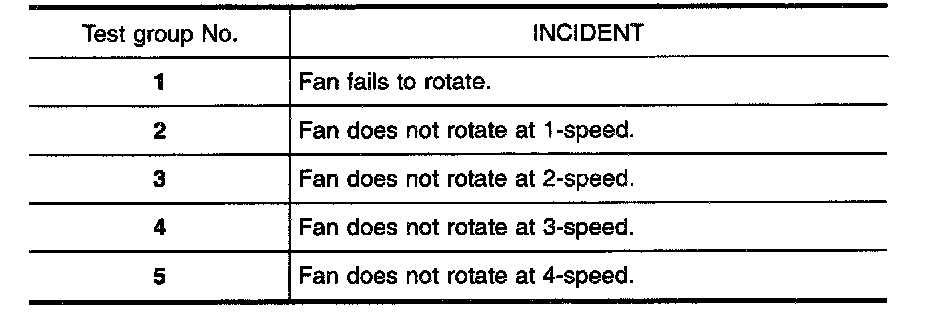

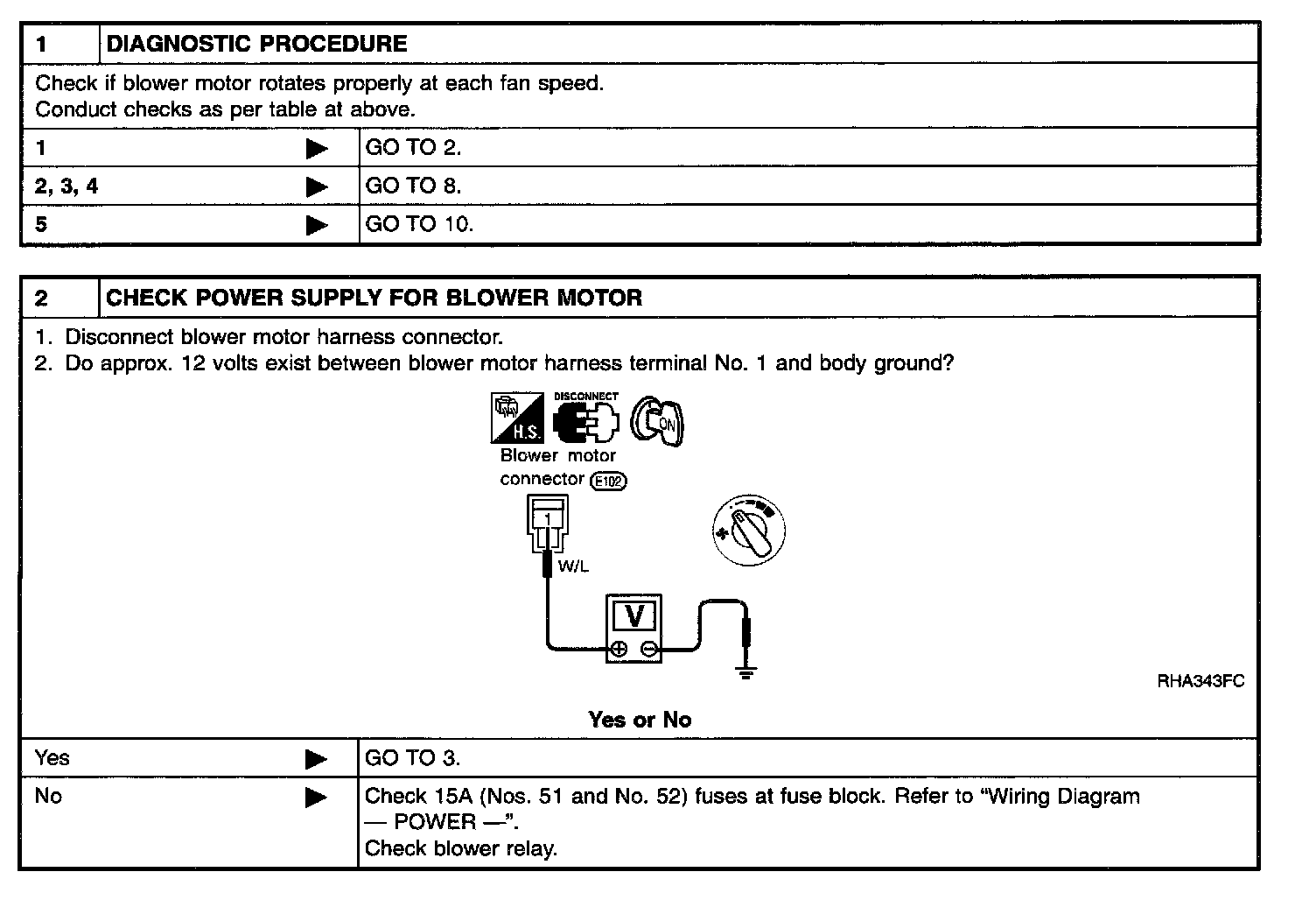

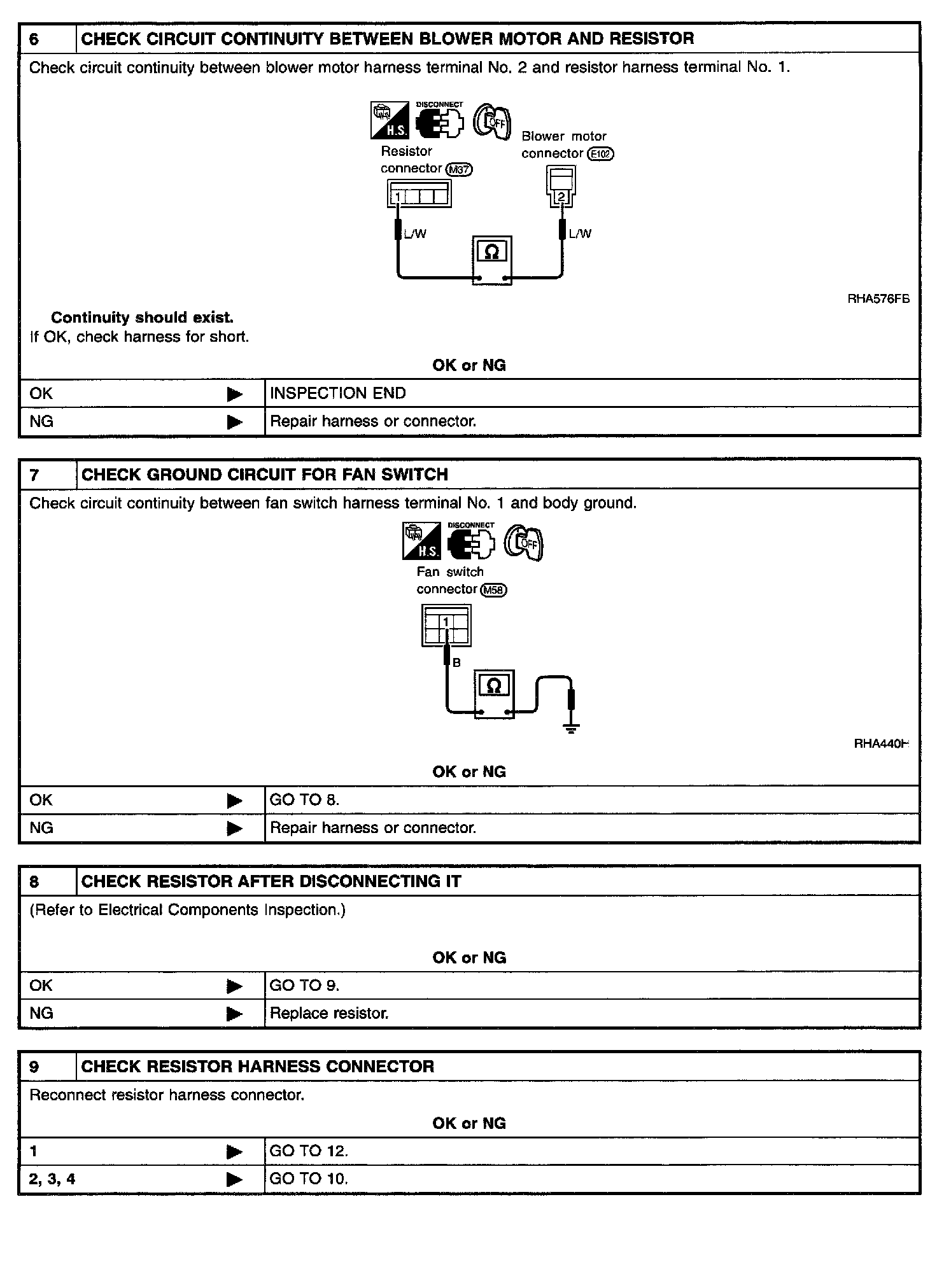

DIAGNOSTIC PROCEDURE

SYMPTOM: Blower motor does not rotate.
