With Automatic Climate Control

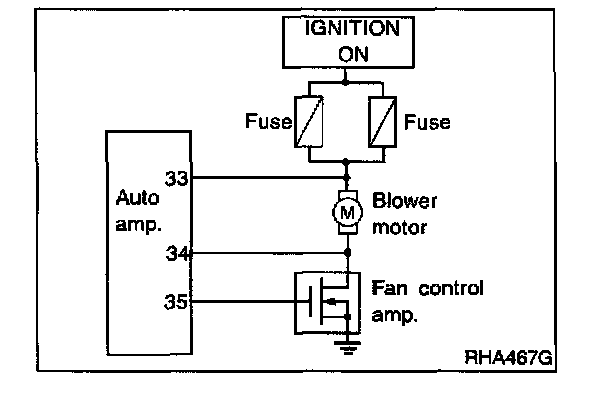

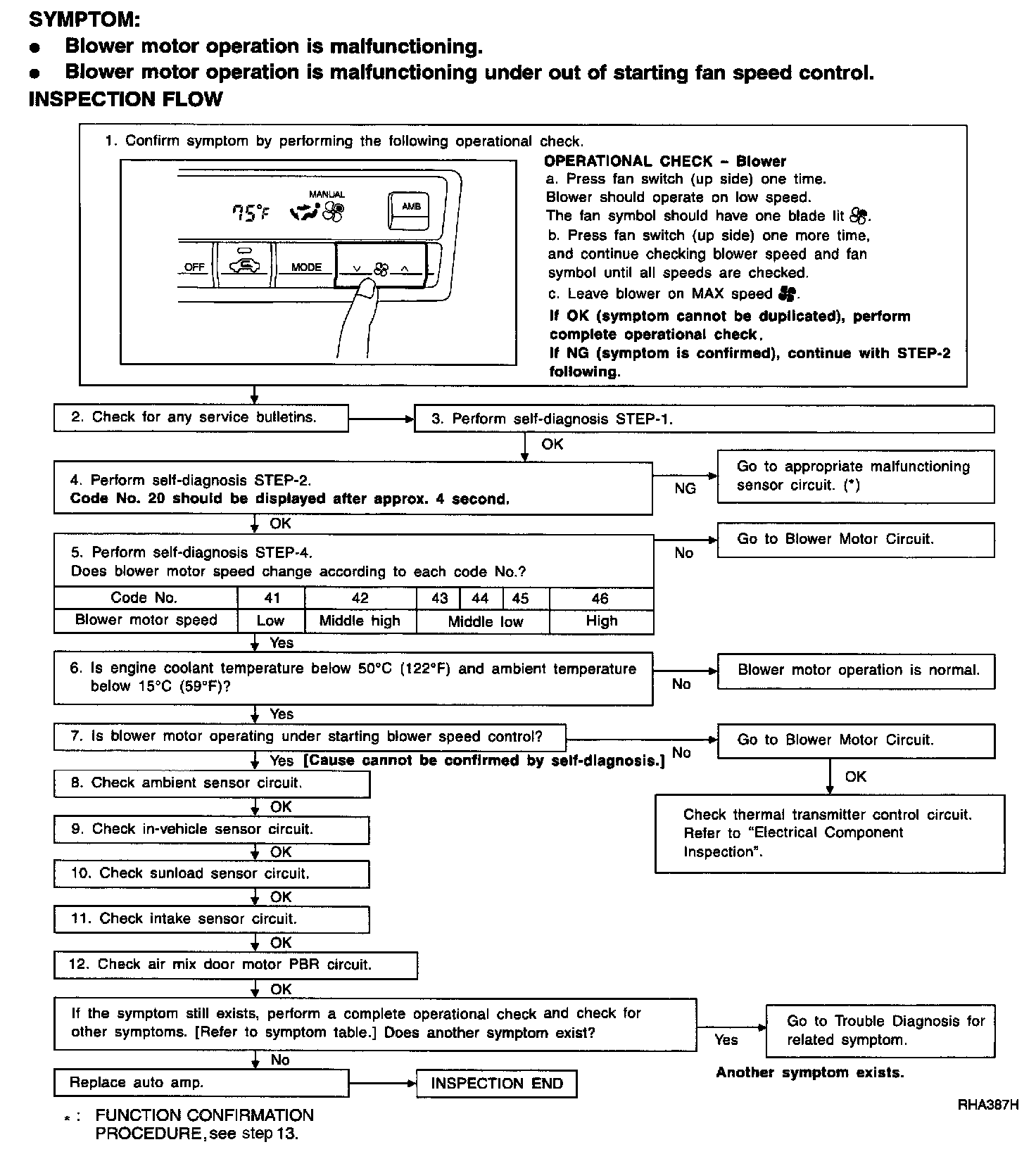

Inspection Flow:

TROUBLE DIAGNOSIS PROCEDURE FOR BLOWER MOTOR

SYMPTOM:
- Blower motor operation is malfunctioning.
- Blower motor operation is malfunctioning under out of starting fan speed control.

Steps 1 - 2:

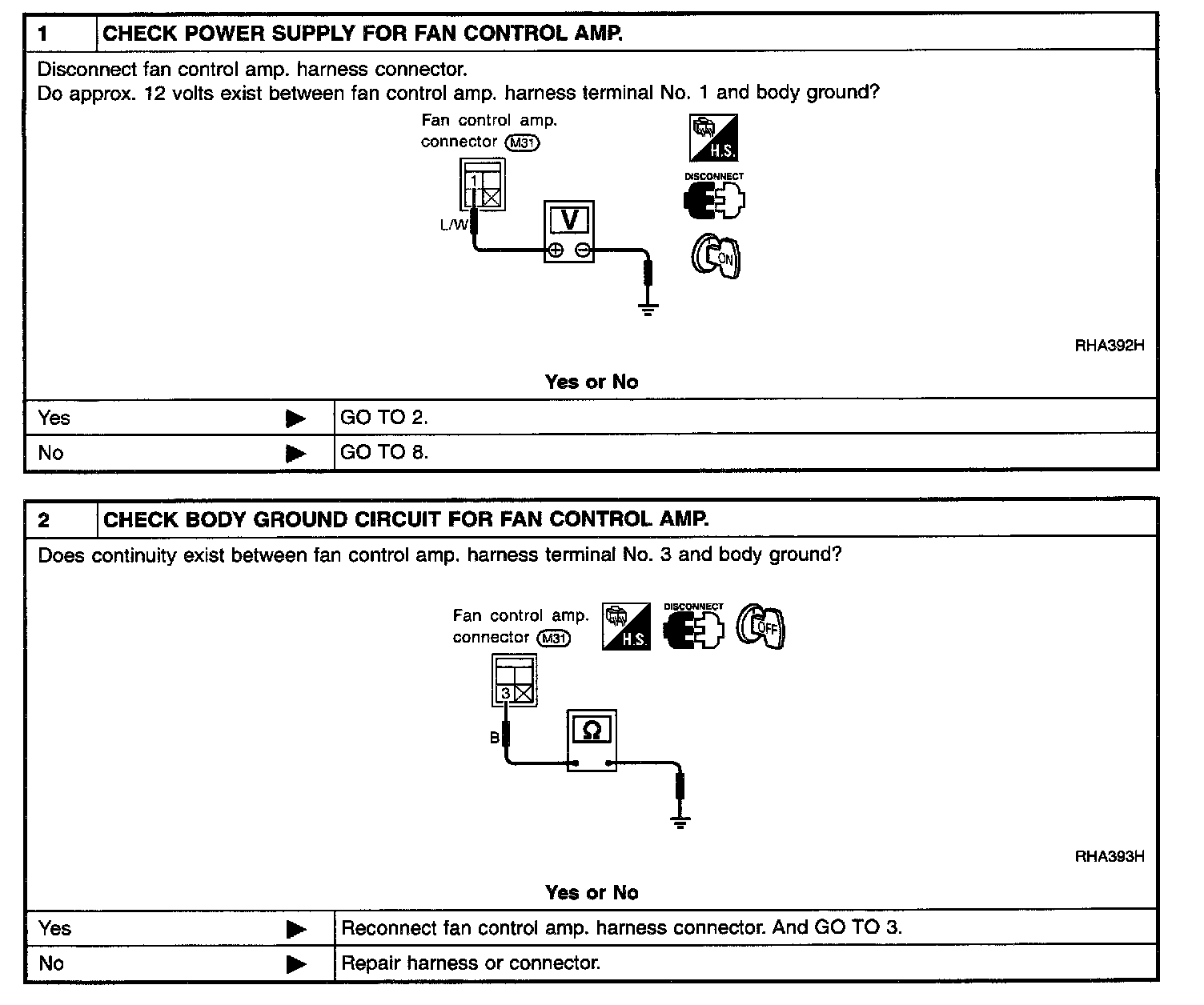

Steps 3 - 4:

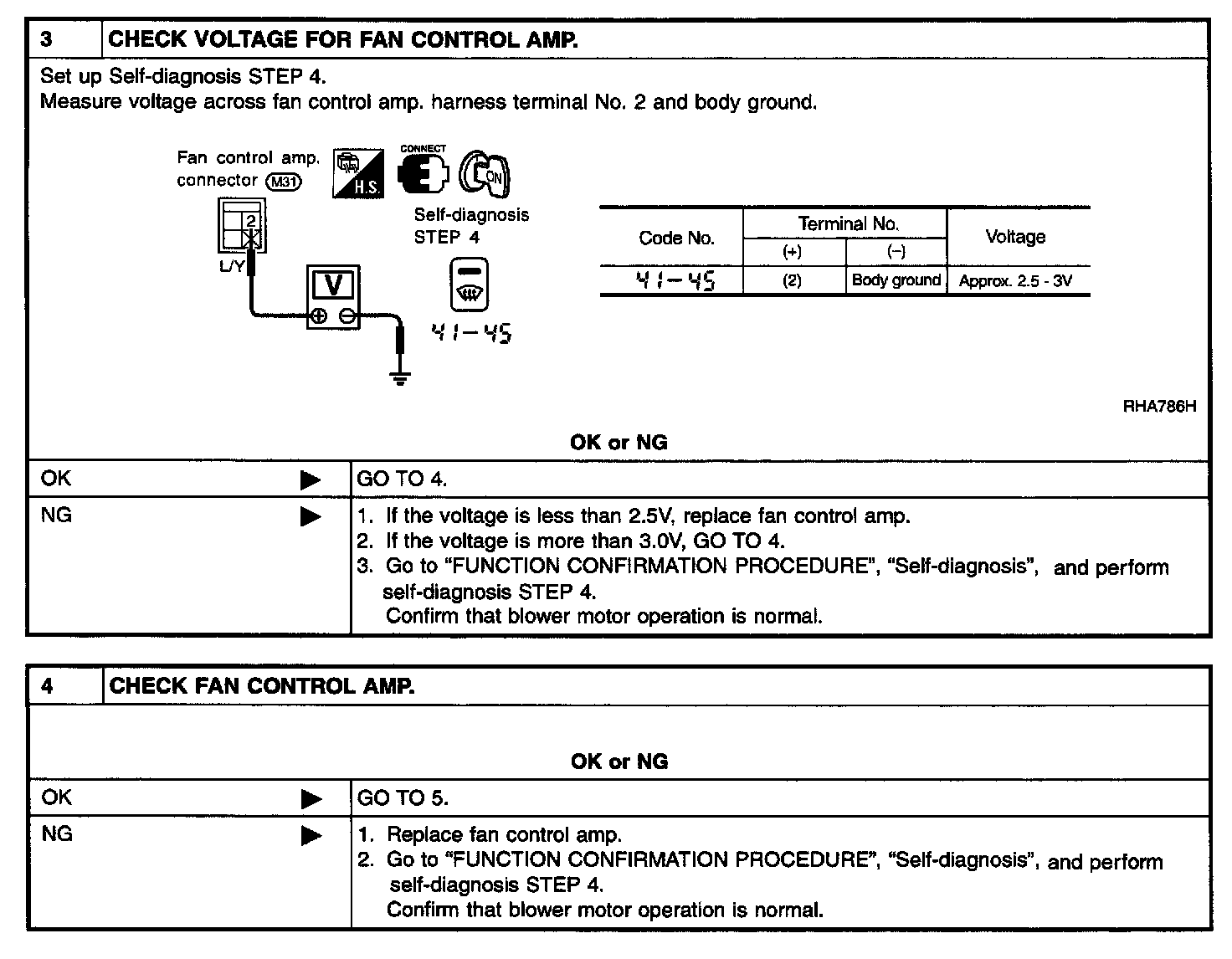

Steps 5 - 6:

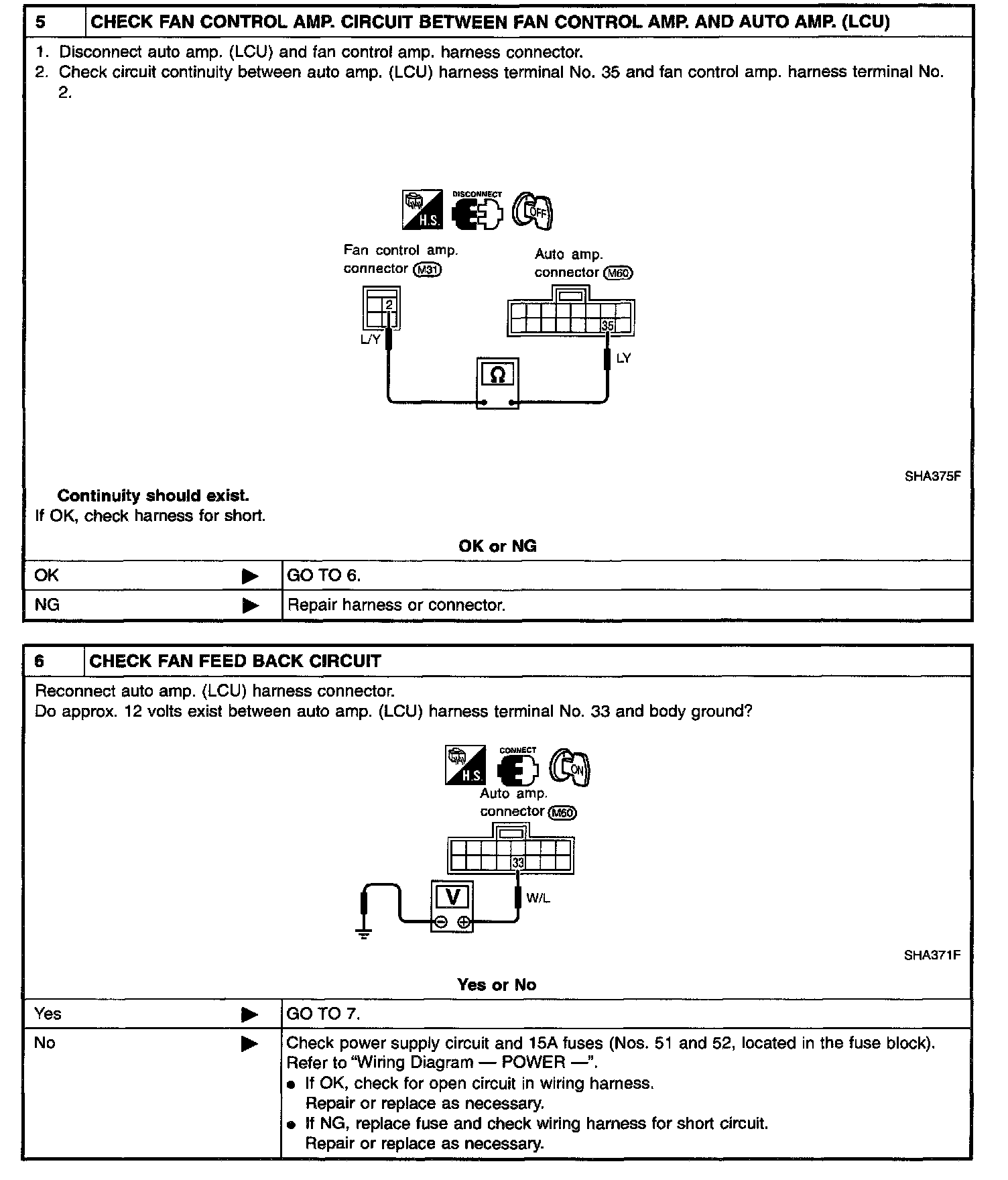

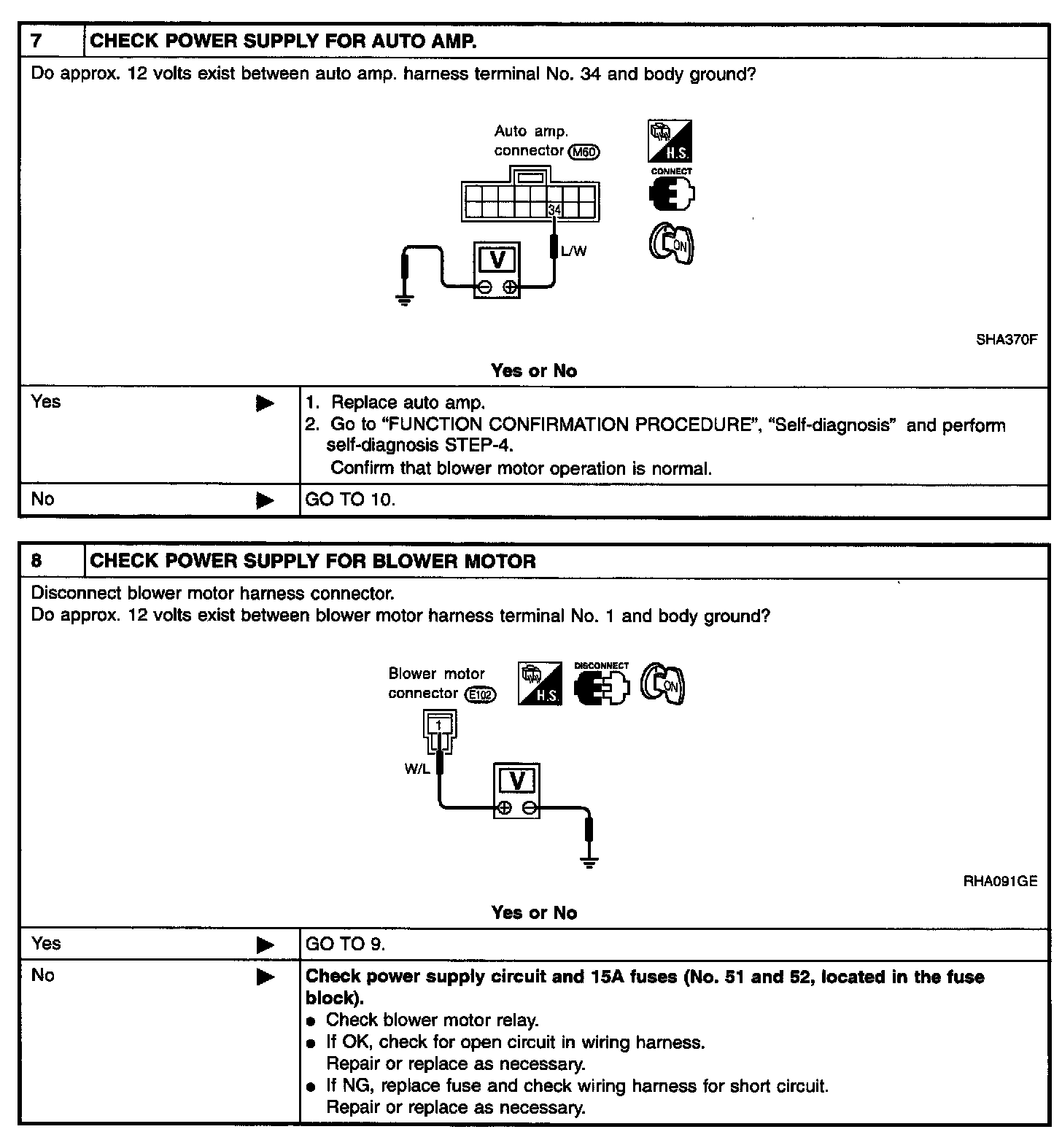

Steps 7 - 8:

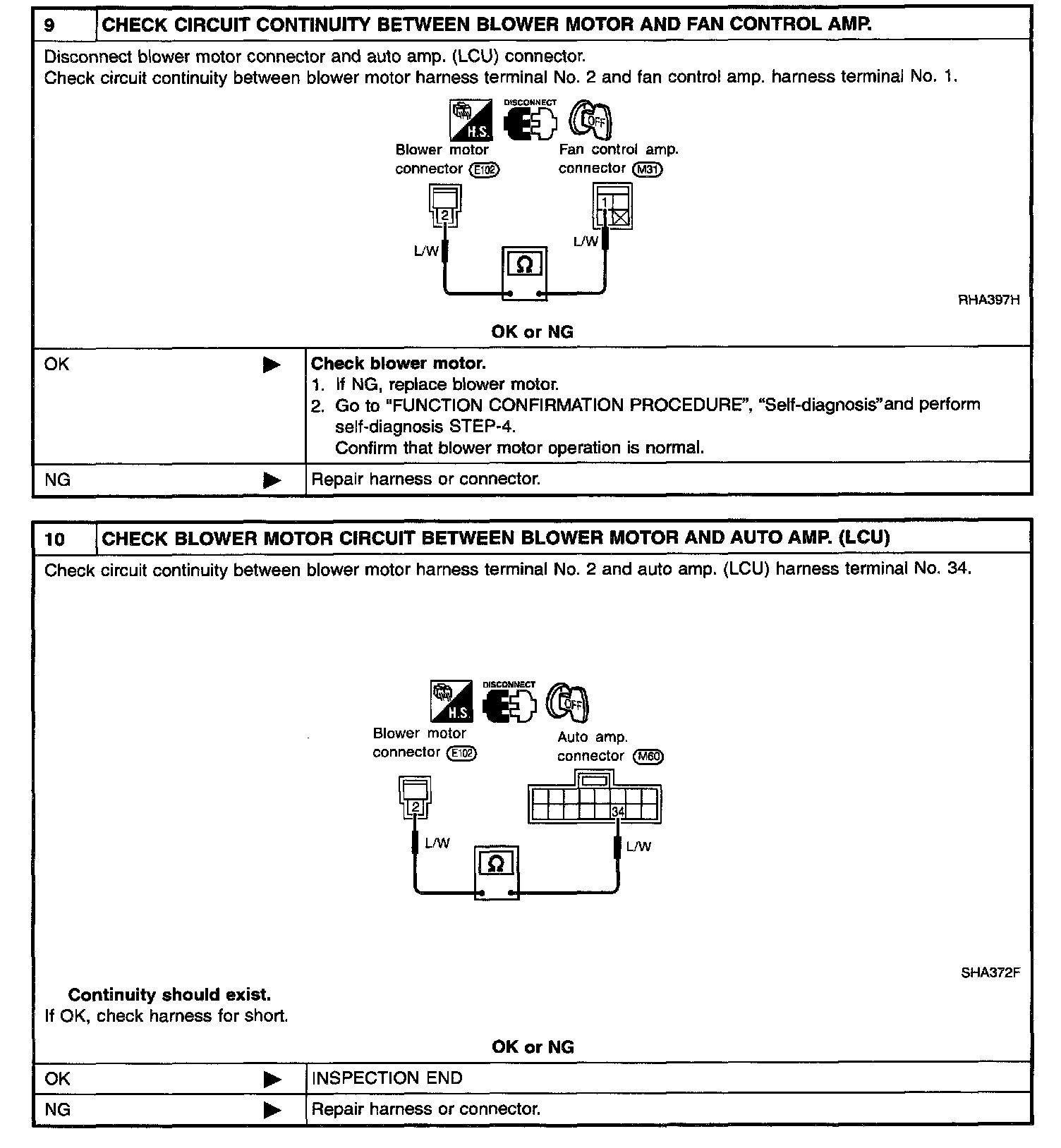

Steps 9 - 10:

DIAGNOSTIC PROCEDURE

SYMPTOM: Blower motor operation is malfunctioning under starting Fan Speed Control.

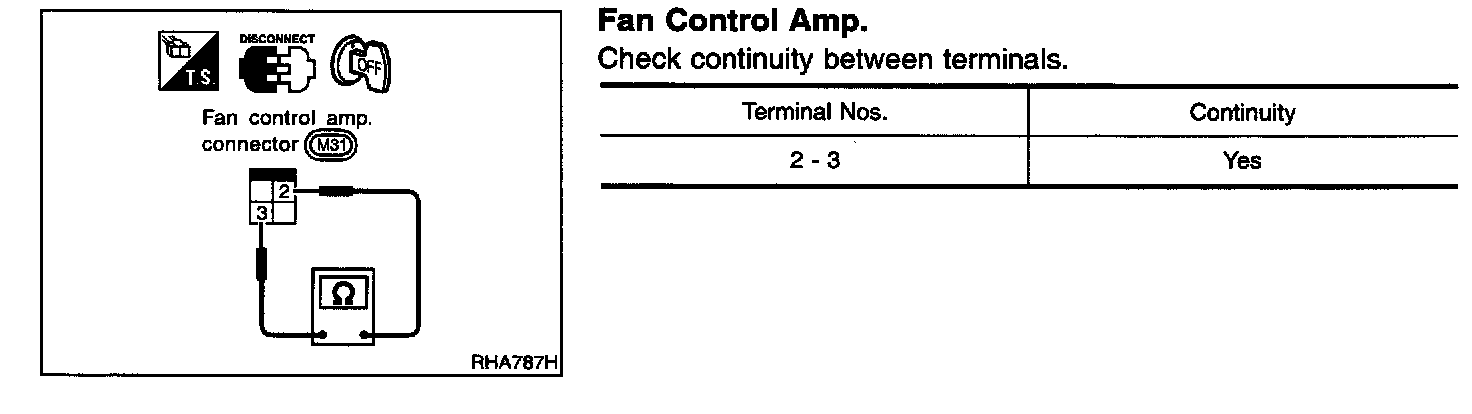

COMPONENT INSPECTION

Blower Motor

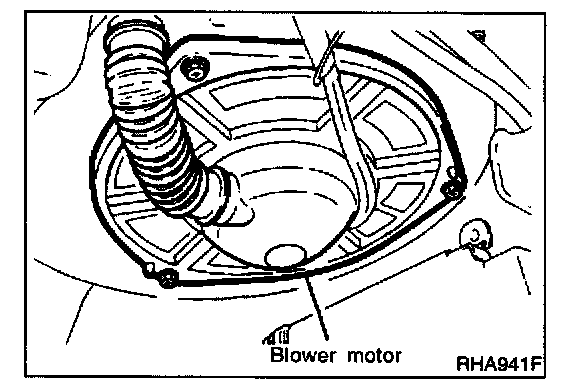

Confirm smooth rotation of the blower motor.
- Ensure that there are no foreign particles inside the intake unit.
