With Manual Climate Control

Inspection Flow:

TROUBLE DIAGNOSIS PROCEDURE FOR INTAKE DOOR

SYMPTOM: Intake door does not change in VENT, B/L or FOOT mode.

Step 1:

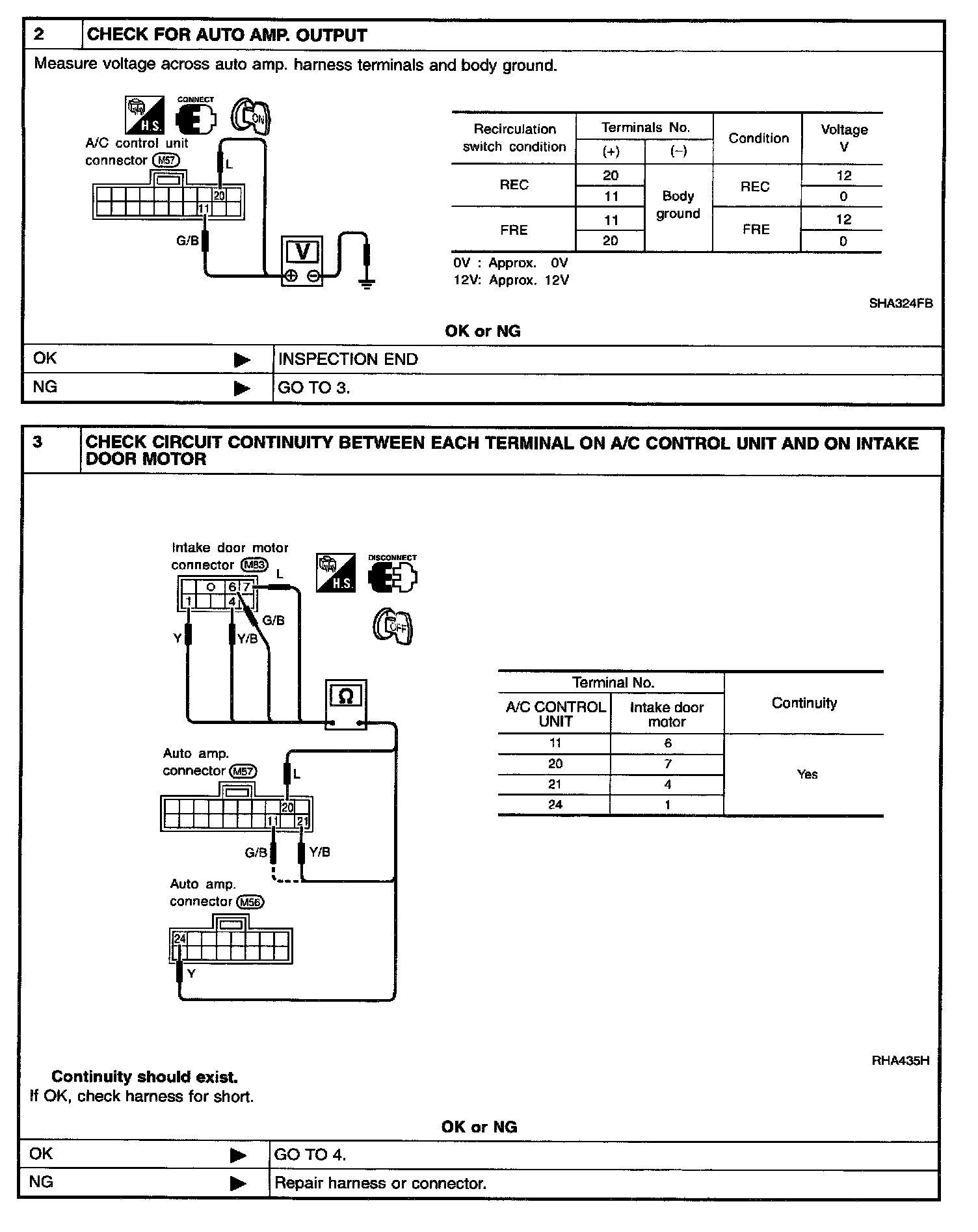

Steps 2 - 3:

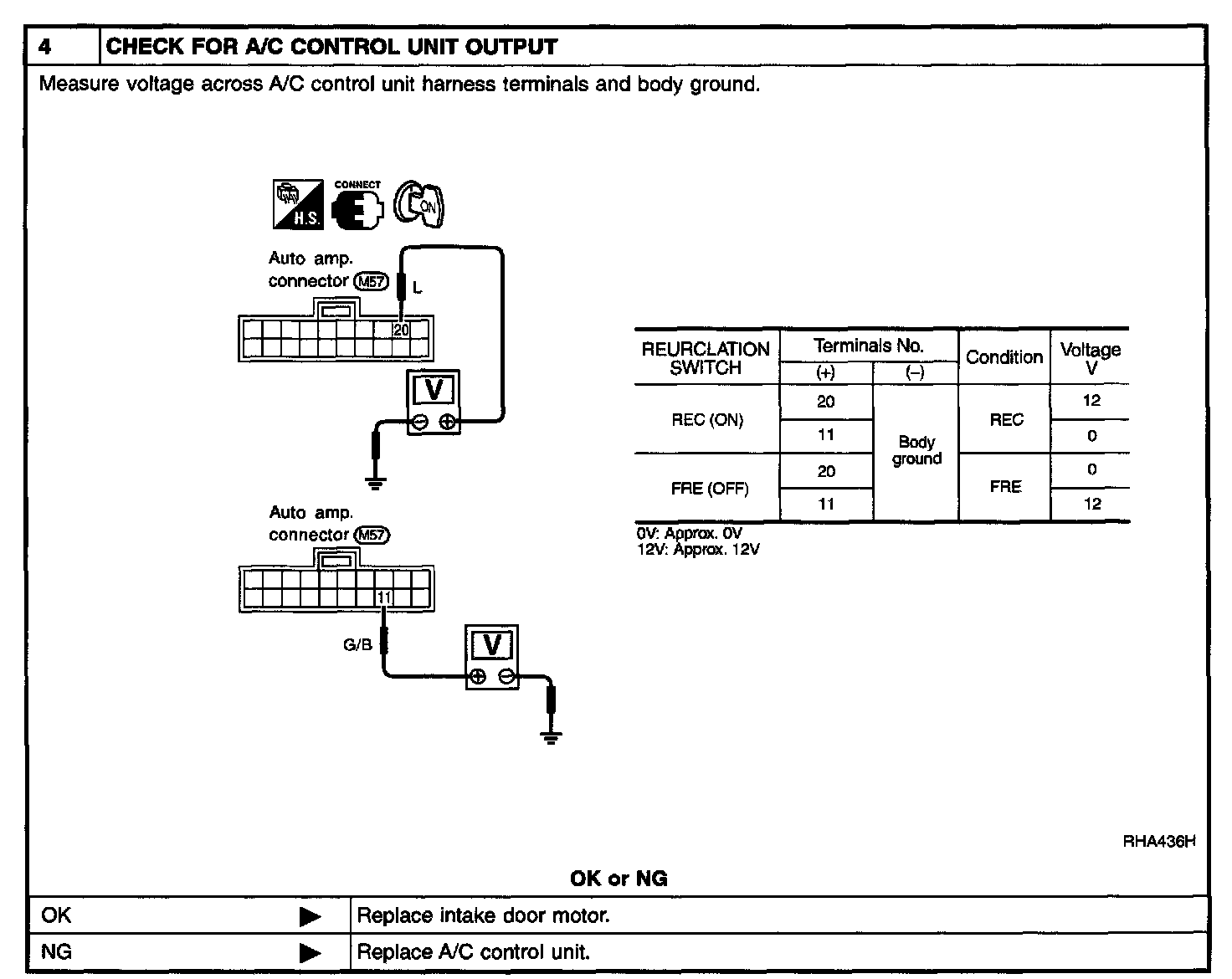

Step 4:

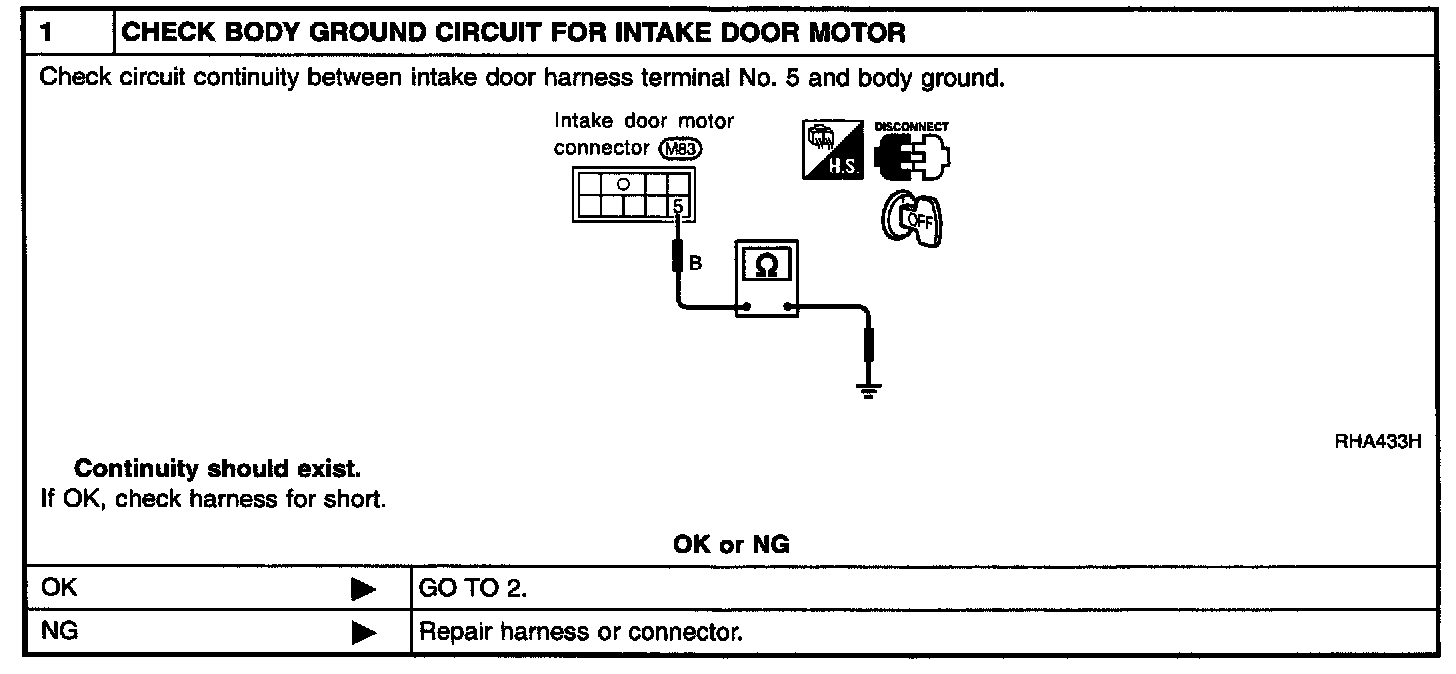

DIAGNOSTIC PROCEDURE

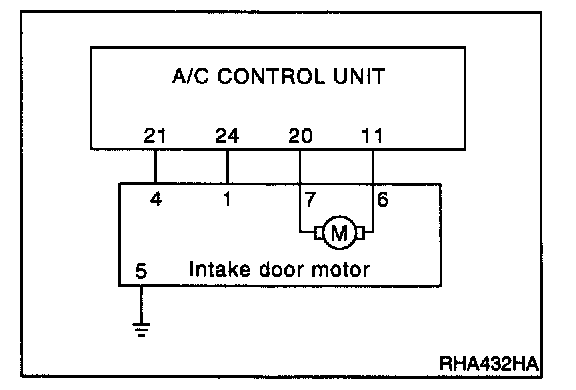

SYMPTOM: Intake door motor does not operate normally.
