Mode Door

Inspection Flow:

TROUBLE DIAGNOSIS PROCEDURE FOR MODE DOOR

SYMPTOM: Air outlet does not change.

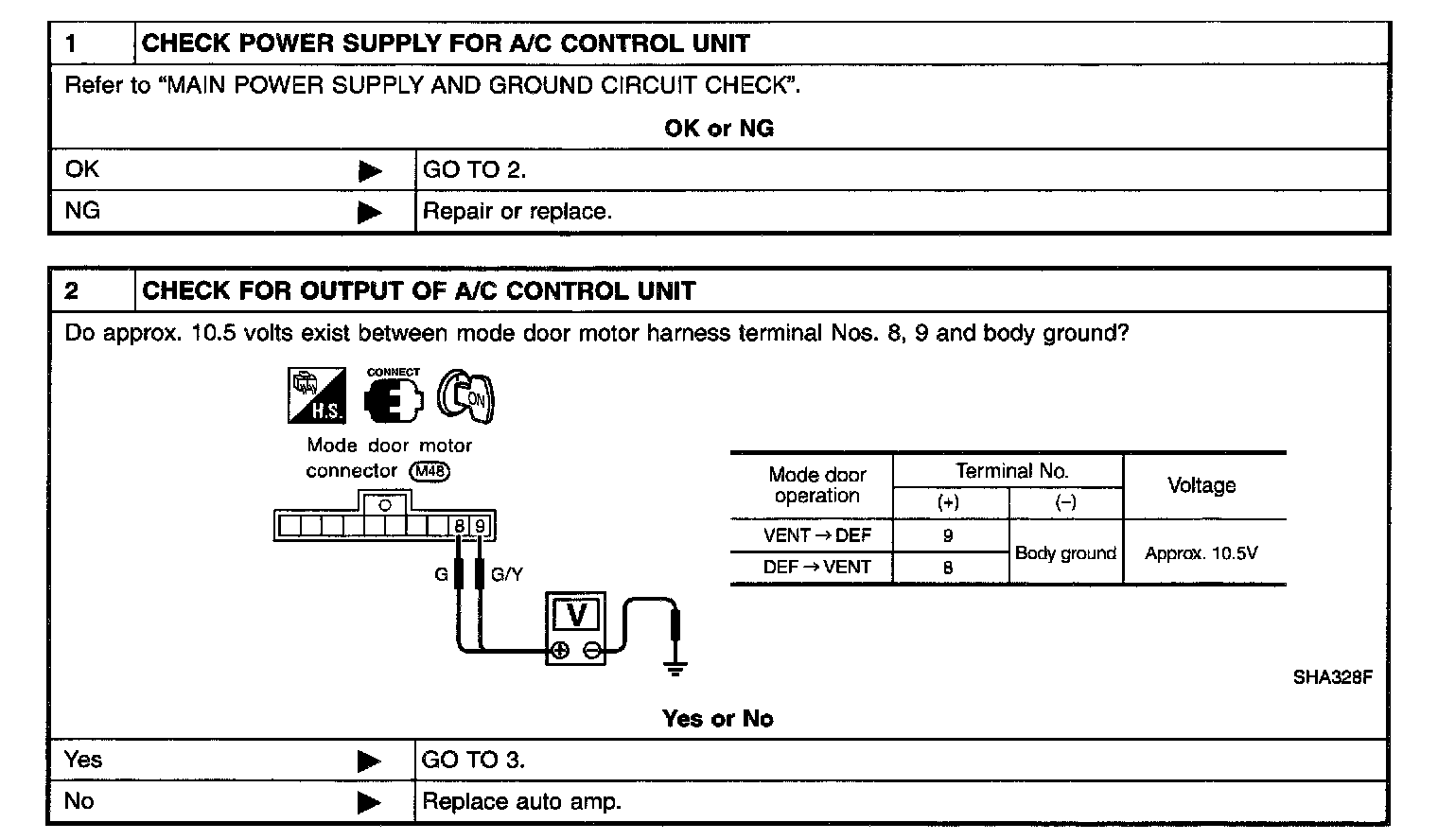

Steps 1 - 2:

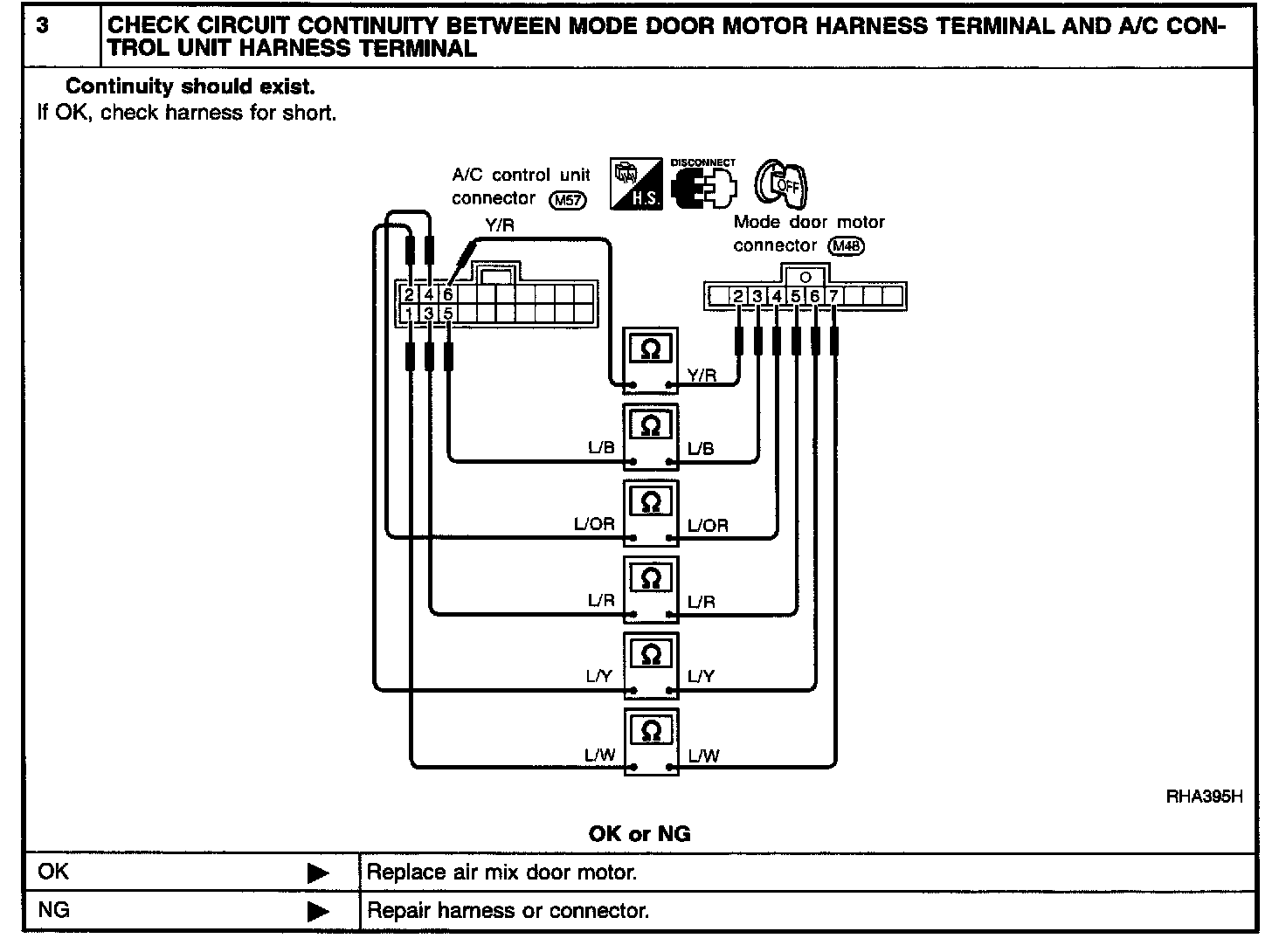

Step 3:

DIAGNOSTIC PROCEDURE

SYMPTOM: Mode door motor does not operate normally.
