Air Mix Door

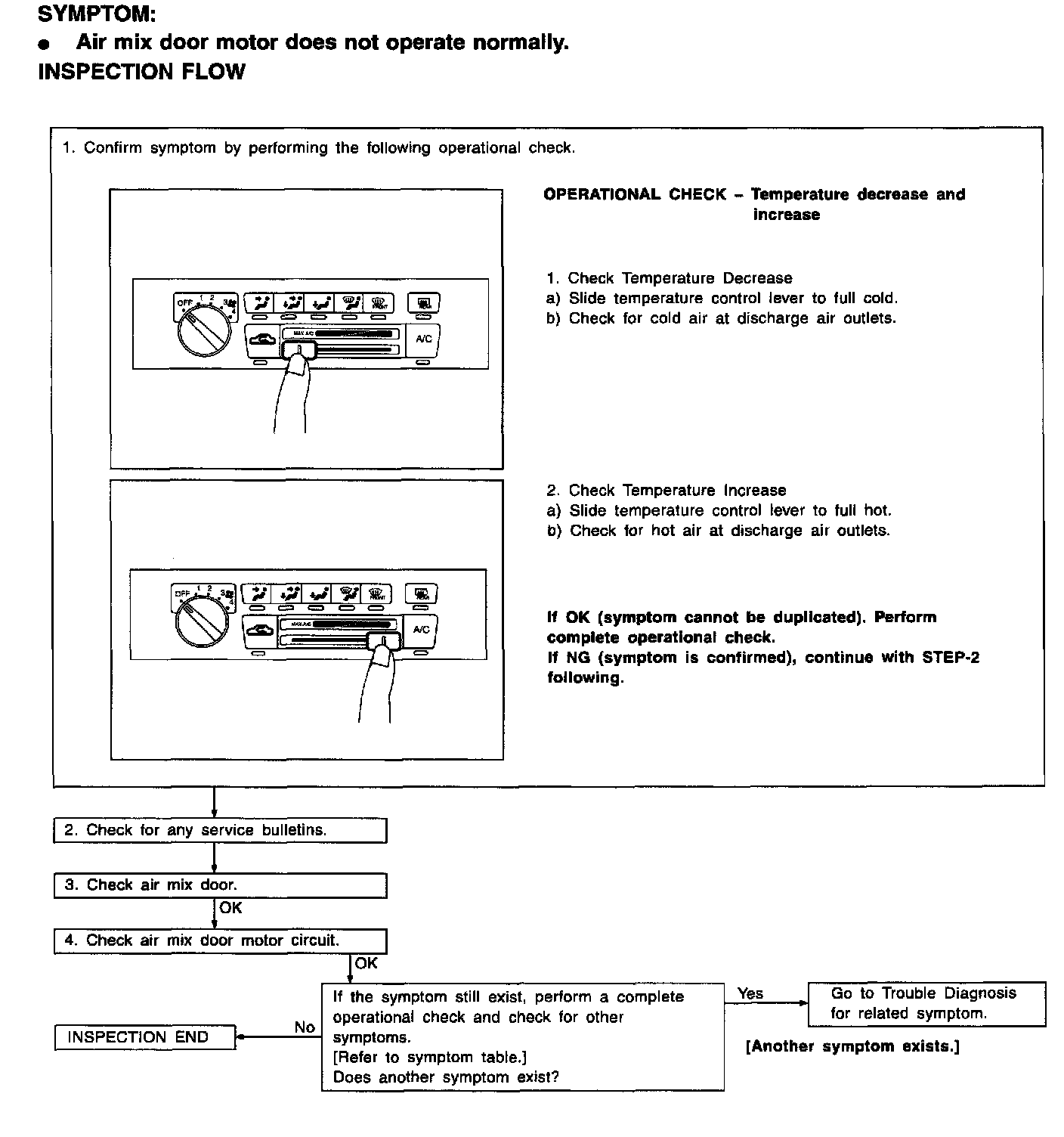

Inspection Flow:

TROUBLE DIAGNOSIS PROCEDURE FOR AIR MIX DOOR MOTOR

SYMPTOM: Air mix door motor does not operate normally.

CONTROL SYSTEM INPUT COMPONENT







PBR

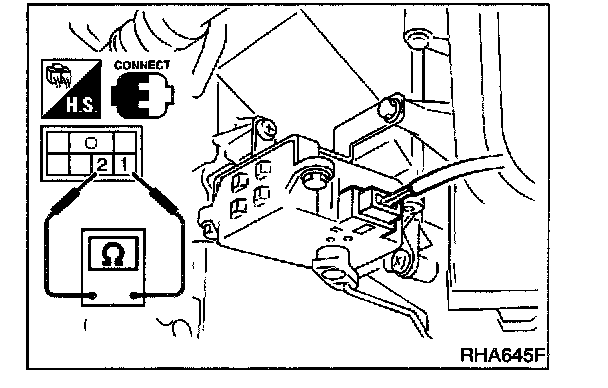

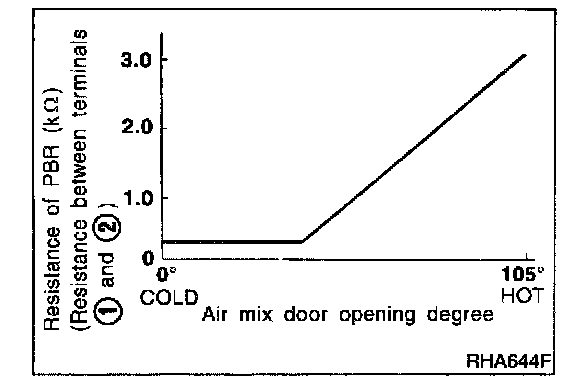

Measure resistance between terminals 1 and 2 at vehicle harness side.

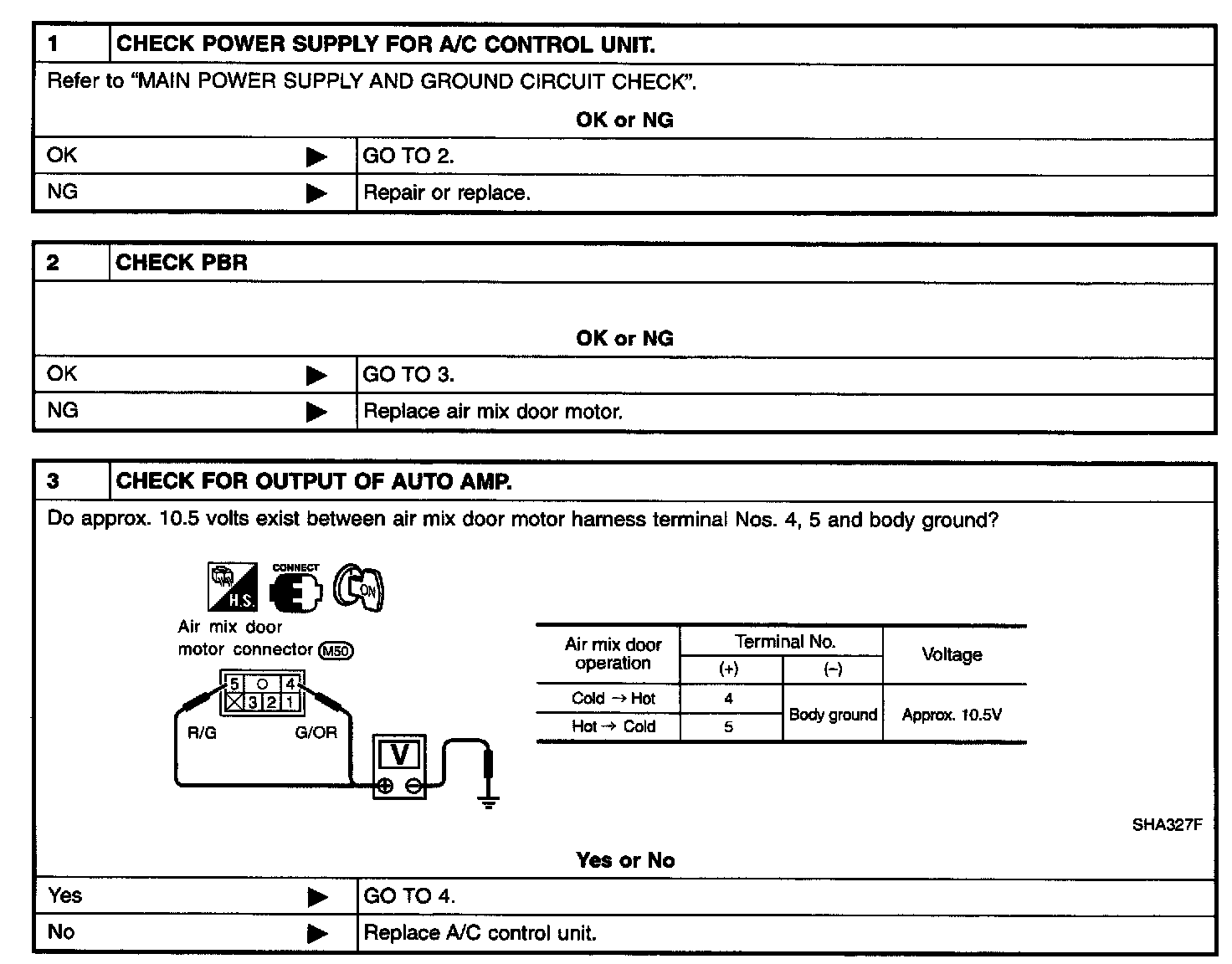

Steps 1 - 3:

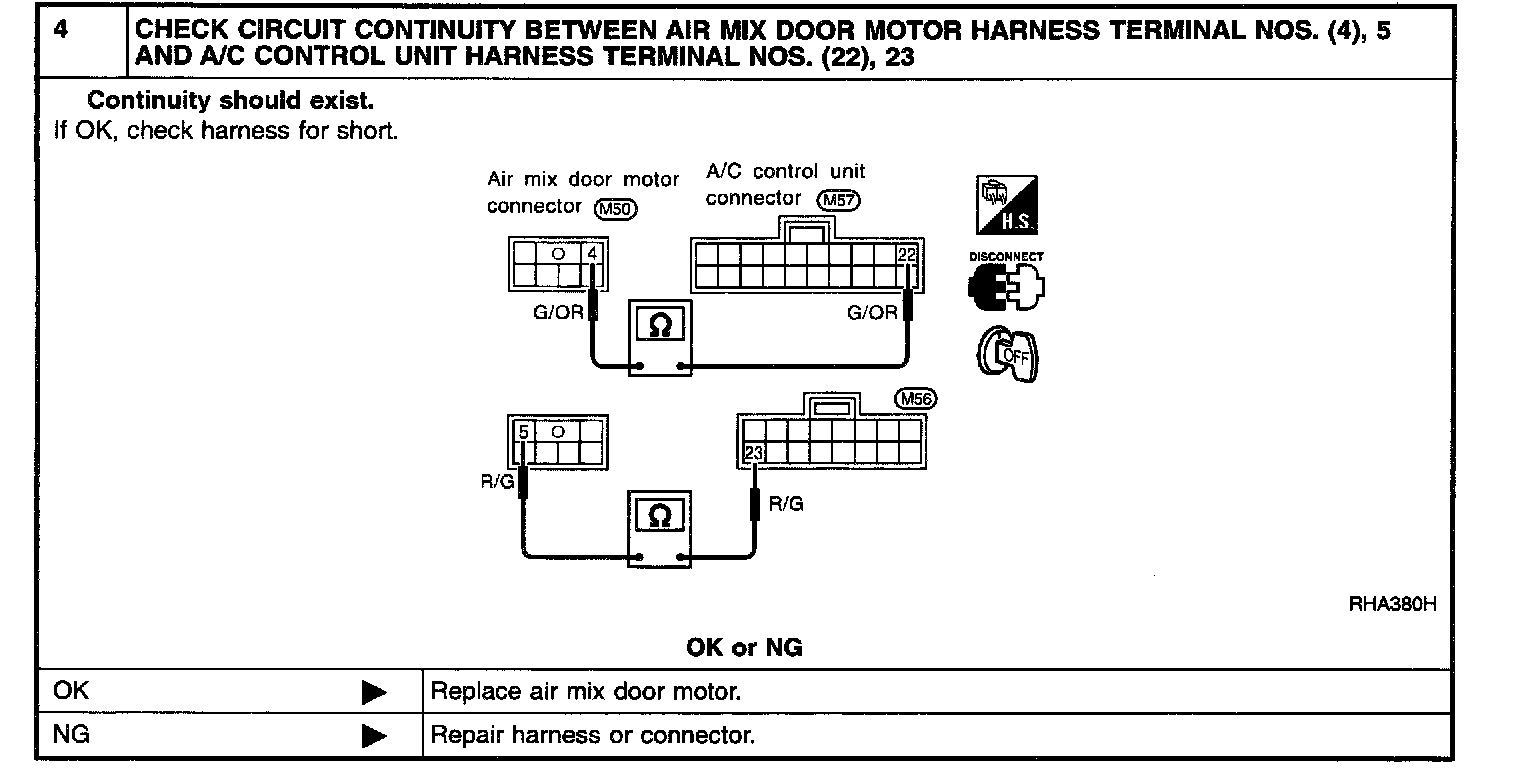

Step 4:

DIAGNOSTIC PROCEDURE

SYMPTOM: Air mix door motor does not operate normally.
