Mode Door

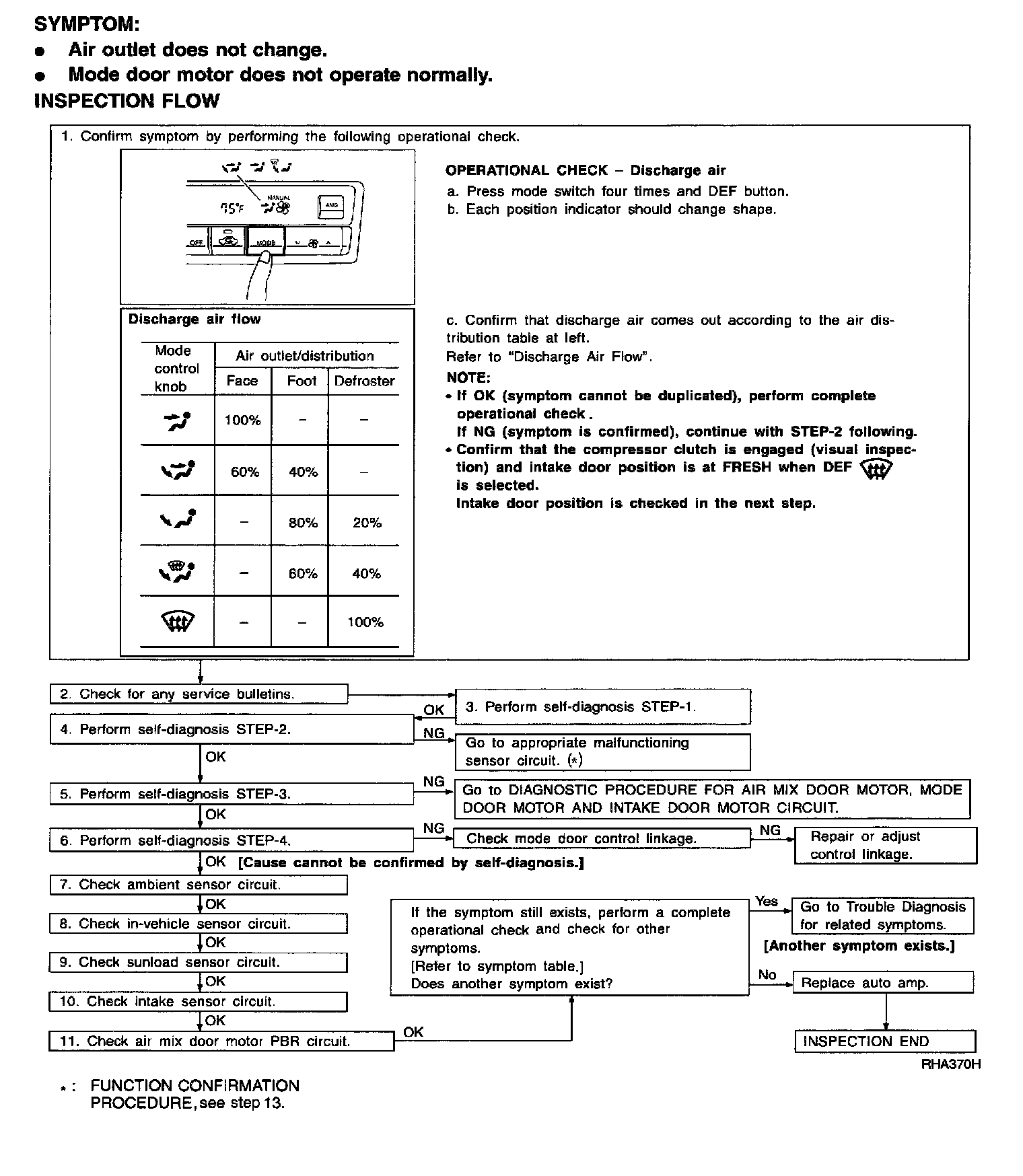

Inspection Flow:




TROUBLE DIAGNOSIS PROCEDURE FOR MODE DOOR MOTOR (LAN)

SYMPTOM:
- Air outlet does not change.
- Mode door motor does not operate normally.

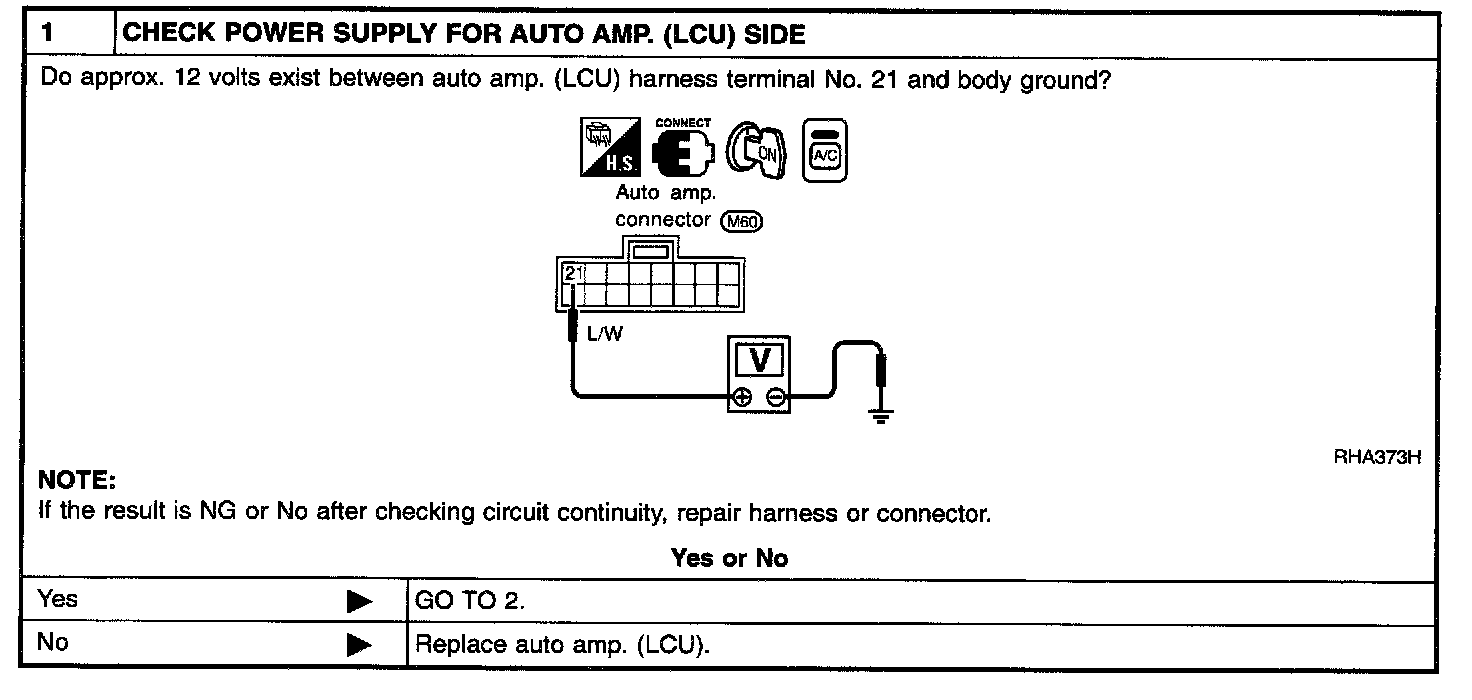

Step 1:

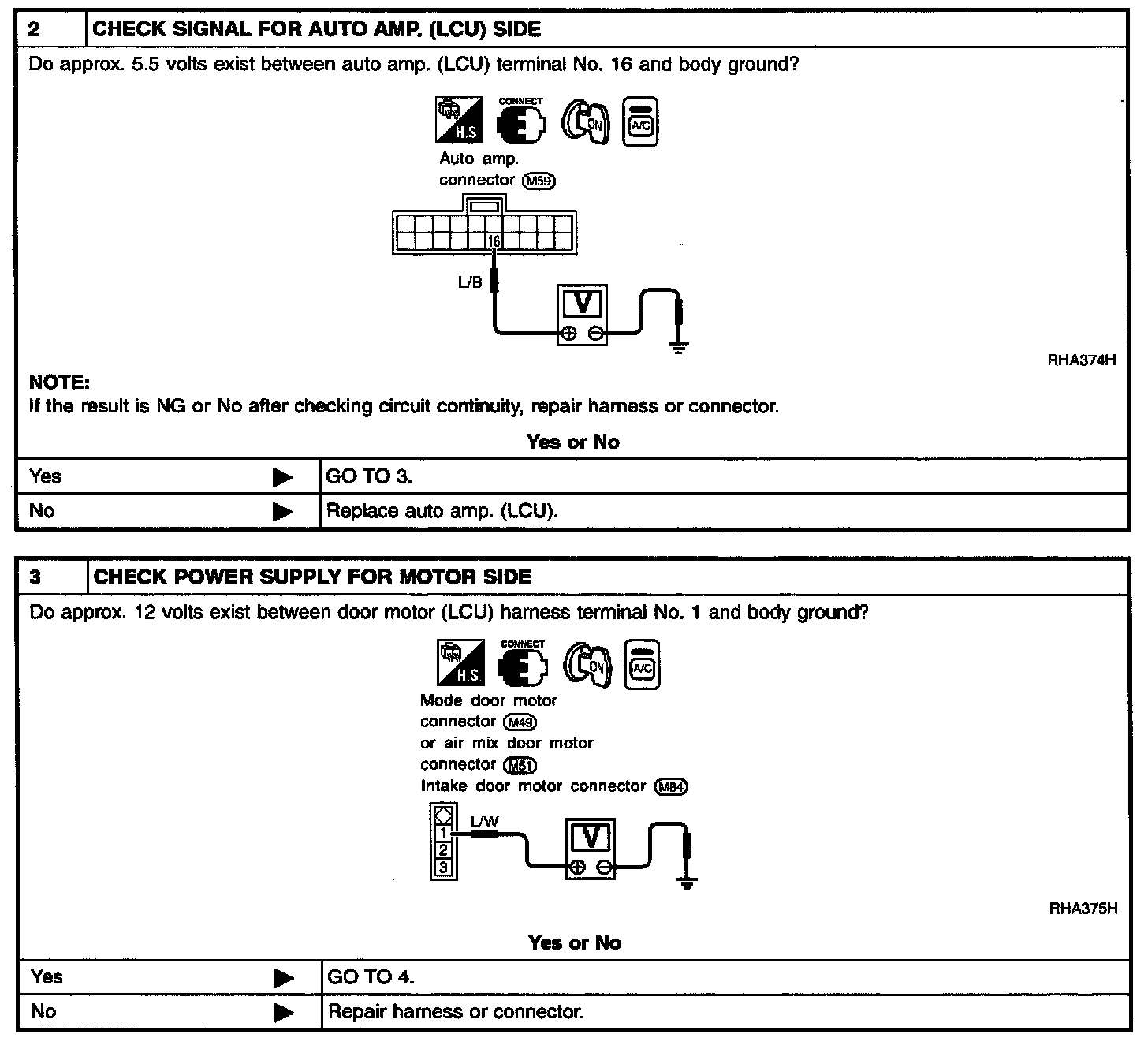

Steps 2 - 3:

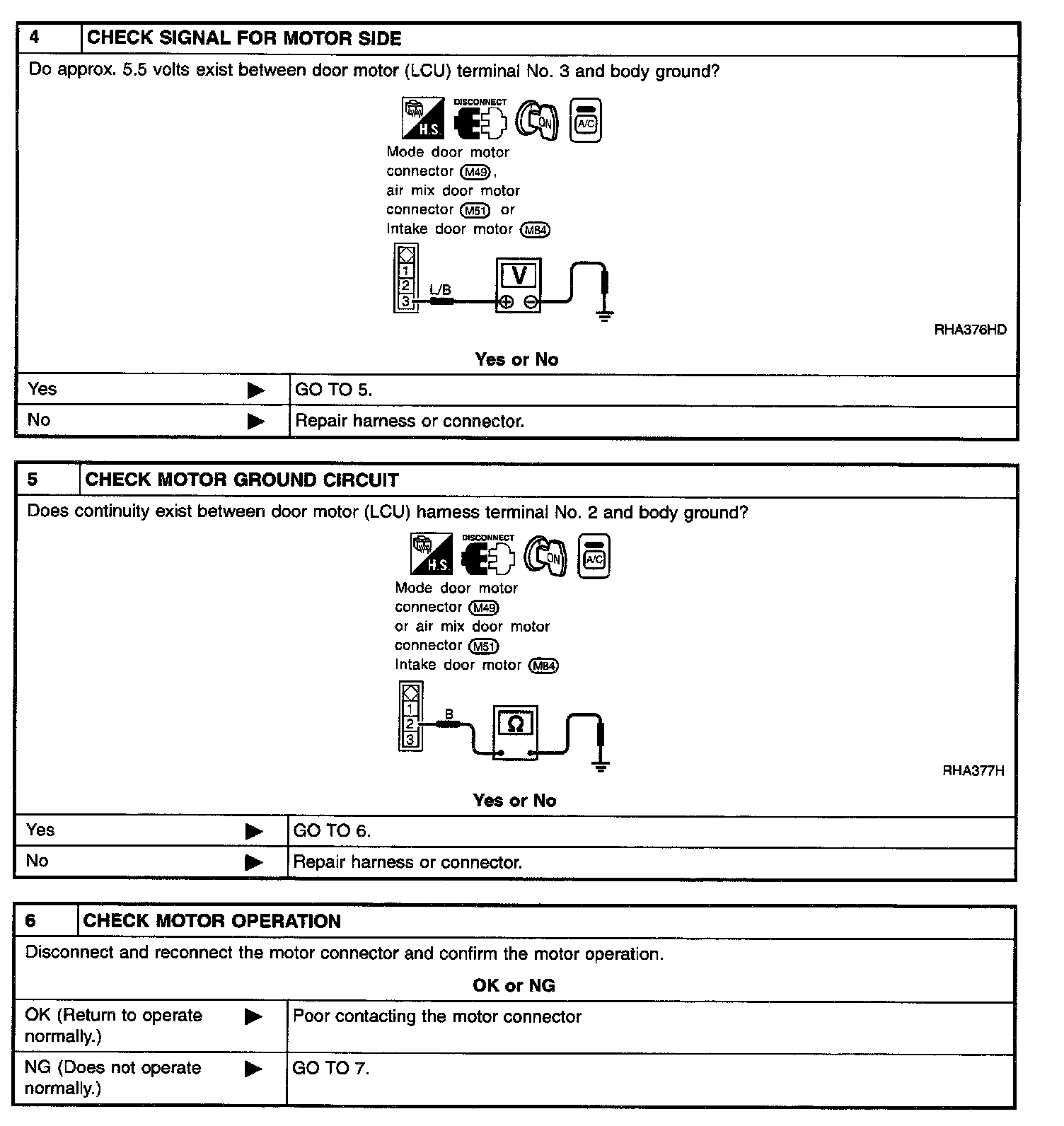

Steps 4 - 6:

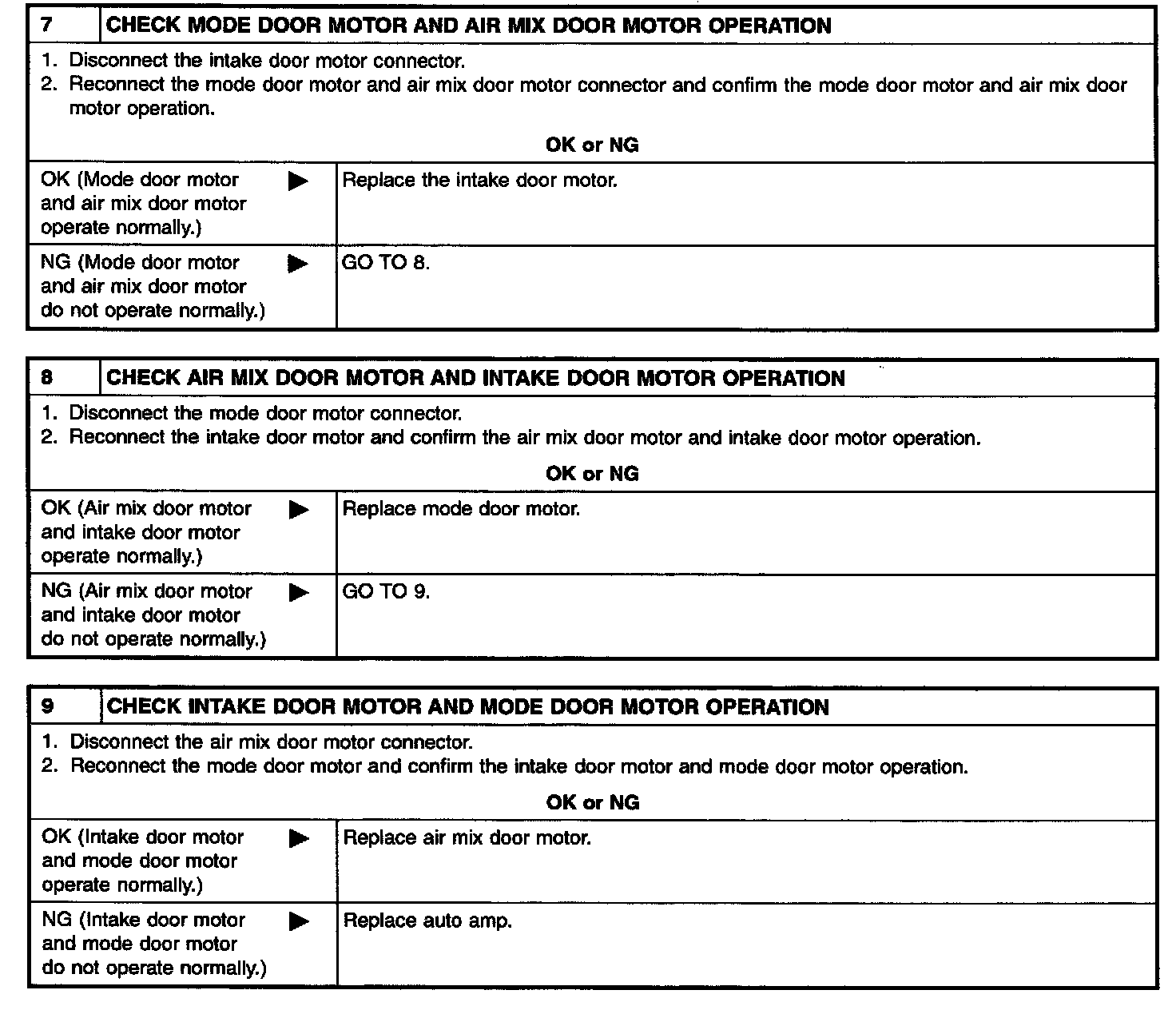

Steps 7 - 9:

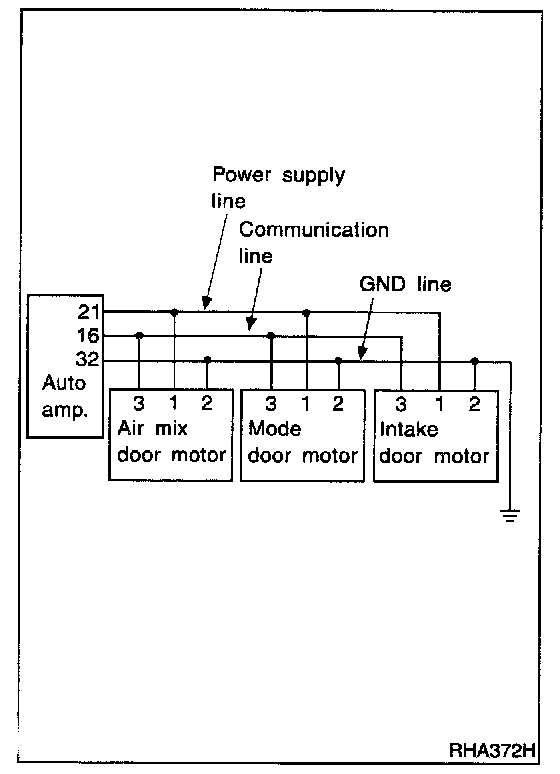

DIAGNOSTIC PROCEDURE FOR AIR MIX DOOR MOTOR, MODE DOOR MOTOR AND INTAKE DOOR MOTOR CIRCUIT

SYMPTOM: Air mix door motor, mode door motor and/or intake door motor does not operate normally.
