With Manual Climate Control

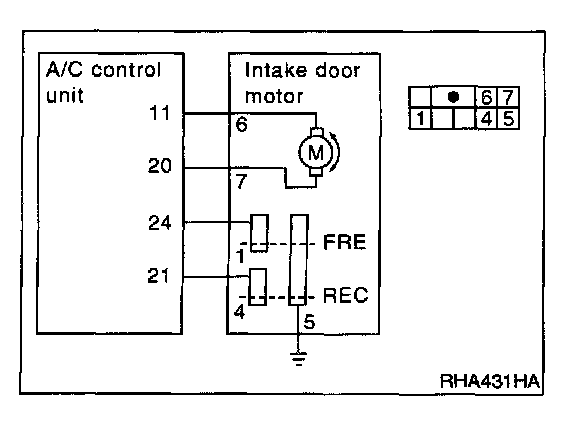

Intake Door Motor

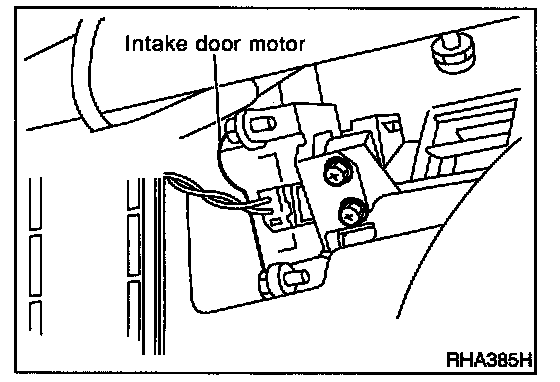

The intake door motor is installed on the blower and intake unit.

Using a link it opens and closes the intake door.

When RECIRCULATION switch is at REC (except DEF and D/F modes), the A/C control unit sets the intake door at the "RECIRCULATION" position.

RECIRCULATION switch is canceled by MODE switch in DEF and D/F modes.
