With Automatic Climate Control

CONTROL LINKAGE ADJUSTMENT

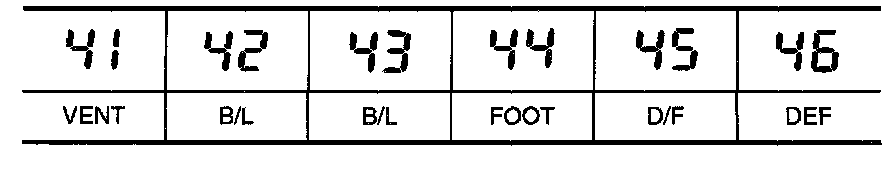

Mode Door

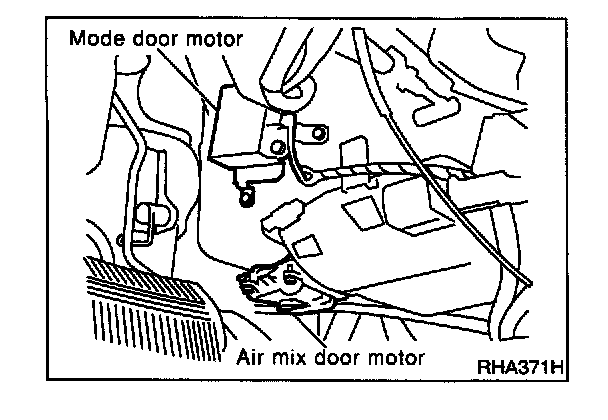

1. Install mode door motor on heater unit and connect it to main harness.
2. Set up code No. in Self-diagnosis STEP 4.
3. Move side link by hand and hold mode door in DEF mode.
4. Attach mode door motor rod to side link rod holder.
5. Make sure mode door operates properly when changing from code No. 41 to 46 by pushing DEF switch.

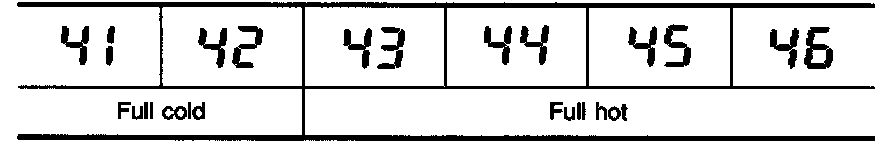

Air Mix Door




1. Install air mix door motor on heater unit and connect it to main harness.
2. Set up code No.41 in Self-diagnosis STEP 4.
3. Move air mix door lever by hand and hold it in full cold position.

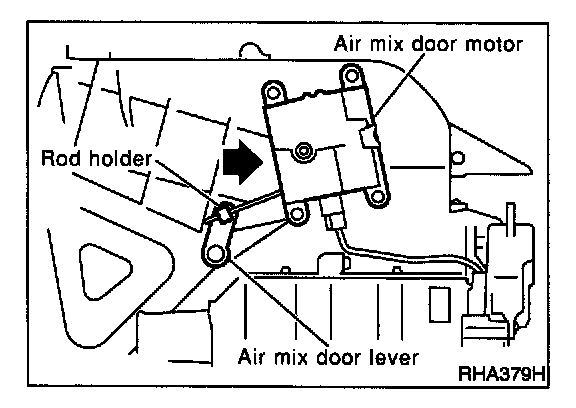

4. Attach air mix door lever to rod holder.




5. Make sure air mix door operates properly when changing from code No.41 to No.46 by pushing DEF switch.

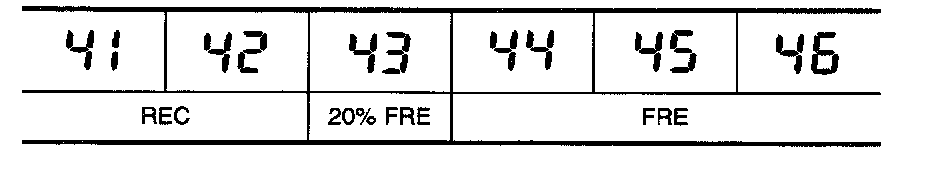

Intake Door




1. Install intake door motor on intake unit and connect it to main harness.
2. Set up code No. 41 in Self-diagnosis STEP 4.




3. Make sure intake door operates properly when changing from code No. 41 to 46 by pushing DEF switch.
