With Manual Climate Control

REMOVAL
1. Discharge the A/C system.
2. Disconnect the two refrigerant lines from condenser. Cap the A/C lines to prevent moisture from entering the system.
3. Remove the radiator top mount.
4. Remove the condenser assembly.

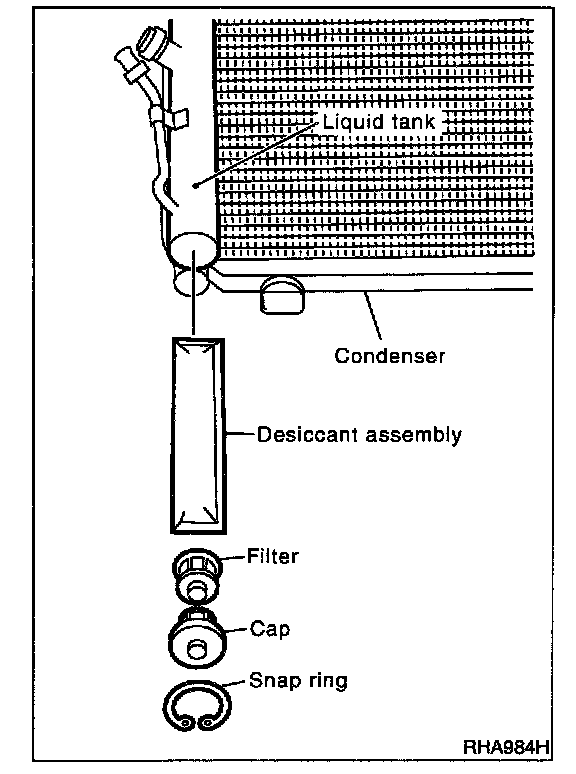

5. Remove the snap ring, cap, O-ring, filter and desiccant assembly.

INSTALLATION
Install in reverse order of removal.
Recharge the A/C system.

CAUTION: Always replace used snap ring, cap, O-ring, filter and desiccant assembly.
