Rear Crankshaft Main Bearing Seal: Service and Repair

REAR OIL SEAL
1. Remove transaxle.
2. Remove flywheel or drive plate.
3. Remove oil pan.





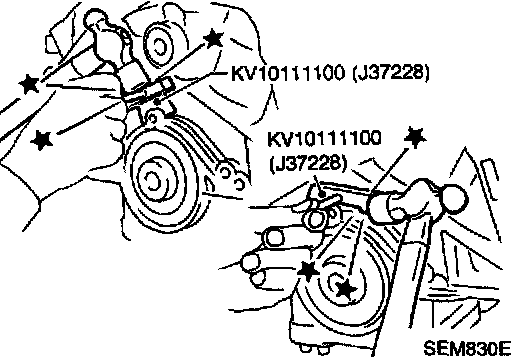

4. Remove rear oil seal retainer.

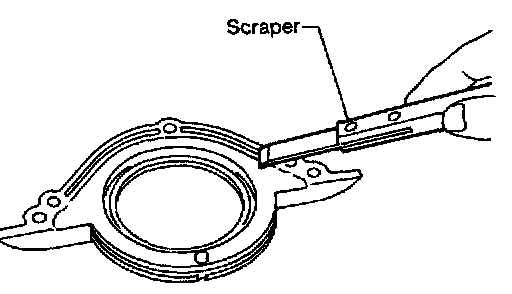

5. Remove old liquid gasket using scraper.
^ Remove old liquid gasket from the bolt hole and thread.

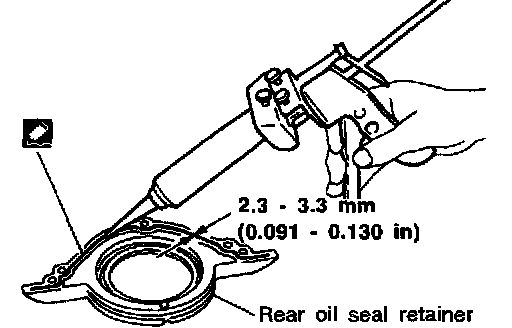

6. Apply liquid gasket to rear oil seal retainer.

OIL SEAL INSTALLATION DIRECTION





^ Install new oil seal in the direction shown in the figure.
