Initial Inspection and Diagnostic Overview

INSPECTION

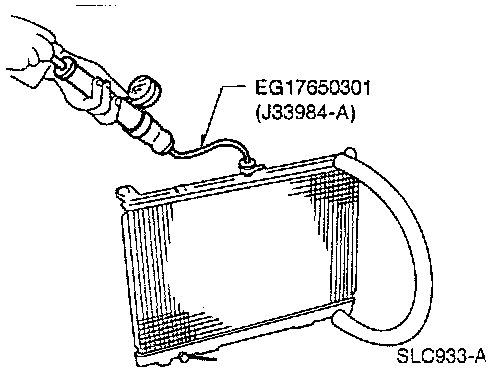

Apply pressure with Tool.
Specified pressure value: 157 kPa (1.6 kg/cm2, 23 psi)

WARNING: To prevent the risk of the hose coming undone while under pressure, securely fasten it down with a hose clamp. Attach a hose to the oil cooler as well. (A/T models only)
