Variable Induction Control Valve
Variable Induction Control Valve

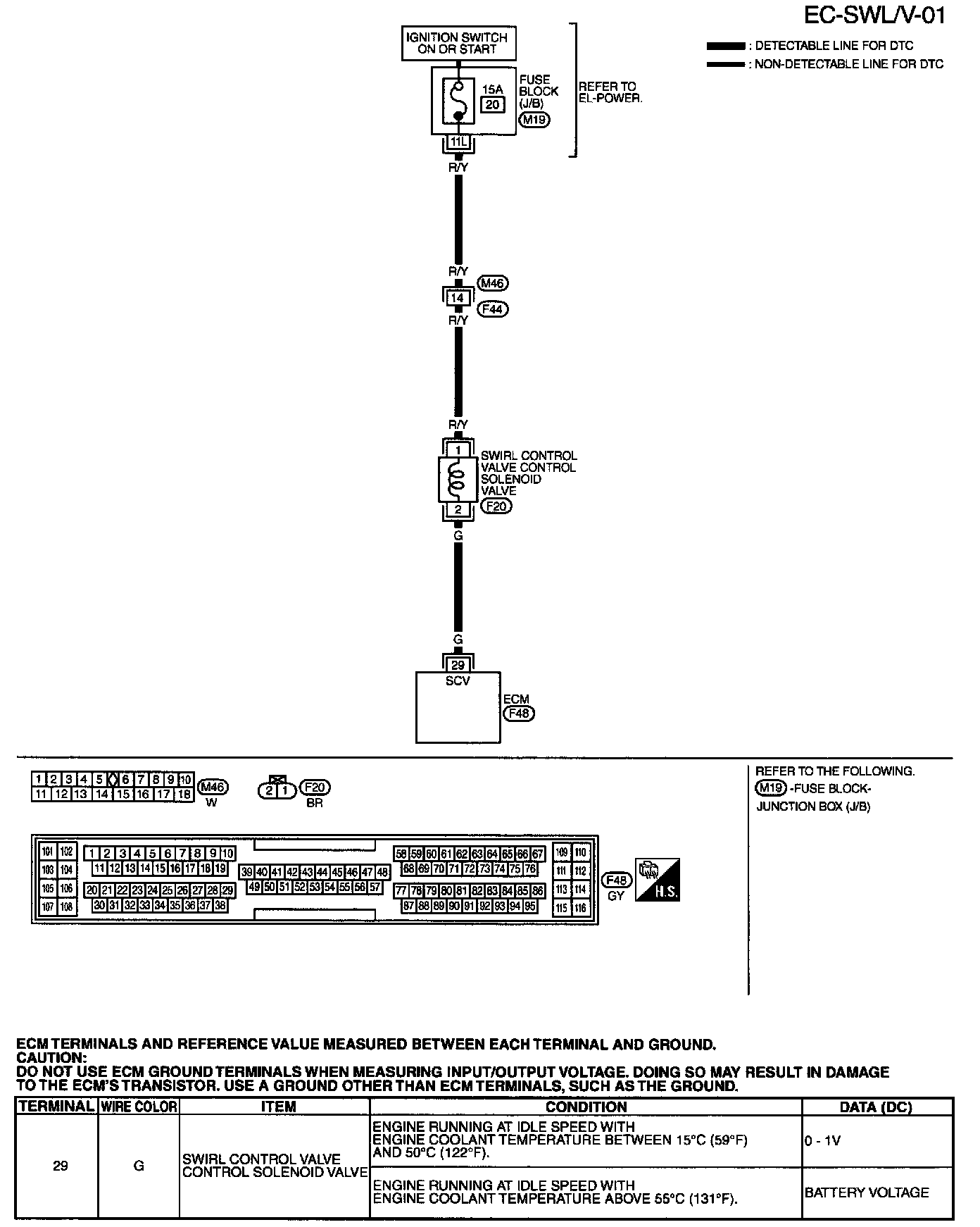

EC-SWL/V-01:
Swirl Control Valve Control Solenoid Valve

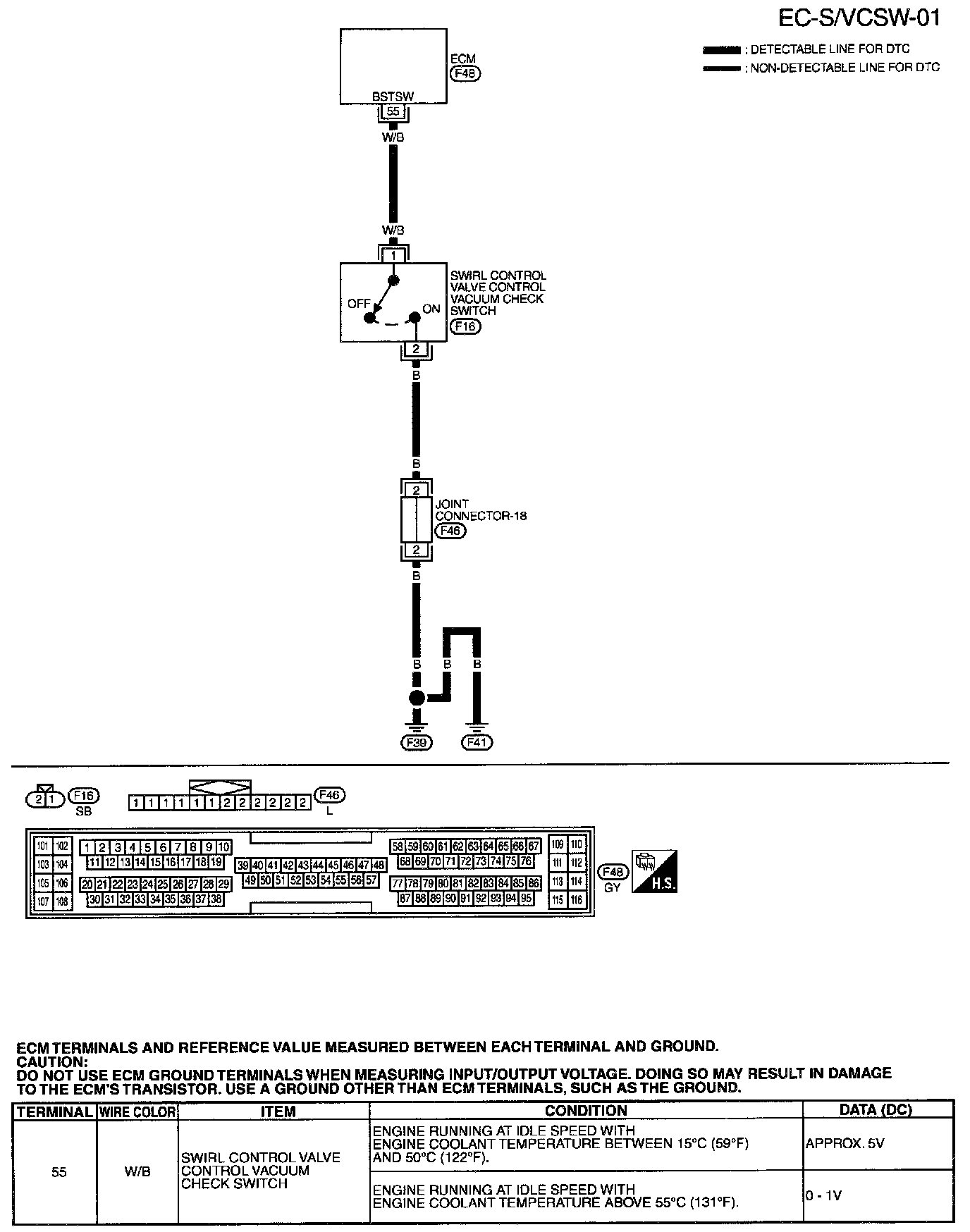

EC-S/VCSW-01:
Swirl Control Valve Control Vacuum Check Switch
